Philips 753A

Radiotechniek album

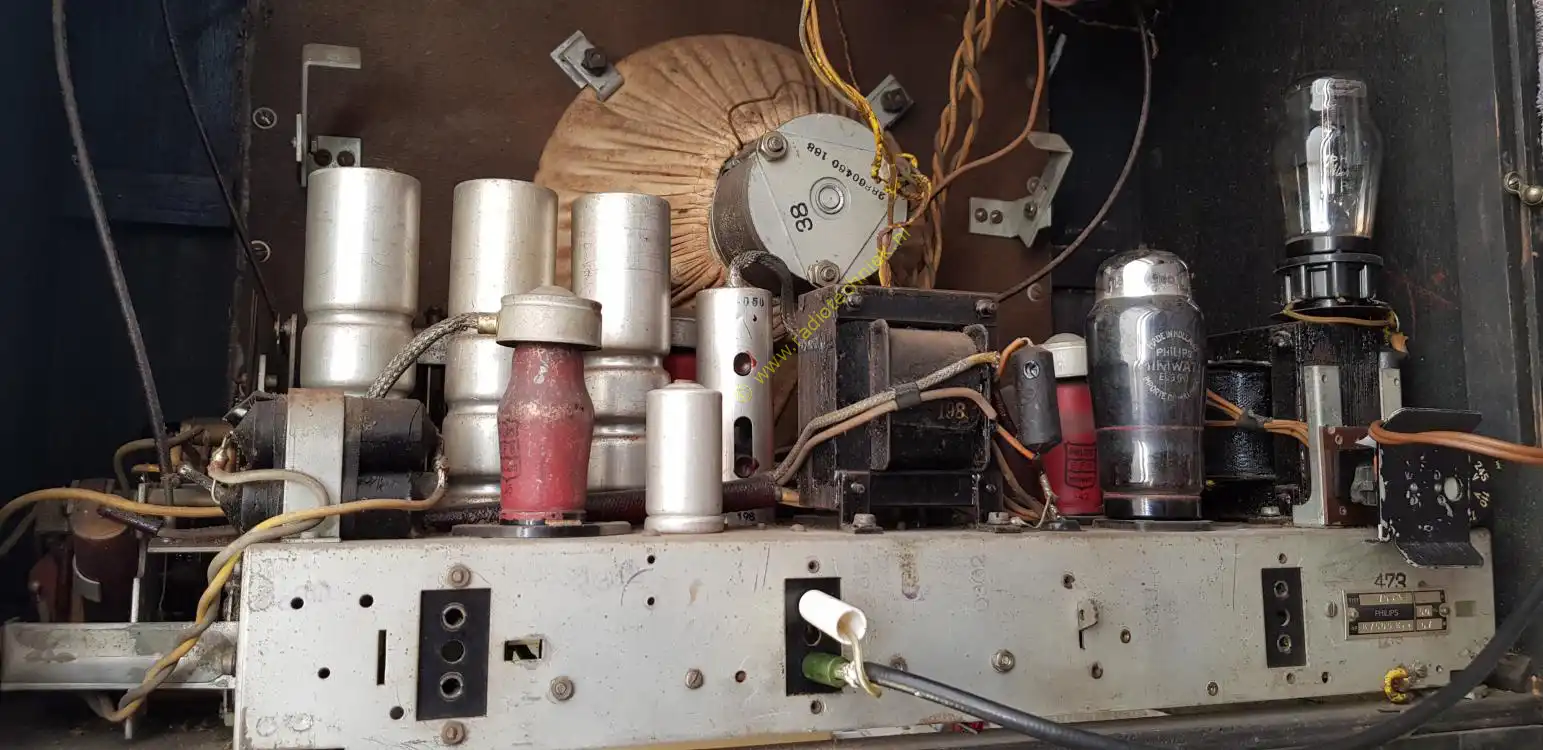

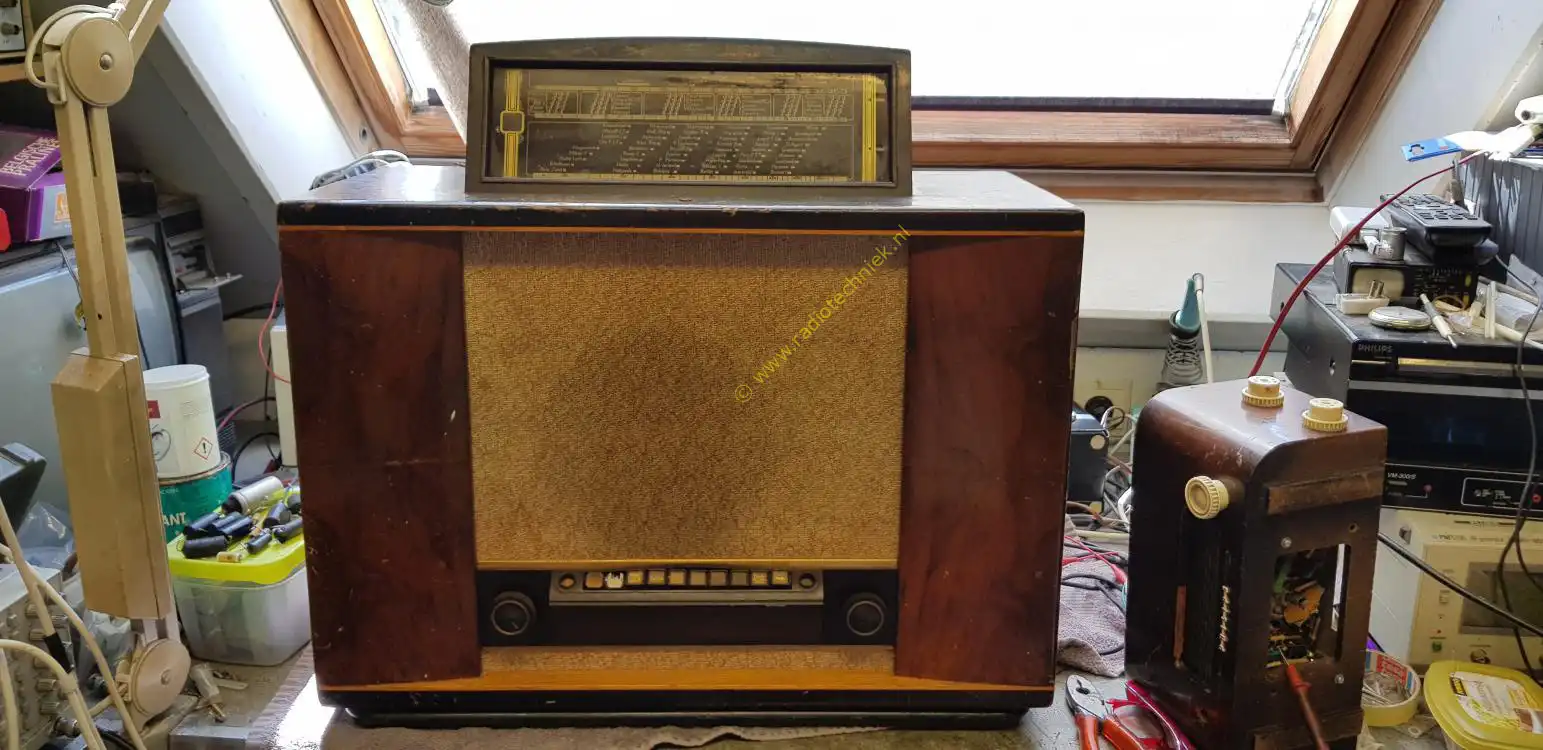

Philips 753A foto 1

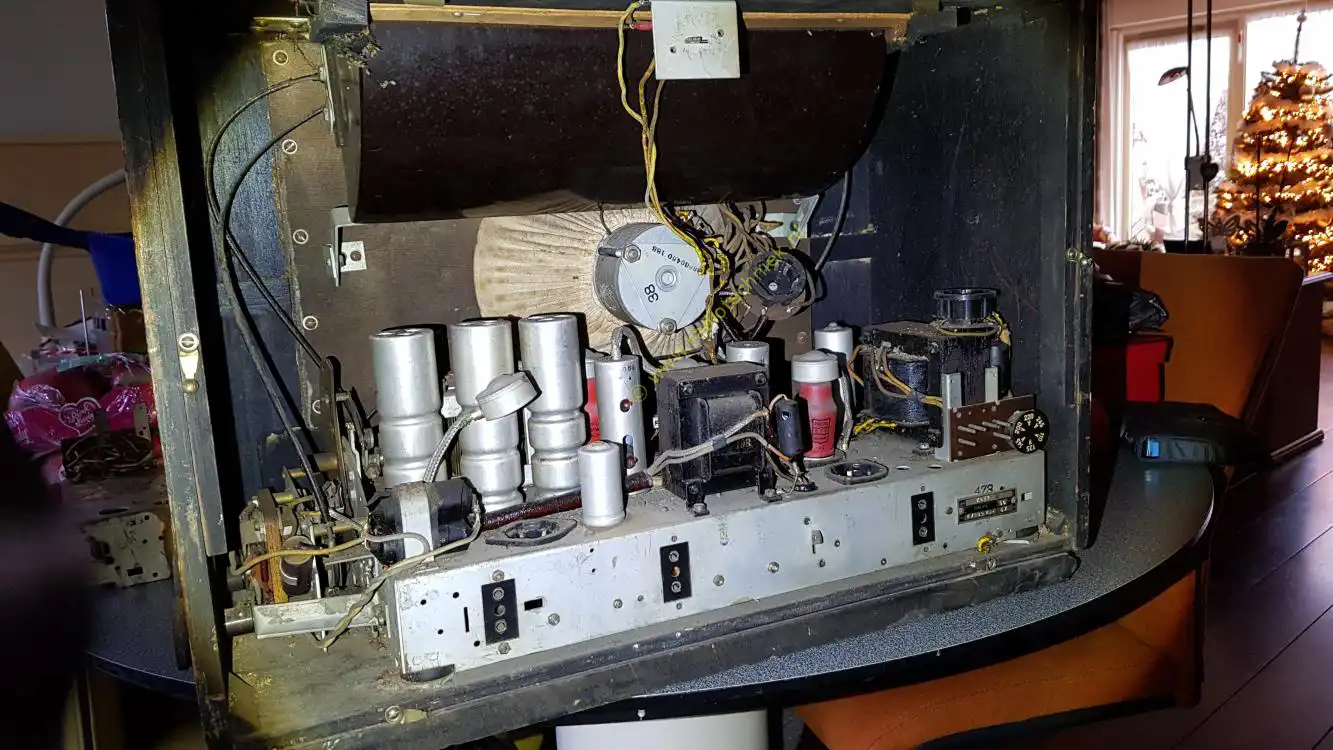

An old radio from days gone by. The inside looks rundown.

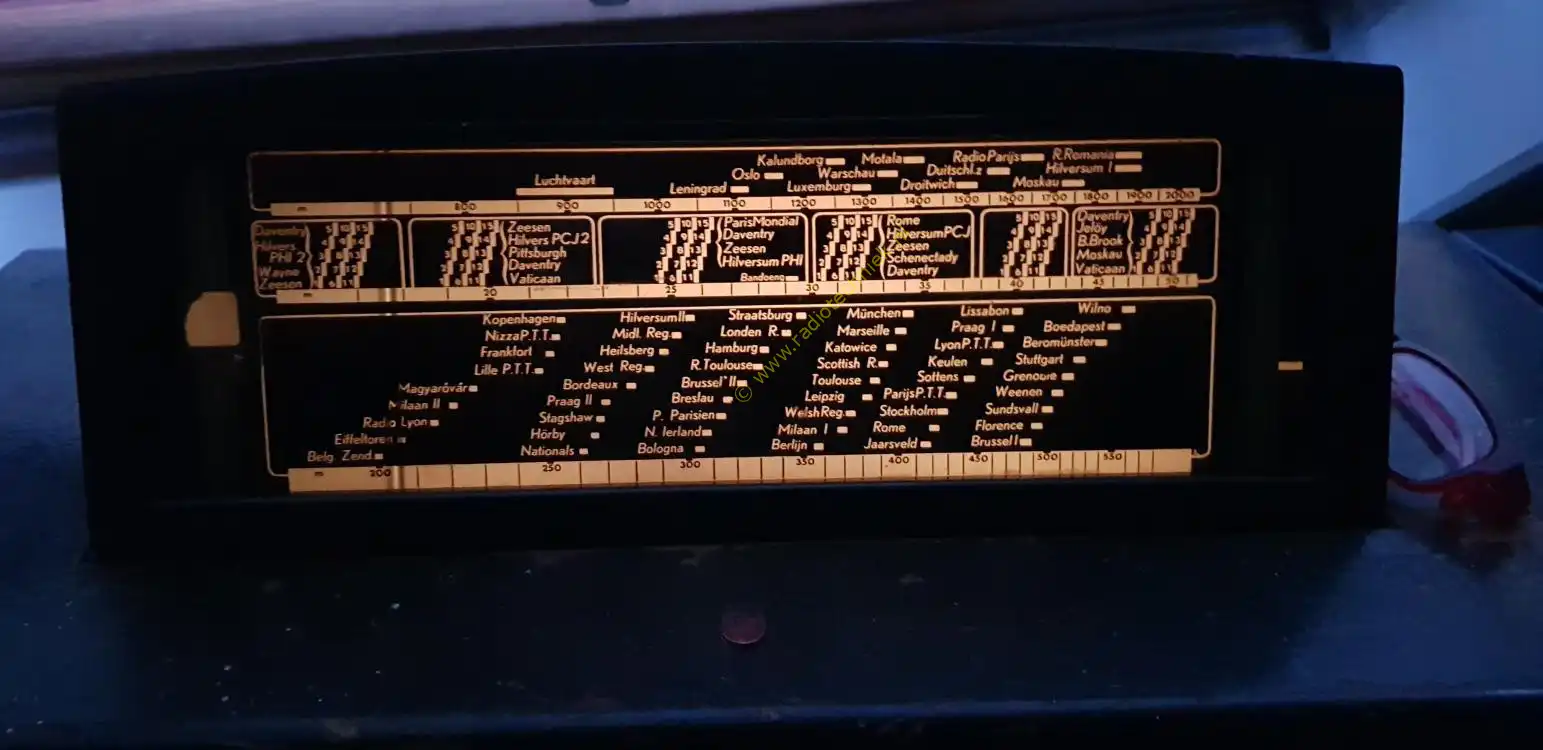

Philips 753A foto 2

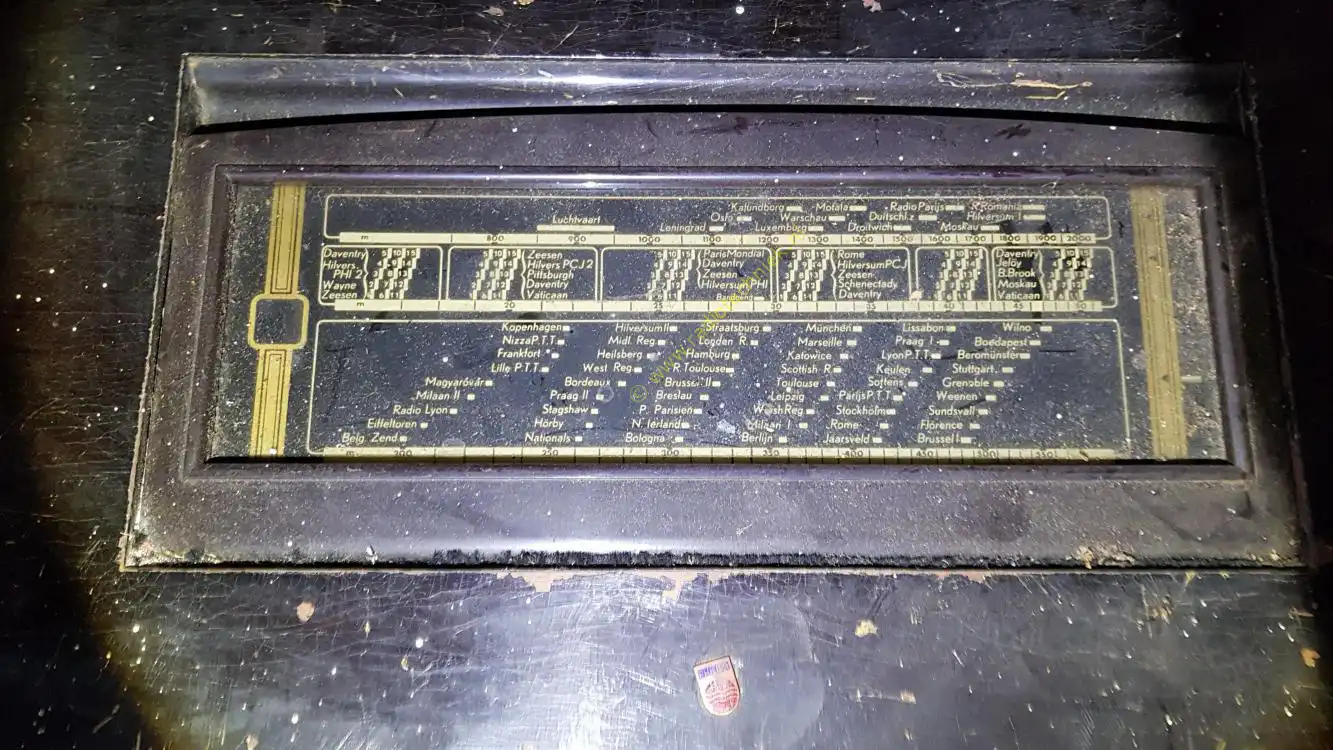

The once beautiful dial. The stations from days gone by no longer exist.

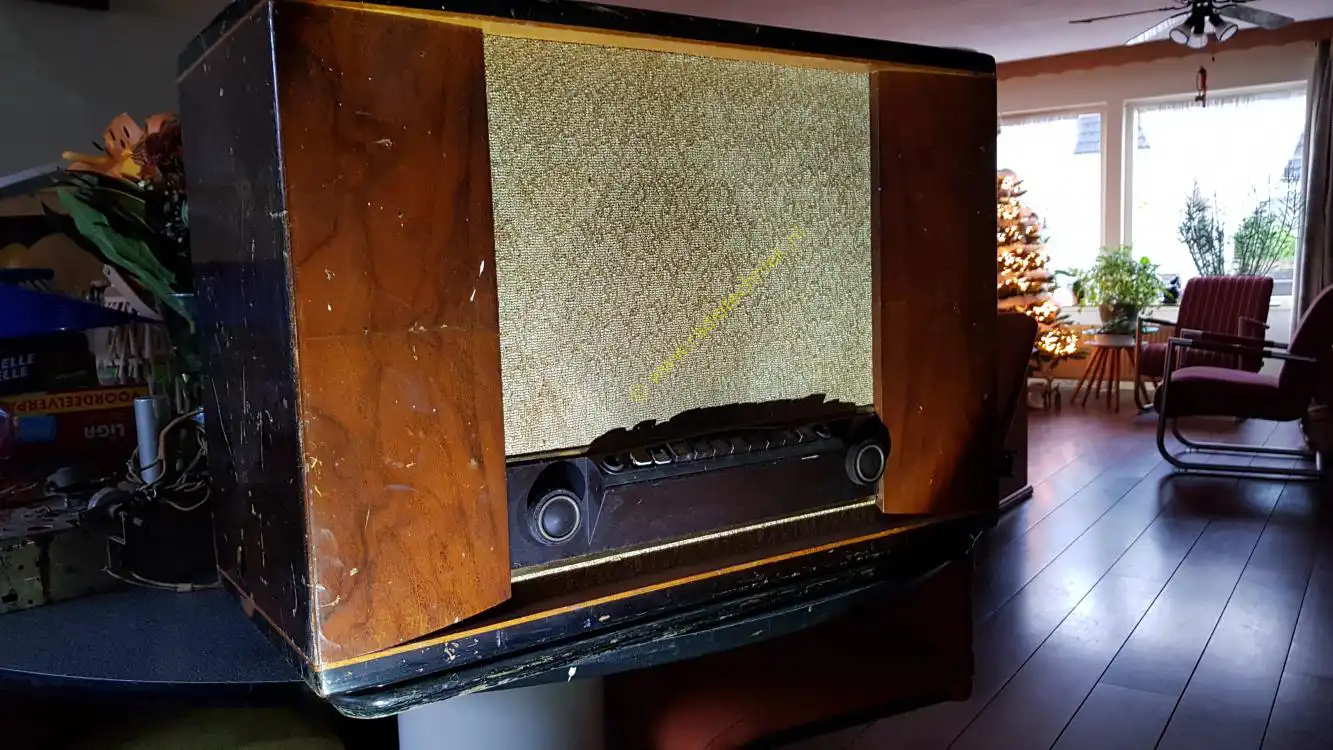

Philips 753A foto 3
The once stately beautiful cabinet has withstood the test of time but with many deep wrinkles
Philips 753A foto 4
Would such a device be able to play again?

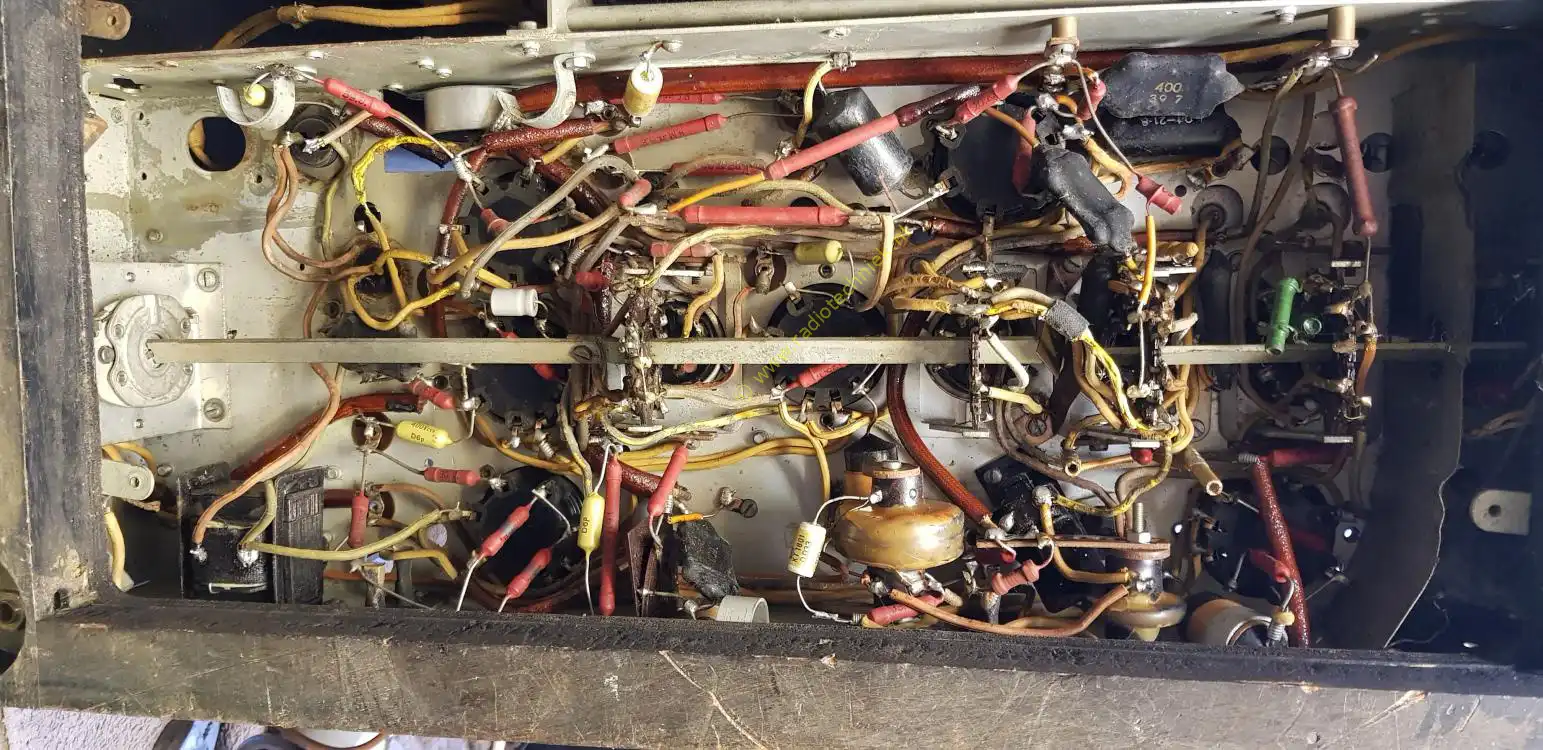

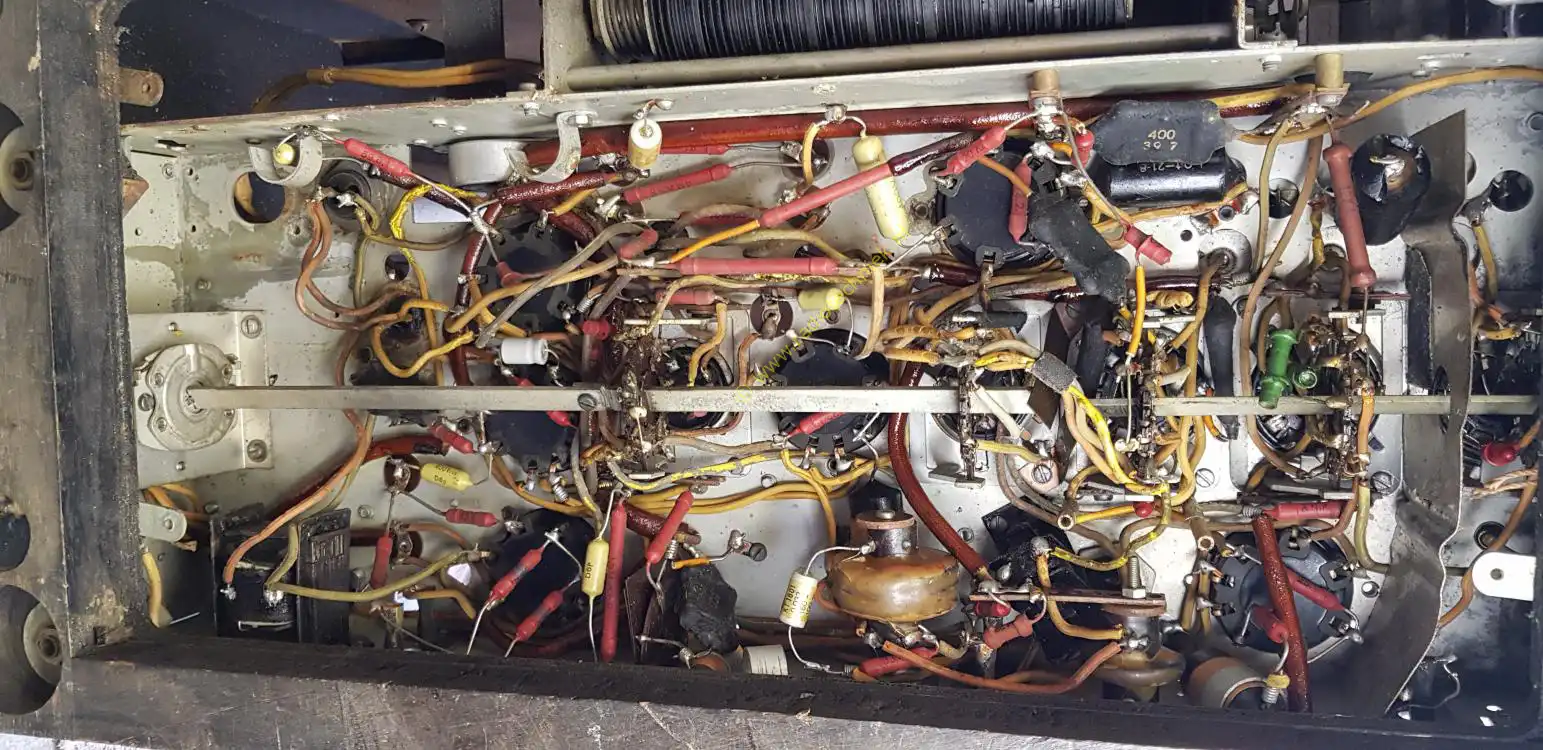

Philips 753A foto 5

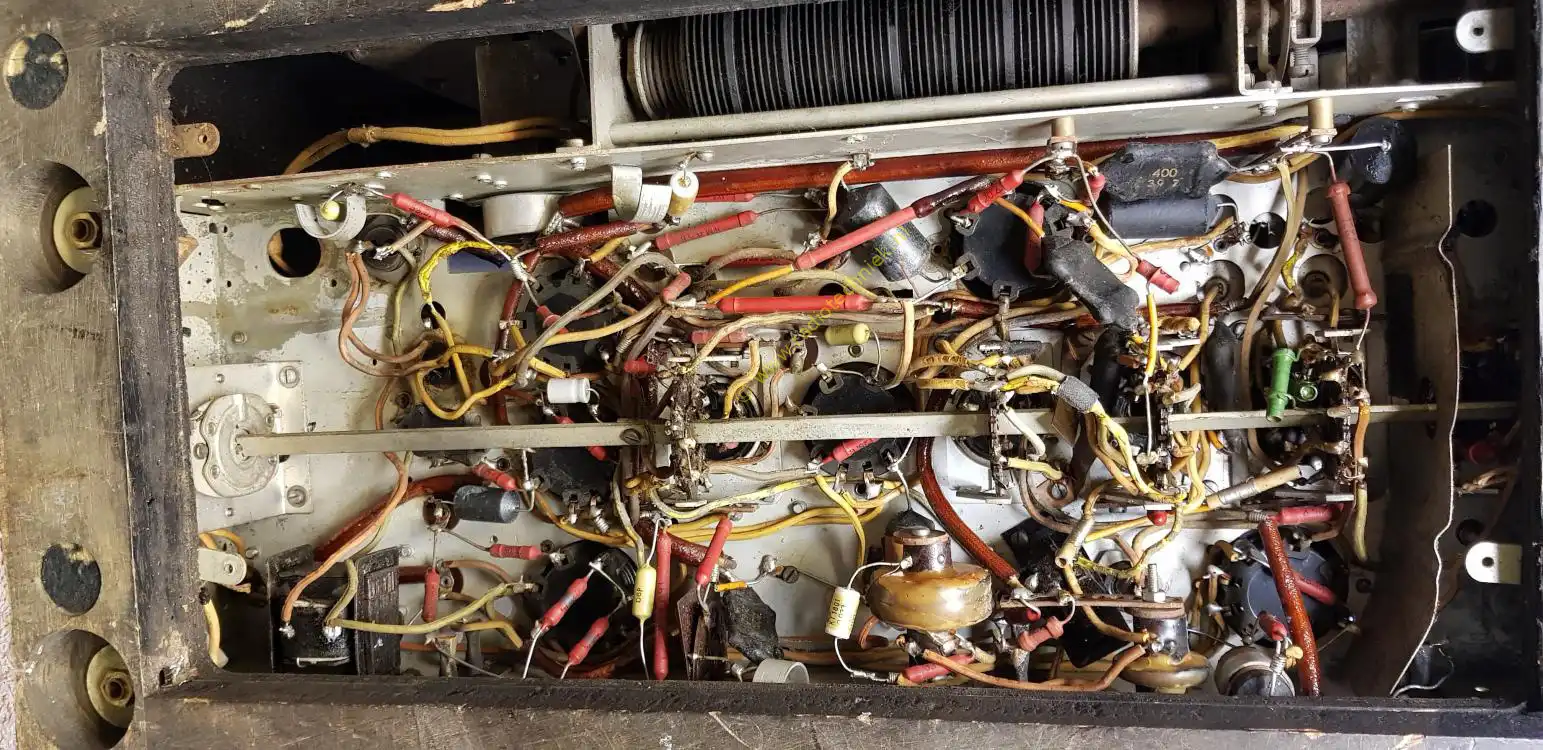

The bottom has also been subject to many repairs. Which led to the silence of the device.

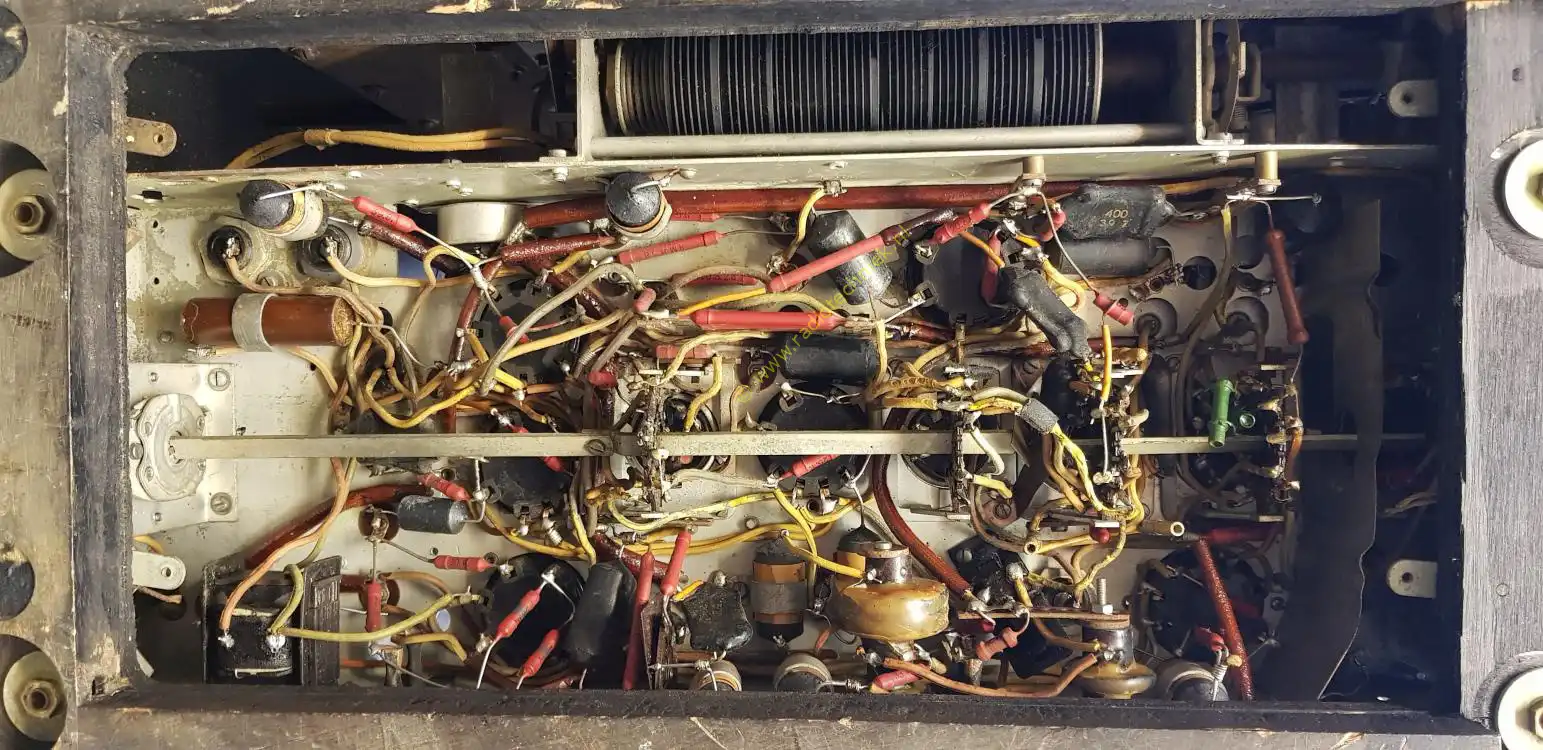

Philips 753A foto 6
A major repair. Rewinding the choke in the power supply. Failed by the last tar capacitor that was not replaced. Now sound comes out of the amplifier section again

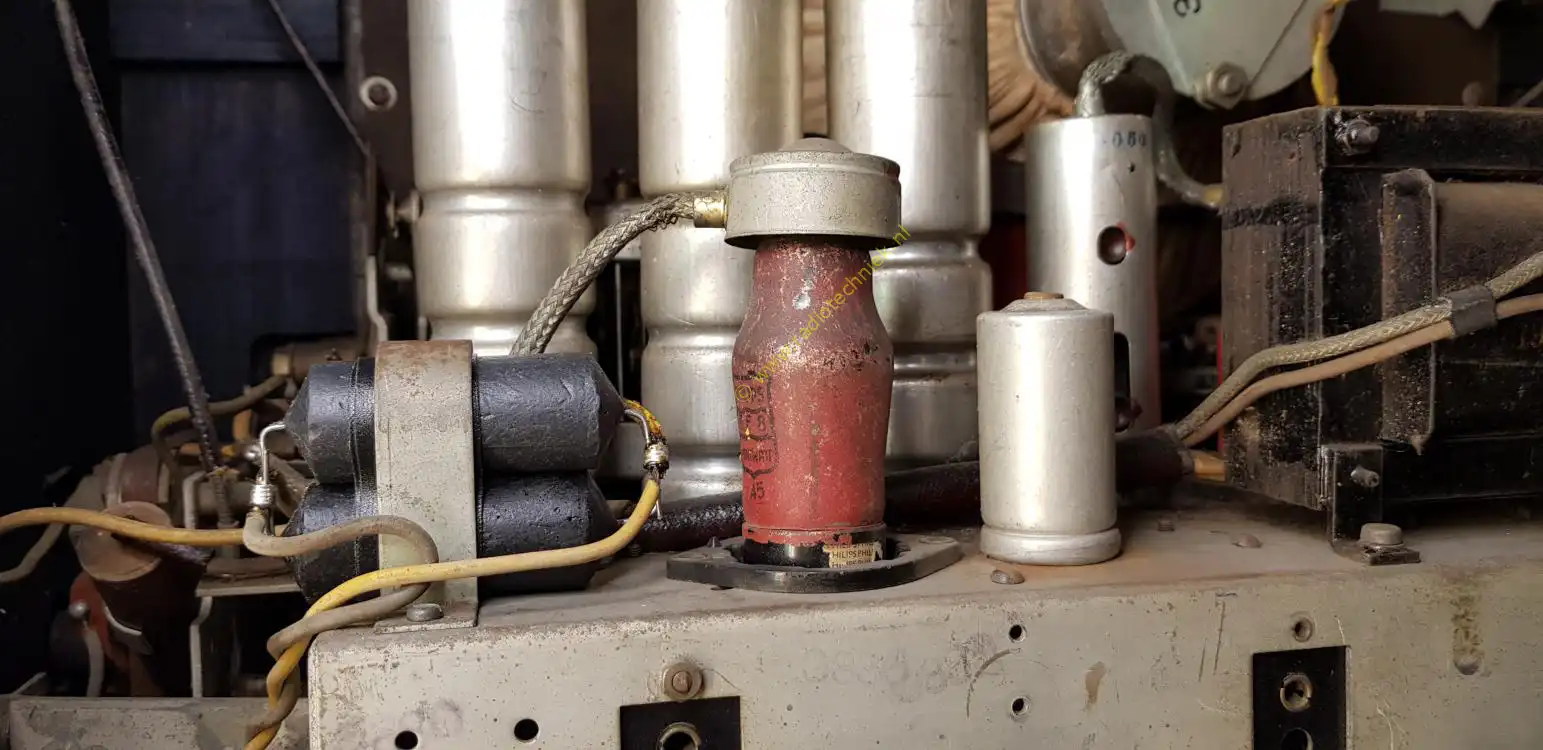

Philips 753A foto 7

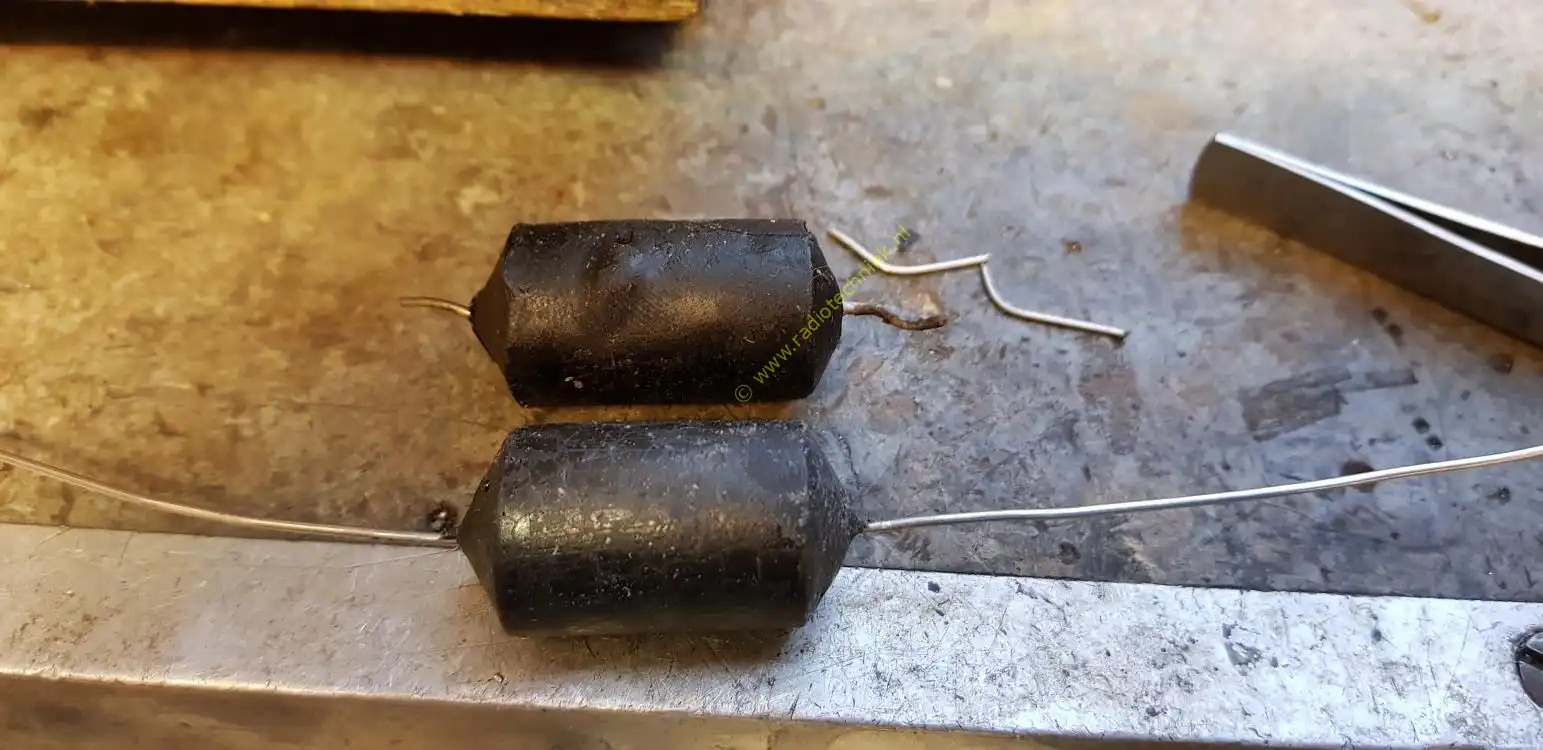

But restoration would lead to a working radio again. We use original components for this. Above old defective capacitor below new original 100% OK capacitor.

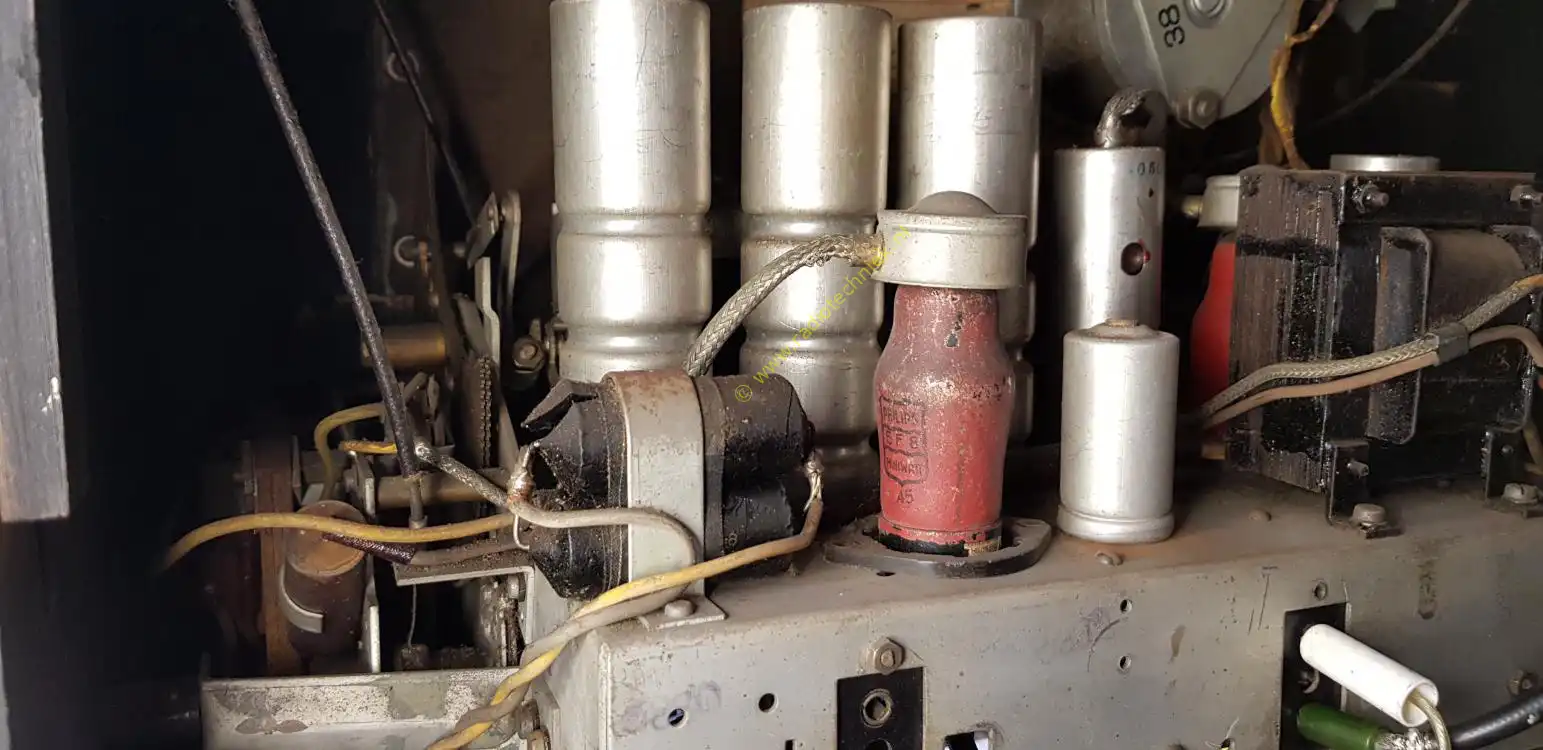

Philips 753A foto 8
Capacitor placed in the top center of the chassis. On the tube holder. Like he's been there for 90 years.
Philips 753A foto 9
The motor capacitors. The first sight.
Philips 753A foto 10
Replace with new original capacitors. The first sight is original

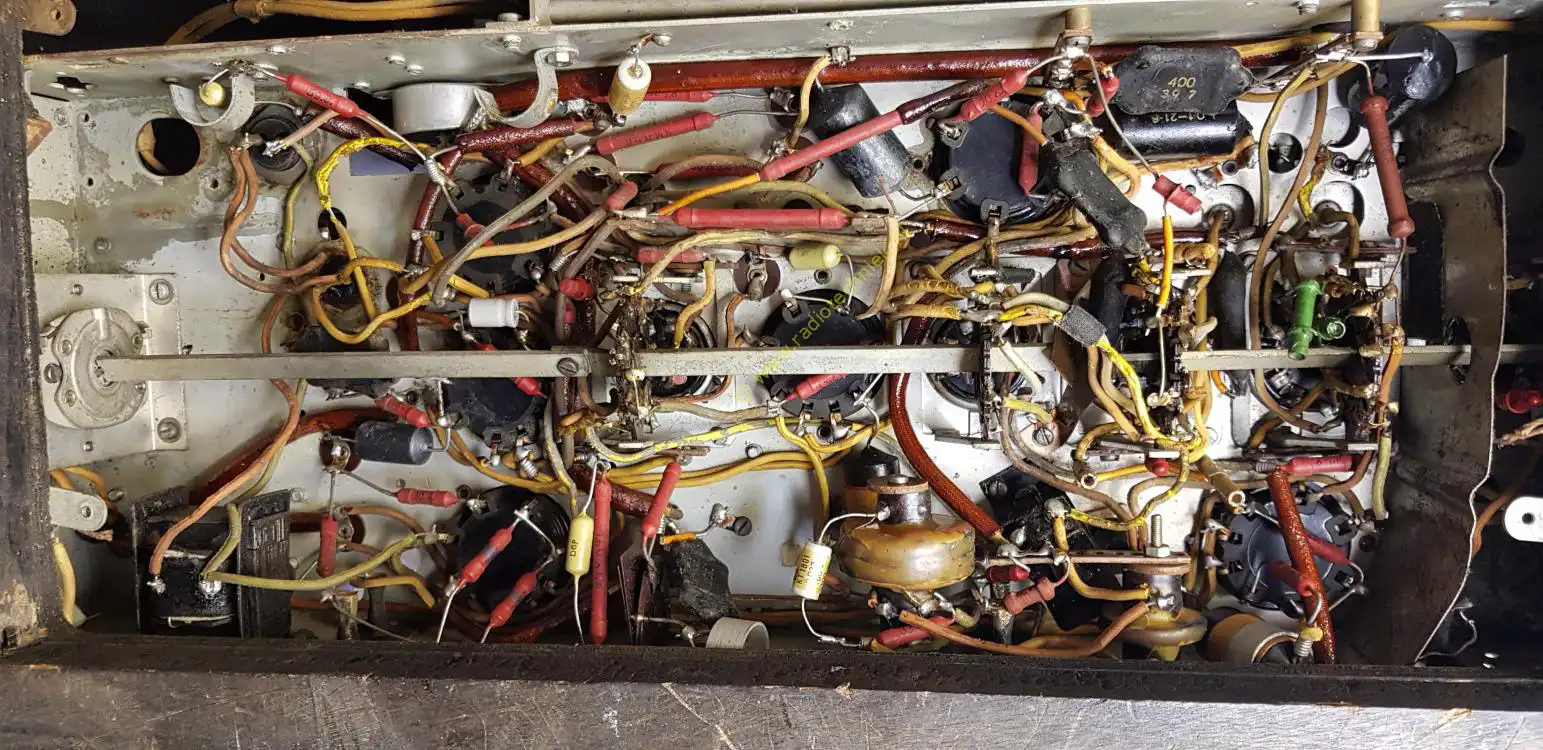

Philips 753A foto 11
Top right, this capacitor had smoked the bottom left choke. Now there is a new original capacitor.
Philips 753A foto 12
The production of new capacitors
Philips 753A foto 13
The replacement should be done in such a way that it seems that capacitors have always been there.
Philips 753A foto 14
And that is not always easy. The parts were placed in a certain order at the factory.

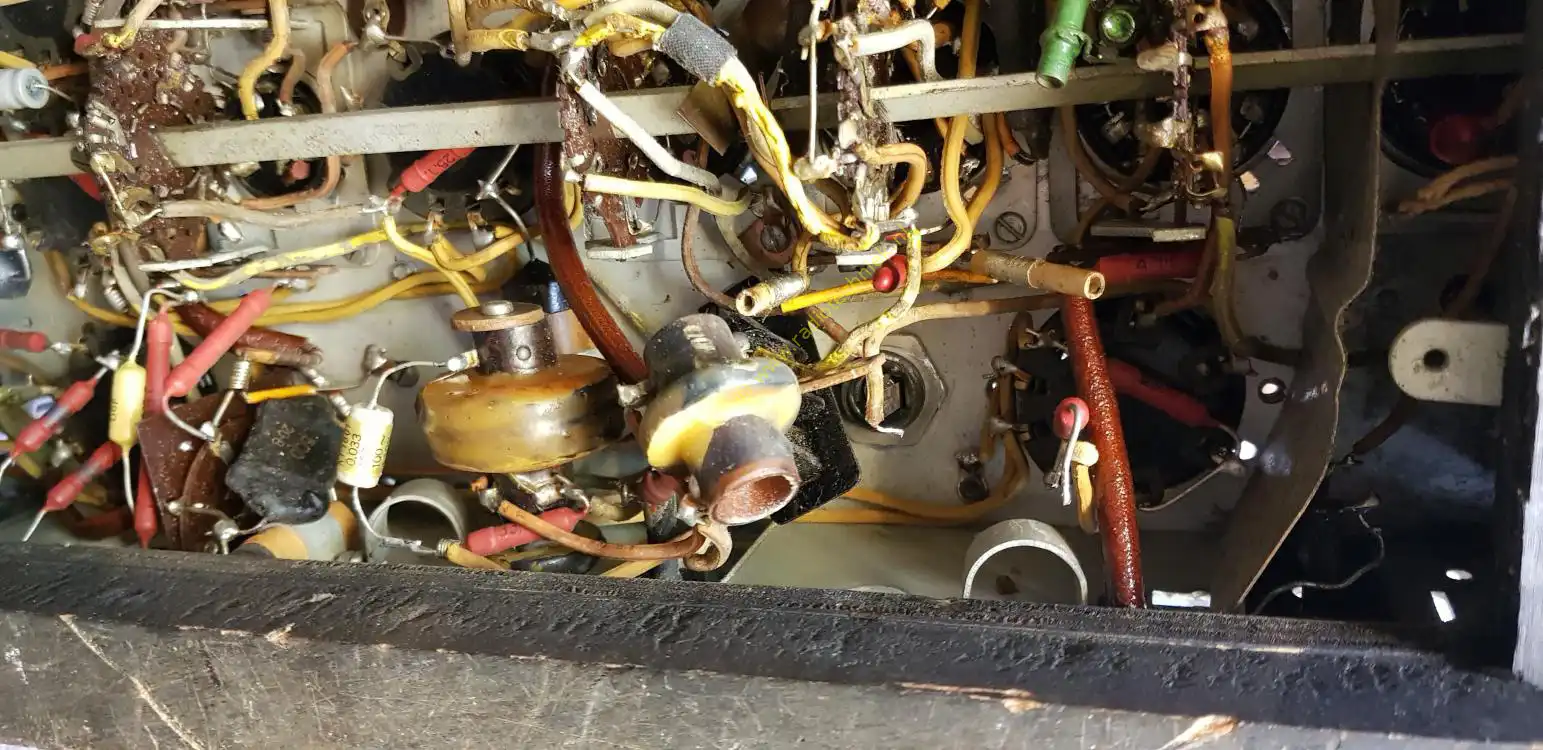

Philips 753A foto 15
But i sucseed again, at the bottom right is now an original new capacitor.

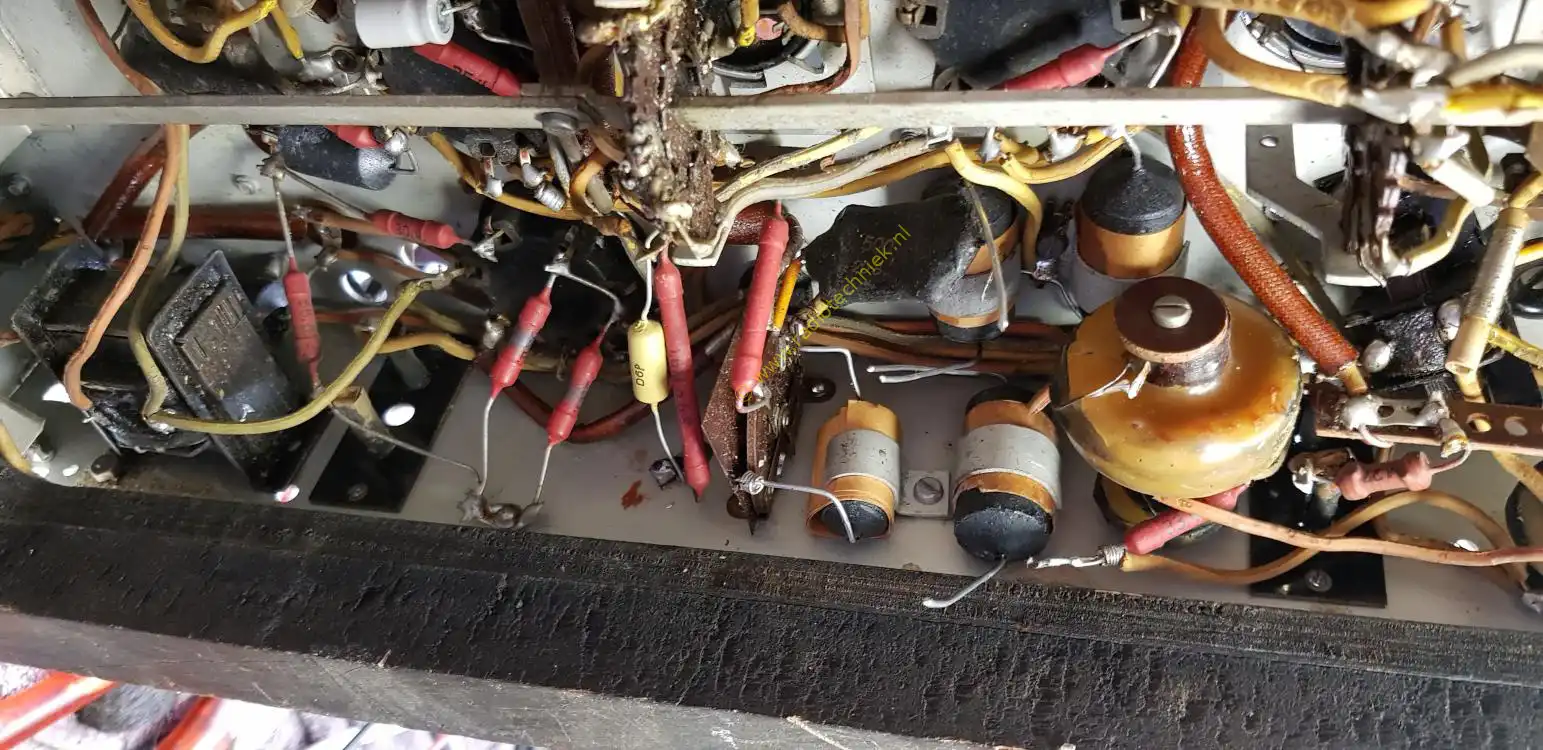

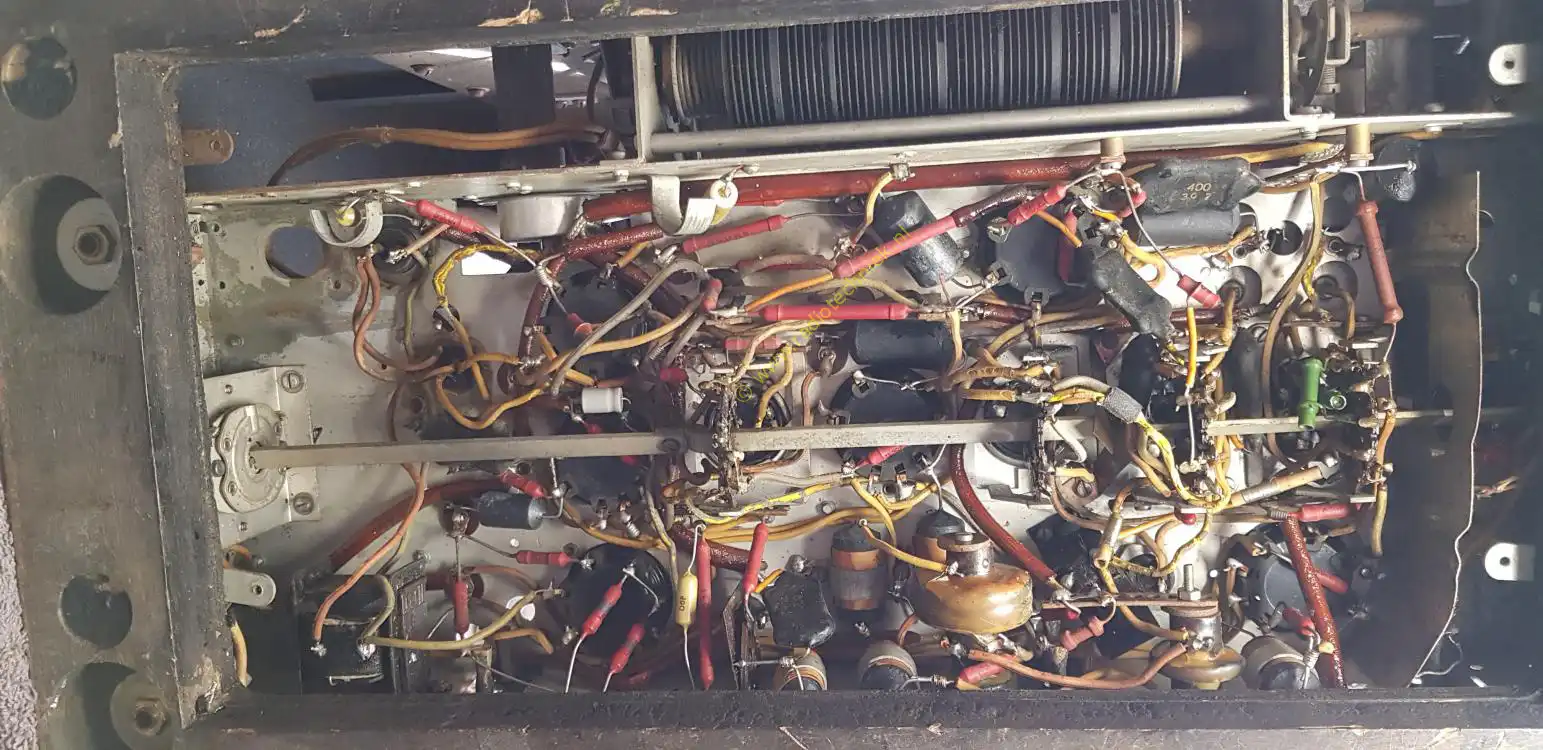

Philips 753A foto 16
Bottom center is a whole collection of capacitors.
Philips 753A foto 17
But that also succeed. The look of the late 1930s is slowly coming back.
Philips 753A foto 18
One more capacitor to go. The look is there. This is what it looked like 90 years ago.
Philips 753A foto 19
Completely restored. This is what the device would have looked like without the many repairs after 90 years.
Philips 753A foto 20
Also just replace the ratchet capacitor.
Philips 753A foto 21

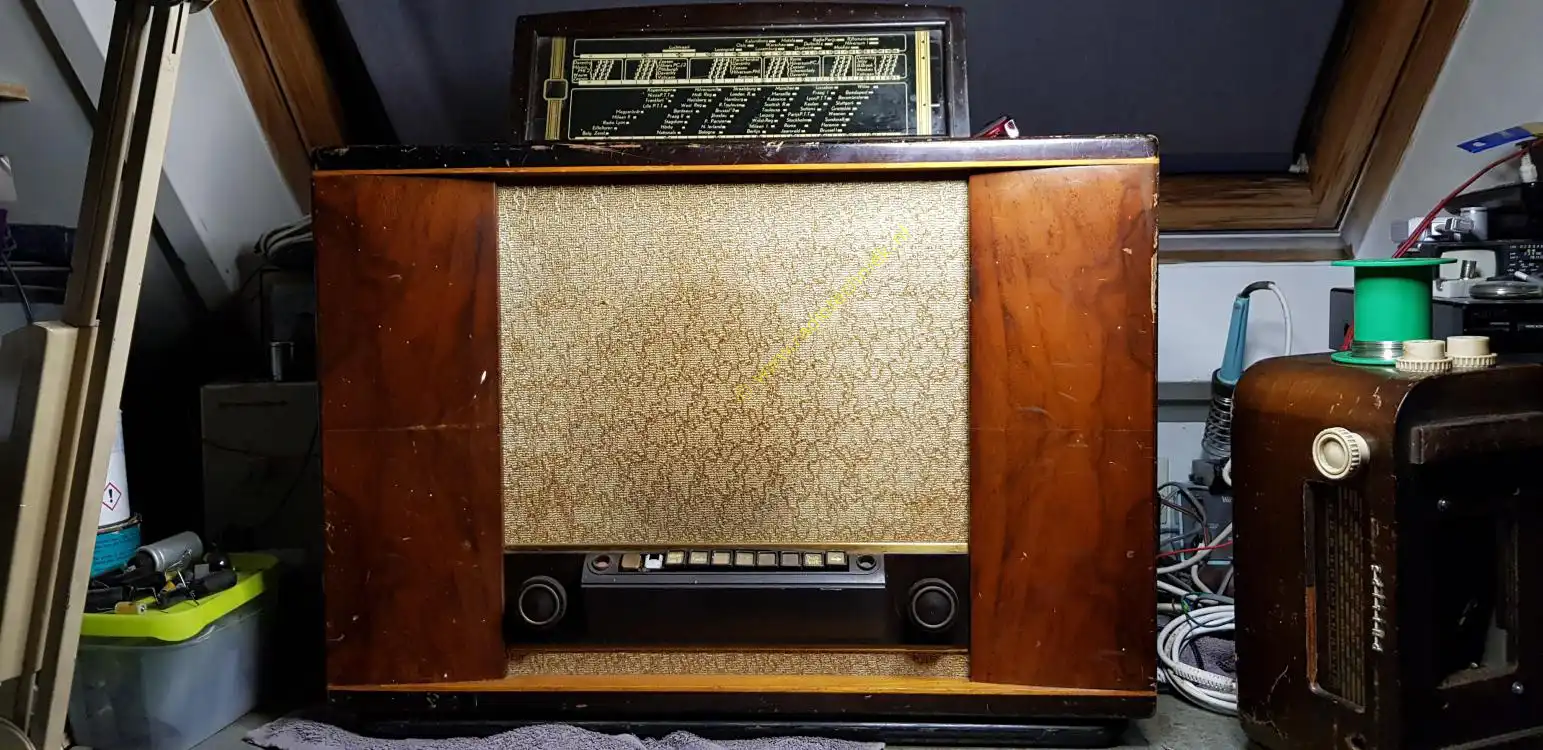

Just a view of this beautiful device.
Philips 753A foto 22
The dial pointer again gives a good light image on the dial.
Philips 753A foto 23

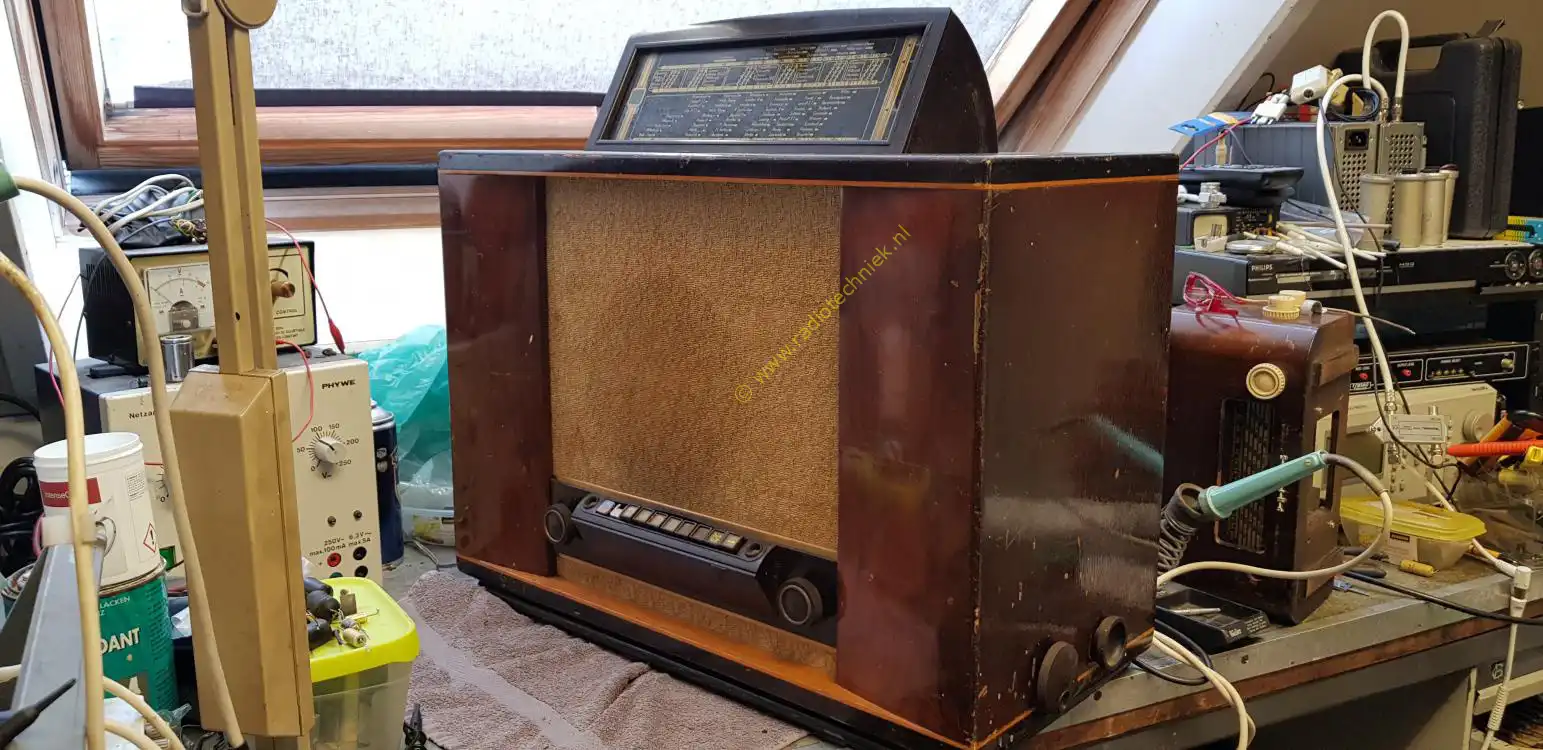

The Philips 753A built in 1938 with motor tuning.
Philips 753A foto 24

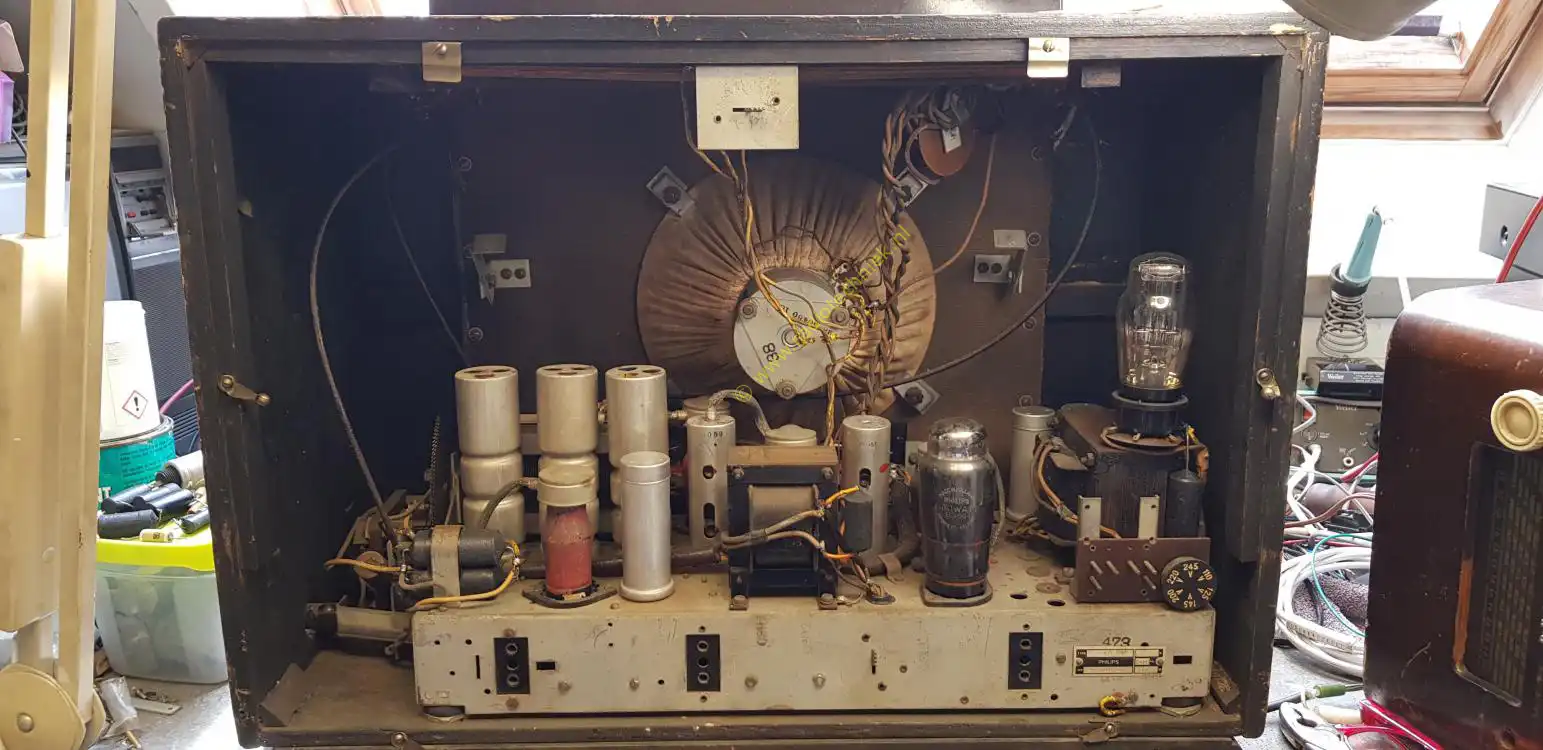

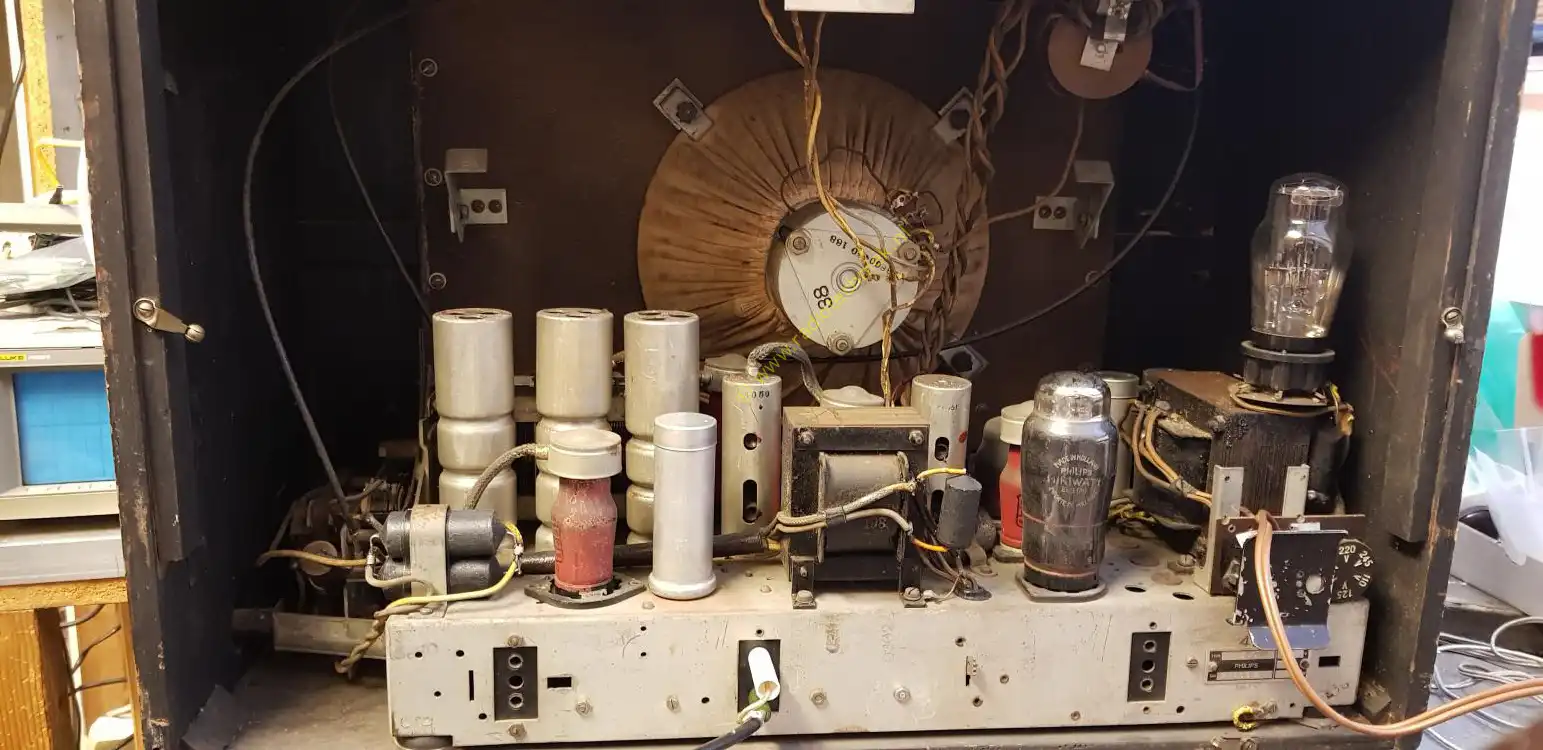

The inside of the Philips 753A.
Philips 753A foto 25
Time to test the device....
Philips 753A foto 26
With fm tuning unit the FM2.
Philips 753A foto 27
Motor tuning in progress.
Philips 753A foto 28
The radio as a radio receiver. This station is Extram on medium wave.
