Philips L6X38T Restauration

Radiotechniek album
Philips L6X38T Restauration foto 1
A Philips L6X38T is a special device used in a James Bond film. This is the first model made in 1965.
Philips L6X38T Restauration foto 2
The radio is in poor condition and partly demolished. But because we have enough parts for a while, we can restore this device.
Philips L6X38T Restauration foto 3
The biggest problem with these devices is leaking batteries. Likewise, everything has been affected with this device.
Philips L6X38T Restauration foto 4

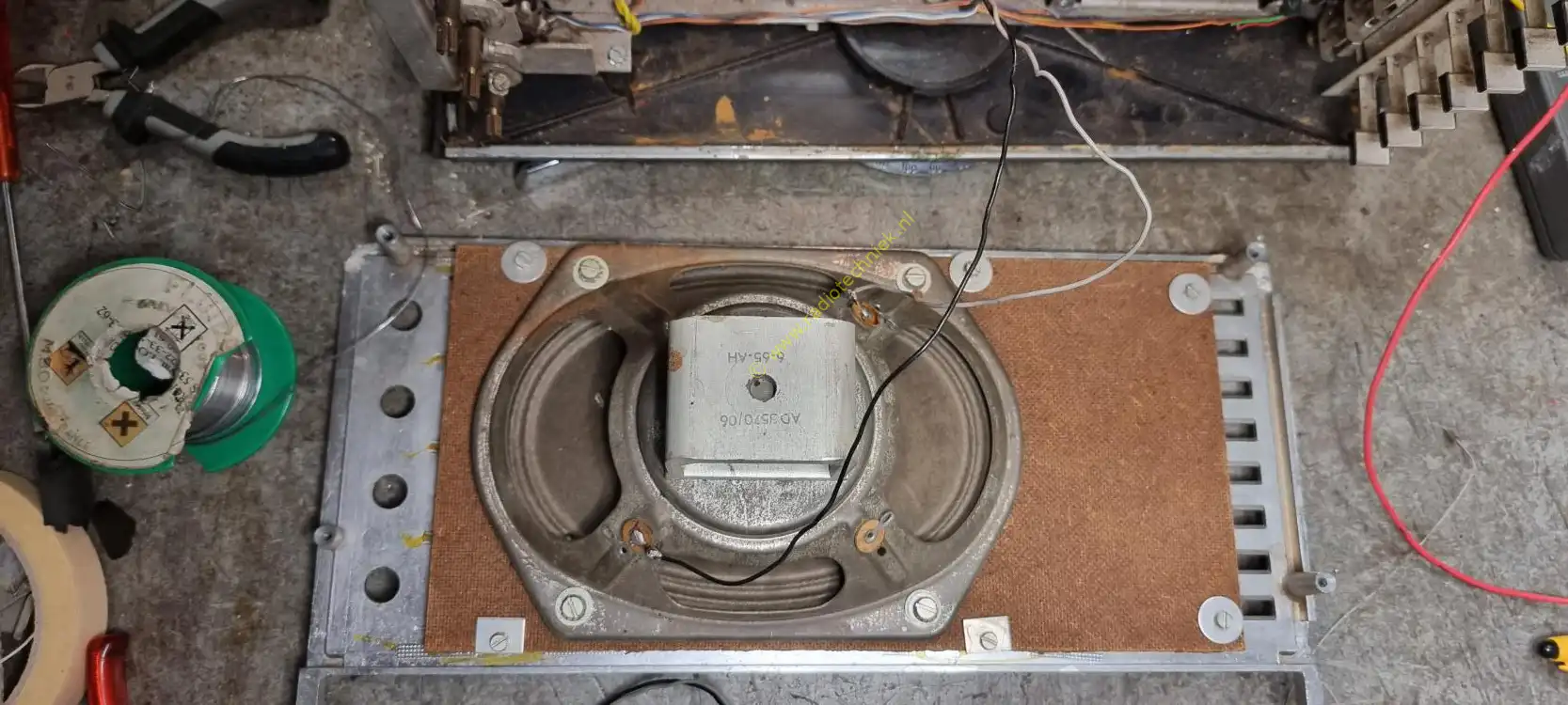

Because the amplifier board was still in the chassis, we tested it. And this one still seems to work.
Philips L6X38T Restauration foto 5
A bit of music gives a better impression of the amplifier board. Apart from some creaking potentiometers, it works well.
Philips L6X38T Restauration foto 6

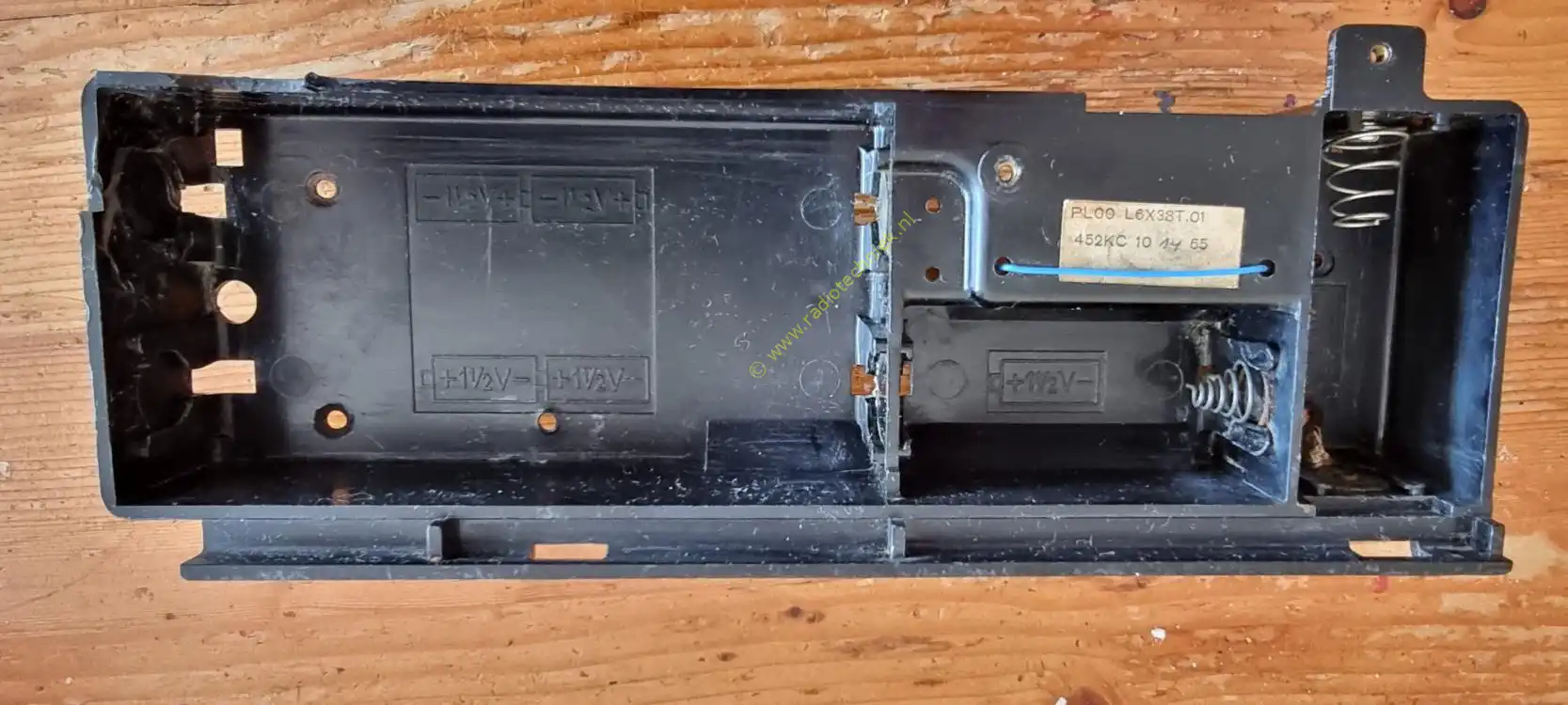

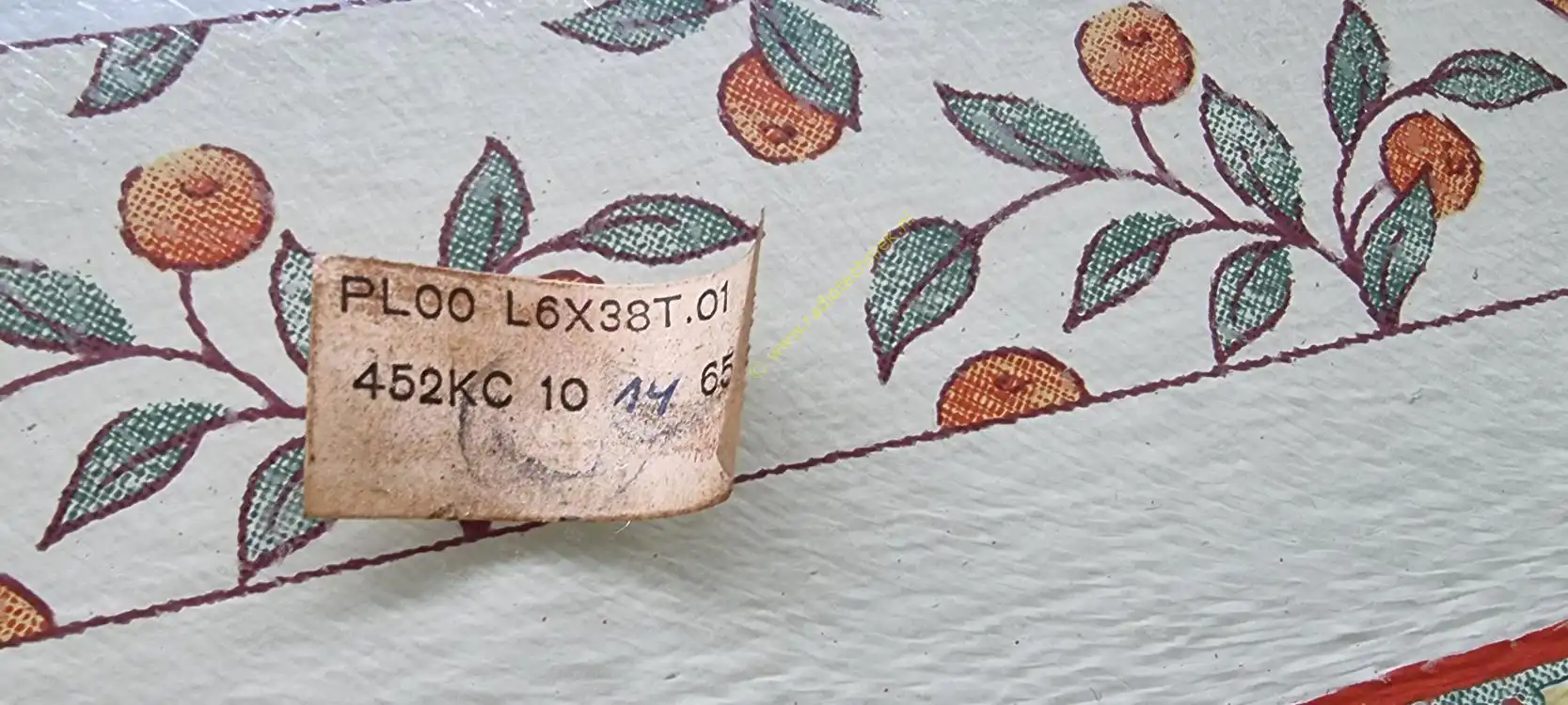

The battery holder is completely destroyed. Rotten feathers. The problem is of course the sticker with type number and date. L6X83T .01 10-14-65
Philips L6X38T Restauration foto 7
A new PCB, repair and connect wiring.
Philips L6X38T Restauration foto 8

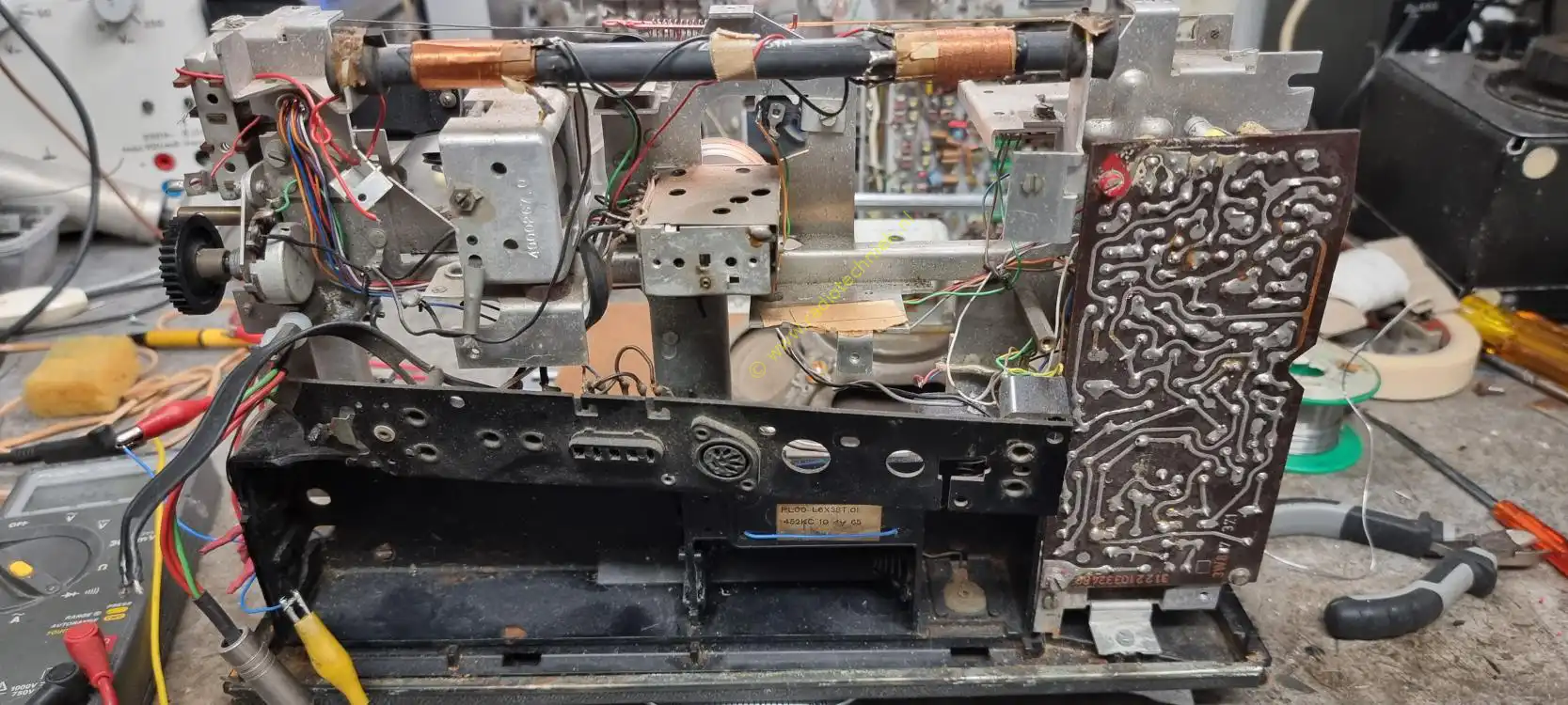

The wiring is cut in such a way that it is simply too short. As a result, entire pieces have to be replaced.
Philips L6X38T Restauration foto 9
And then a first test. The measuring transmitter is connected to the input of the FM intermediate frequency.
Philips L6X38T Restauration foto 10
Here's the fiddling with wires at the control buttons.
Philips L6X38T Restauration foto 11

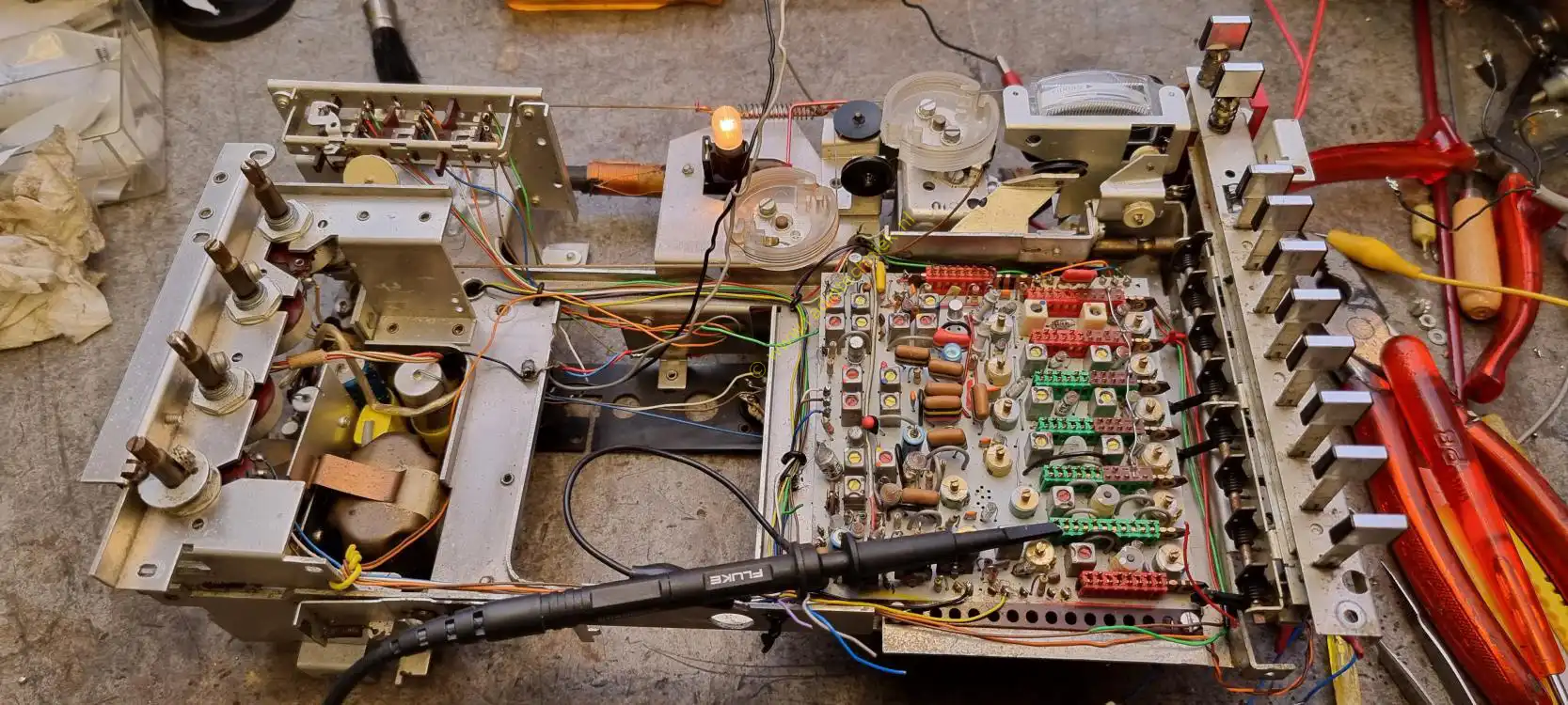

A measuring setup to test the AM part. The AM oscillator coil was missing on this PCB.
Philips L6X38T Restauration foto 12

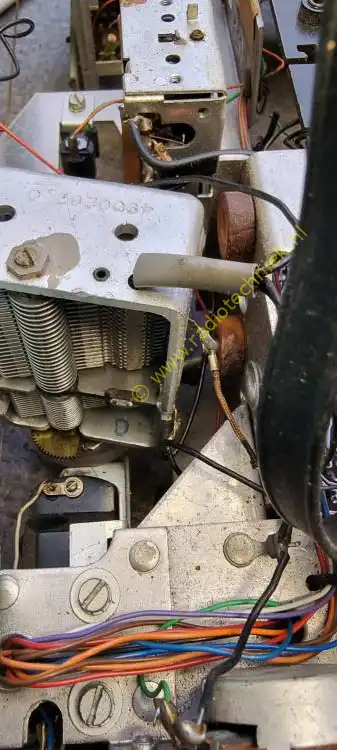

The wires on the tuning capacitor were obviously cut too short. So you have to completely replace it in this difficult spot.
Philips L6X38T Restauration foto 13

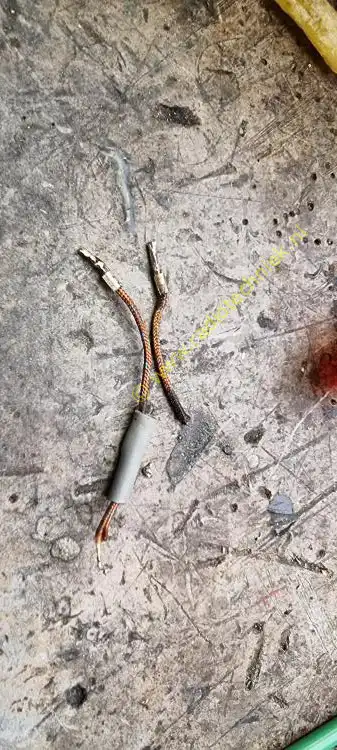

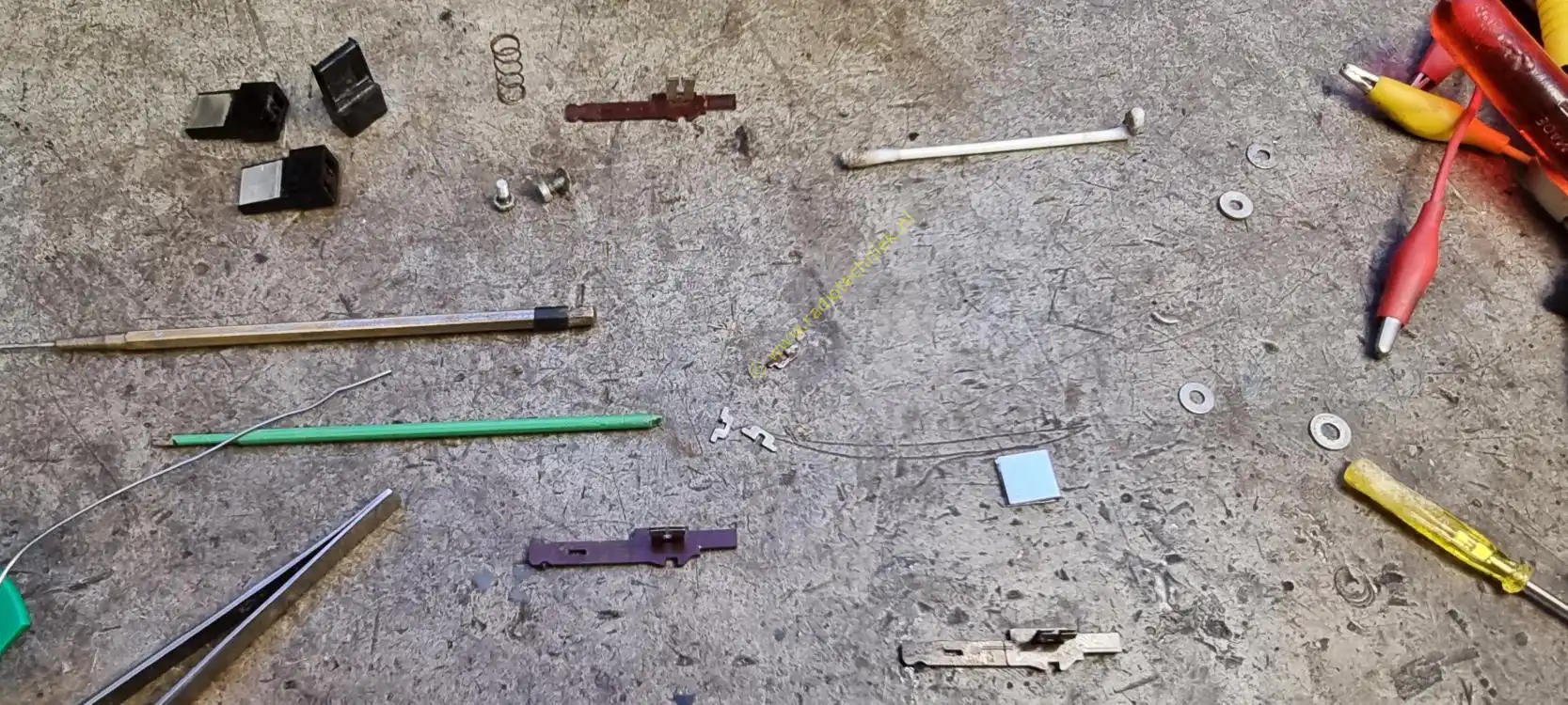

Here are the remains of the special wires.
Philips L6X38T Restauration foto 14
And then the first test to see if we can receive something on the AM.
Philips L6X38T Restauration foto 15
The transmitter is a local station EXTRAM on the AM. The measuring transmitter is used as an oscillator.
Philips L6X38T Restauration foto 16
A nice hand sensitivity on the AM, you can also see the S meter change considerably.
Philips L6X38T Restauration foto 17

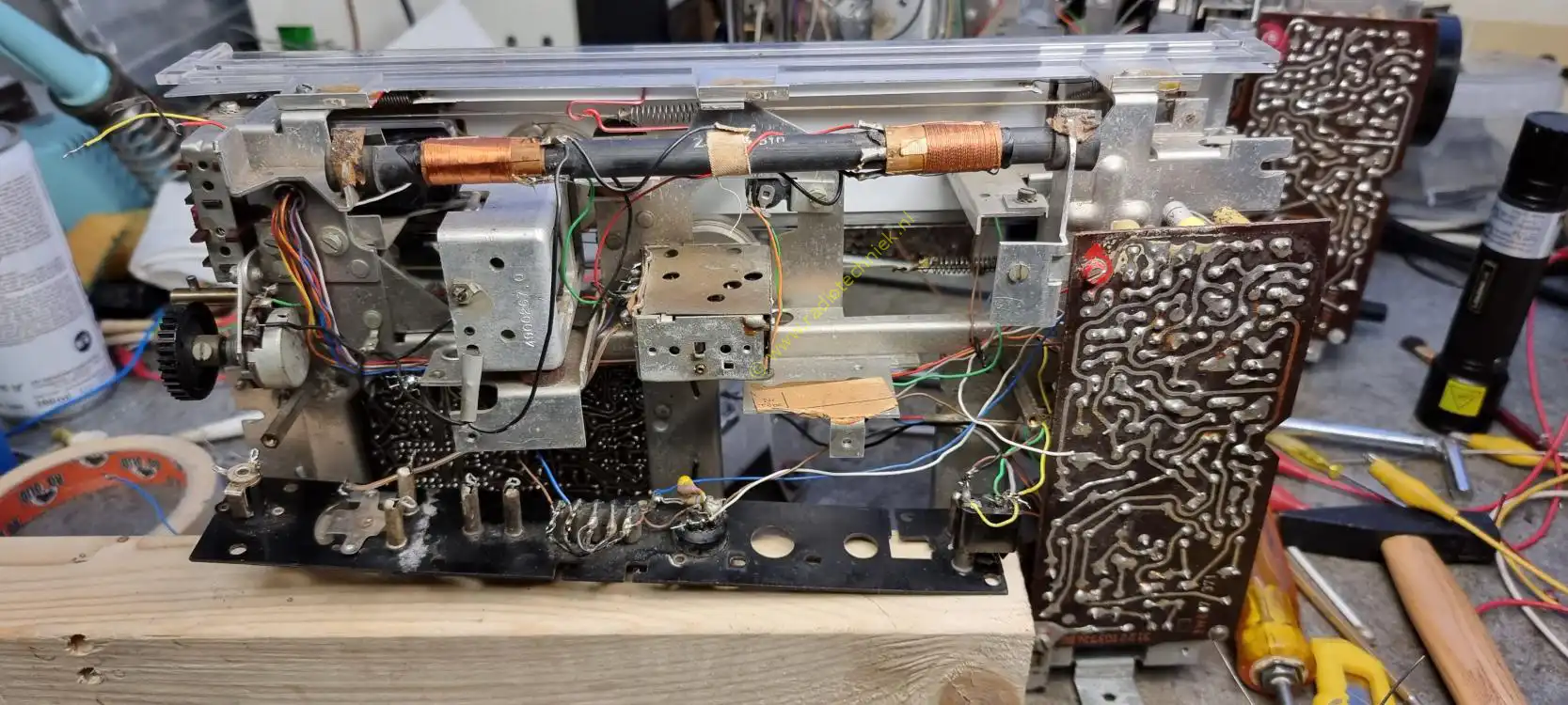

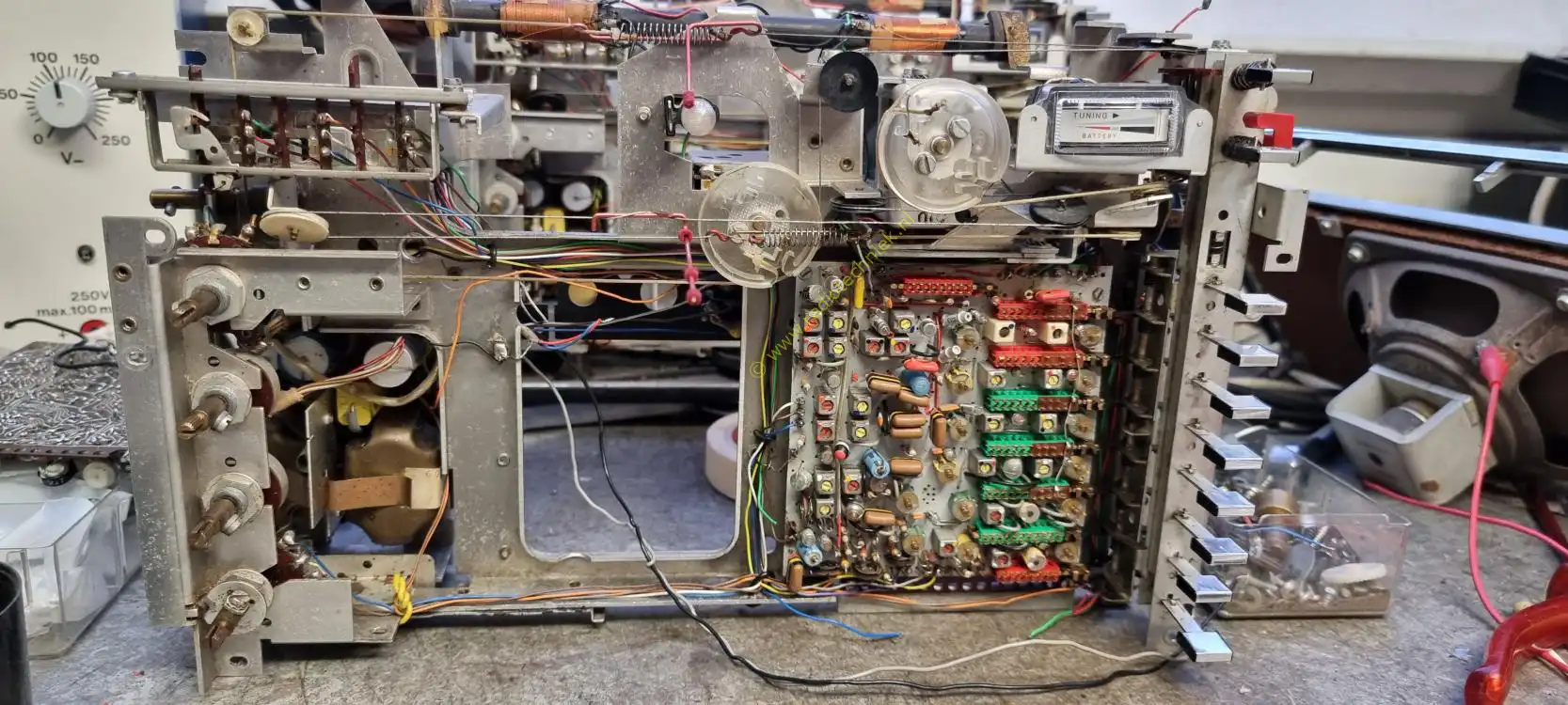

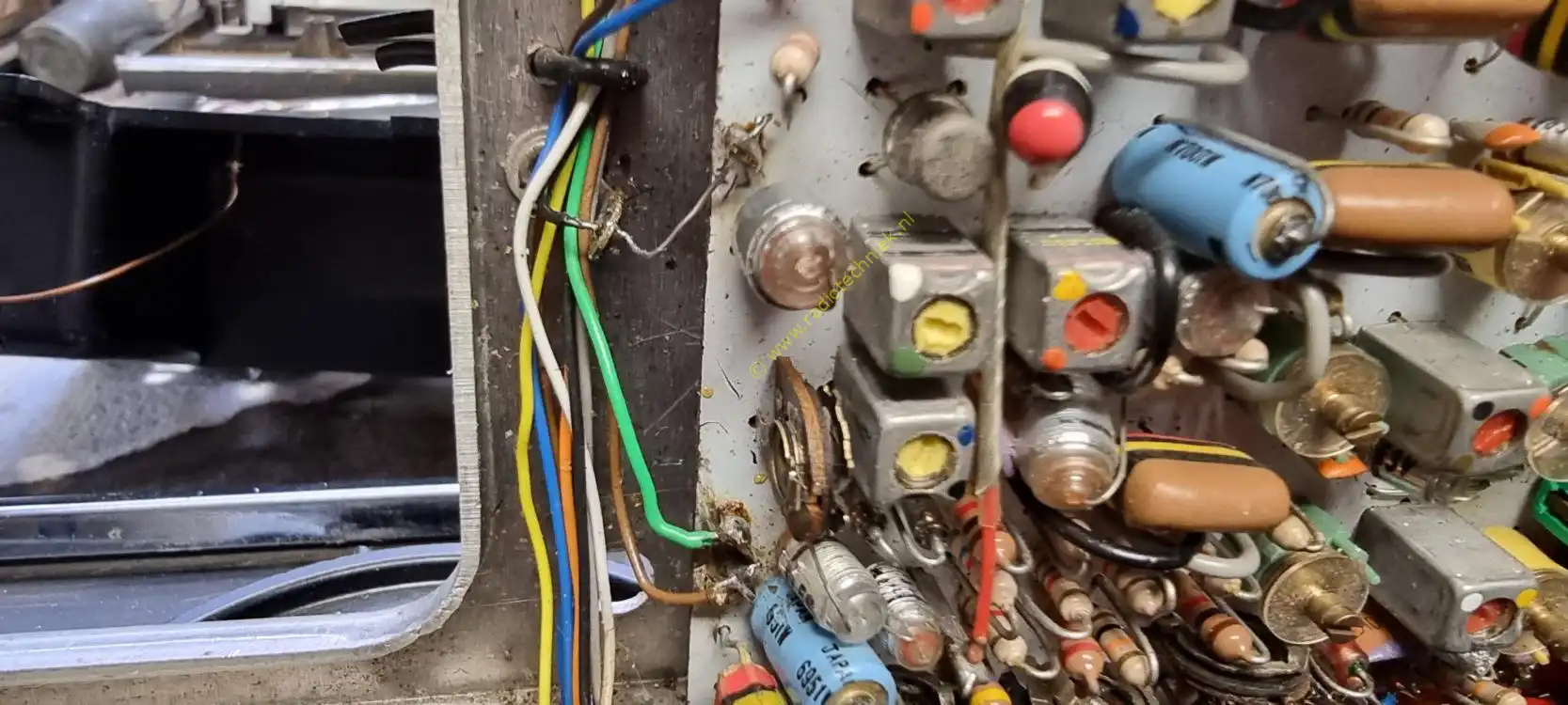

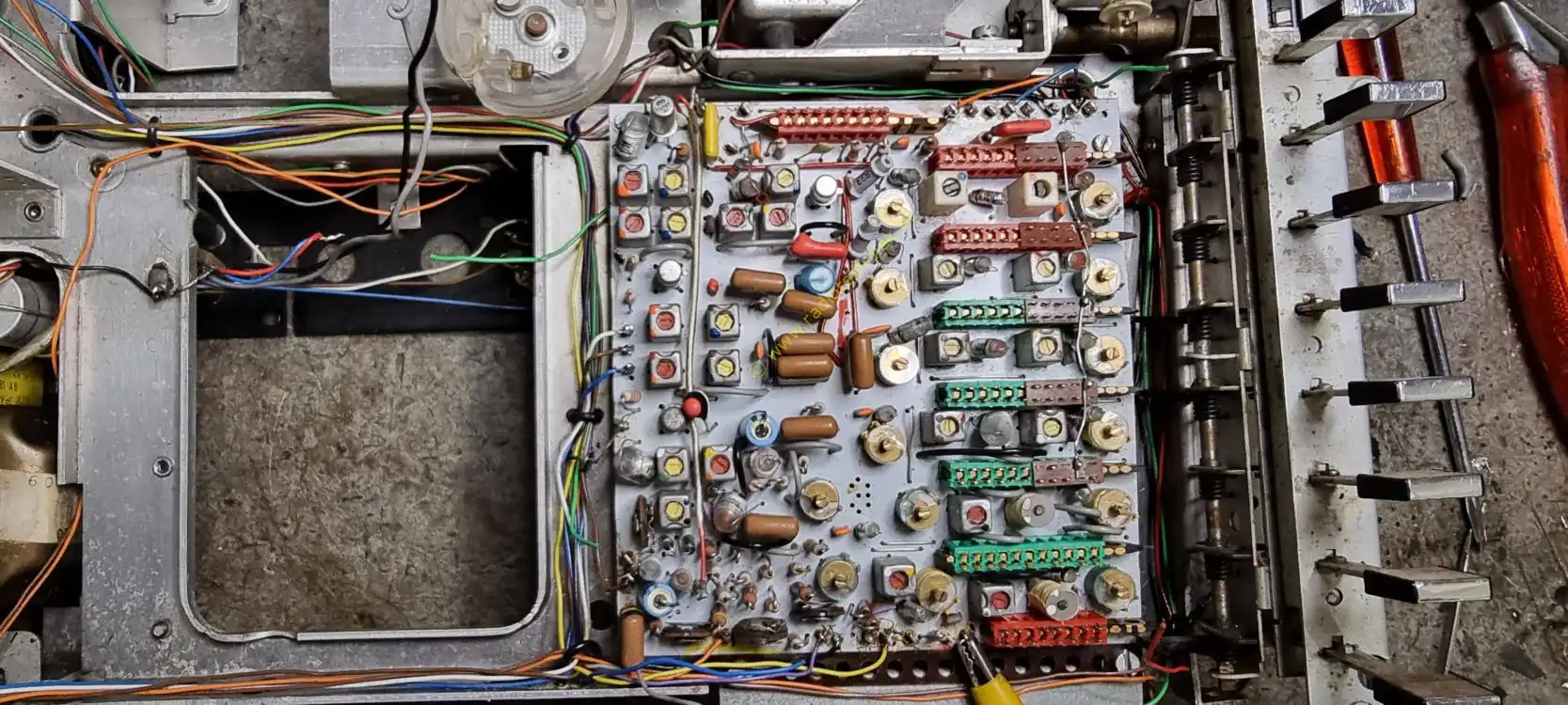

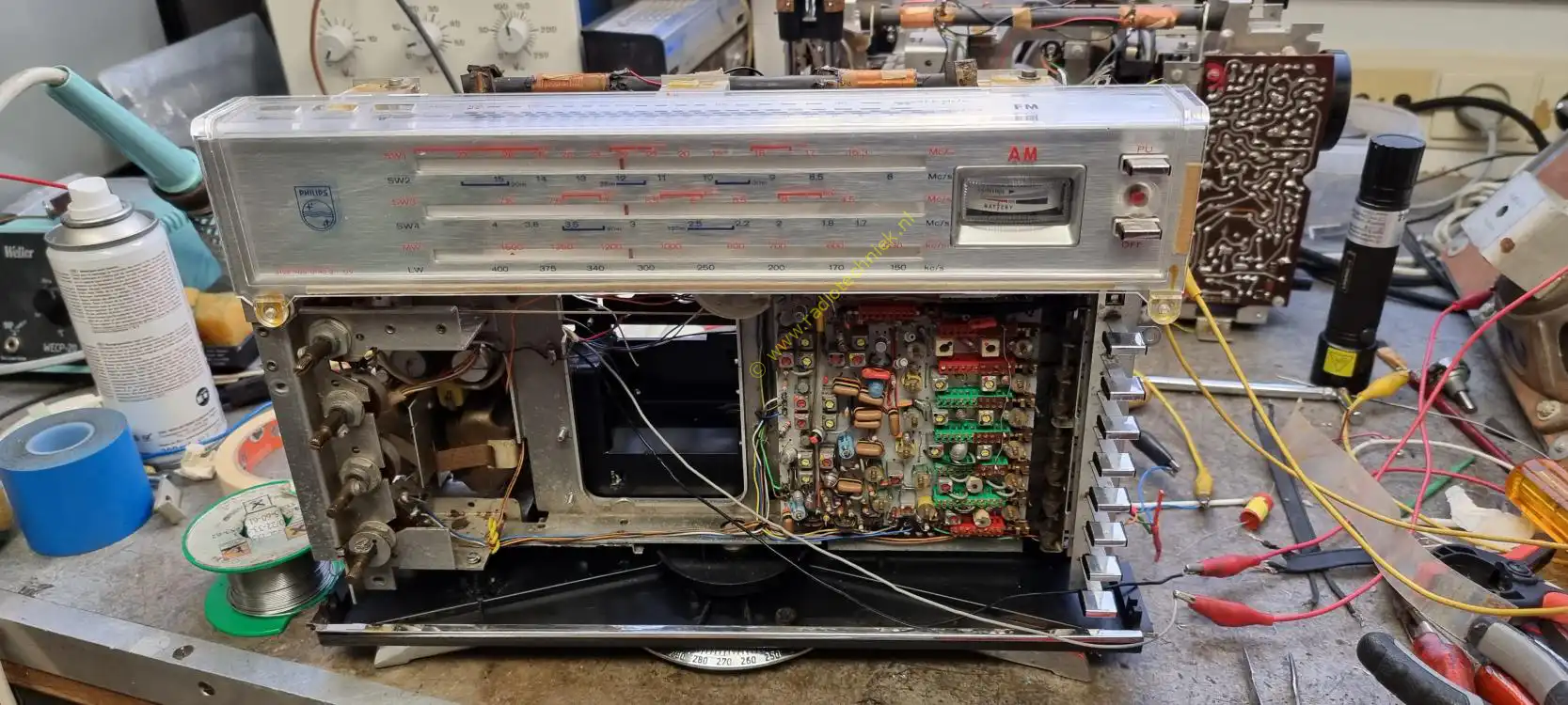

Much of the wiring has been repaired. The part for the FM is a challenge.
Philips L6X38T Restauration foto 18

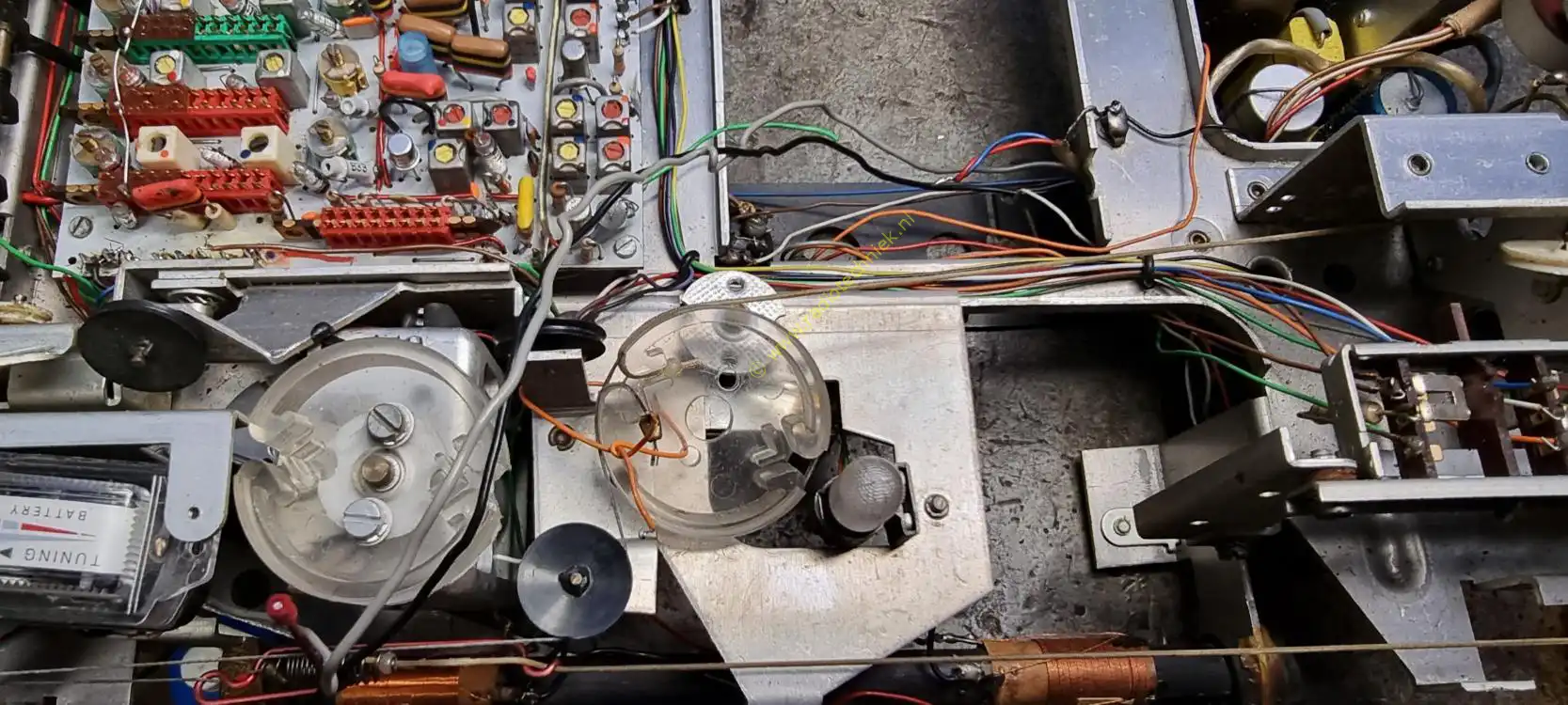

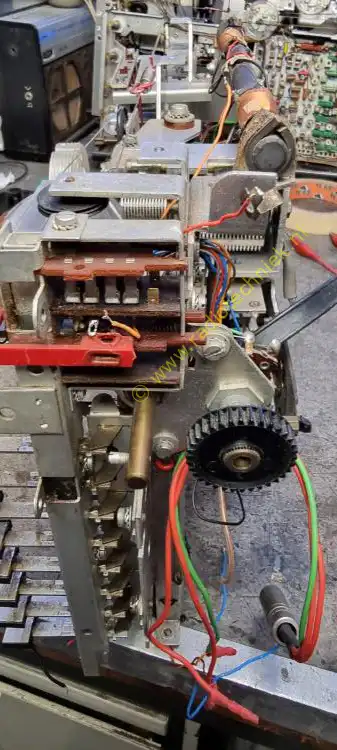

In order for the FM to work, the wiring on the FM tuner had to be repaired. Because you cannot reach it, the FM tuner had to be removed and then the tuning string loosened.
Philips L6X38T Restauration foto 19
And then the first FM sounds from the radio. We managed to repair the wiring so that the FM can work.
Philips L6X38T Restauration foto 20

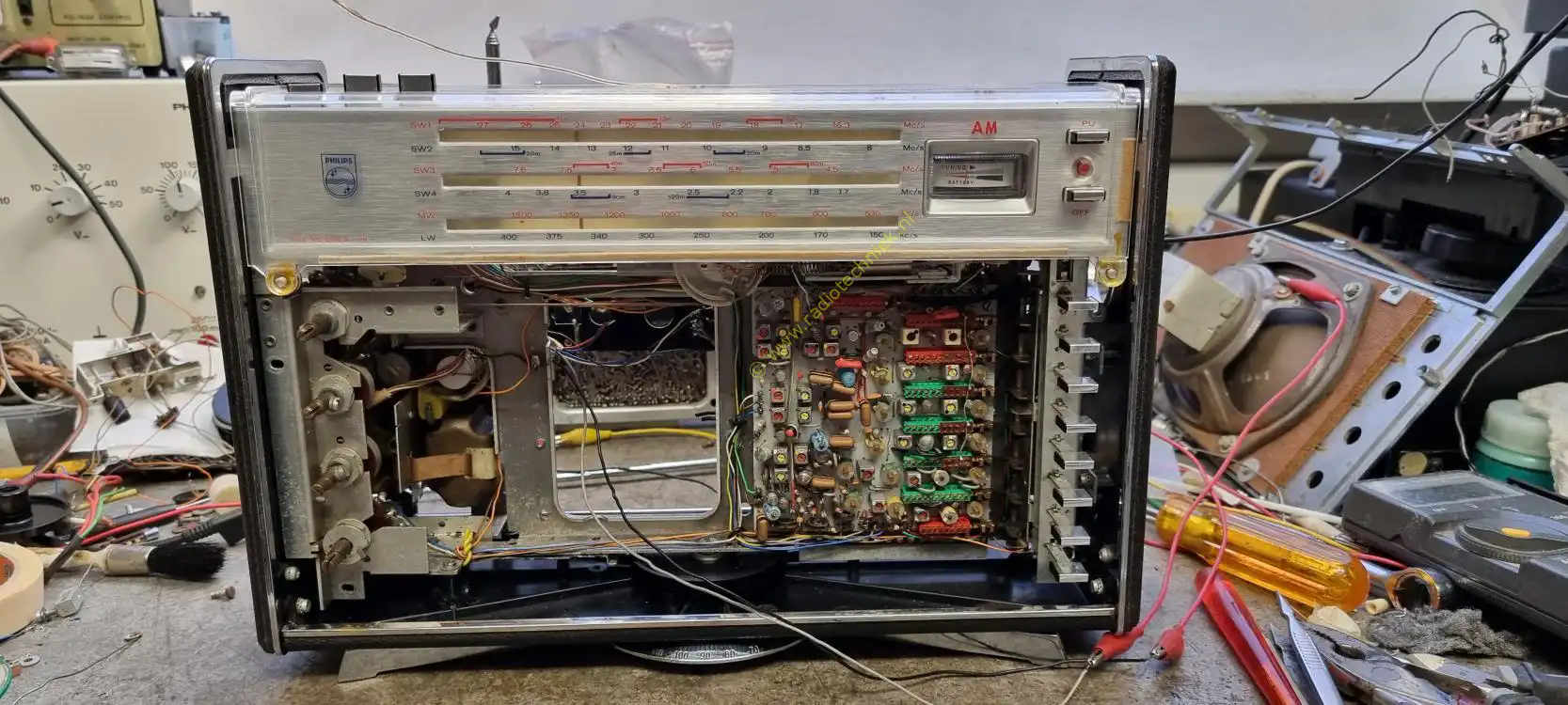

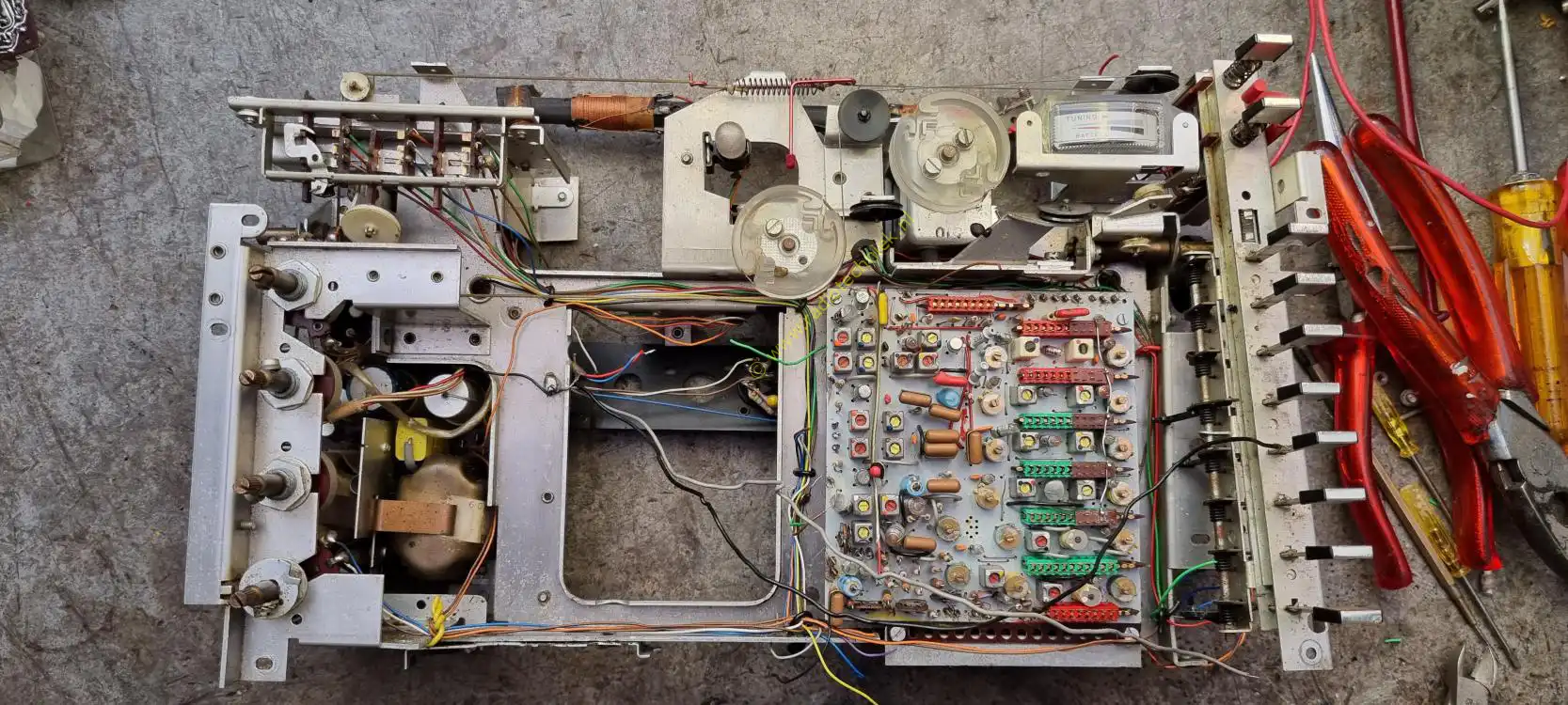

The chassis is already starting to look quite something. But unfortunately some miscreant broke off the three buttons at the top left.
Philips L6X38T Restauration foto 21

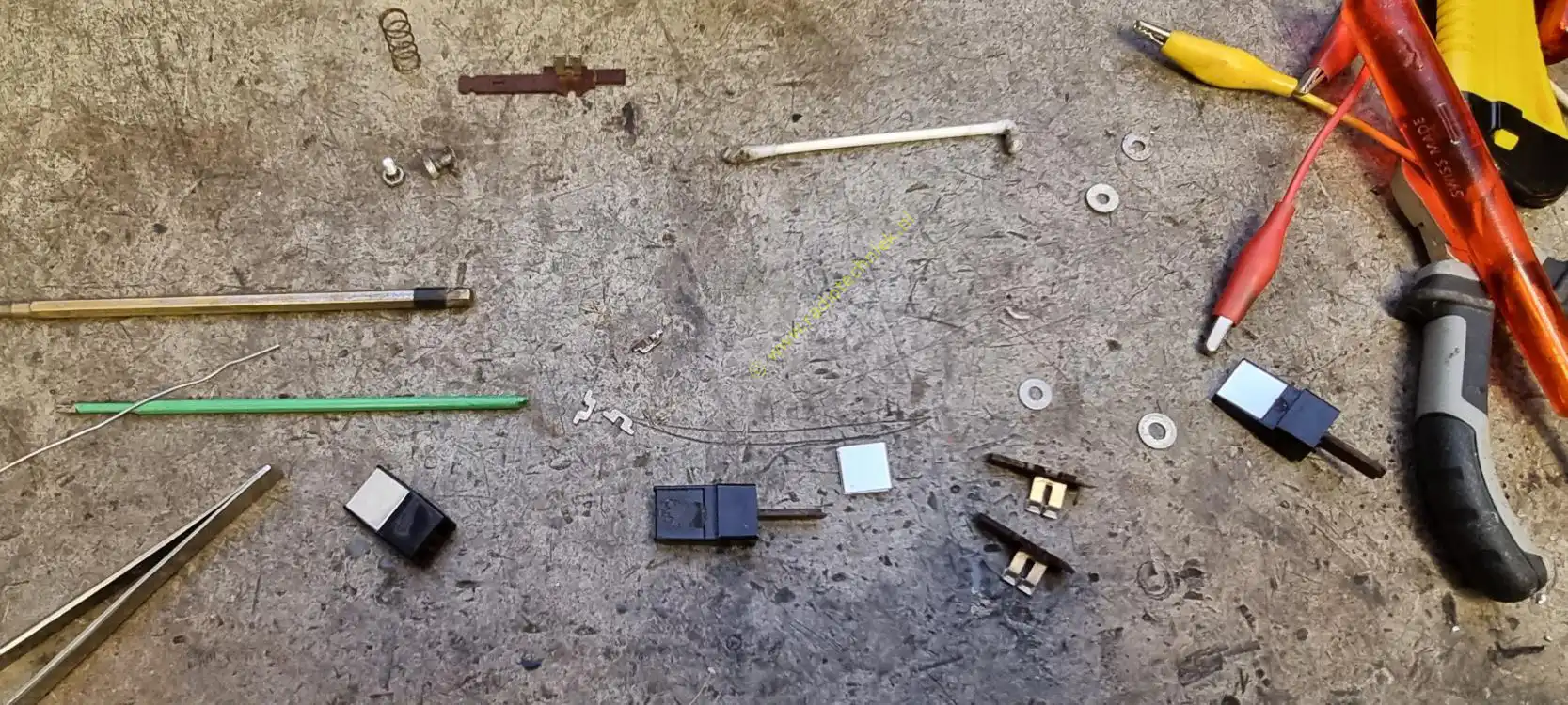

And then comes the next challenge. Where besides nowhere can you find buttons?
Philips L6X38T Restauration foto 22

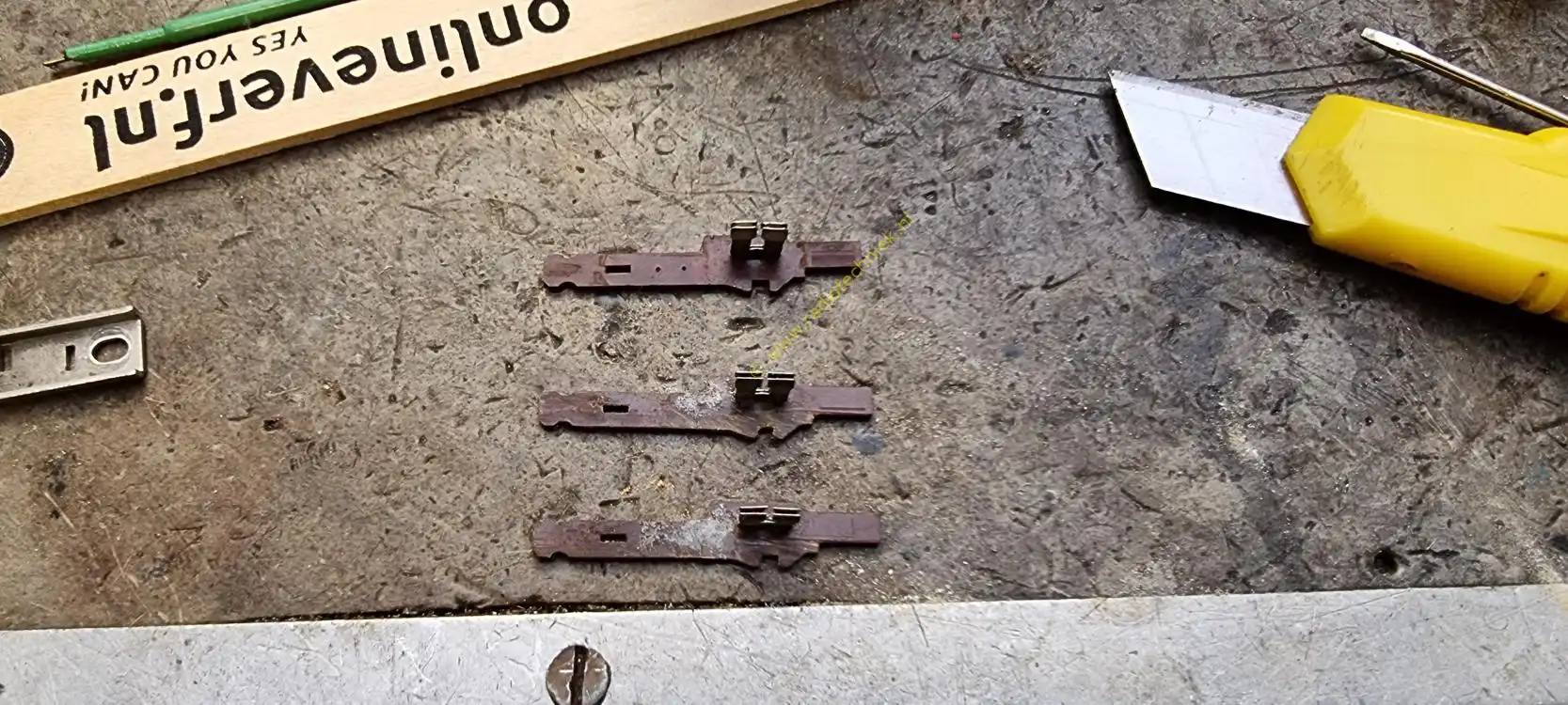

Ok we have three broken buttons that belong together.
Philips L6X38T Restauration foto 23
And this is what it looks like after gluing. Of course it still needs to be sanded smooth.
Philips L6X38T Restauration foto 24

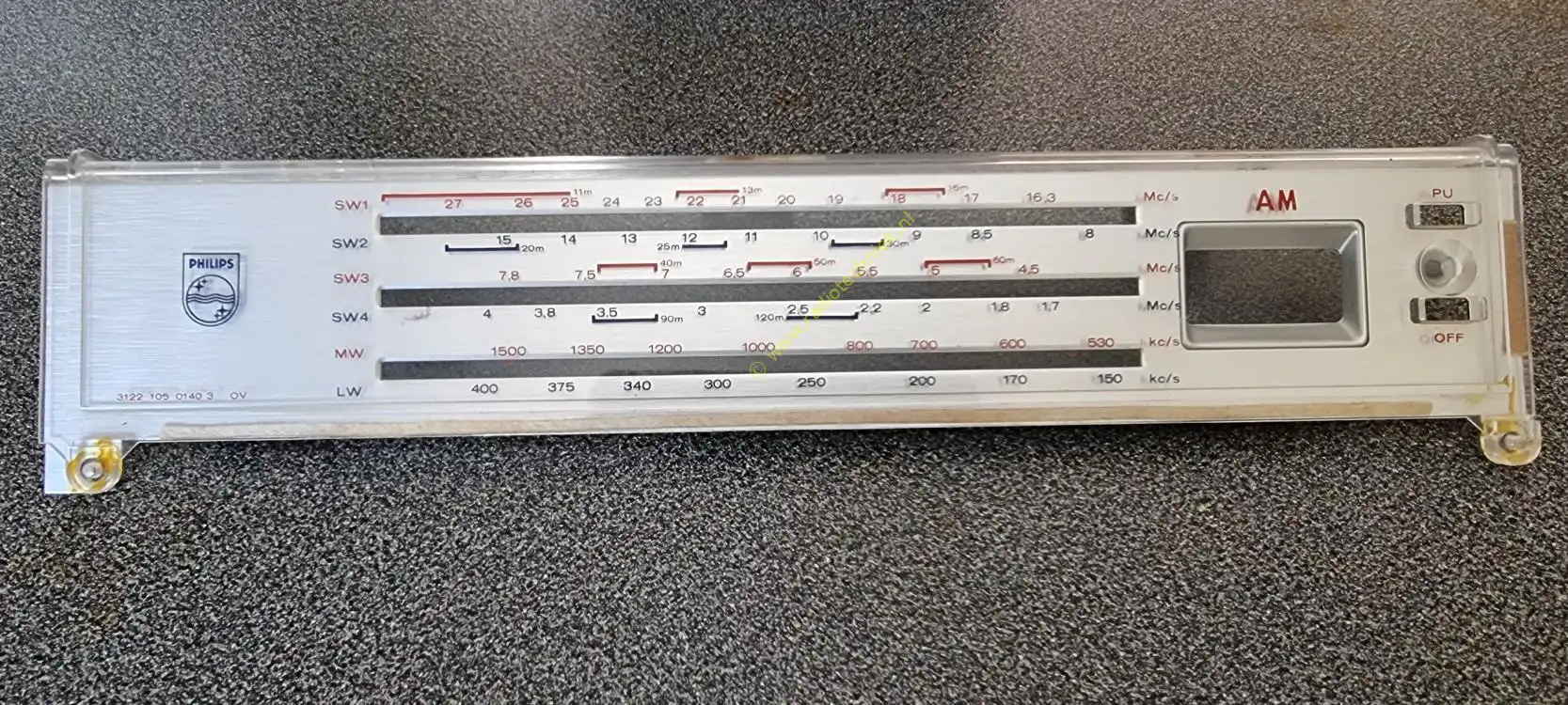

And this is the first type of dial used in 1965. The simplicity of the dial is beautiful.
Philips L6X38T Restauration foto 25
Just glue some glass plates in place.
Philips L6X38T Restauration foto 26

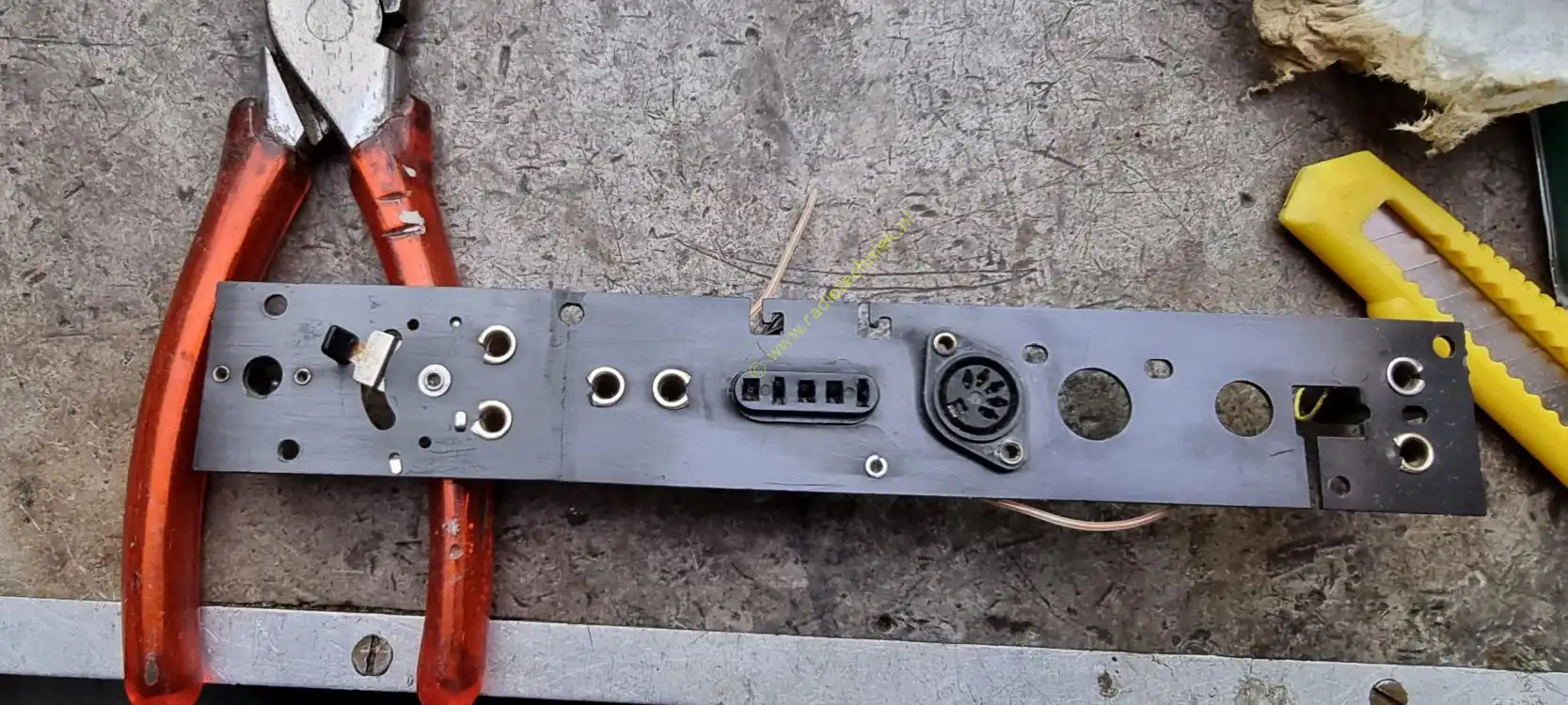

And now the next problem. The connection panel is broken. And where bisides nowhere will you find a connection panel. (old version)
Philips L6X38T Restauration foto 27

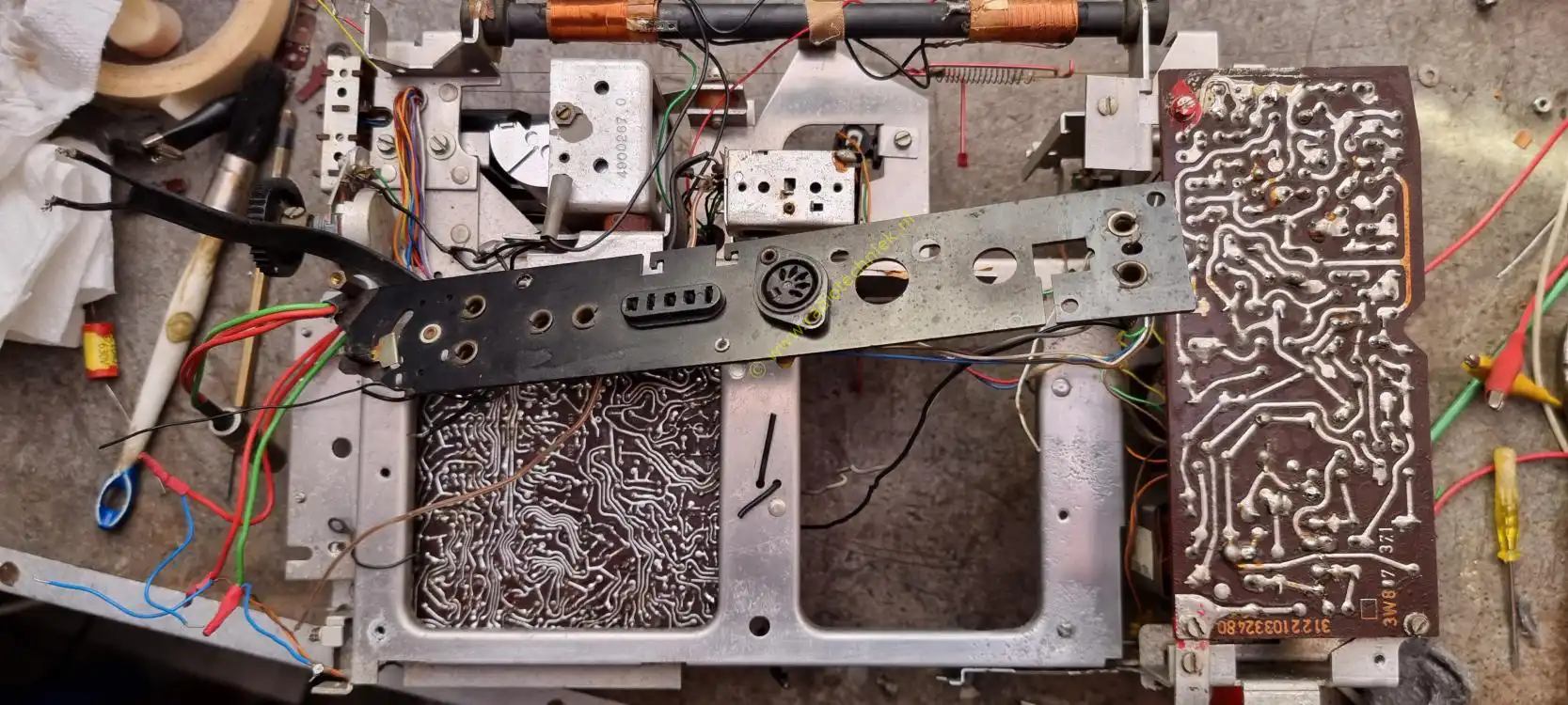

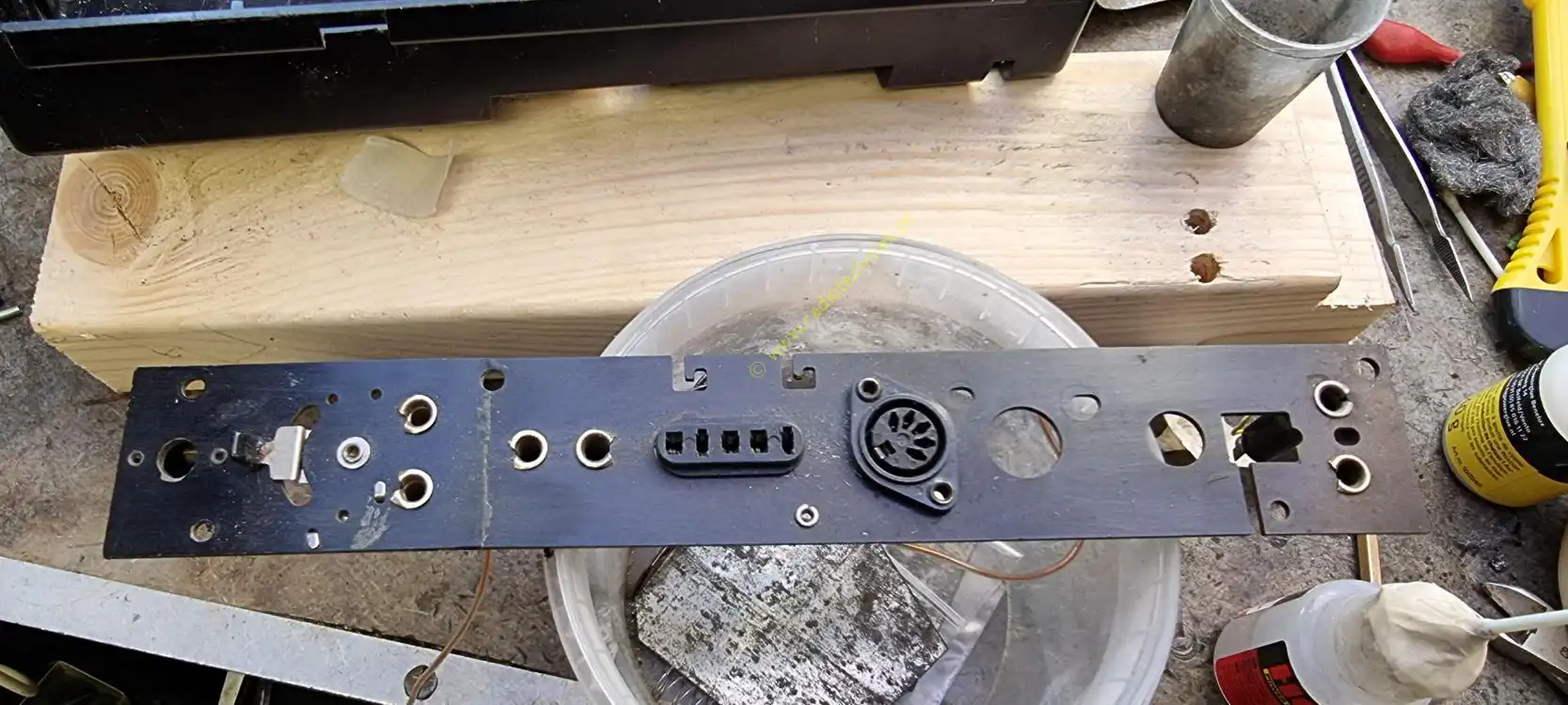

If you have a later model connection panel and a saw you can do the following.
Philips L6X38T Restauration foto 28

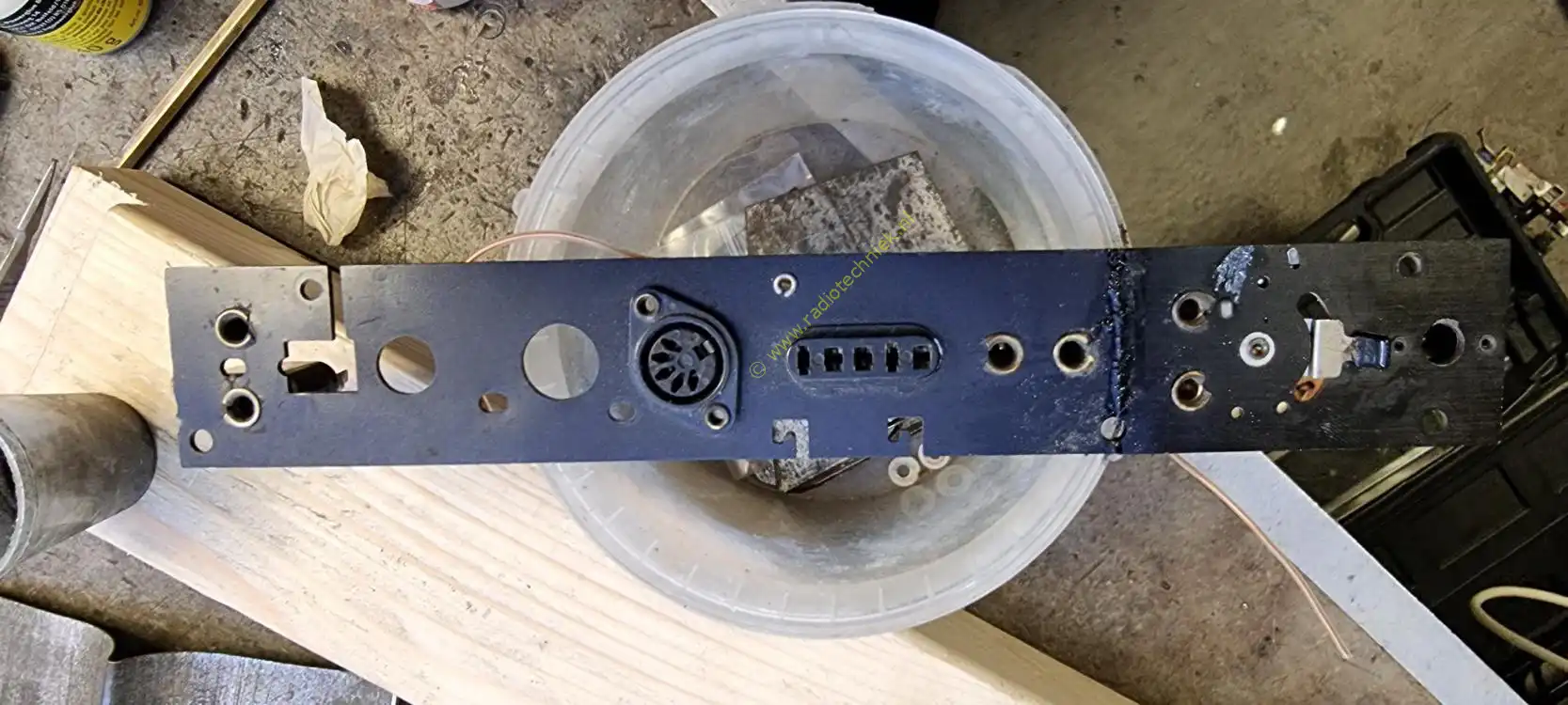

We stick the panel together with a special type of glue.
Philips L6X38T Restauration foto 29
And then comes the sanding.
Philips L6X38T Restauration foto 30
And more sanding.
Philips L6X38T Restauration foto 31

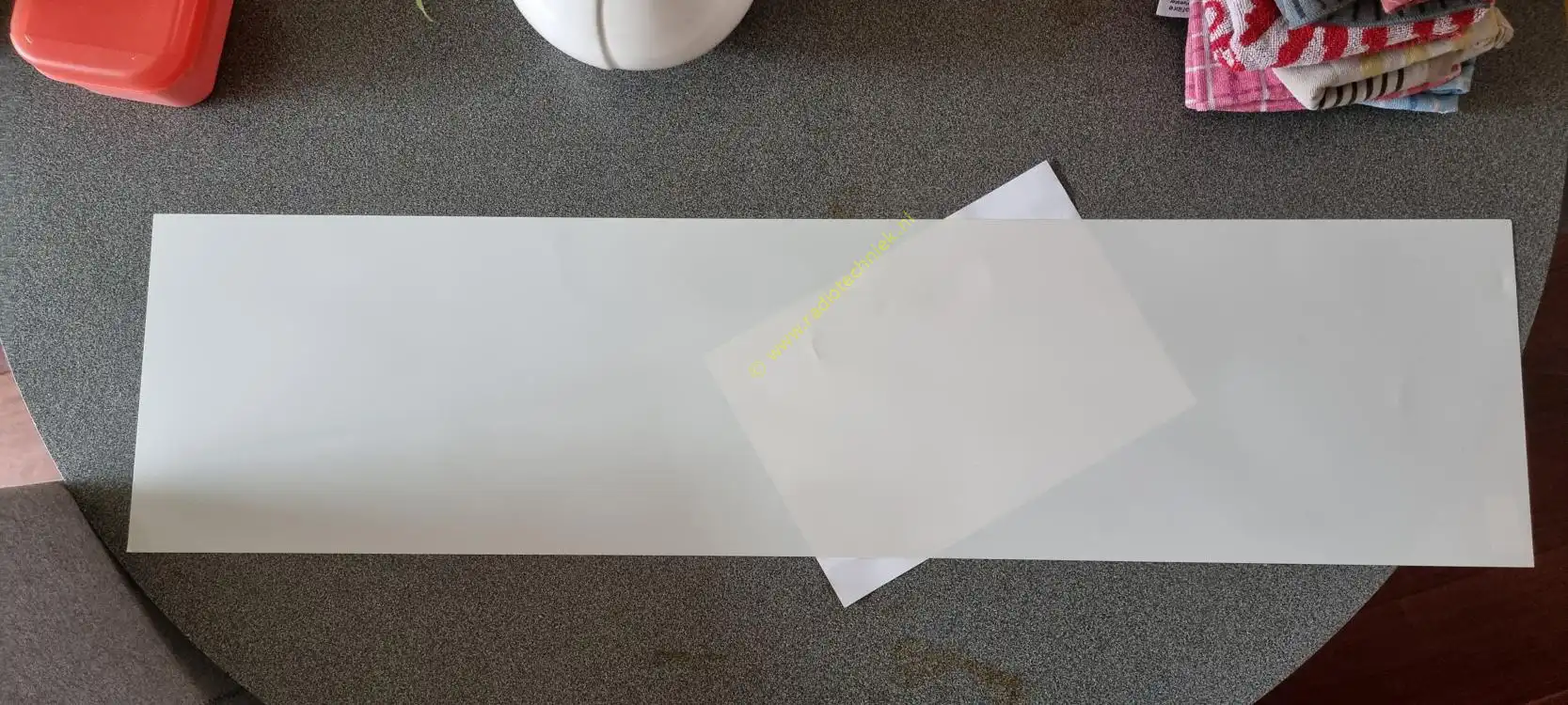

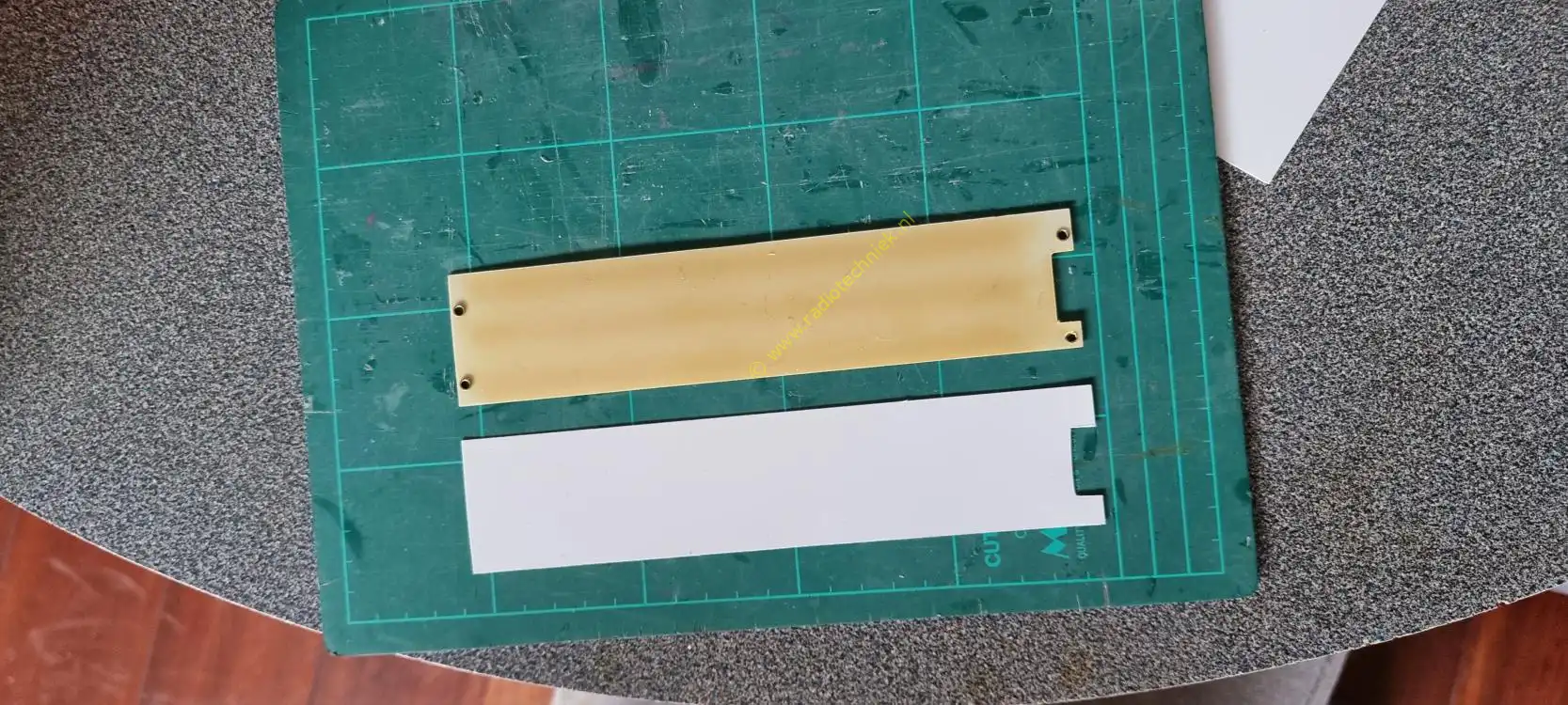

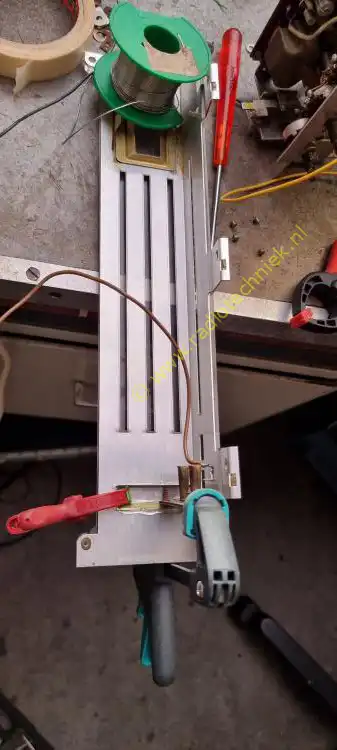

The dial of the radio is covered with white foil on the back. So no yellow smokers foil.
Philips L6X38T Restauration foto 32
Here's an idea of what it looks like.
Philips L6X38T Restauration foto 33

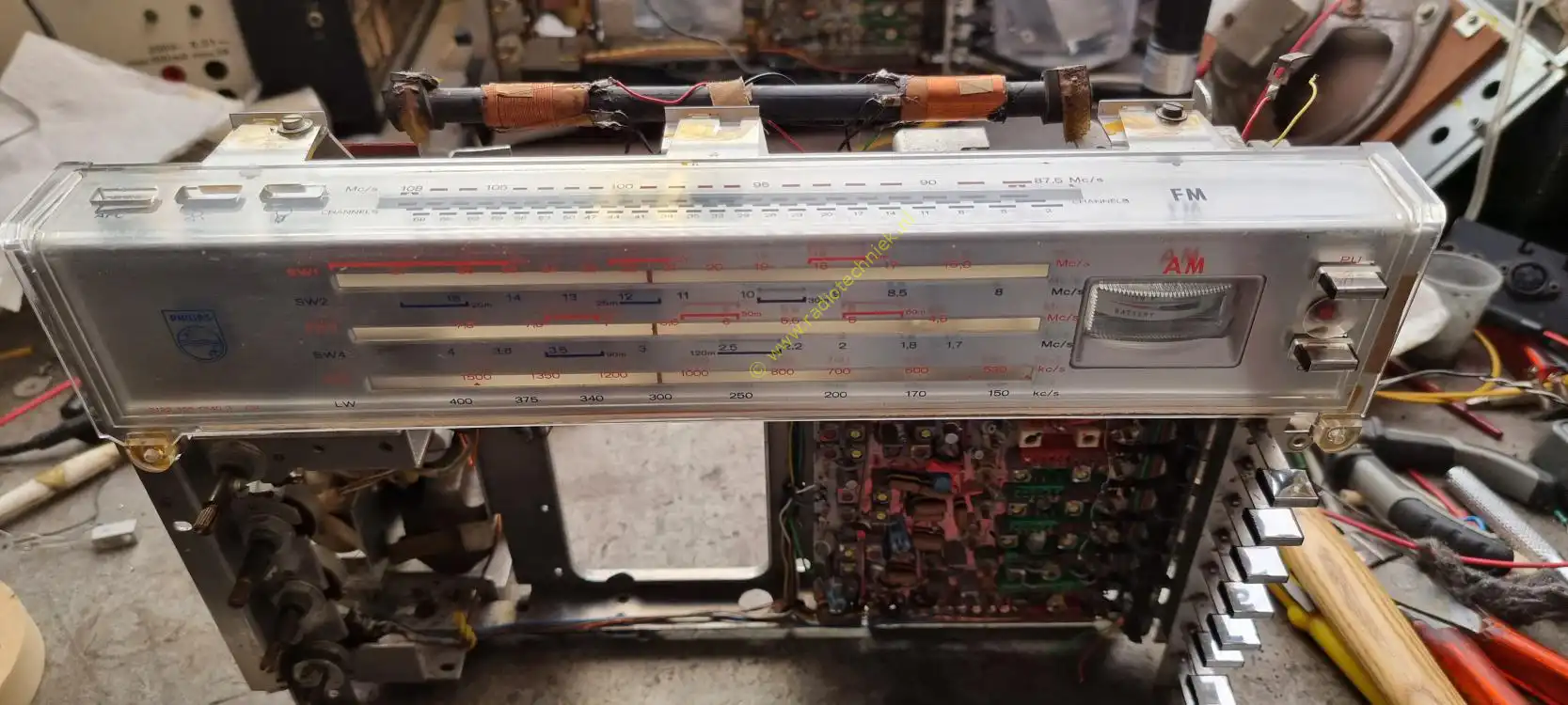

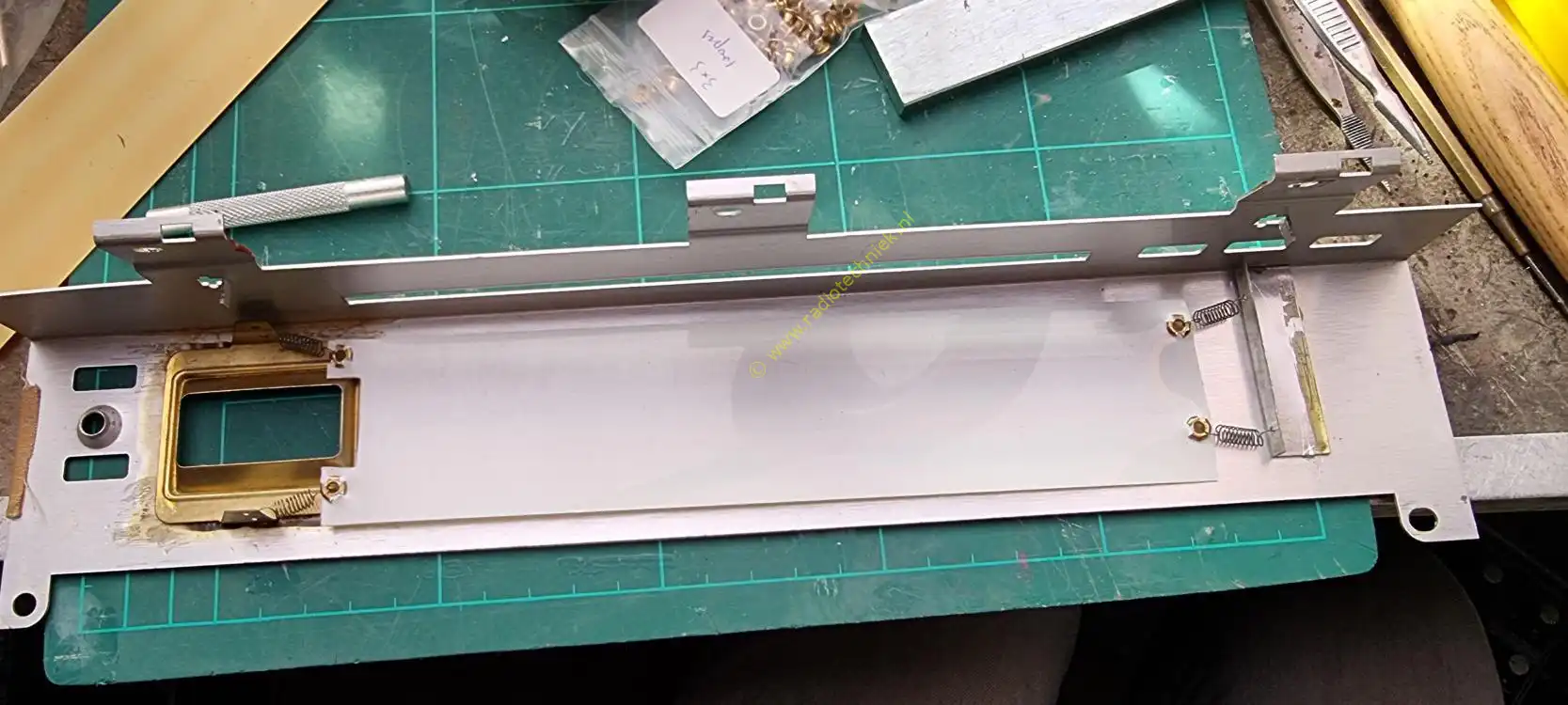

And now the foil is mounted in the dial.
Philips L6X38T Restauration foto 34

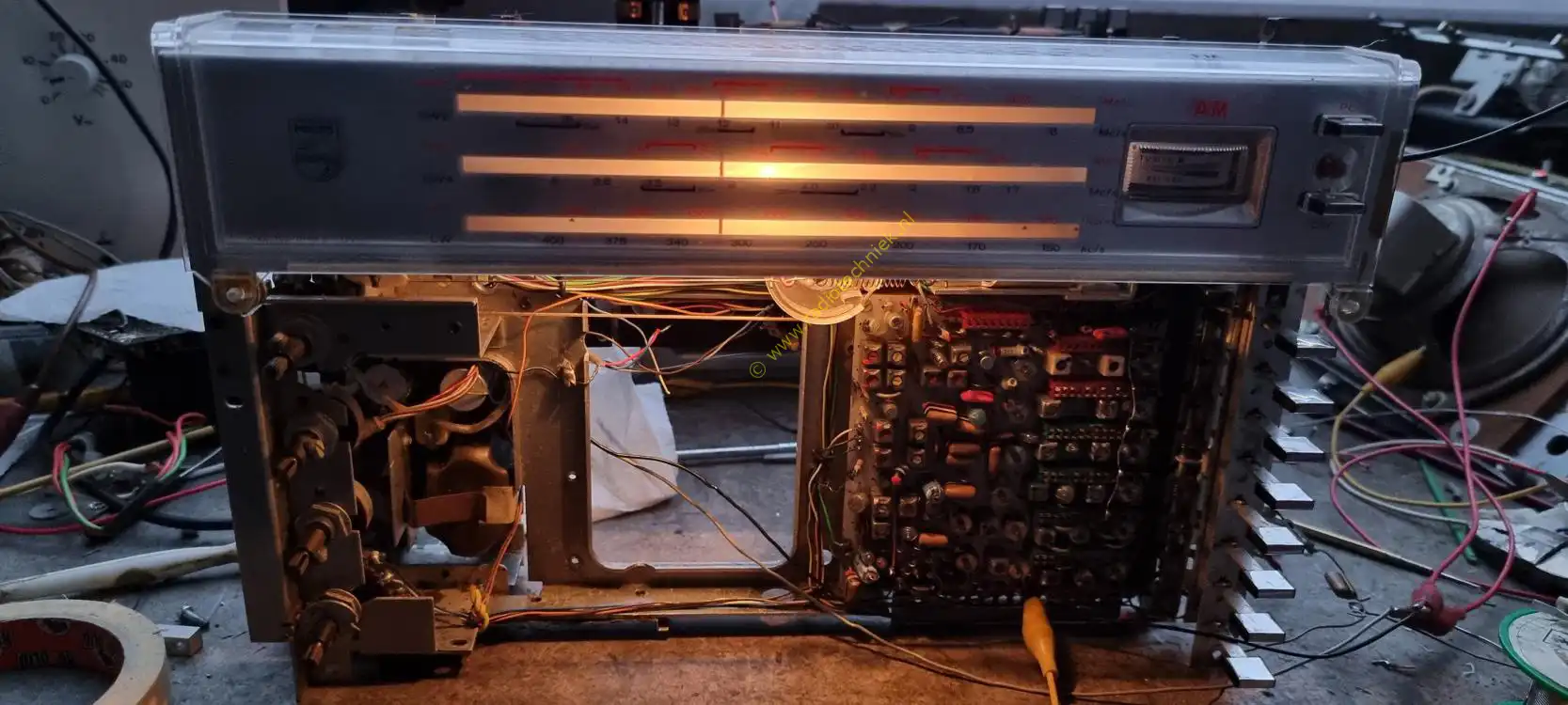

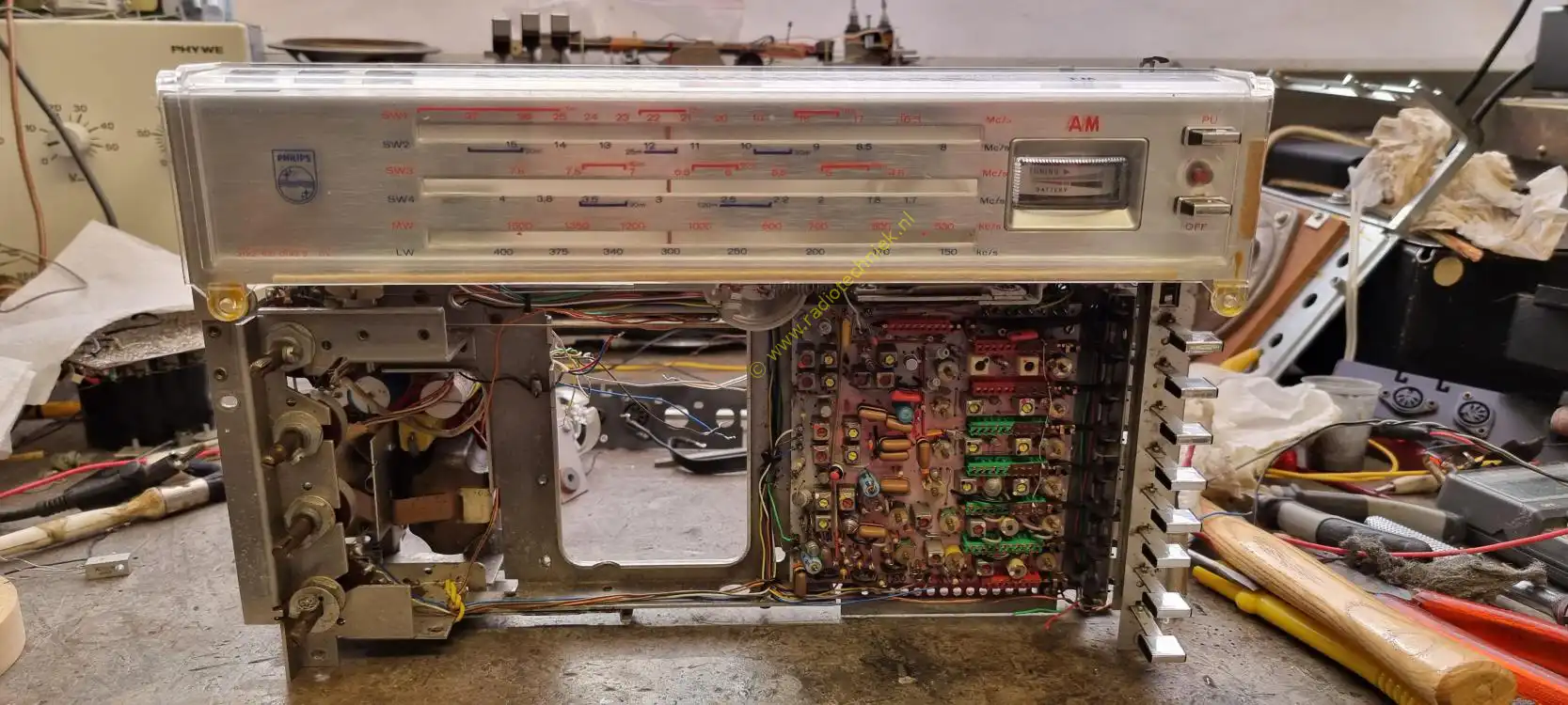

And look, indistinguishable from the real thing.
Philips L6X38T Restauration foto 35
Just from a different angle. What a beautiful radio it is slowly becoming.
Philips L6X38T Restauration foto 36
And after the glue has dried, the connection panel must be mounted. it's just a huge f.... job.
Philips L6X38T Restauration foto 37
And would the radio play better now? Take a look and see what radio has become.
Philips L6X38T Restauration foto 38
The radio in the dark. Beautifully lit.
Philips L6X38T Restauration foto 39
Because a suspension tab on the old battery holder had broken off. I removed the original serial number.
Philips L6X38T Restauration foto 40

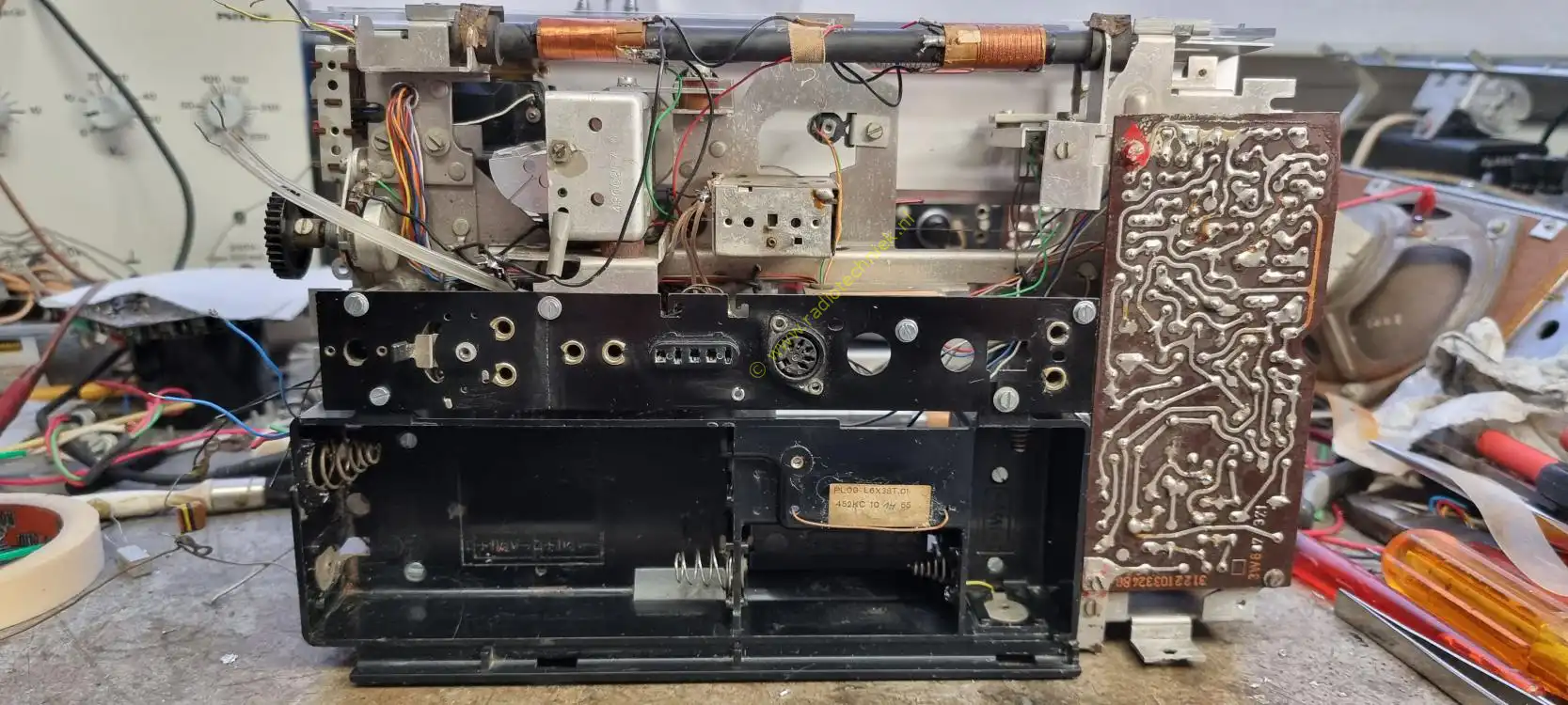

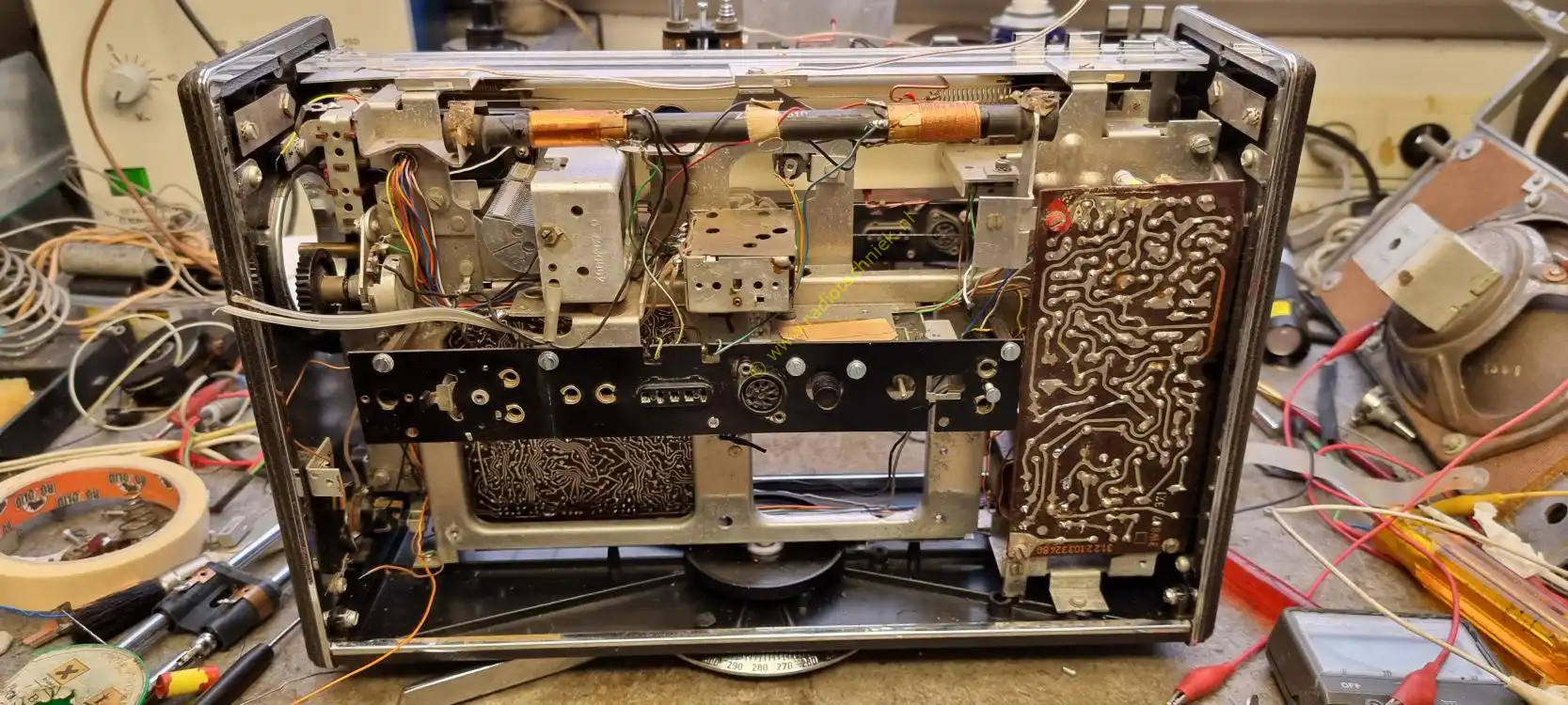

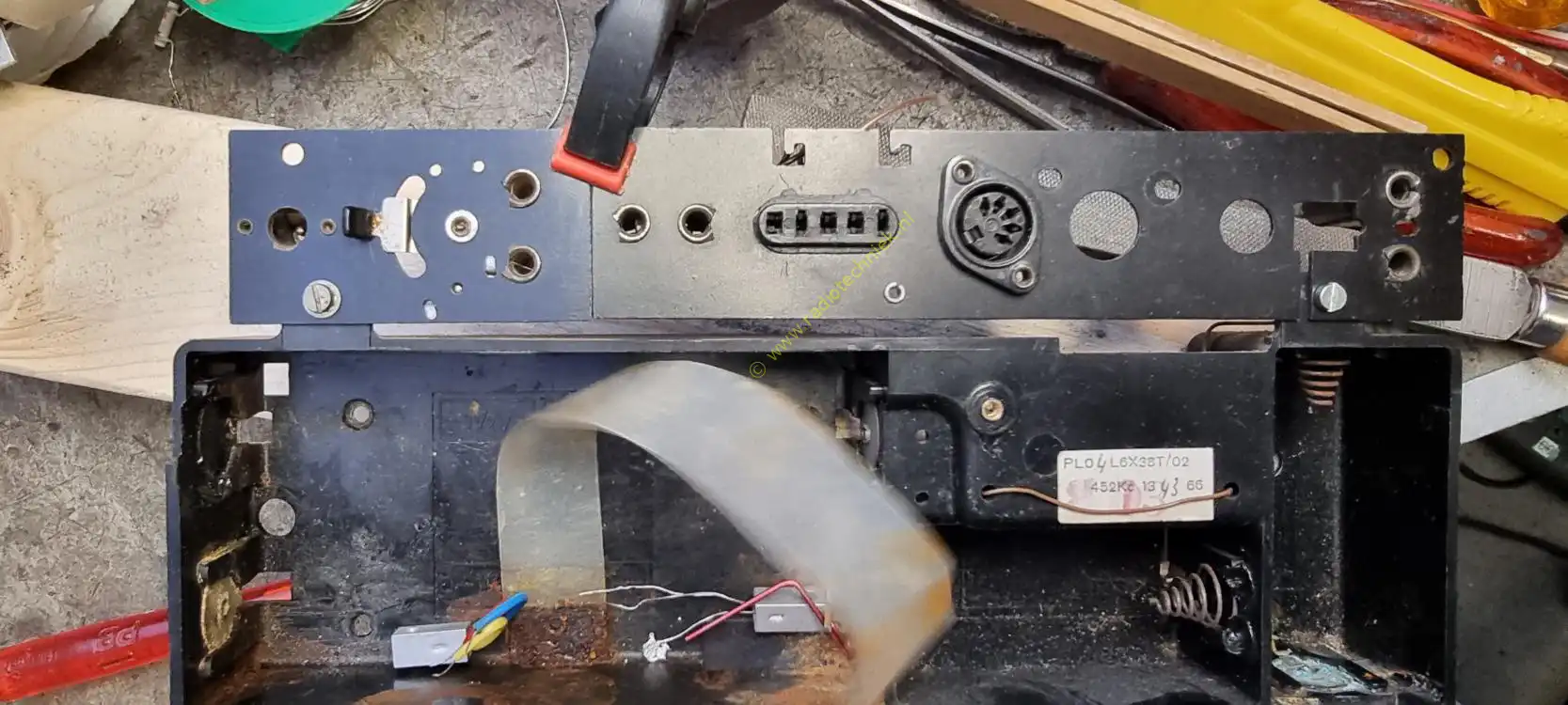

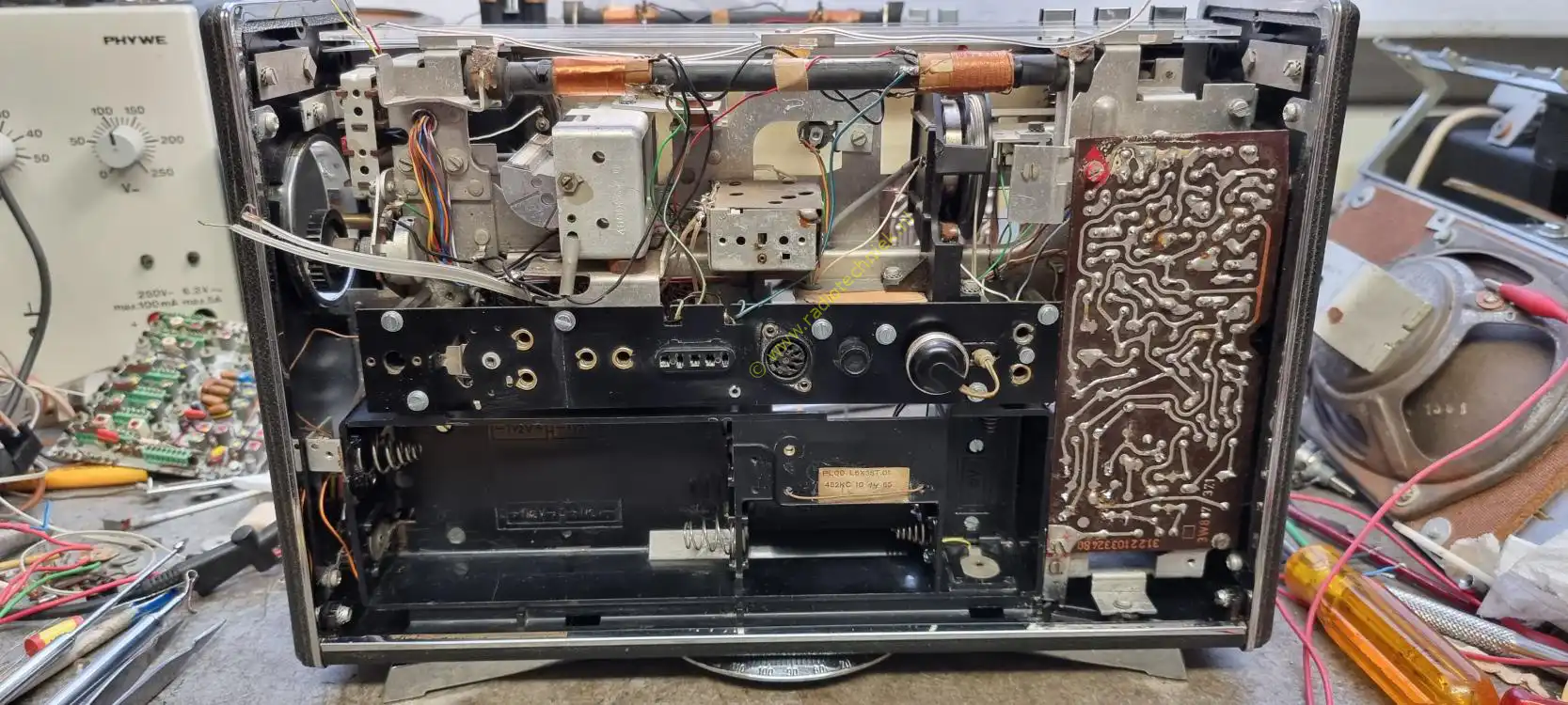

Here the fitment of the battery holder together with the connection panel. The top right tab was broken off from the original battery holder to which the connection panel is screwed.
Philips L6X38T Restauration foto 41
Because the radio looks so nice, I placed it on a pedestal.
Philips L6X38T Restauration foto 42
The buttons were finally replaced with original ones. That turns out to work best.
Philips L6X38T Restauration foto 43
Two sides gives more of the idea that this is a radio.
Philips L6X38T Restauration foto 44

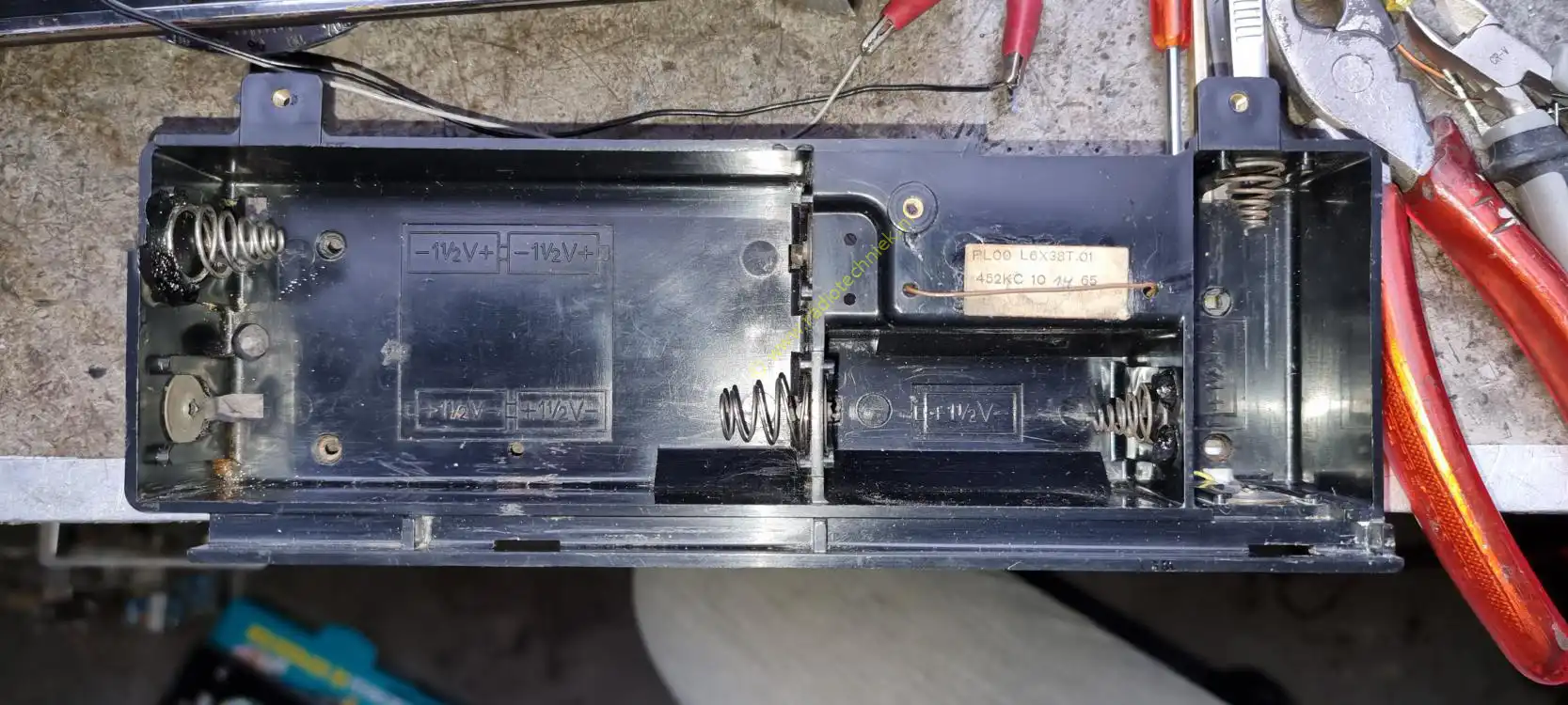

The replacement battery holder. Someone has already been working there with a soldering iron. But somewhat improved, it still works.
Philips L6X38T Restauration foto 45
And then suddenly the radio stops playing.
Philips L6X38T Restauration foto 46

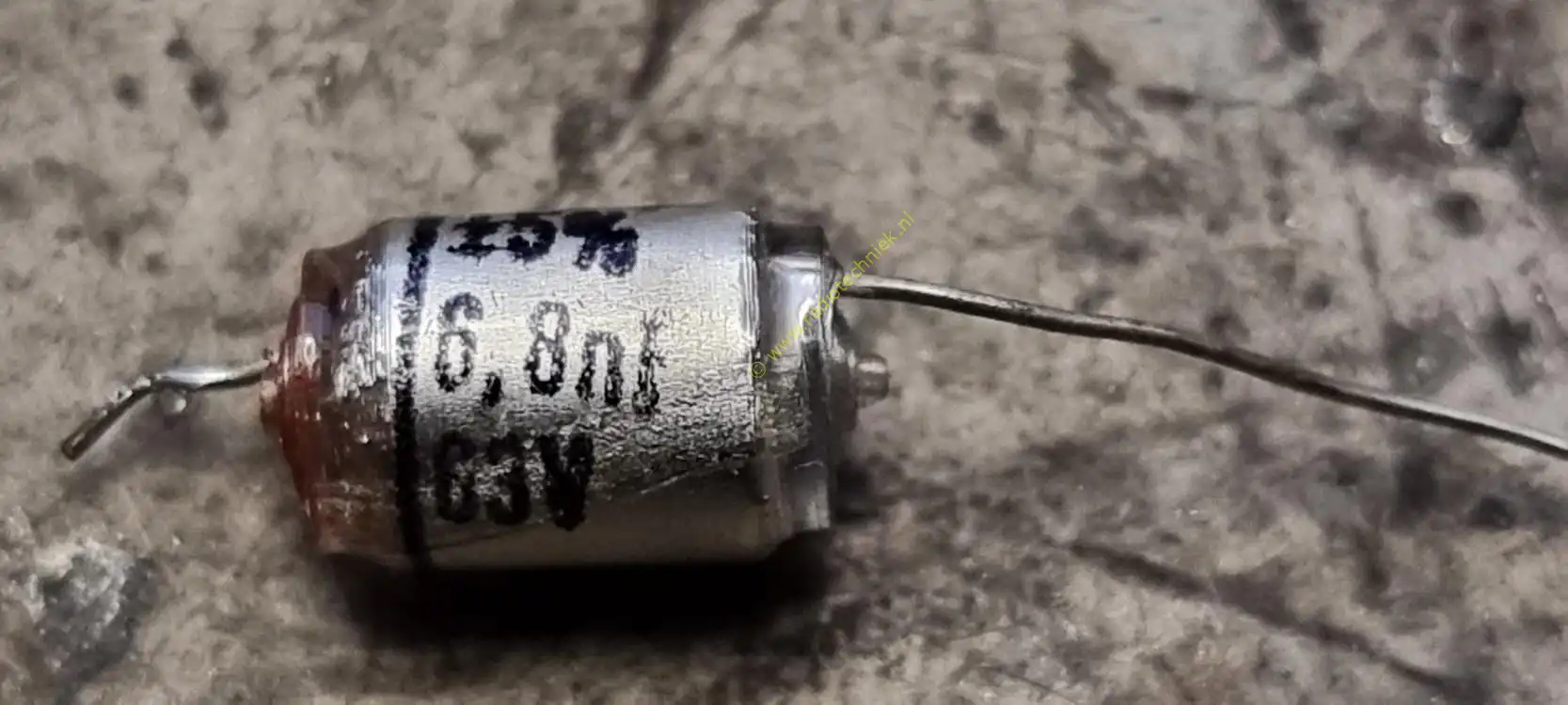

Hm, well, sometimes something breaks spontaneously. That keeps it exciting.
Philips L6X38T Restauration foto 47
And there he is. it remains old technology and all kinds of things happen with it.
Philips L6X38T Restauration foto 48

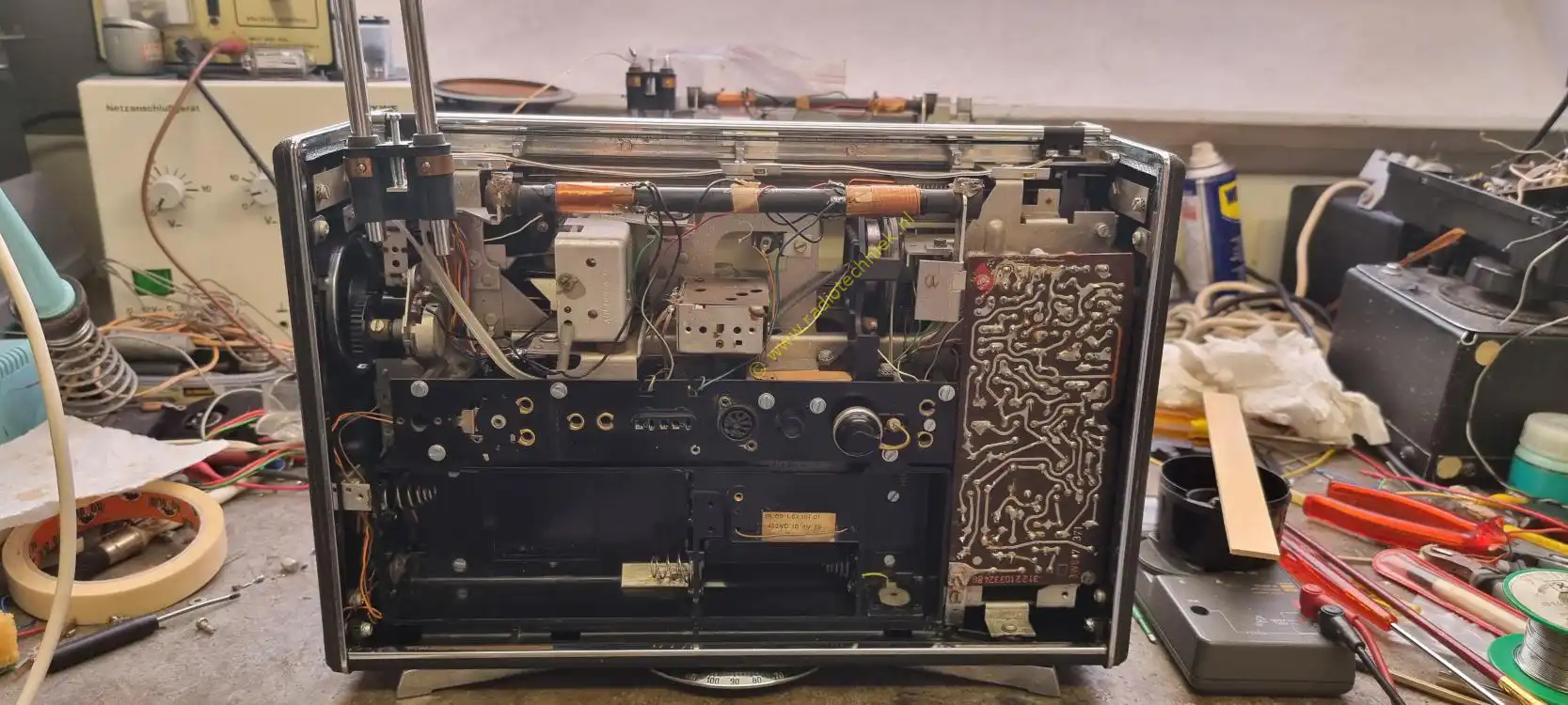

And then with the battery holder in place. Wow, it really does look like a beautiful radio.
Philips L6X38T Restauration foto 49
And yes, if the back becomes more beautiful than the front, then something needs to be done. The grill and dial makes the front something beautiful.
Philips L6X38T Restauration foto 50
And yes, after all this work you wonder, will the radio still play?
Philips L6X38T Restauration foto 51

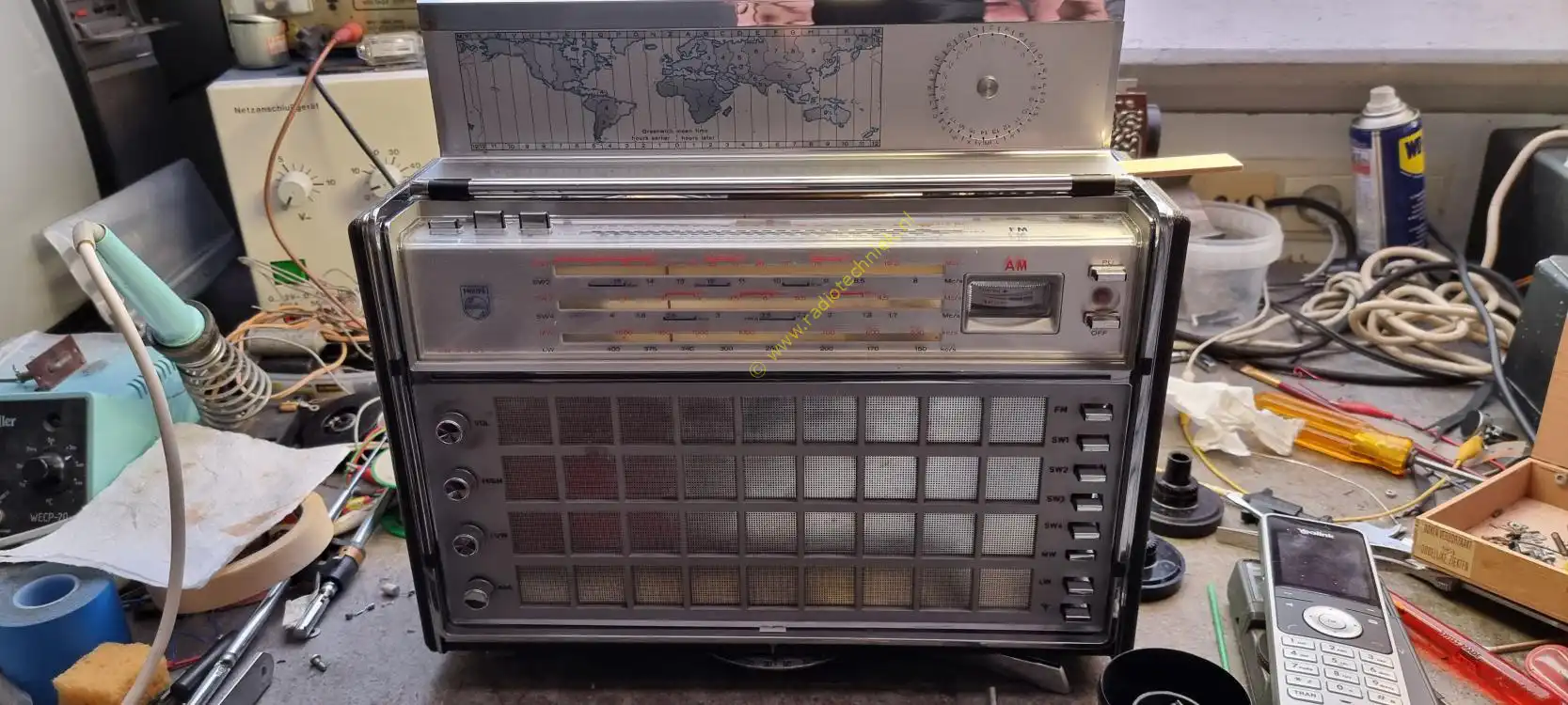

The original top cover fitted makes such a radio quite complete.
Philips L6X38T Restauration foto 52
What a beautiful device it is.
Philips L6X38T Restauration foto 53
Time for buttons.
Philips L6X38T Restauration foto 54

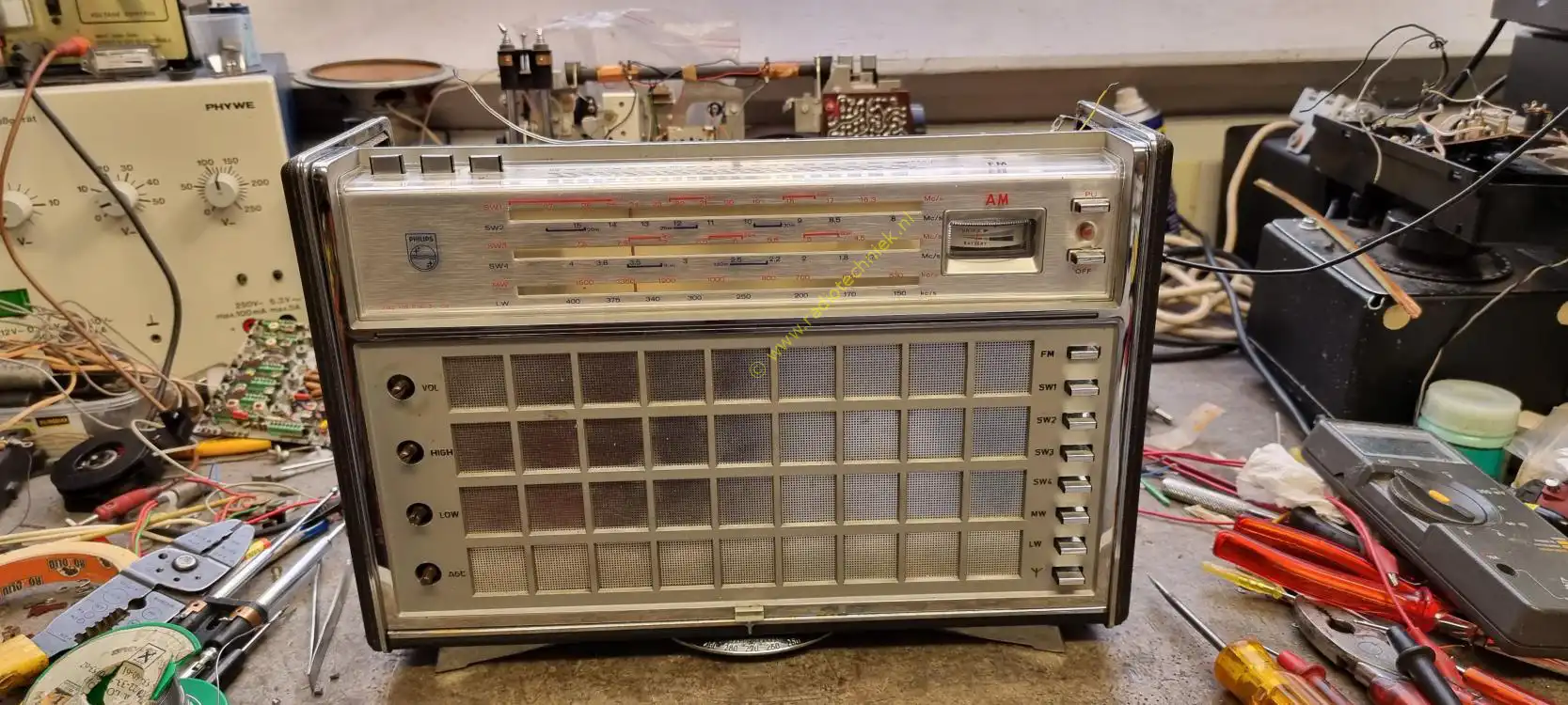

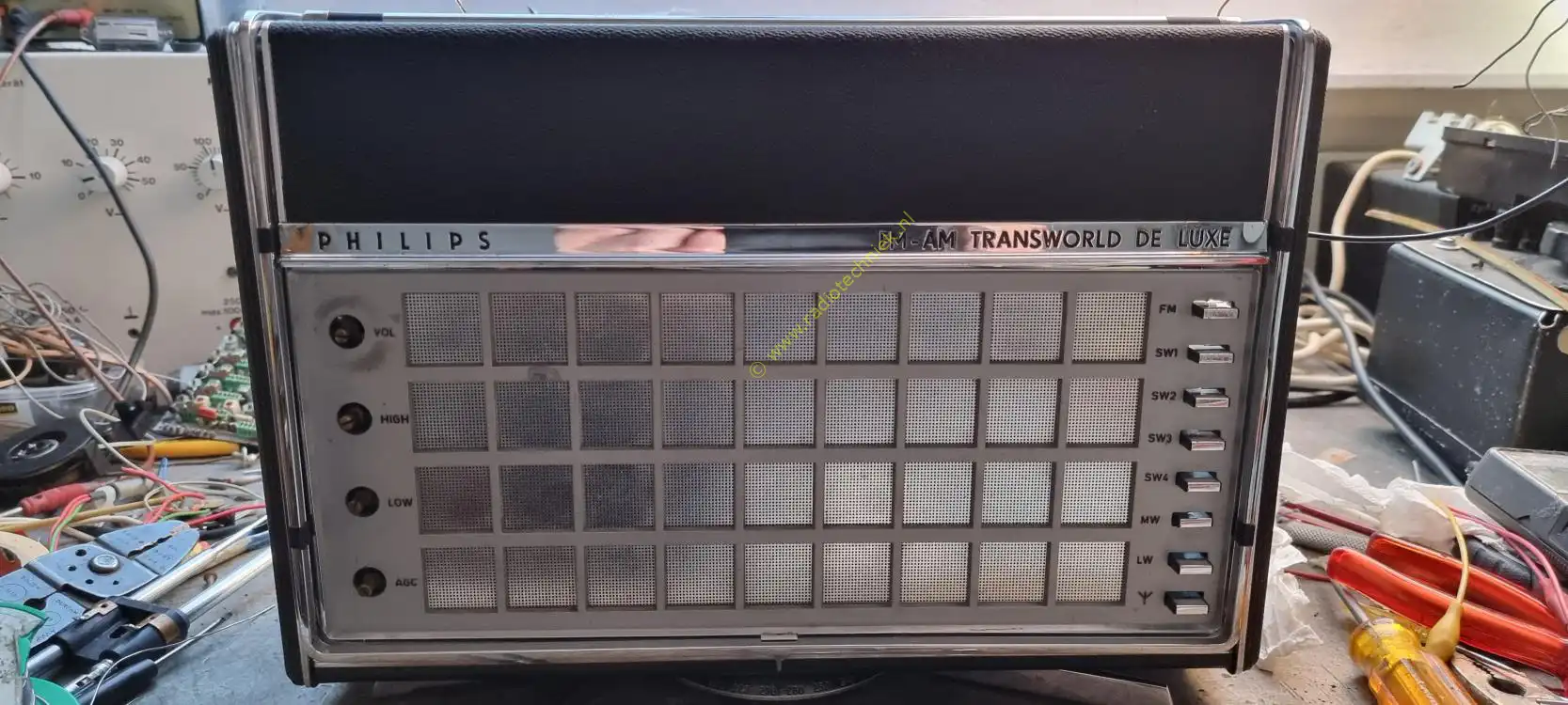

The front is complete. This beautiful device is really going to be something.
Philips L6X38T Restauration foto 55
Two antennas for the FM.
Philips L6X38T Restauration foto 56
This radio was just a wrecker. has been saved and has become a beautiful device again.
Philips L6X38T Restauration foto 57

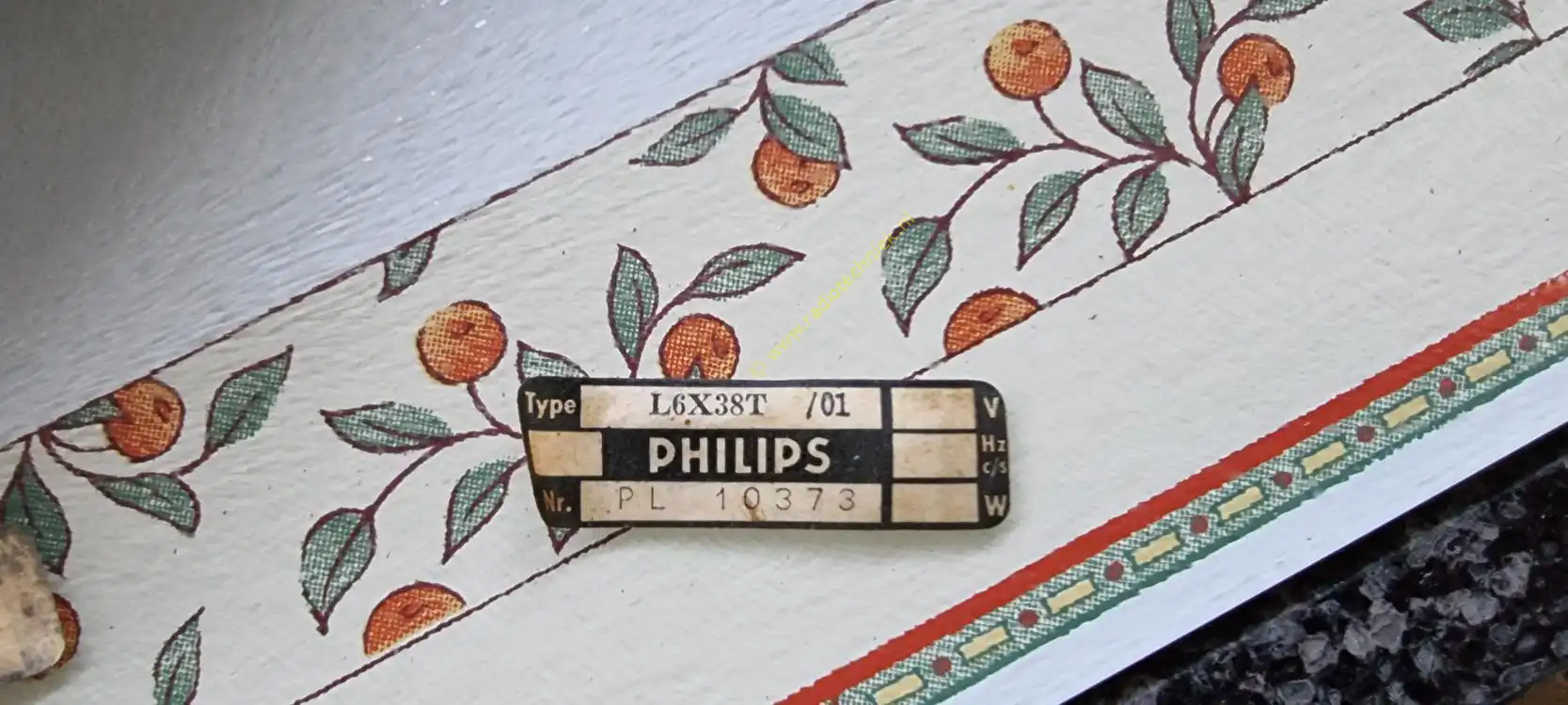

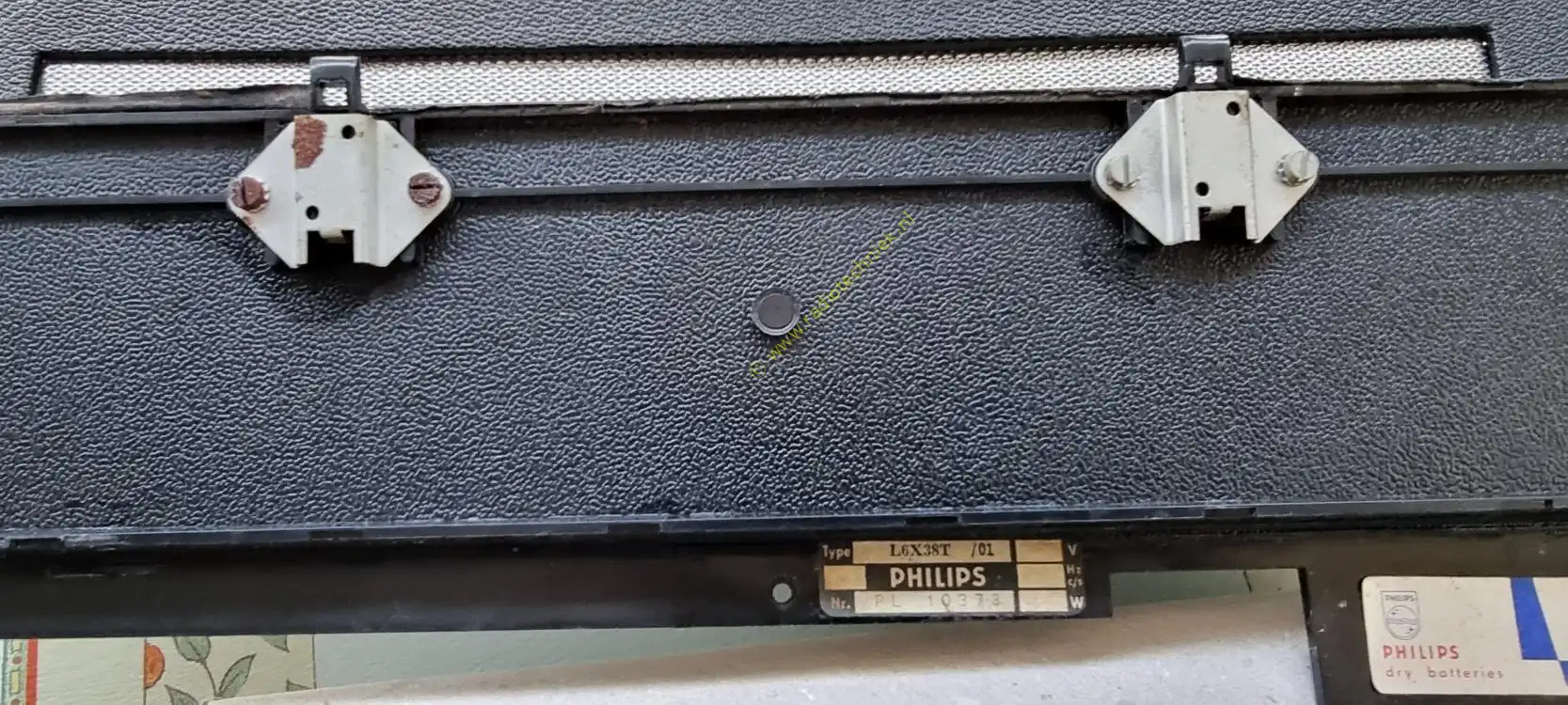

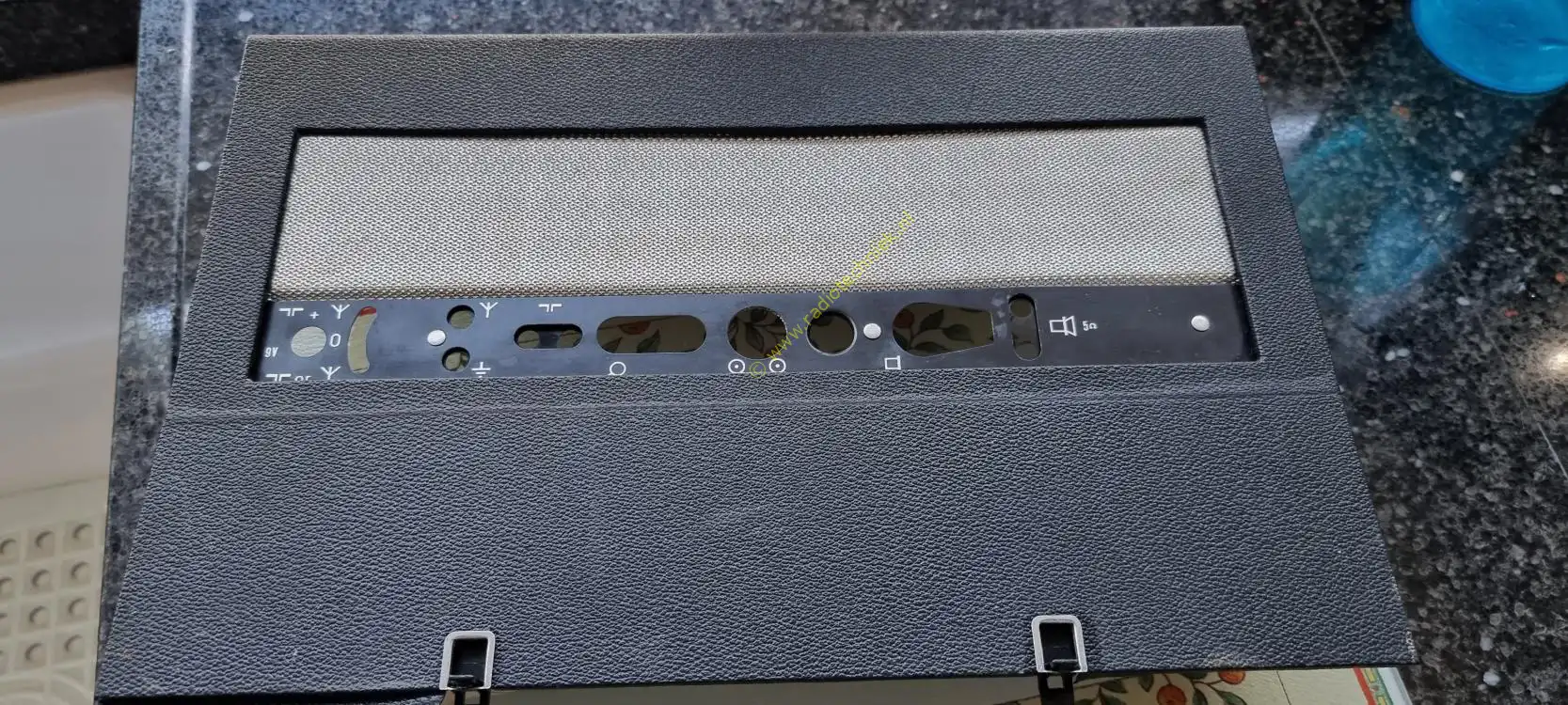

The serial number has also been removed from the original back. Unfortunately, this back could not be saved.
Philips L6X38T Restauration foto 58
Serial number on the new back.
Philips L6X38T Restauration foto 59
The back can easily be mounted on the radio.
Philips L6X38T Restauration foto 60
The radio has been completely restored. This is a special device because there are not many available. And someone managed to completely demolish this radio. And I have no idea.
