Philips 2601

Radiotechniek album

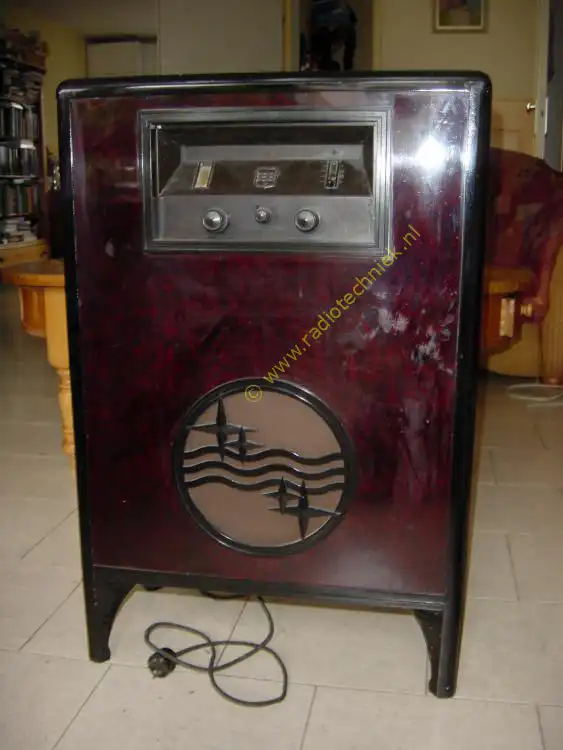

Philips 2601 foto 1

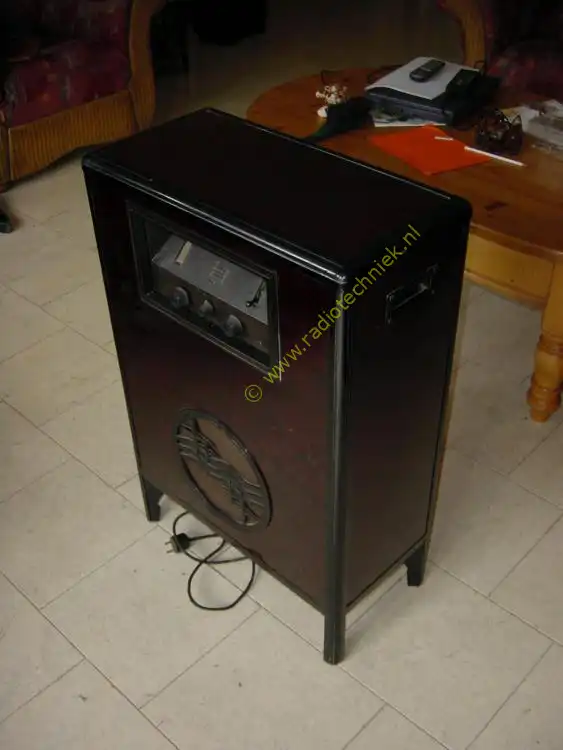

The Philips 2601. Is a radio furniture with a built-in master singer loudspeaker.

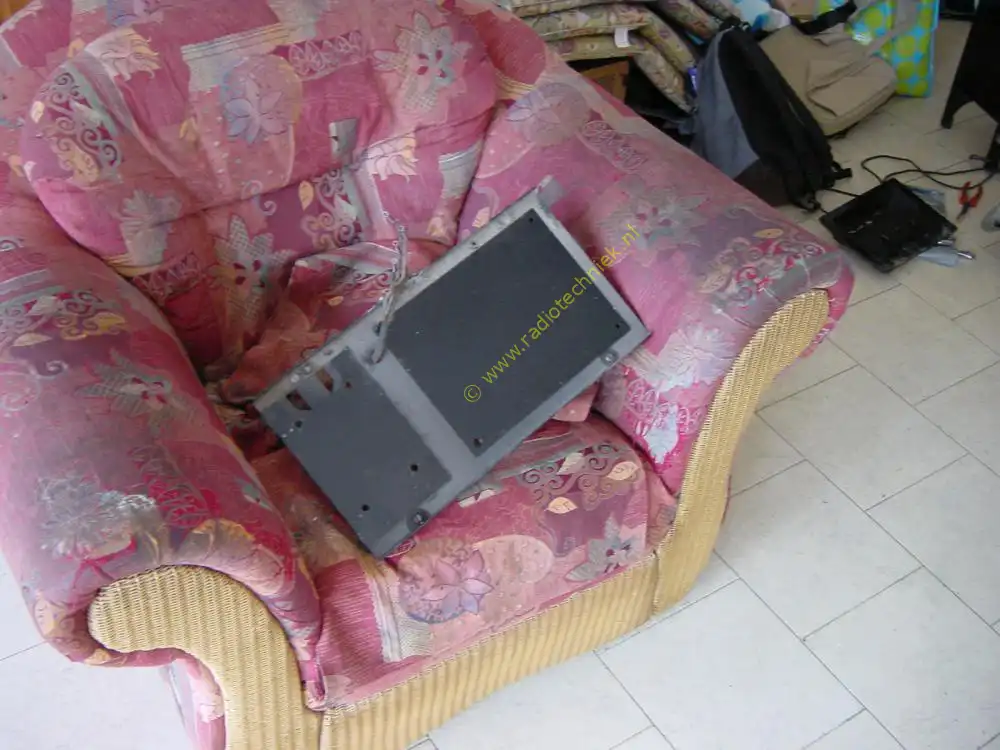

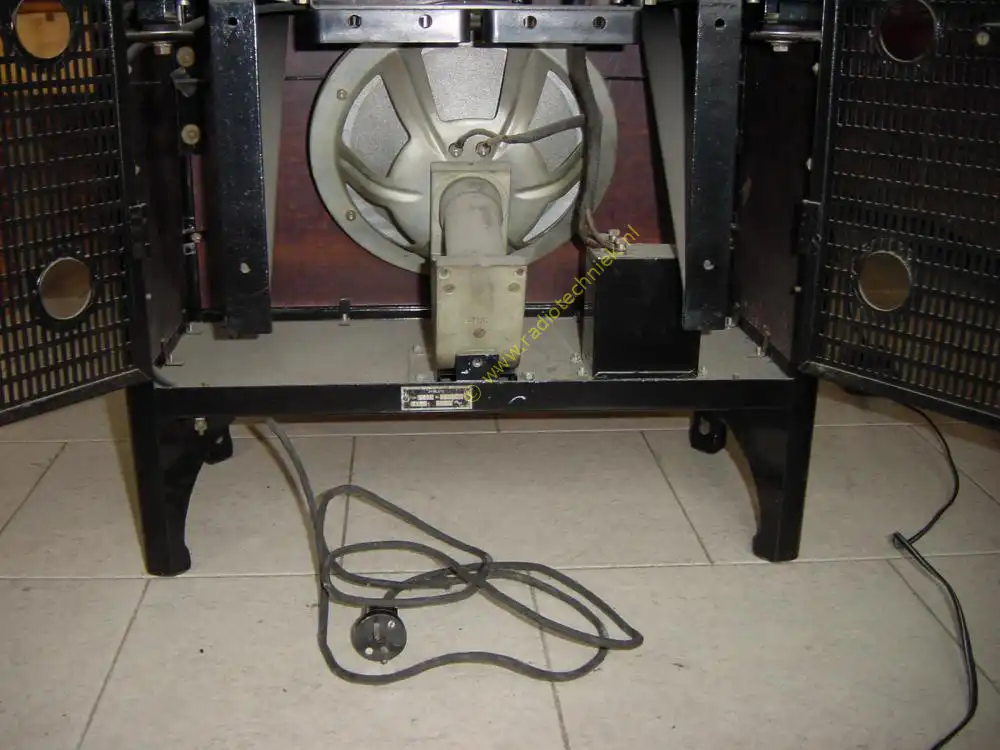

Philips 2601 foto 2

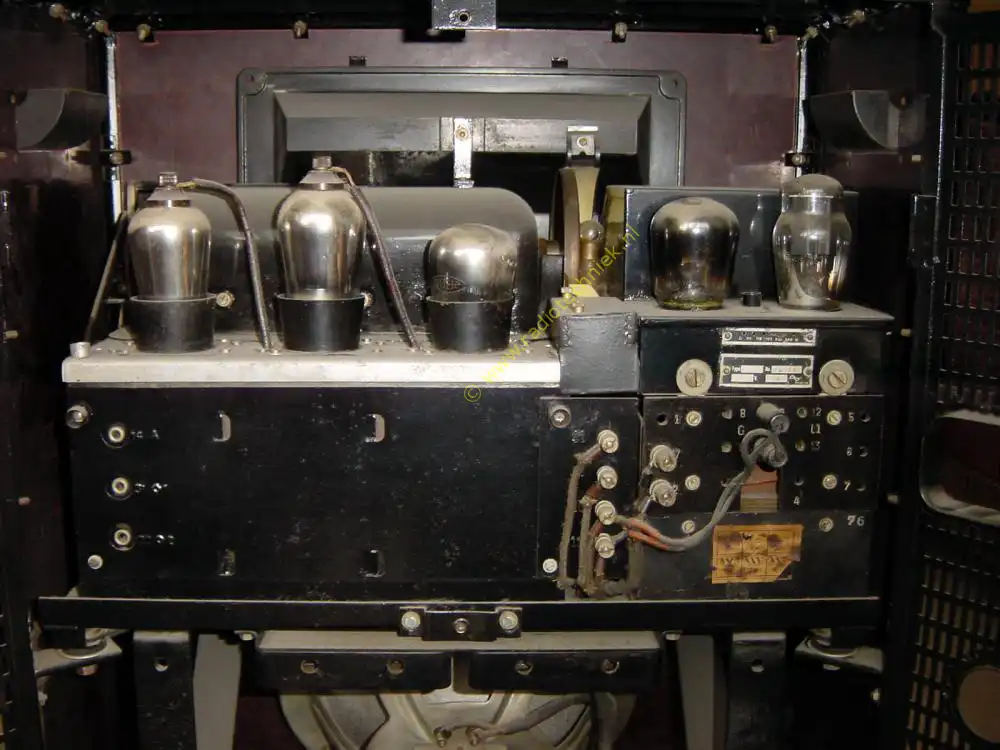

The back of the device. Two metal doors protect the interior of the device.
Philips 2601 foto 3
The radio consists of a 1511 and a master singer speaker.
Philips 2601 foto 4

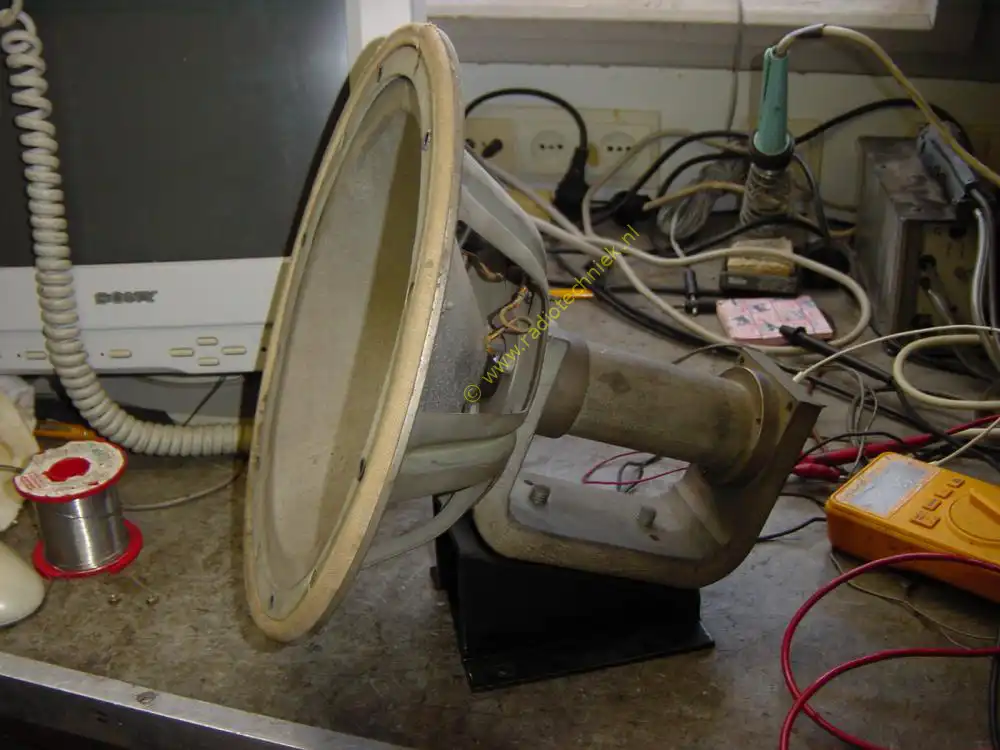

The loudspeaker was a first version with a permanent magnet.

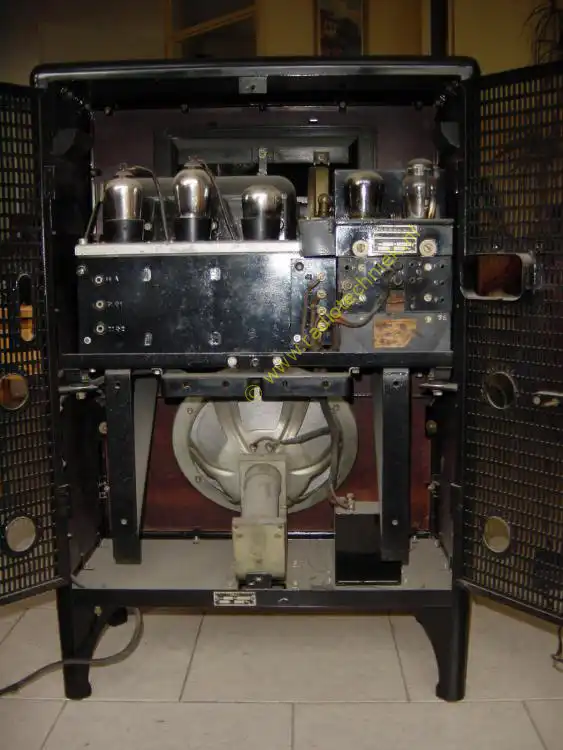

Philips 2601 foto 5

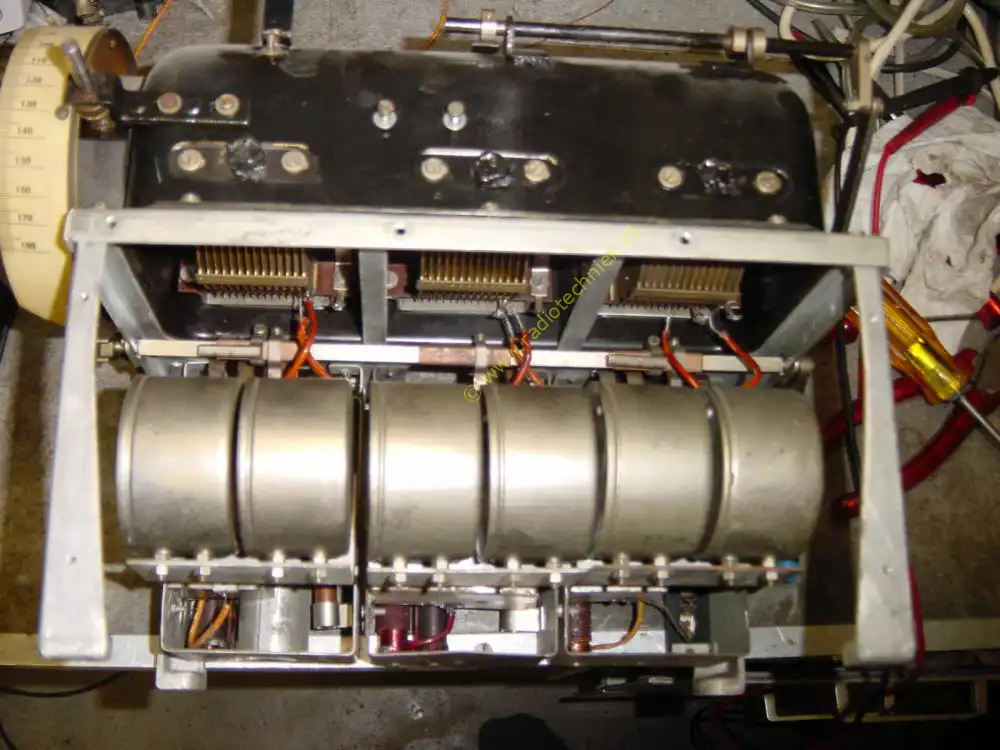

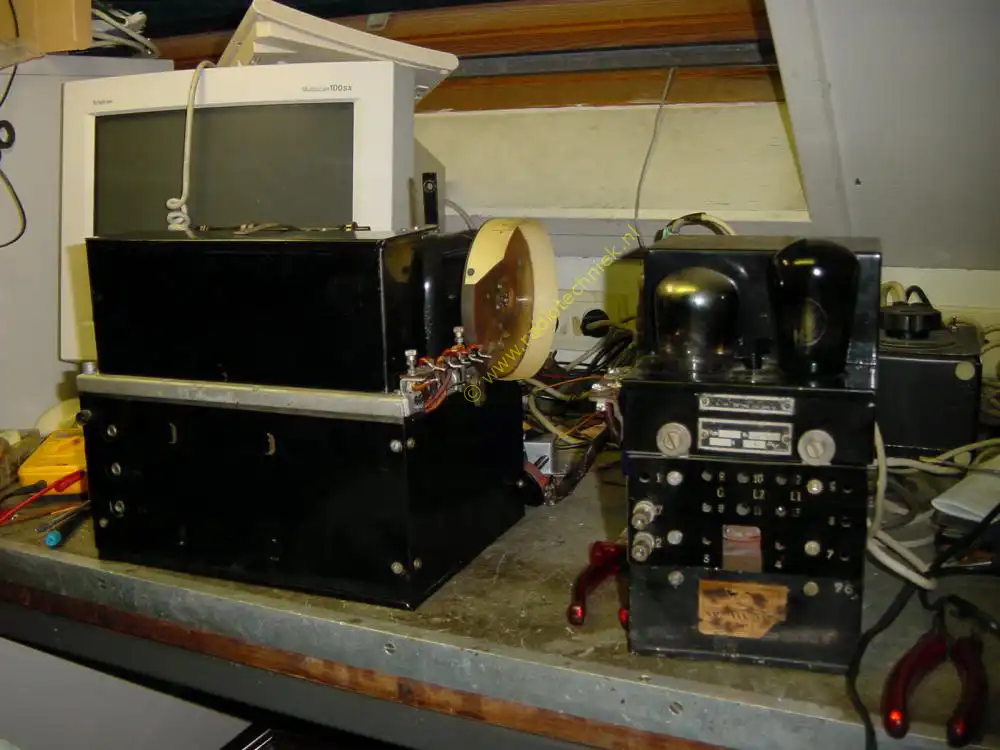

The radio consists of a high-frequency part and a low-frequency part with power supply.
Philips 2601 foto 6

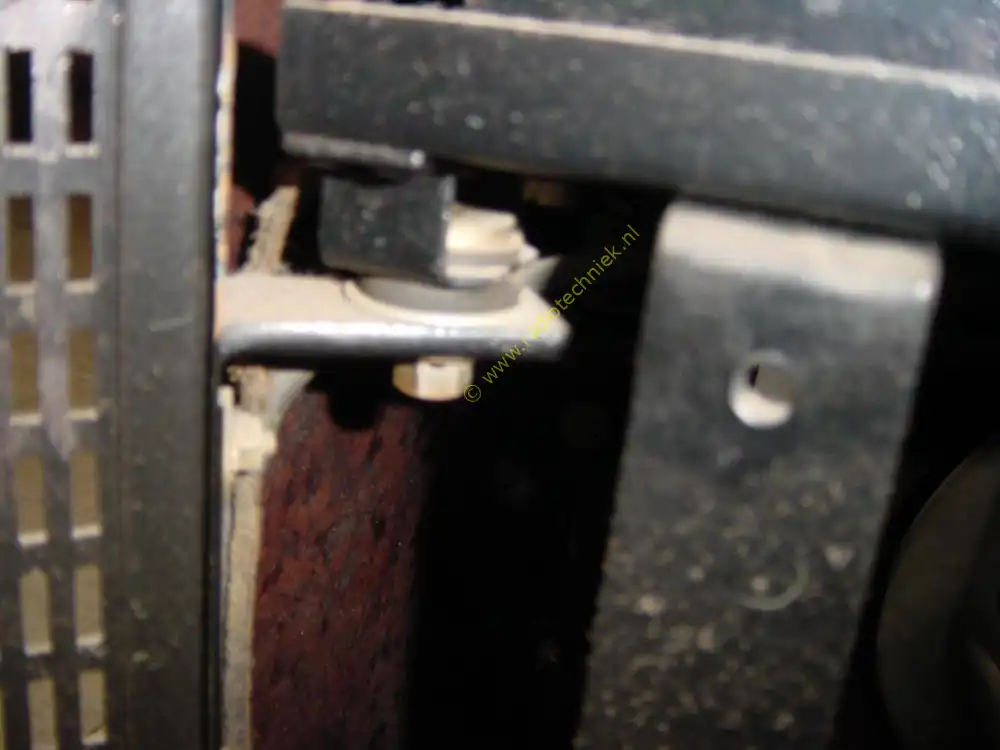

The construction and the suspension rubber of the cabinet.
Philips 2601 foto 7

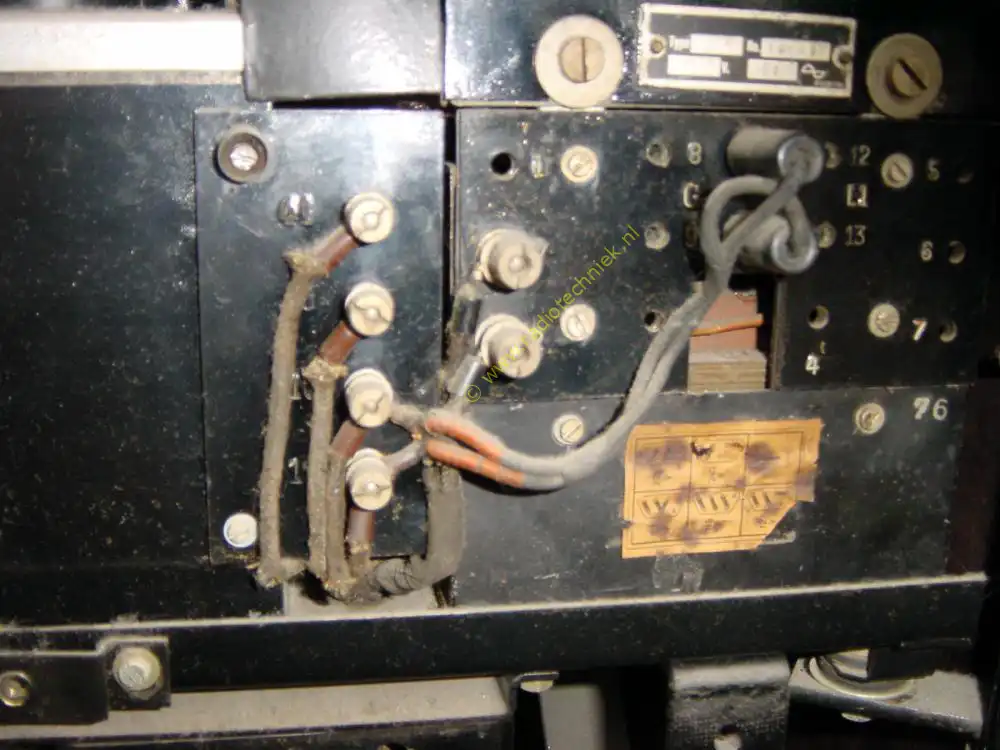

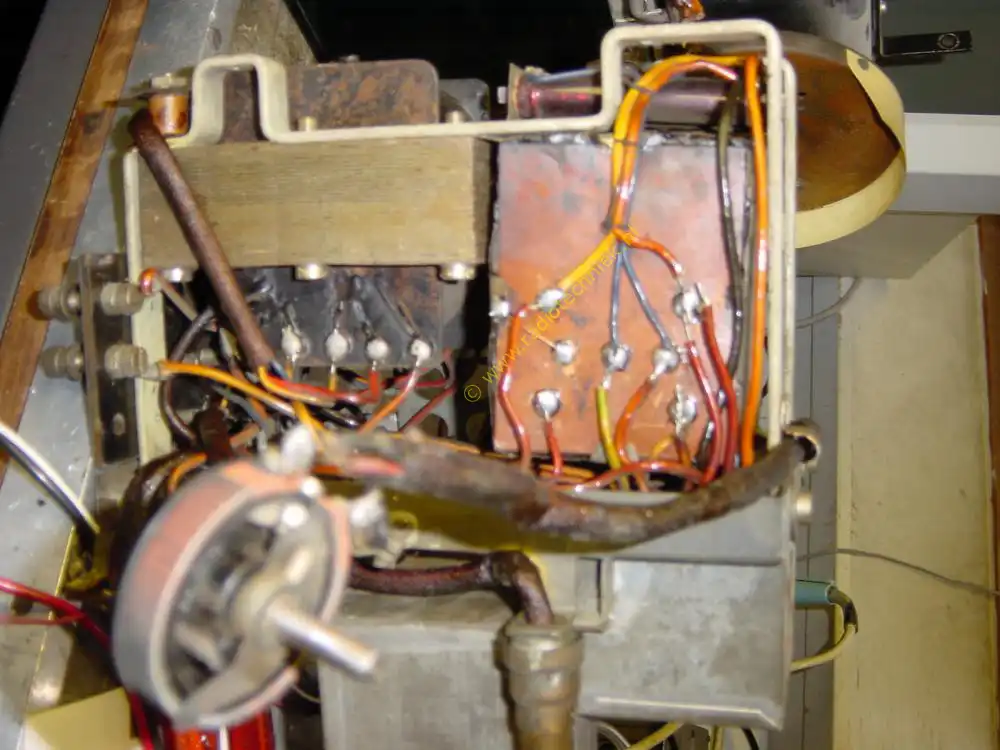

The wiring and how it is connected.

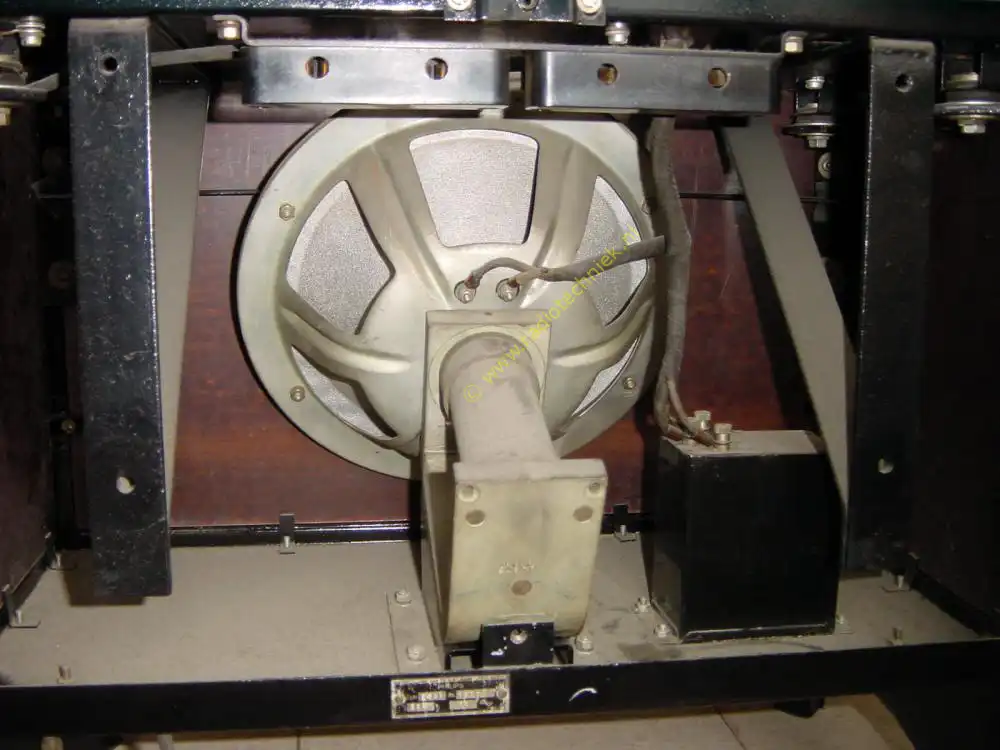

Philips 2601 foto 8
The master singer loudspeaker.
Philips 2601 foto 9
Time for restoration.
Philips 2601 foto 10
Dismantled the device.
Philips 2601 foto 11
Part of the chassis.
Philips 2601 foto 12

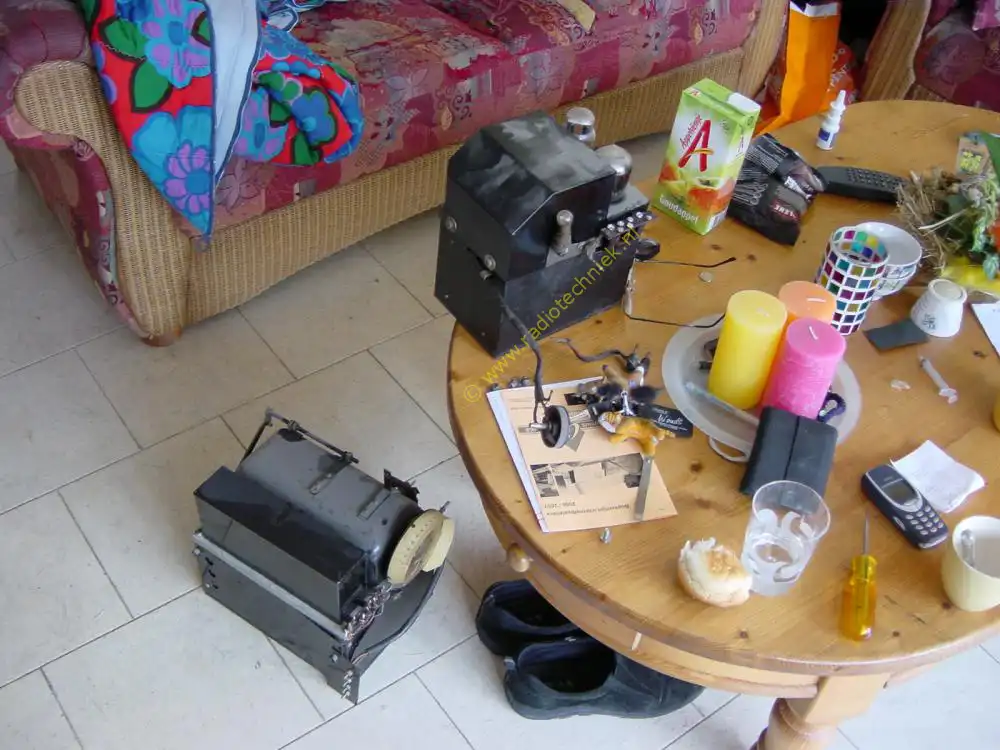

Various parts.
Philips 2601 foto 13
Someone has been here before. Everything is very badly soldered.

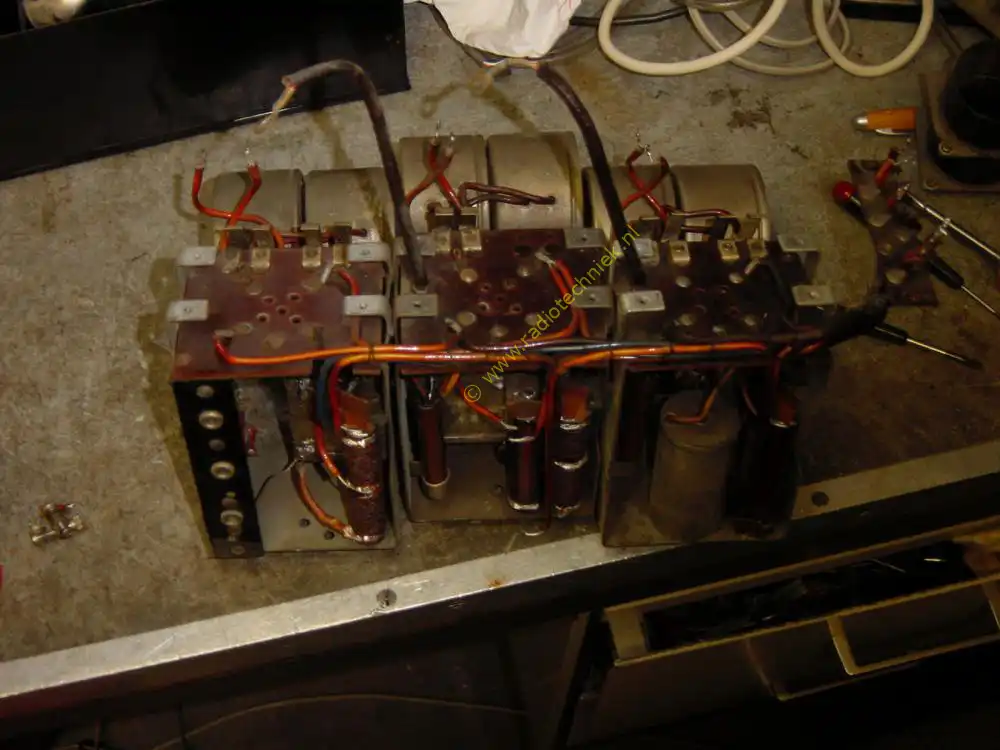

Philips 2601 foto 14

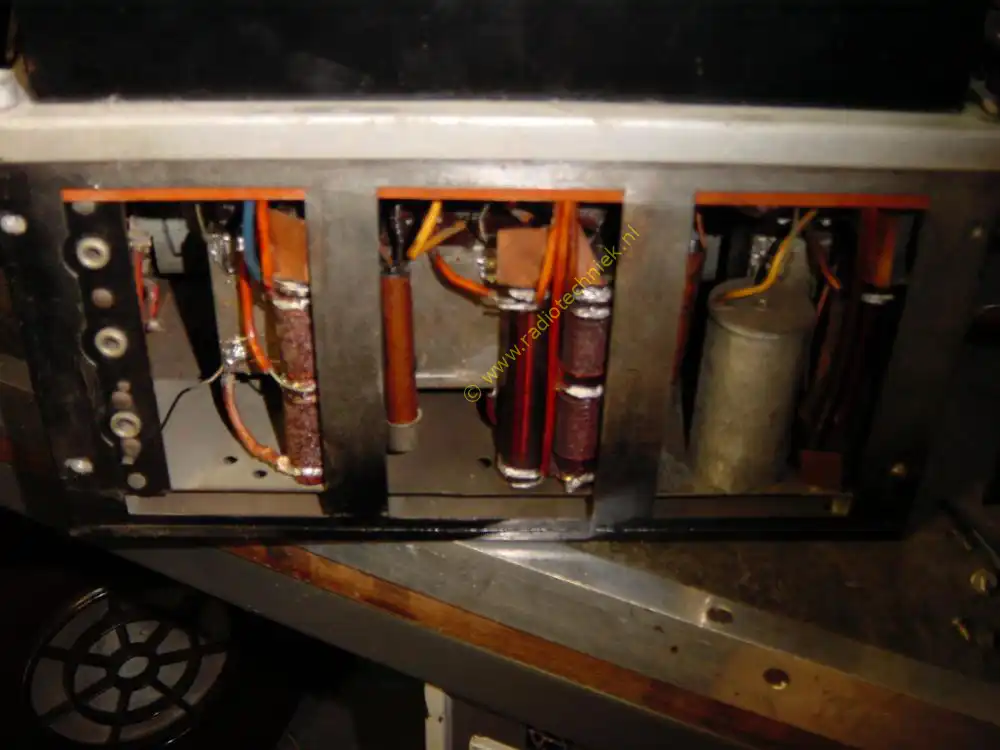

The high frequency part. Lots of bad solder joints. as well as faulty capacitors.
Philips 2601 foto 15

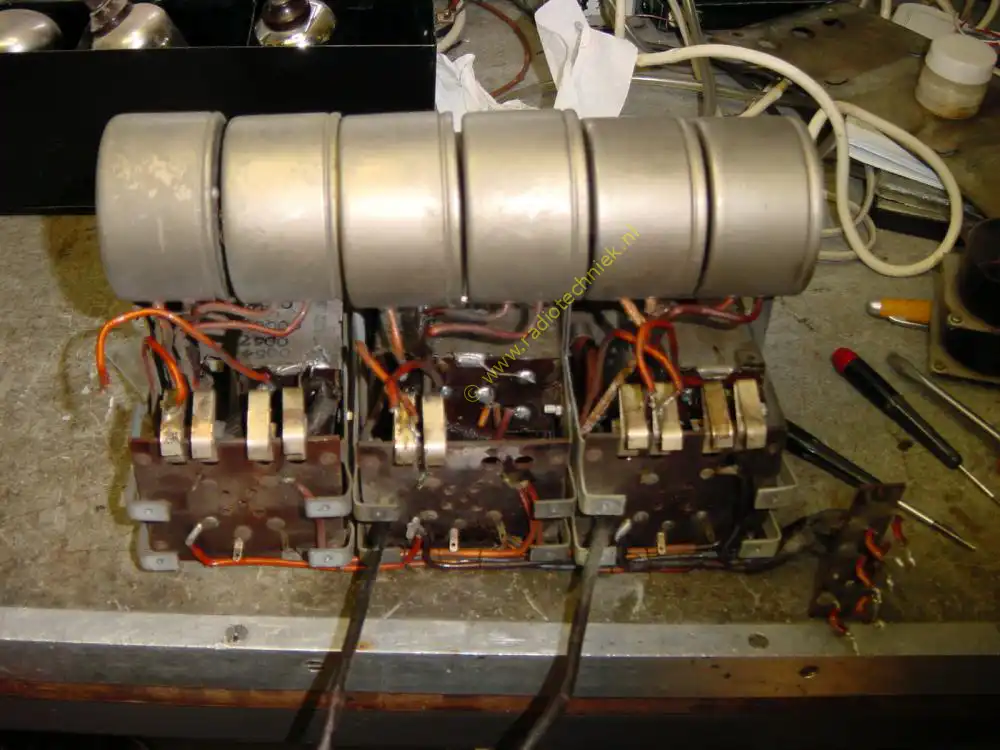

The high-frequency tuning coils.
Philips 2601 foto 16
Reassembled the high-frequency part.
Philips 2601 foto 17
The power supply part has the same problems.
Philips 2601 foto 18
Solder joints restored and here a test setup.
Philips 2601 foto 19
Ready device can be put back together.
Philips 2601 foto 20
Here's a test of the speaker. The speaker works incredibly well.

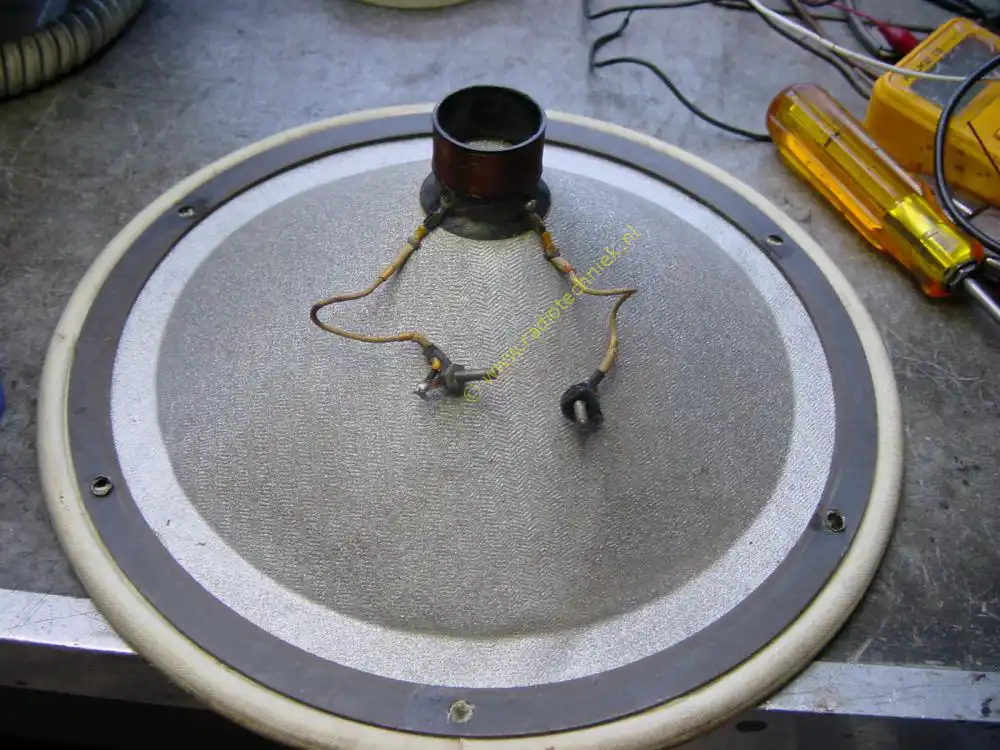

Philips 2601 foto 21
The master singer speaker has a coil of aluminum wire.

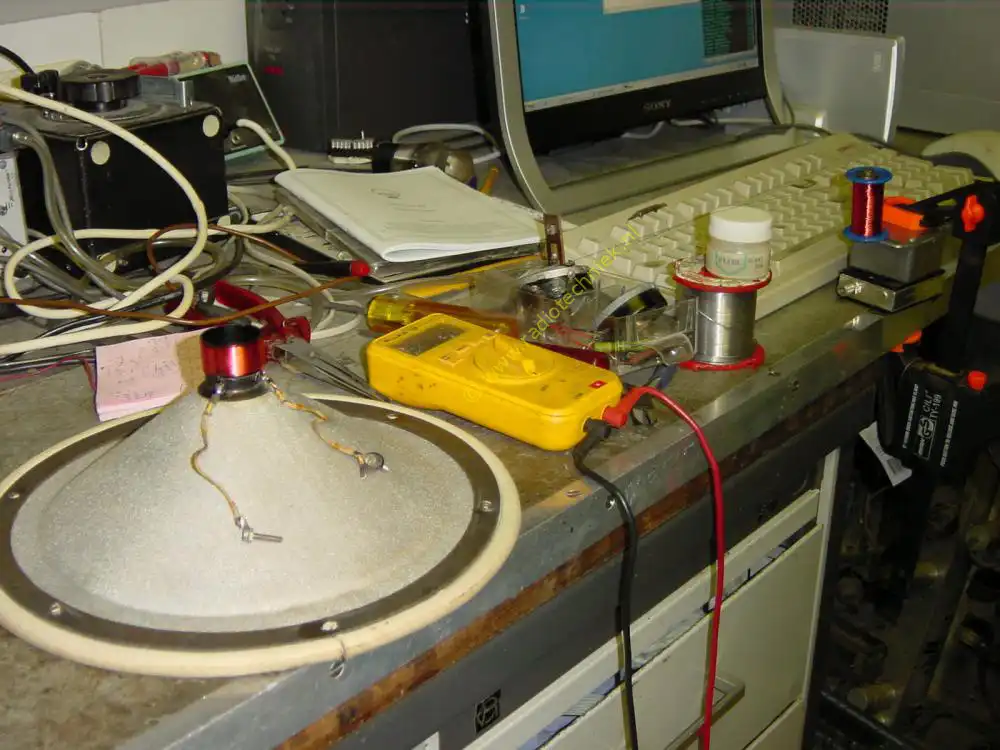

Philips 2601 foto 22
And that's all interruption. It has been re-wrapped with copper wire.
