Erres KY483

Radiotechniek album
Erres KY483 foto 1

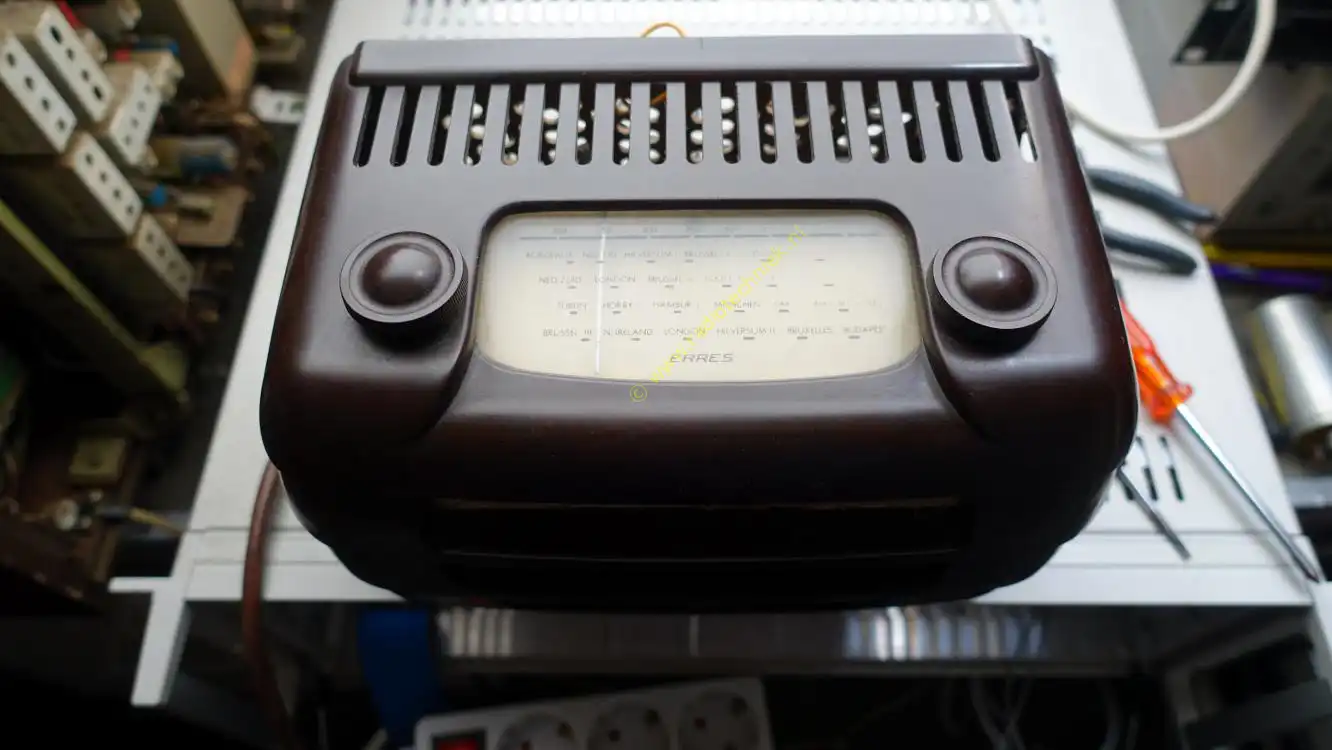

The Erres KY483. Is a beautifully designed radio with the shape of a pine acorn.
Erres KY483 foto 2
The device is really beautiful to see.
Erres KY483 foto 3

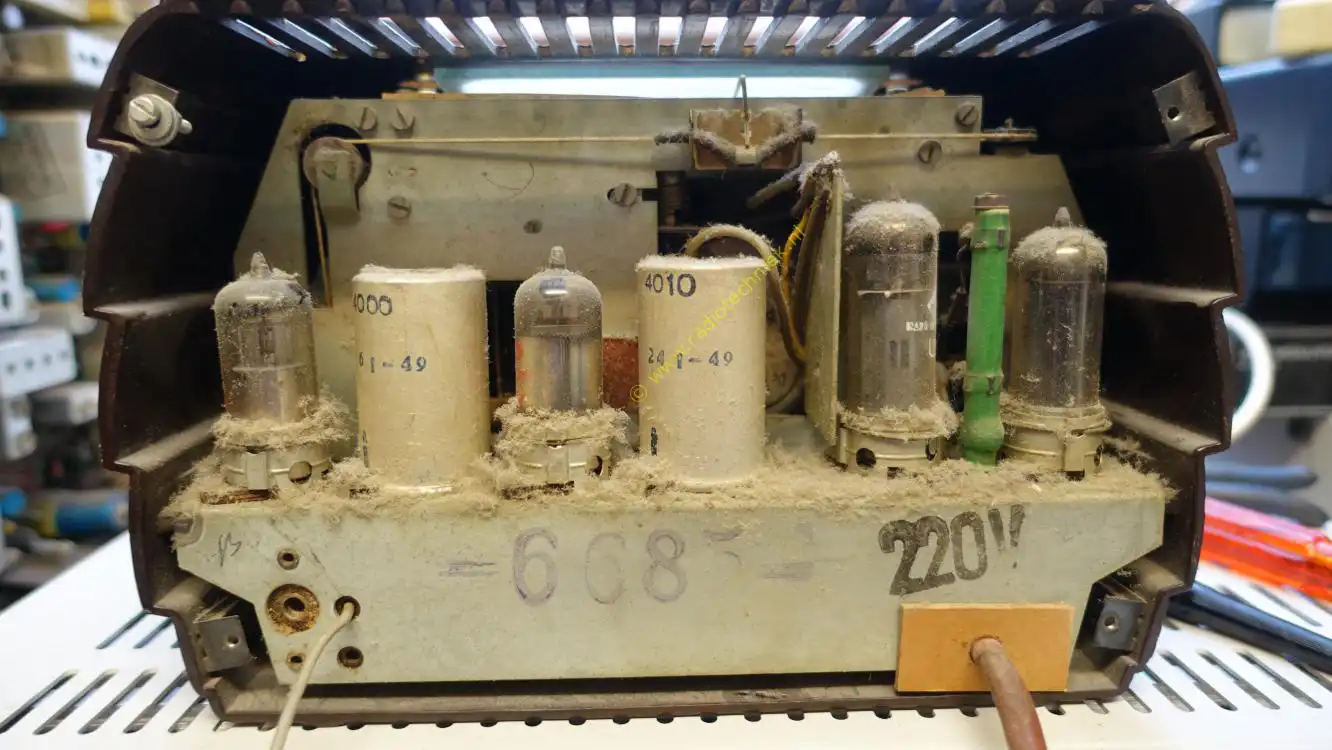

The inside was all dust.
Erres KY483 foto 4
Time for restoration.
Erres KY483 foto 5
The power cord is still in good usable condition.
Erres KY483 foto 6

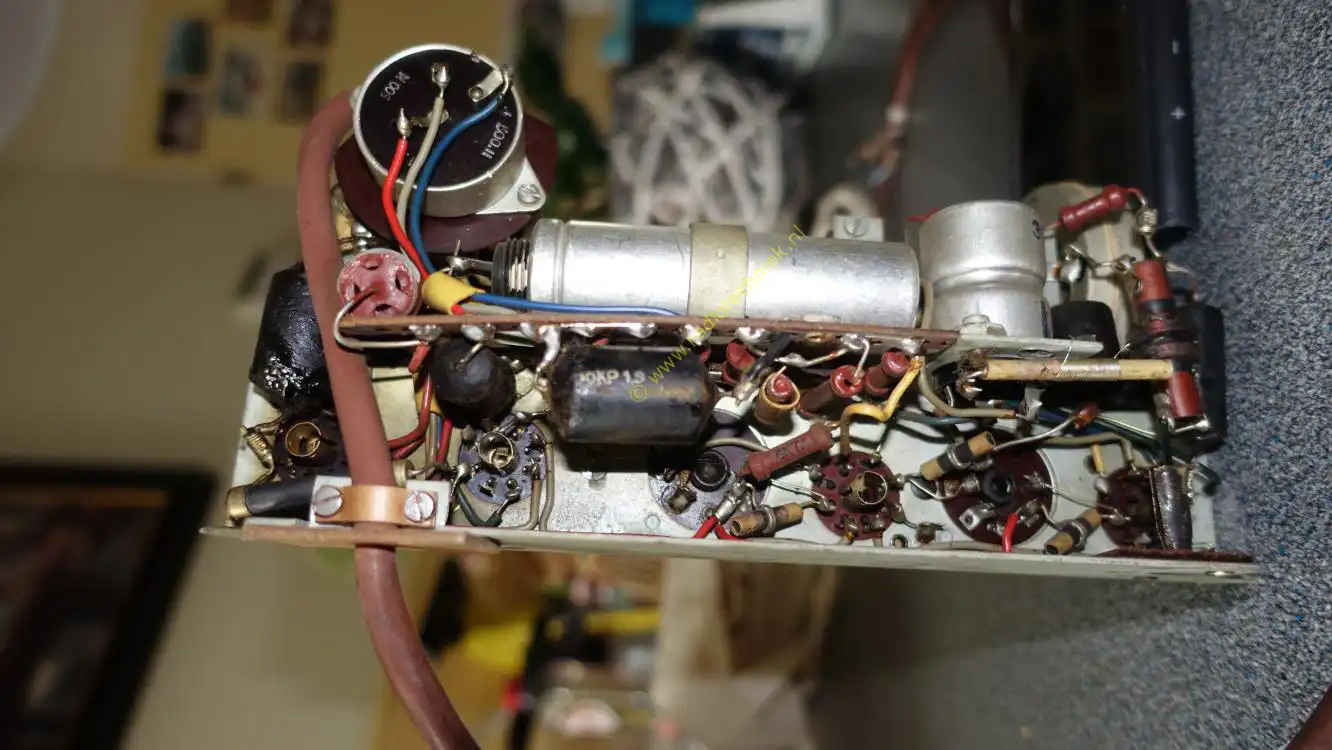

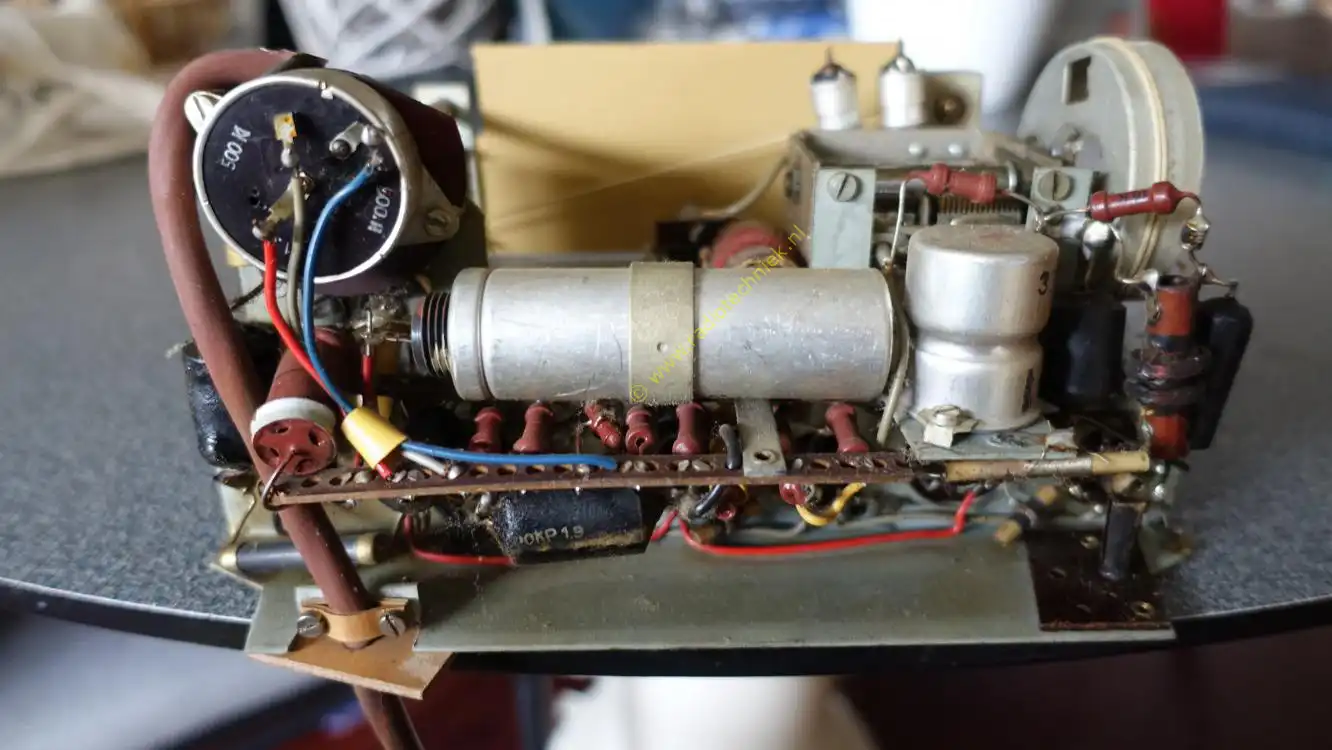

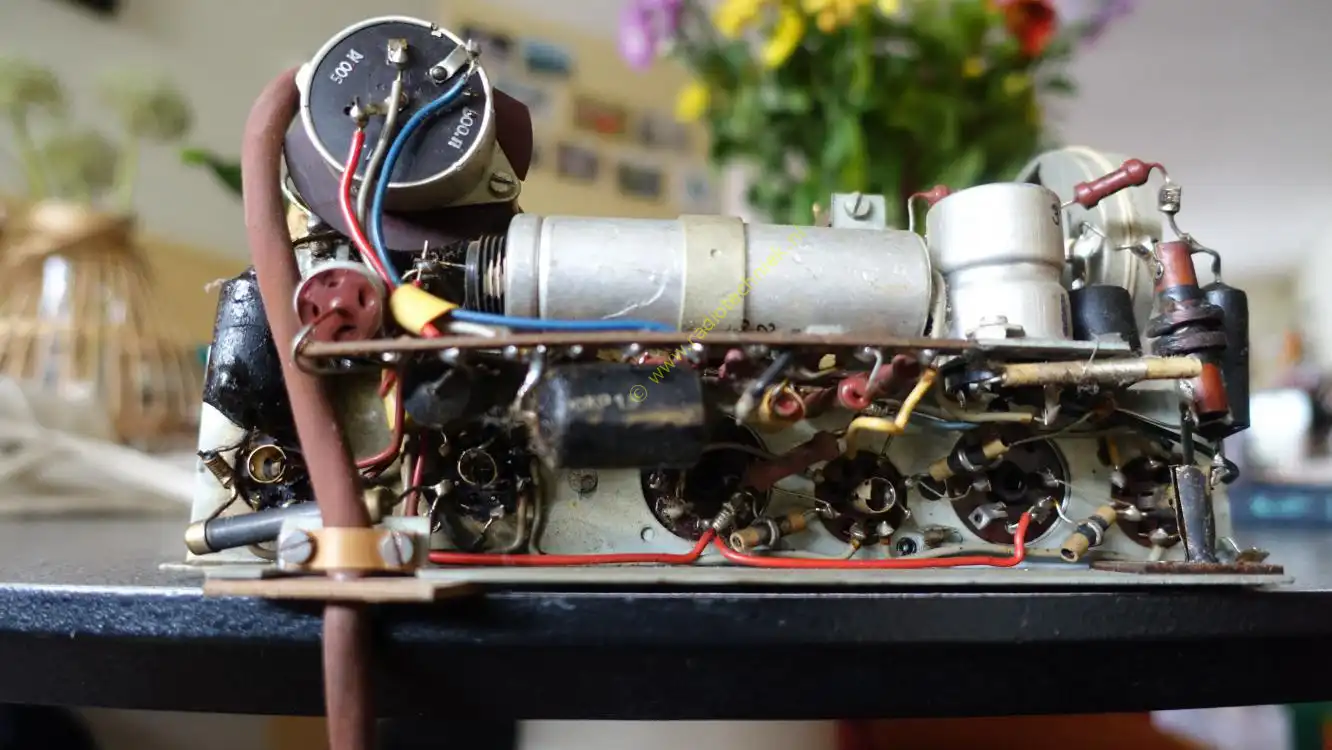

The chassis is a beautiful, compactly constructed whole.
Erres KY483 foto 7
The power supply elco the black tar capacitors.
Erres KY483 foto 8
Beautiful device to restore.
Erres KY483 foto 9

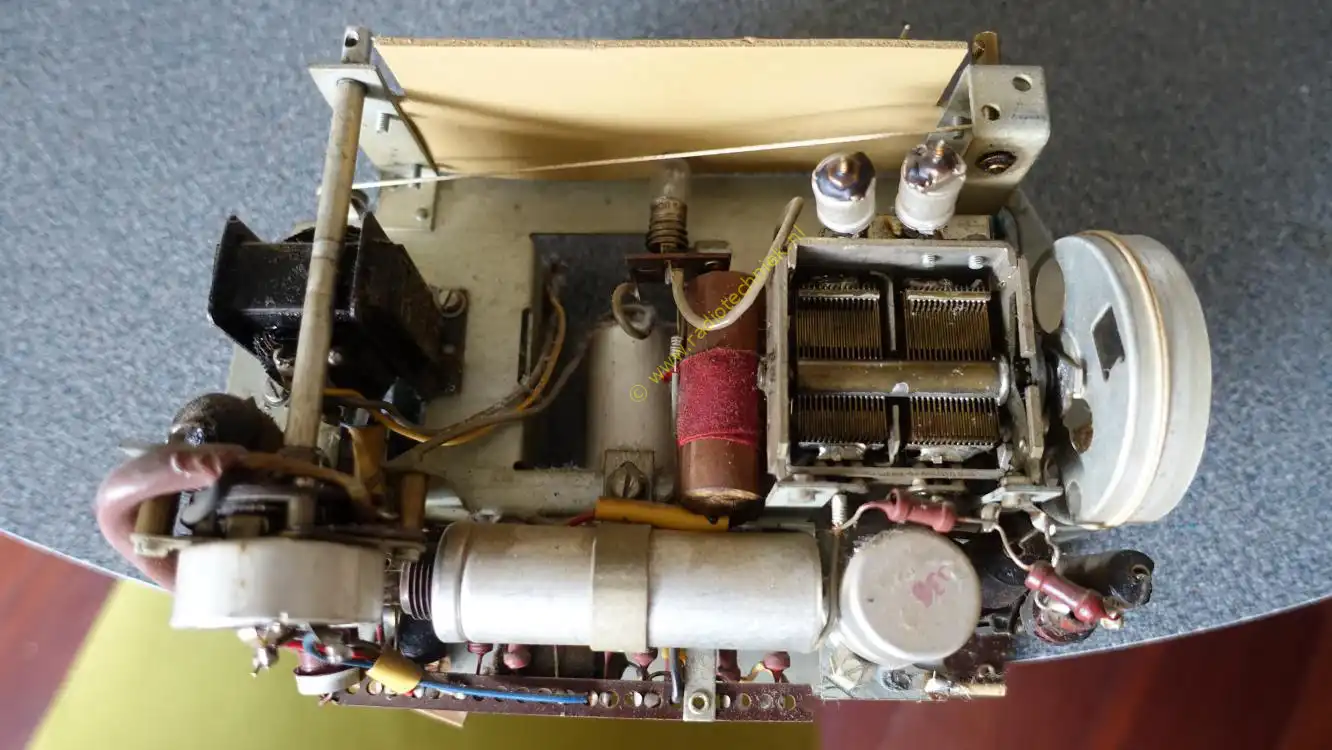

The structure of the chassis is neatly built.
Erres KY483 foto 10

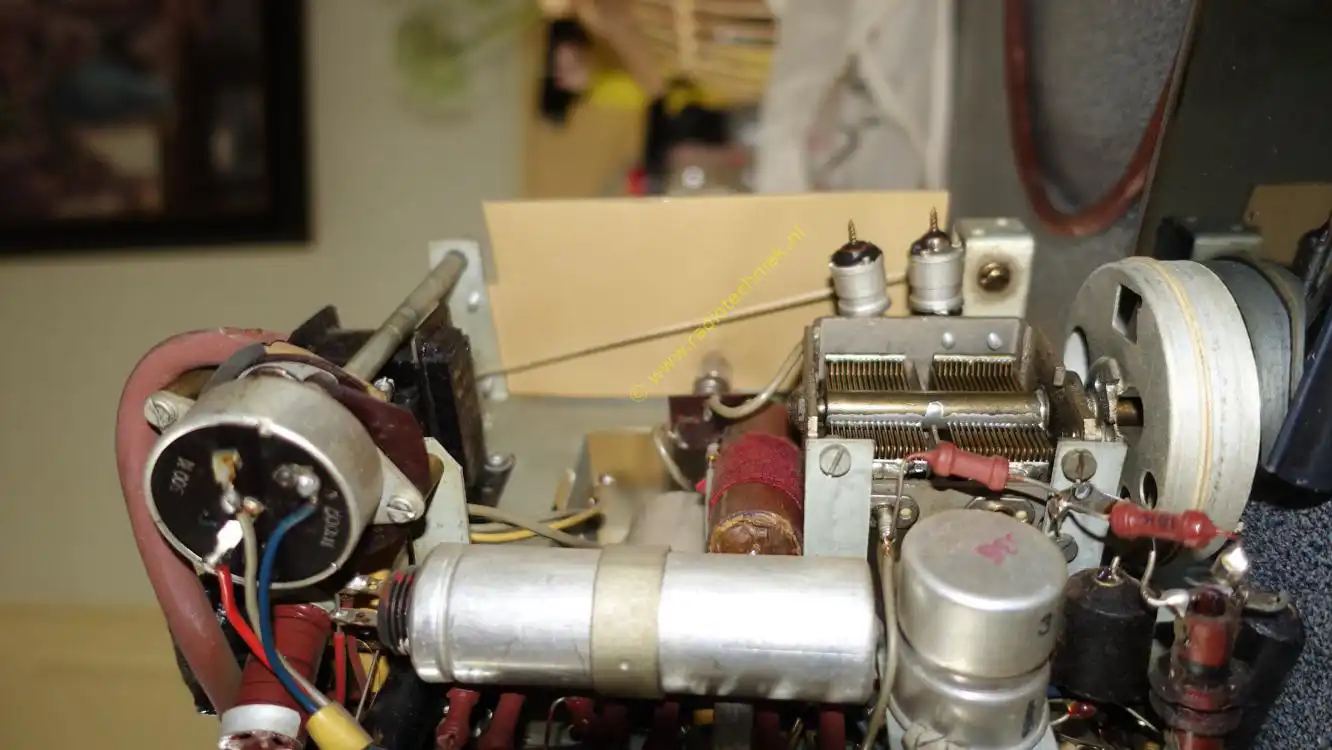

Beautifully constructed chassis.
Erres KY483 foto 11

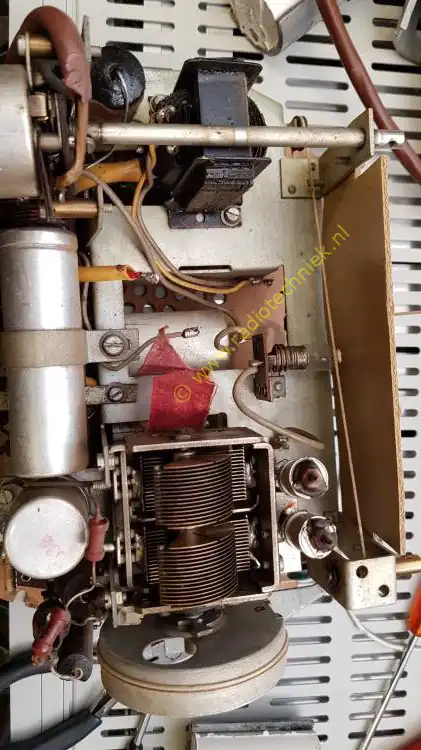

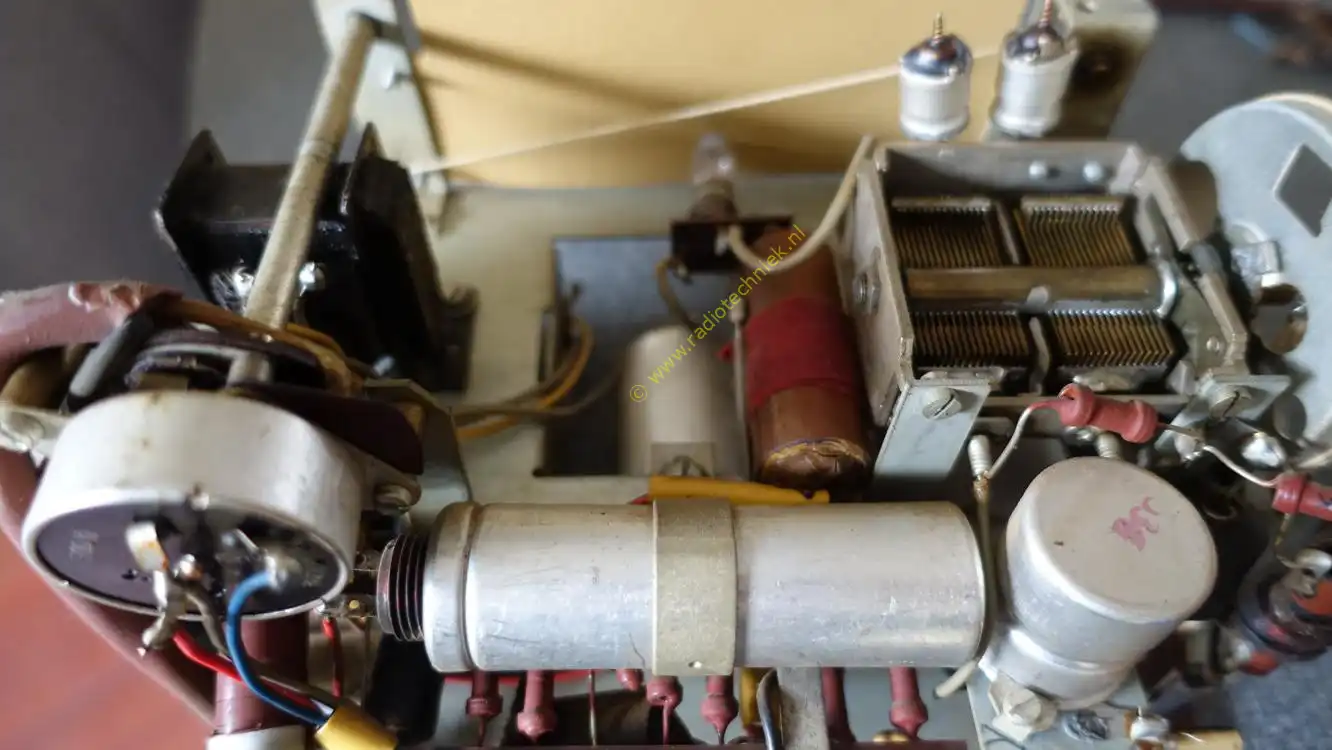

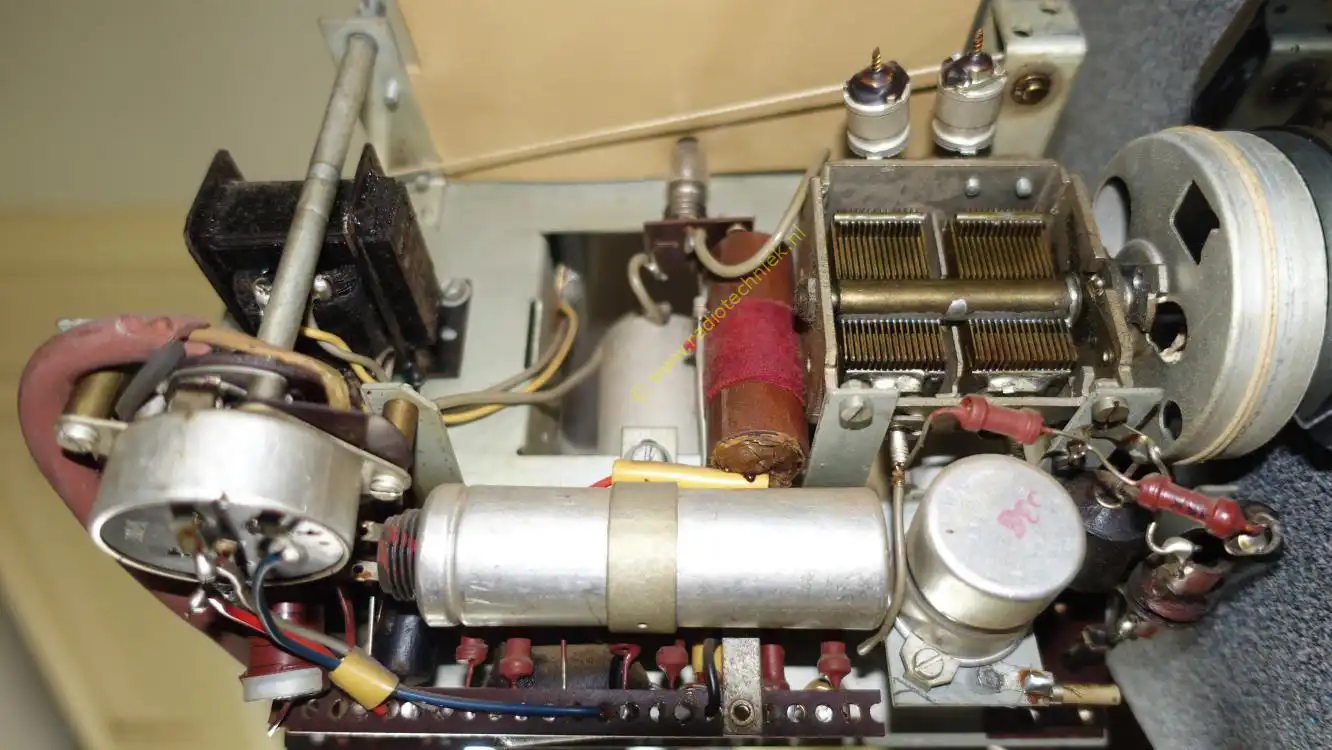

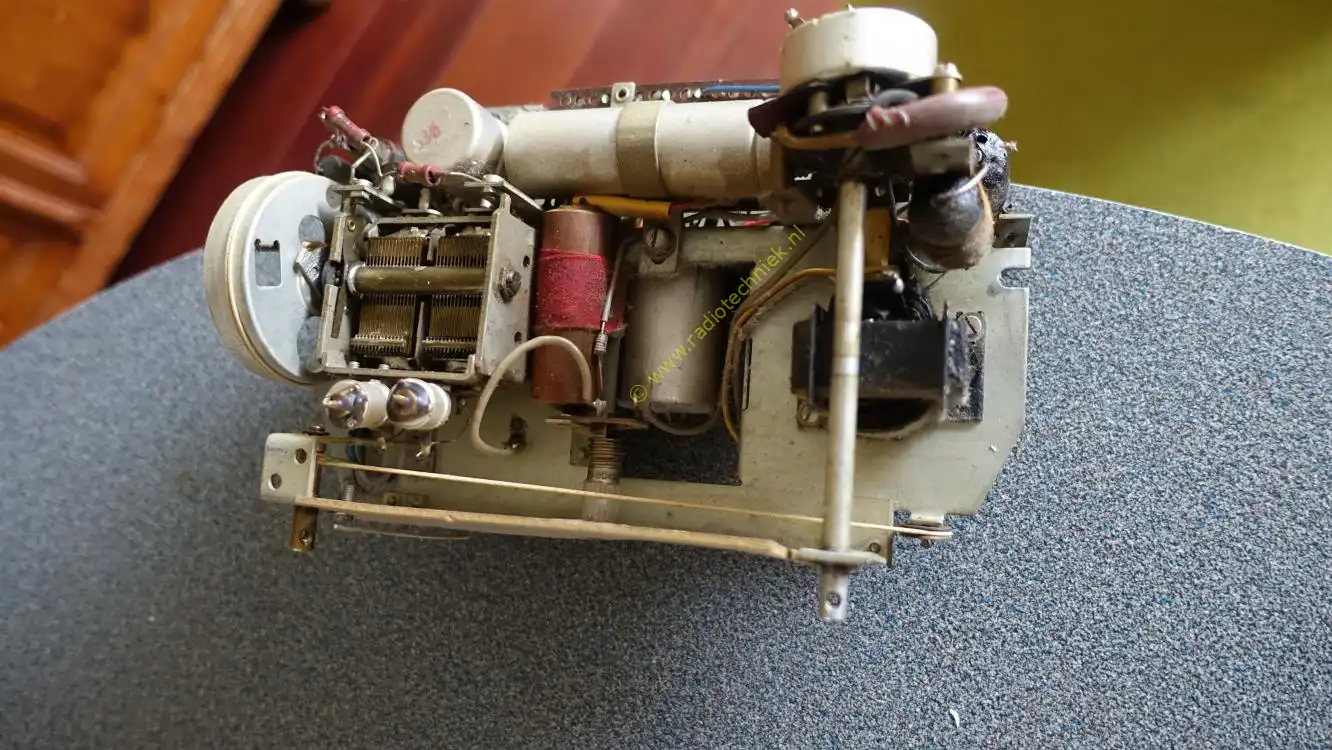

Next to the tuning capacitor is an electrolytic capacitor.
Erres KY483 foto 12
Some more detail photos.
Erres KY483 foto 13
For when you want to restore a wreck.
Erres KY483 foto 14
Or if you just want to enjoy it.
Erres KY483 foto 15

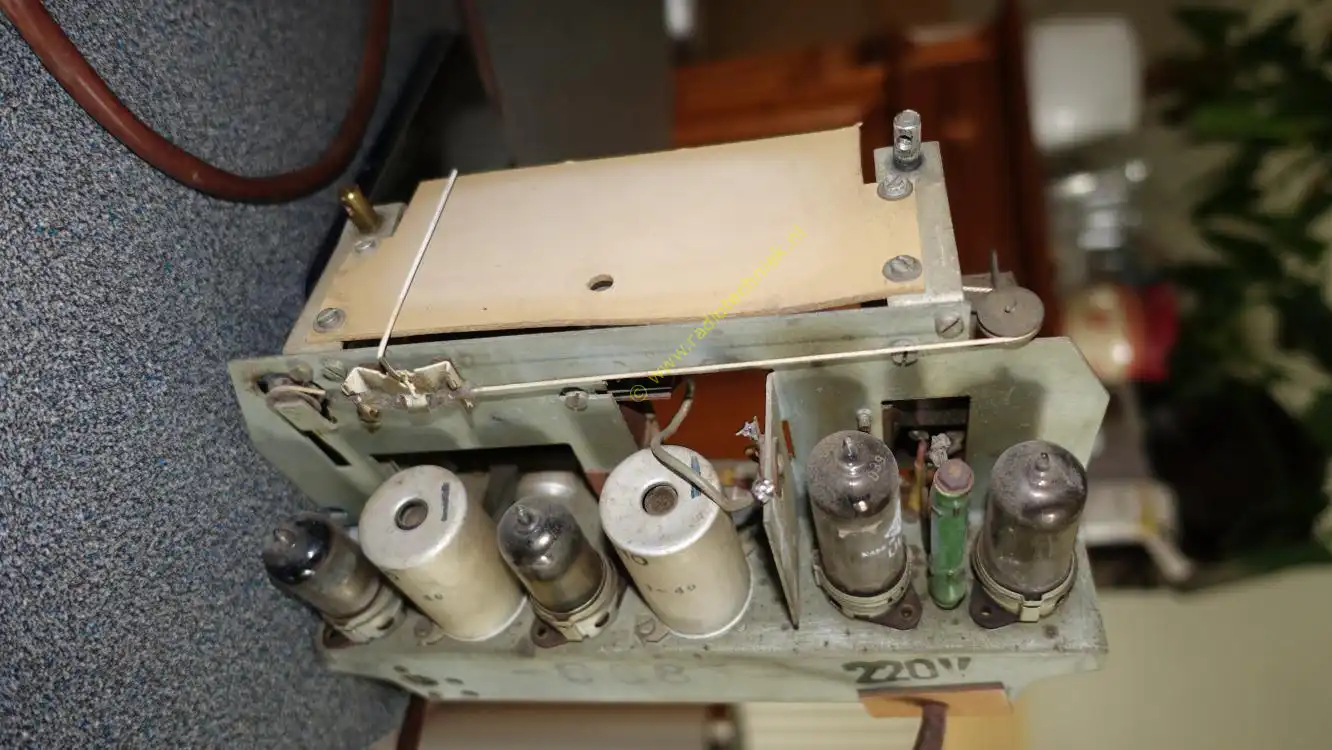

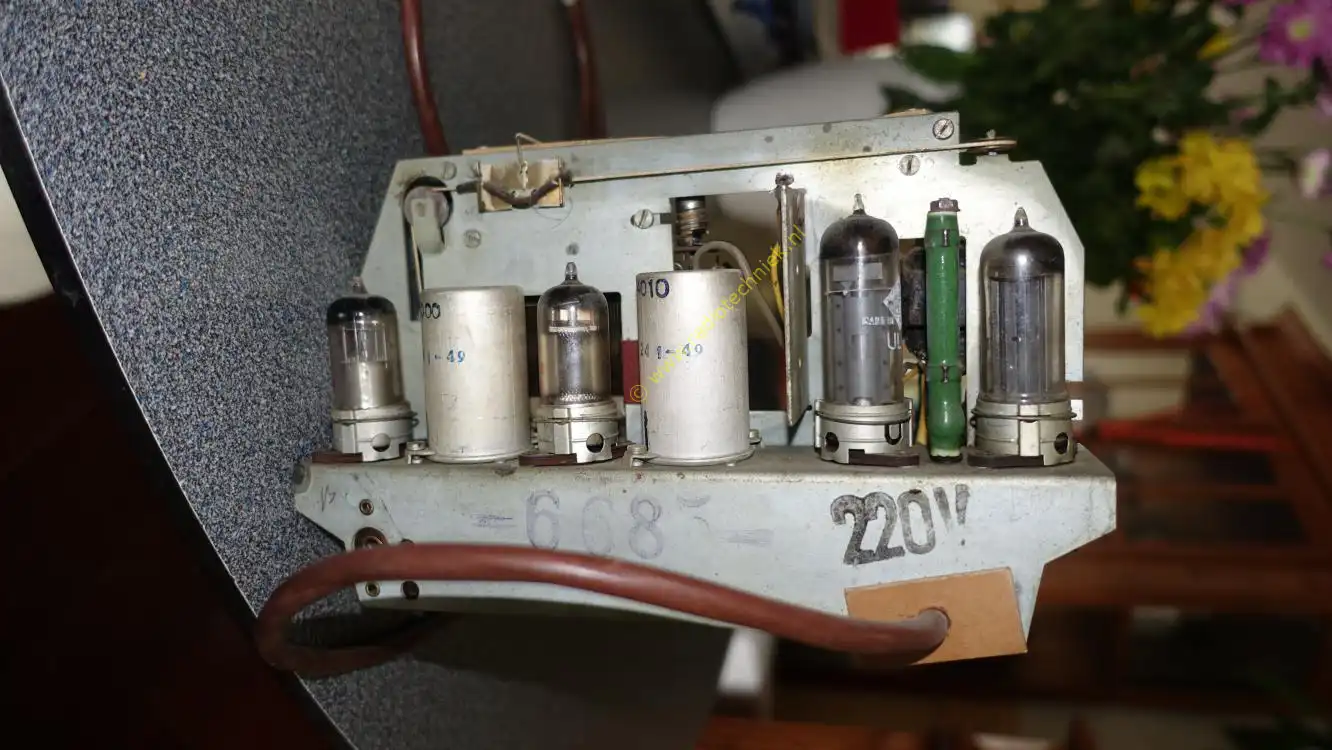

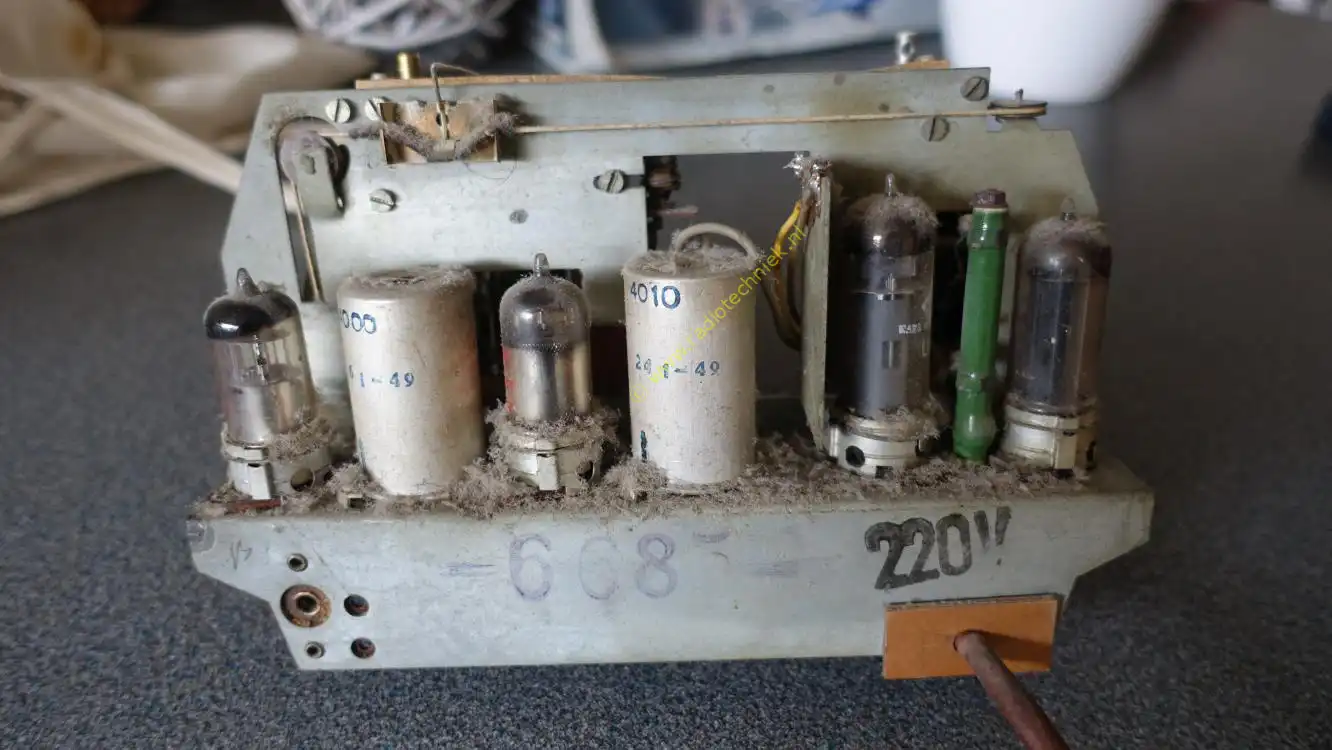

The tubes on the chassis.
Erres KY483 foto 16
Now we are going to restore.
Erres KY483 foto 17
To restore is to bring it back to its original state, so we make new tar capacitors.
Erres KY483 foto 18

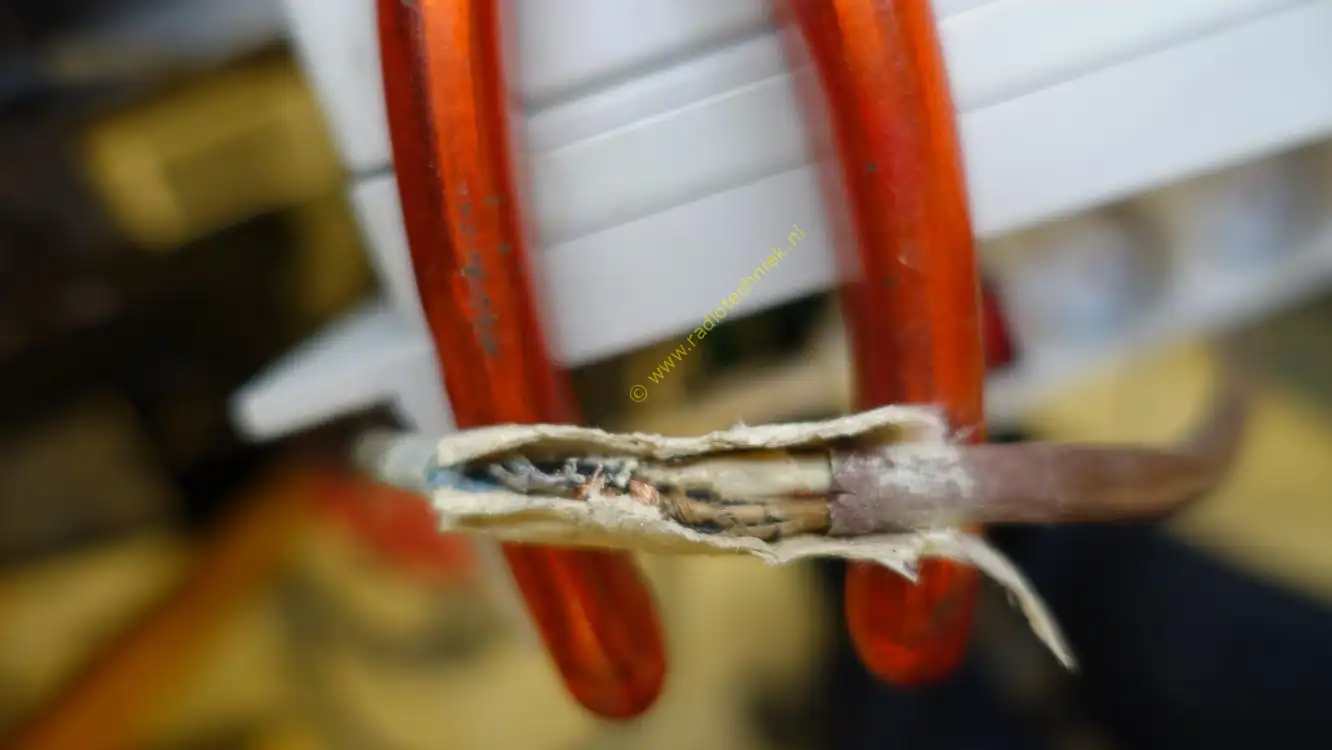

This tar capacitor is not good.
Erres KY483 foto 19

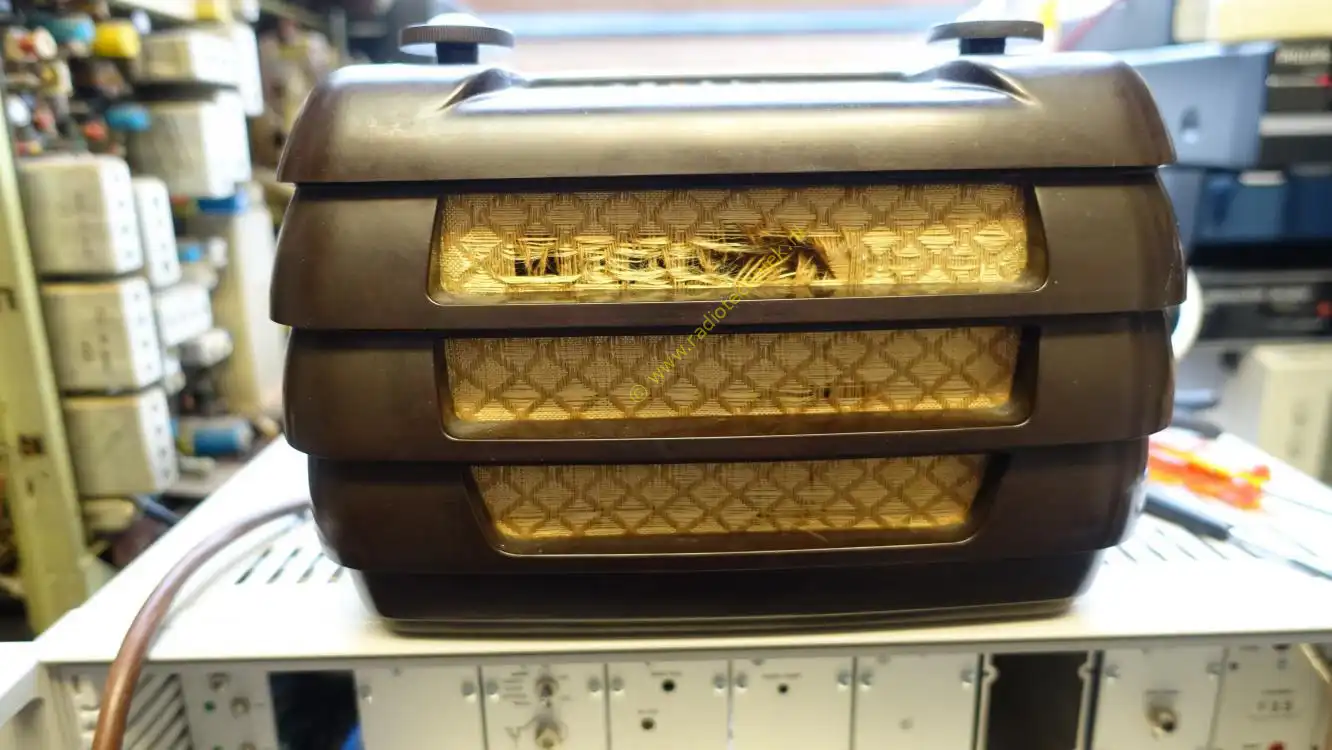

The speaker cloth.
Erres KY483 foto 20

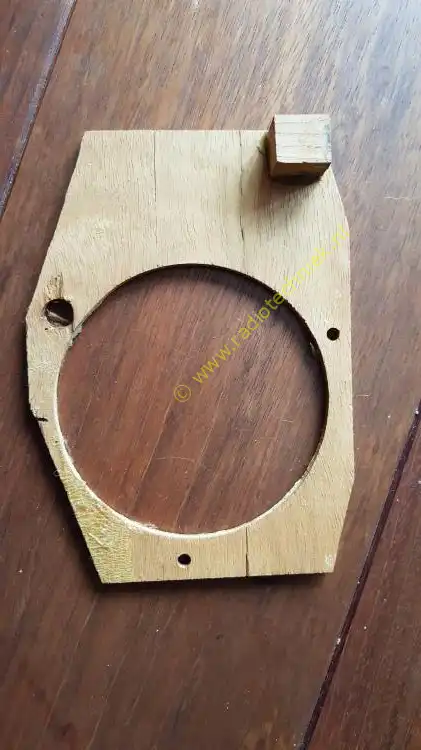

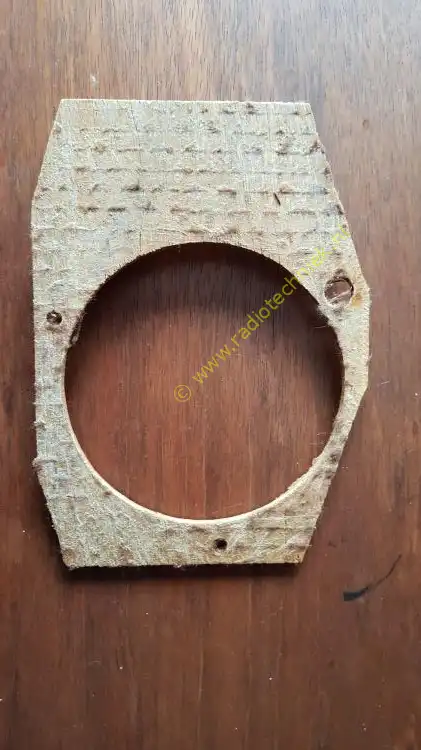

The shelf is nice and clean.
Erres KY483 foto 21

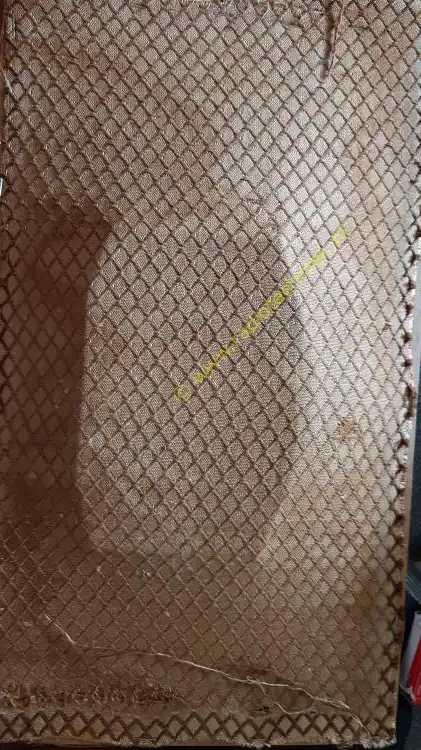

A donor speaker cloth. find the right piece.
Erres KY483 foto 22
Glue on the board.
Erres KY483 foto 23

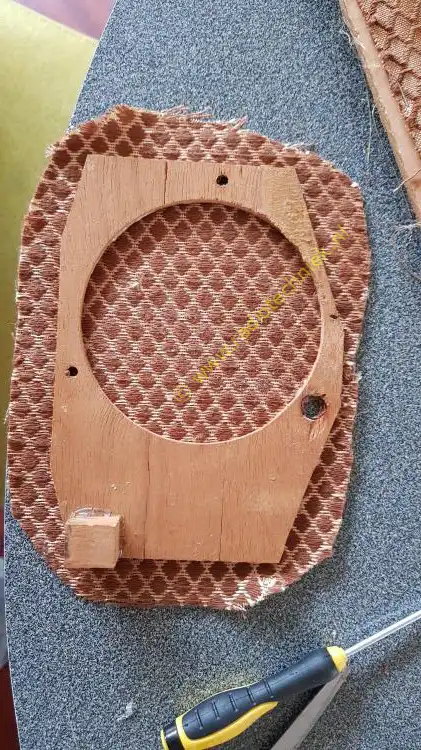

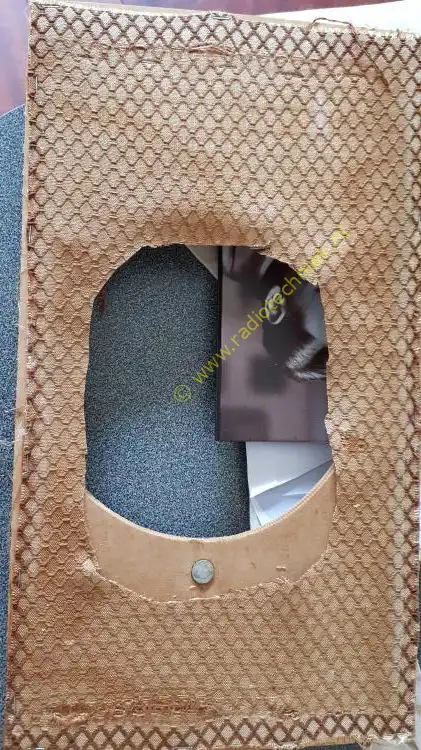

The donor cloth with hole.
Erres KY483 foto 24
And look this already looks beautiful.
Erres KY483 foto 25

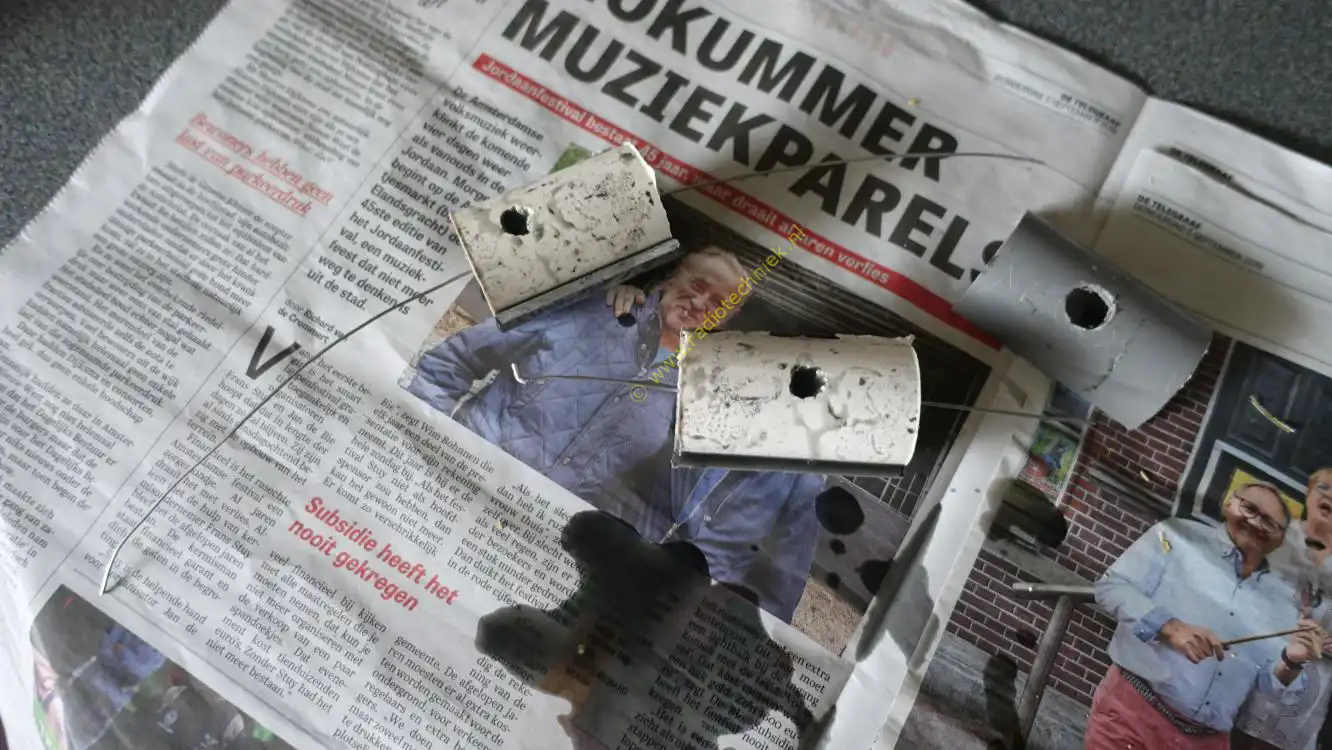

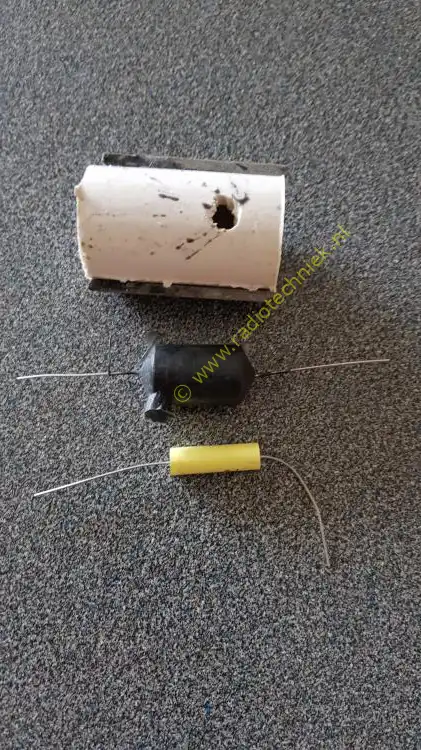

The new tar condenser. Left the jig. On the right the new yellow capacitor. In the middle the new tar condenser.
Erres KY483 foto 26
Placing the new tar condenser.
Erres KY483 foto 27
And another tar capacitor.
Erres KY483 foto 28

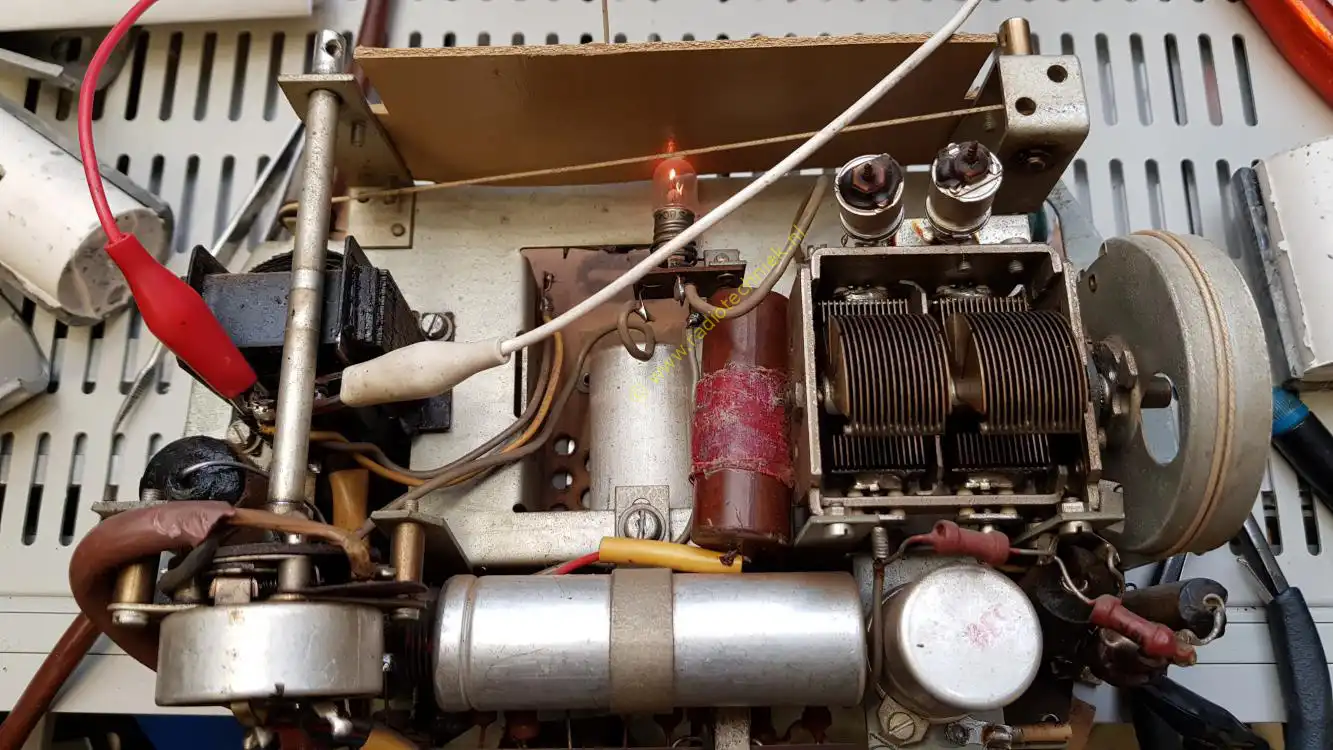

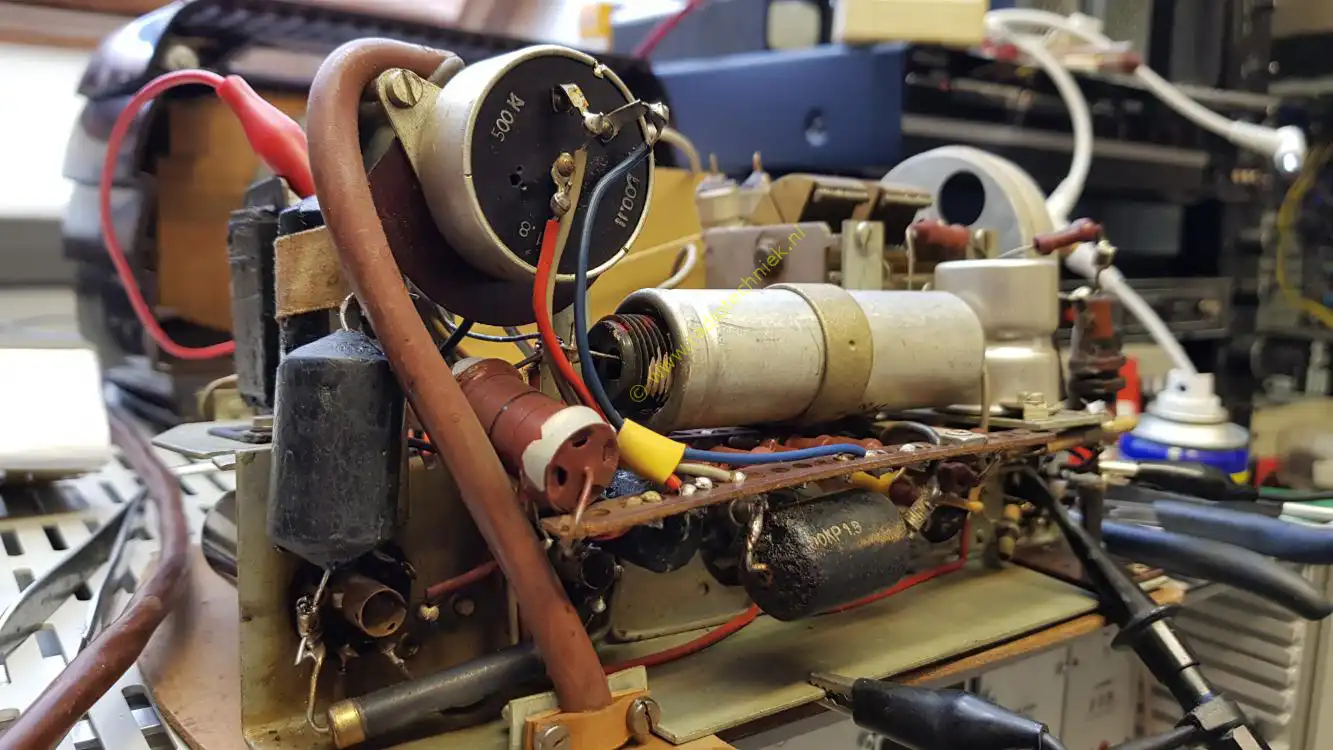

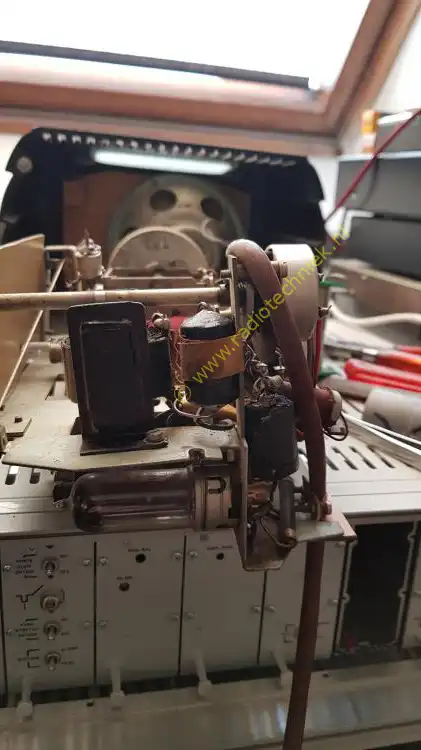

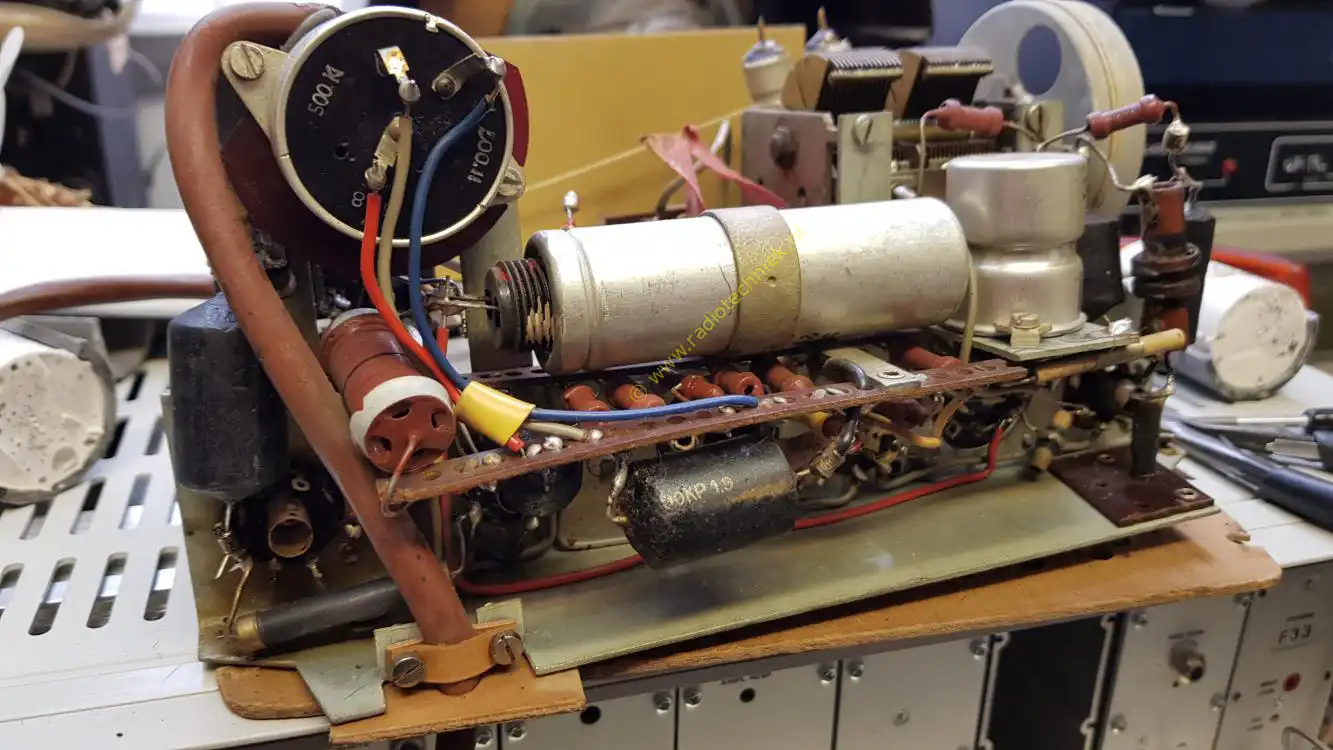

The first tests.
Erres KY483 foto 29
A new electrolytic capacitor.
Erres KY483 foto 30

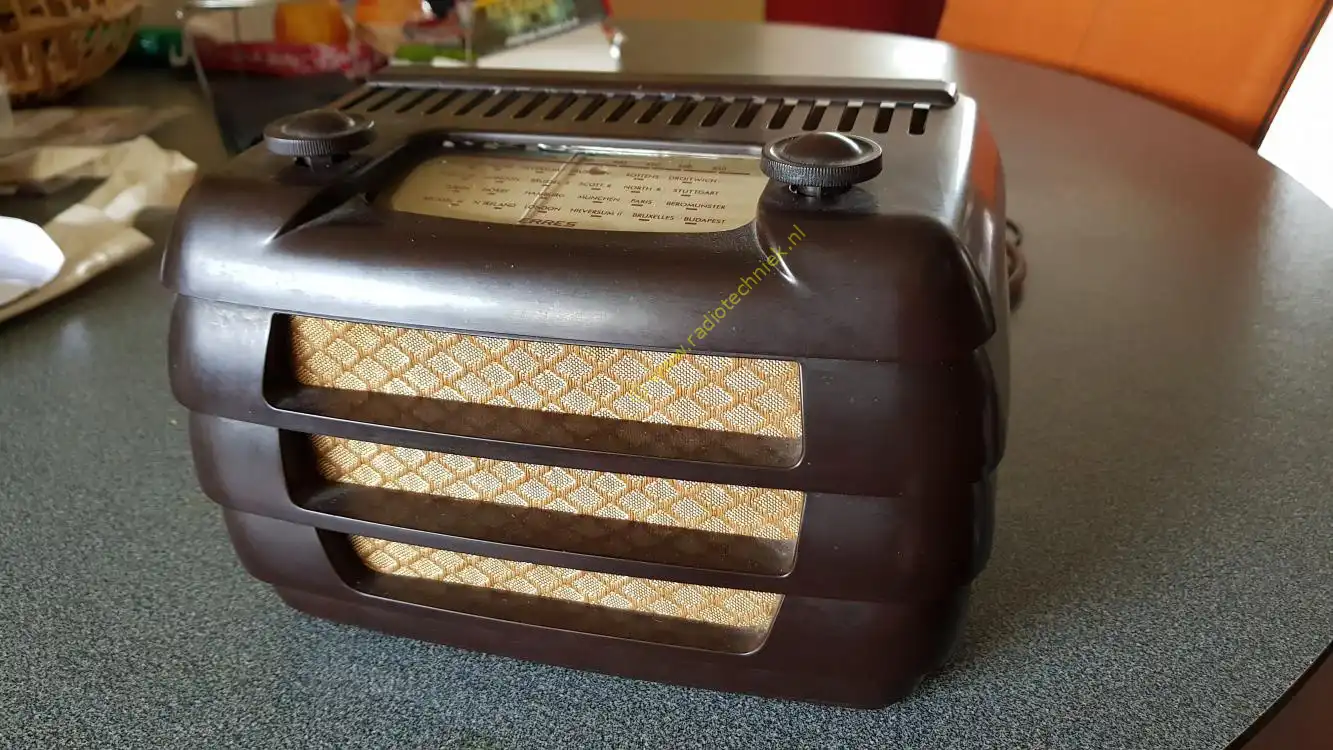

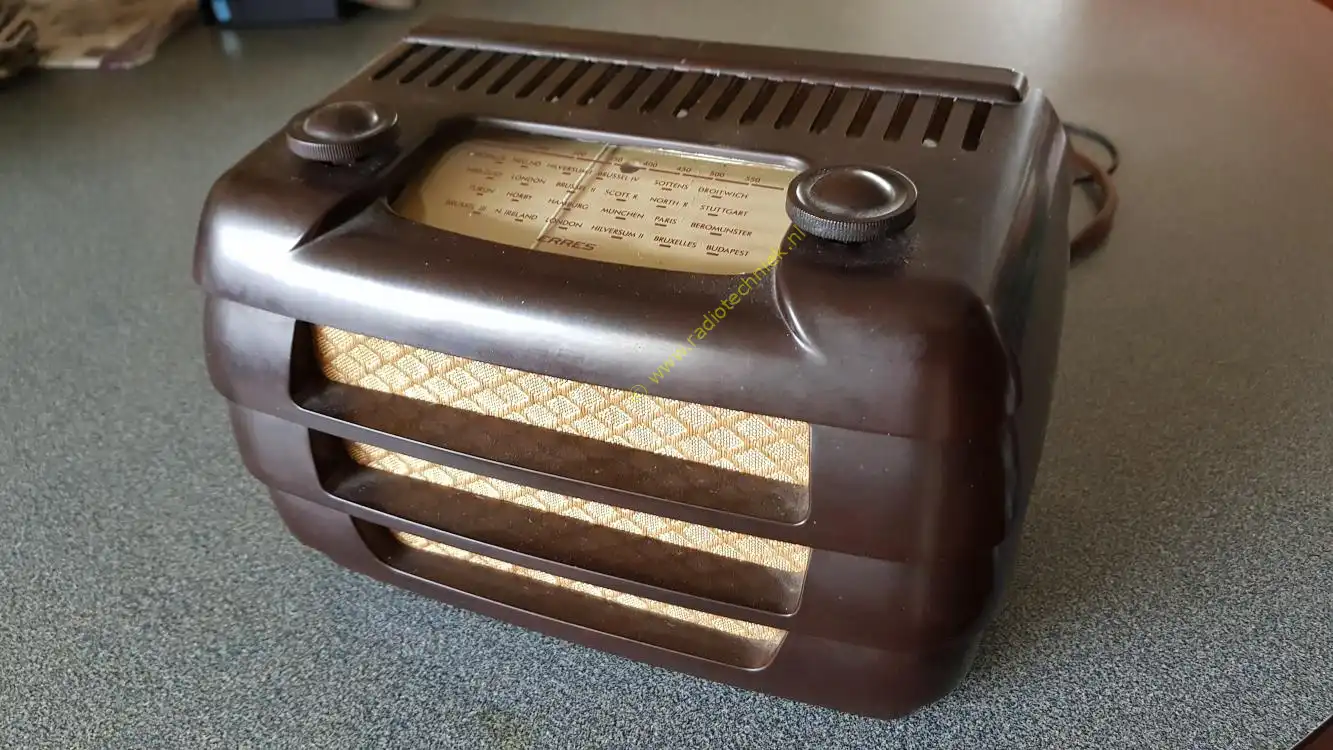

A fully restored radio.
Erres KY483 foto 31
The device plays the stars of heaven again.
