Philips 850A

Radiotechniek album
Philips 850A foto 1

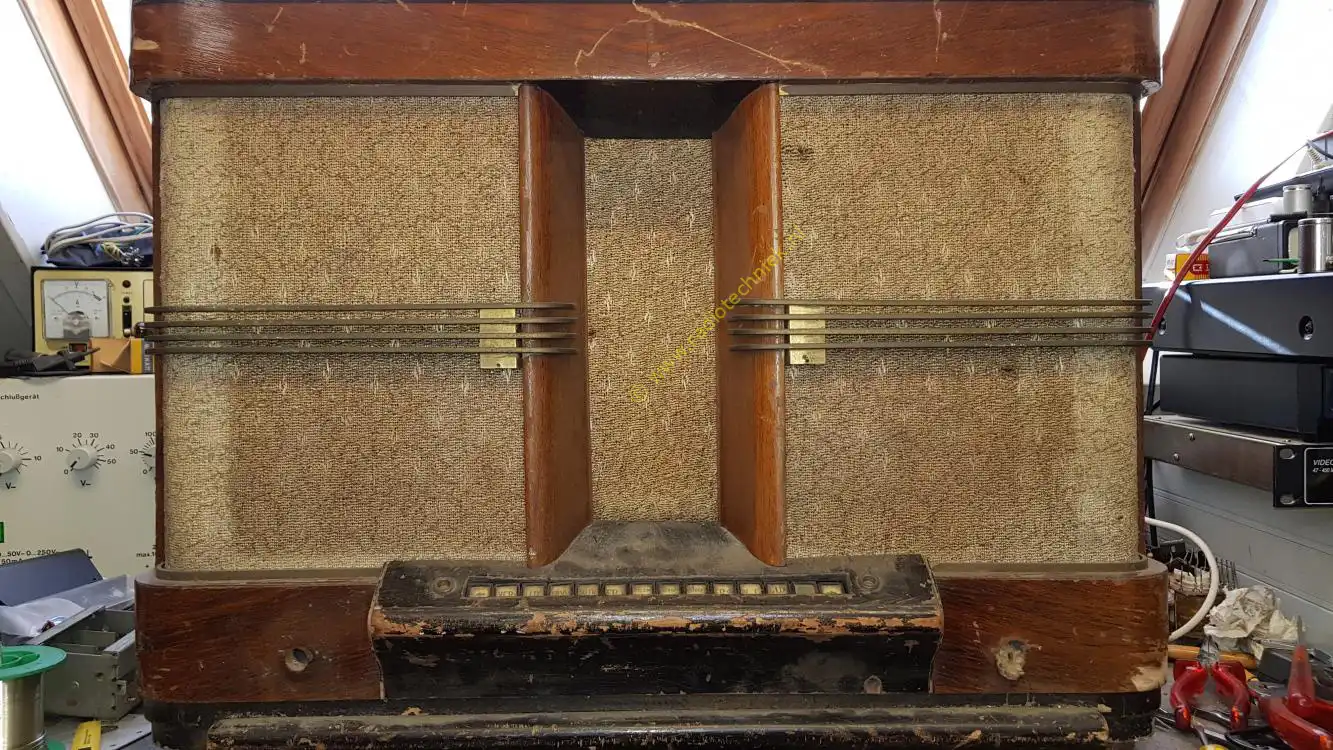

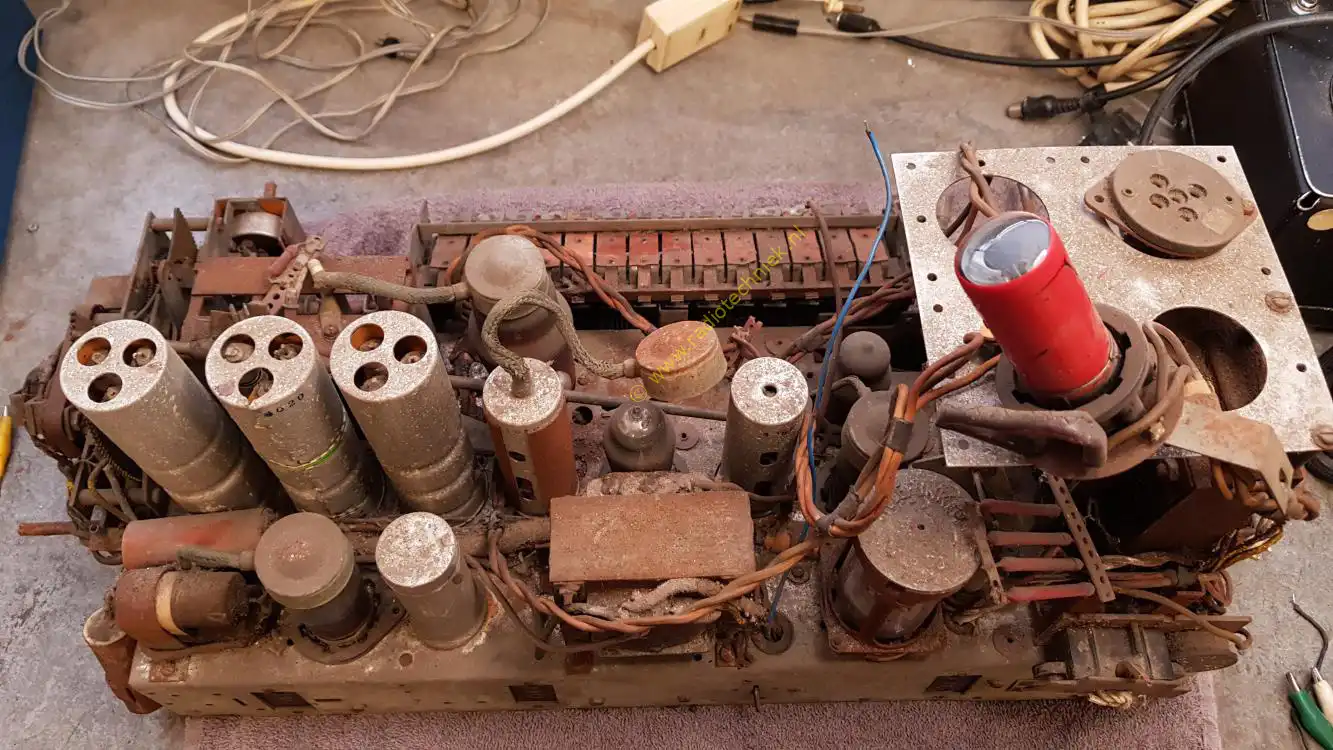

A Philips 850A. What was once a beautiful stately radio device is now no more than a wreck. What could we make of this radio?
Philips 850A foto 2

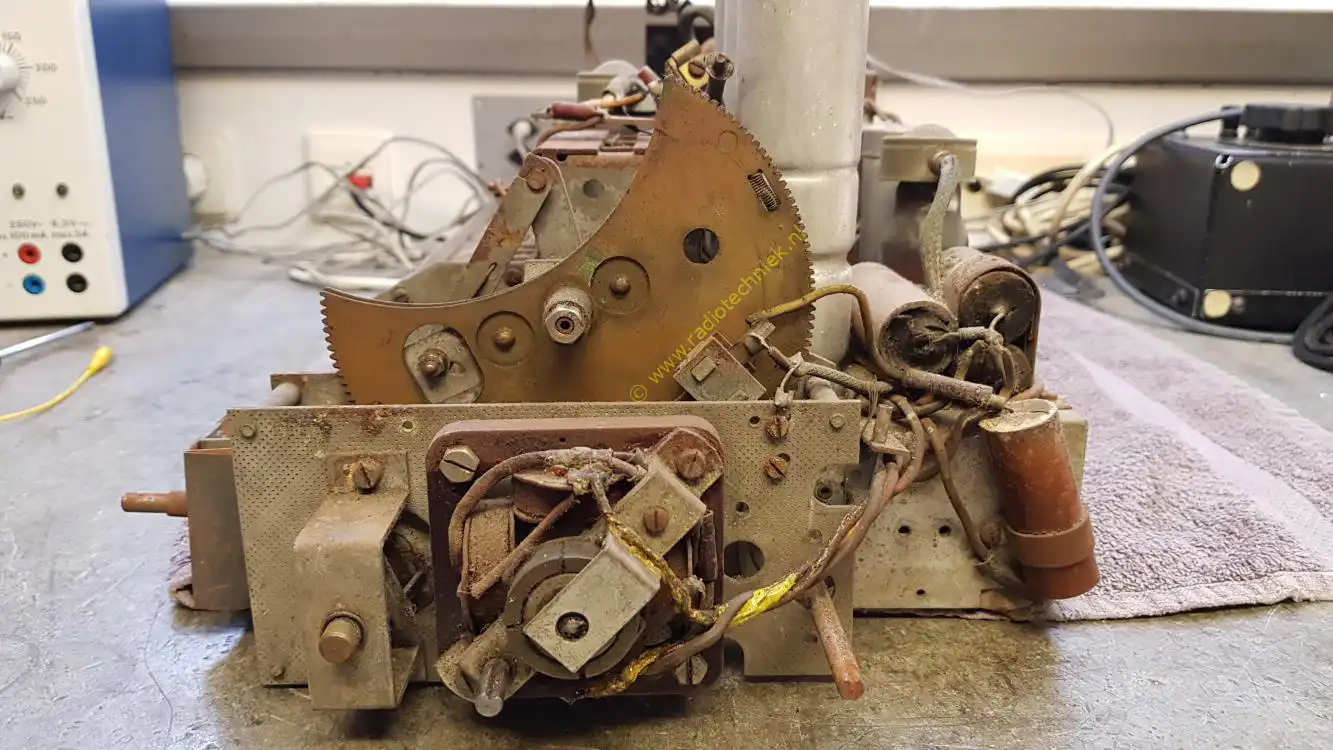

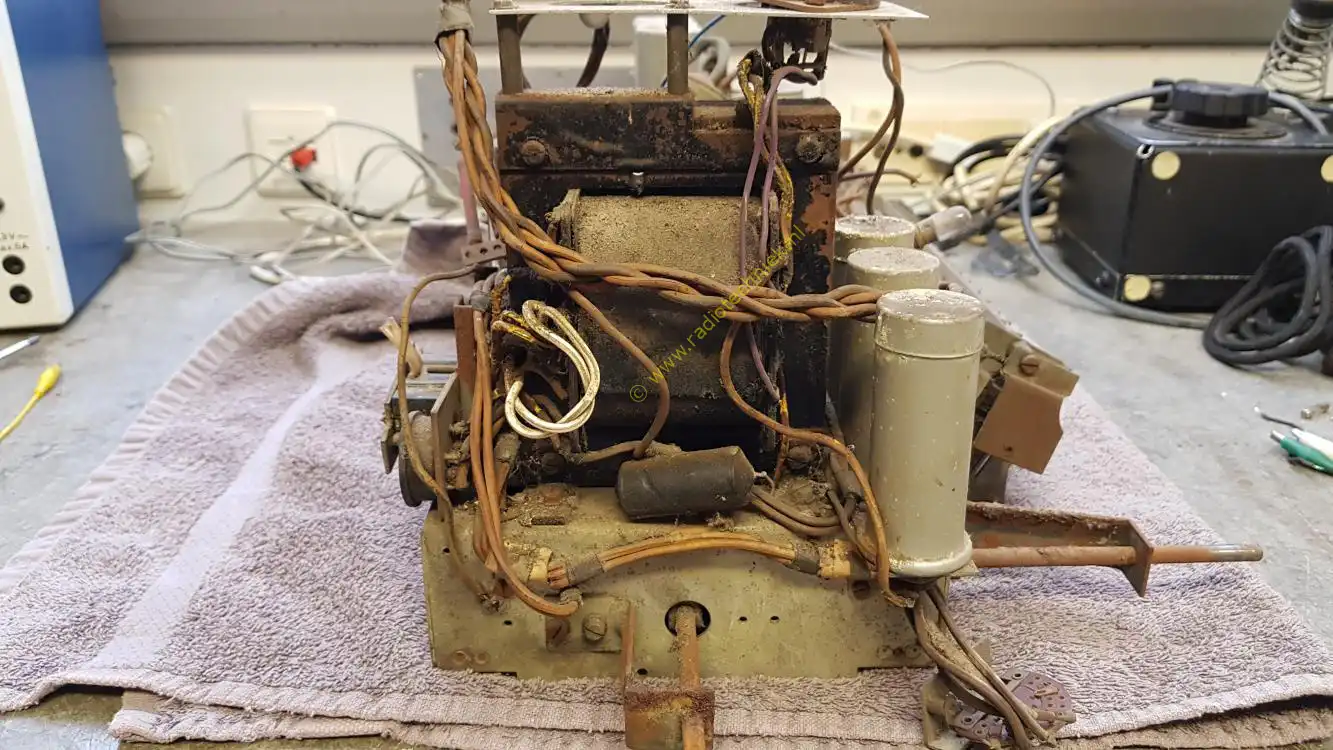

The chassis, which is supplied separately, is a composition in rust.
Philips 850A foto 3

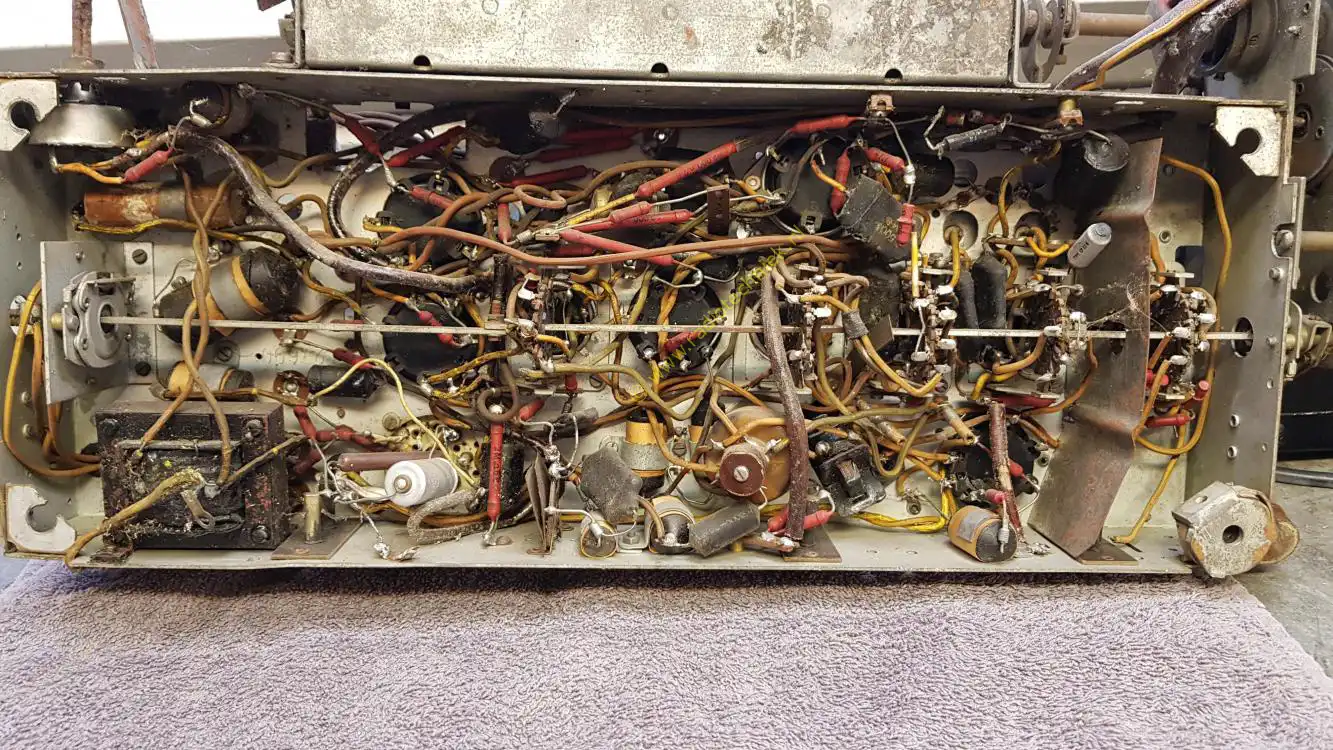

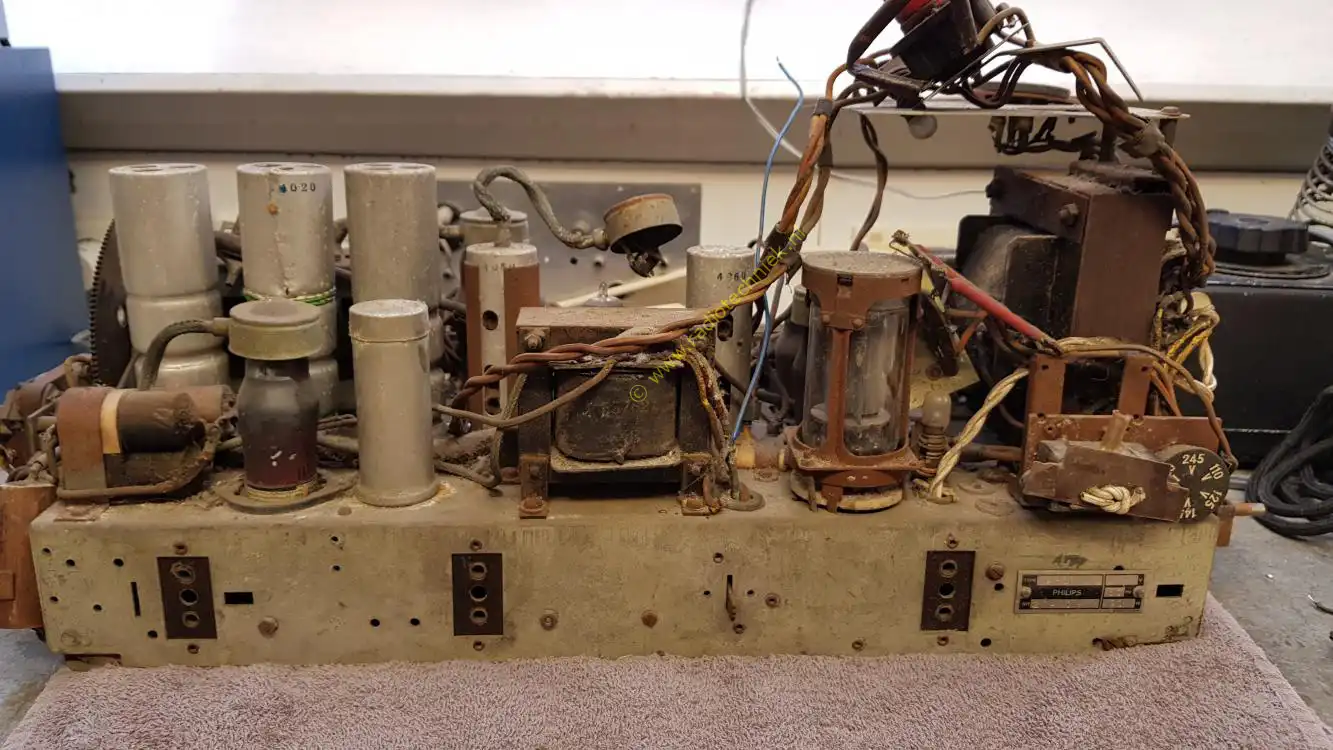

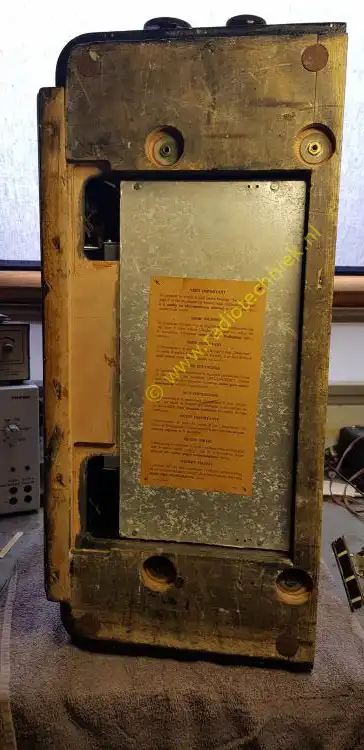

The underside after years of standing still under bad conditions.
Philips 850A foto 4

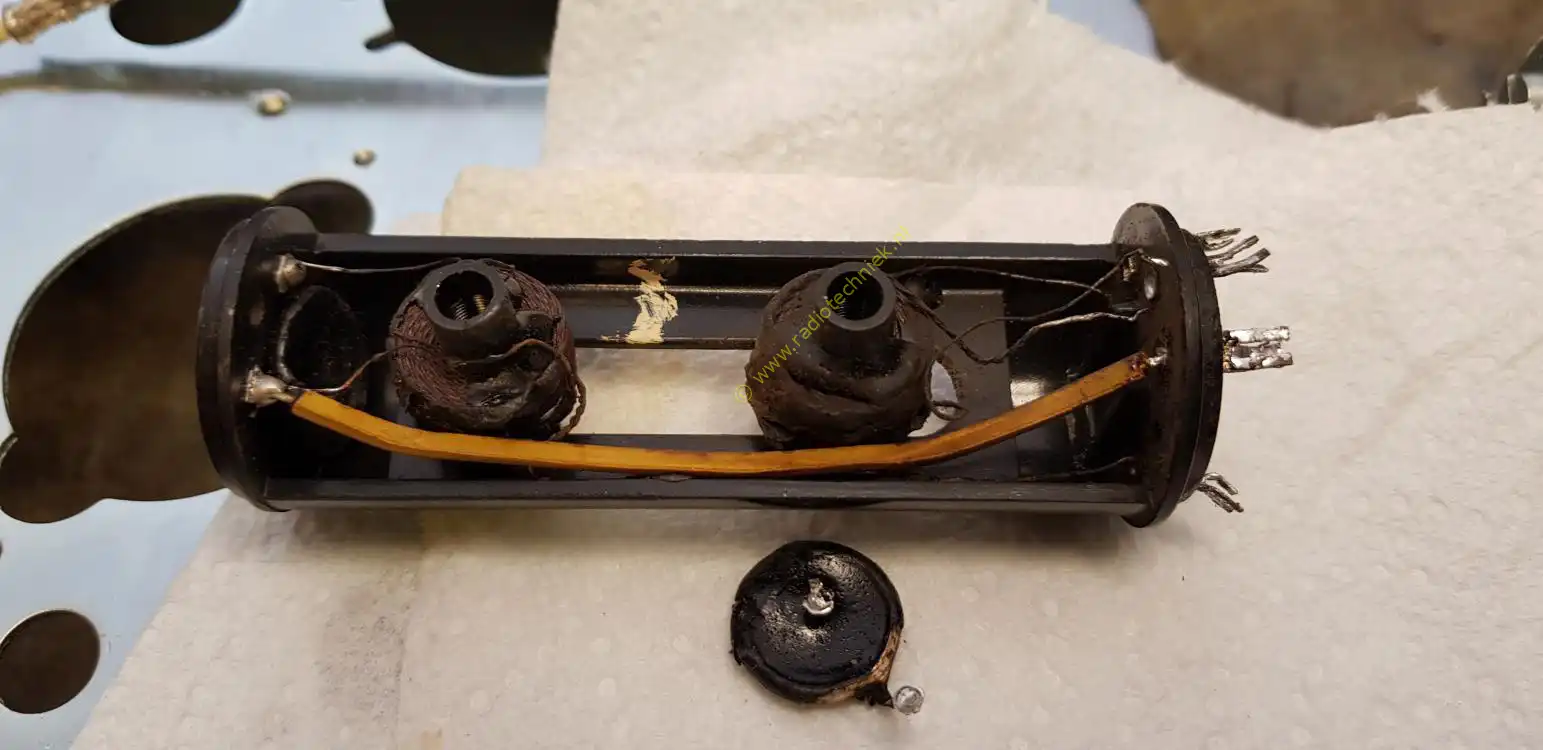

The engine tuning. What once made this device special is now a jammed old mess.
Philips 850A foto 5
The chassis has been given a different end tube. It was a war tube.
Philips 850A foto 6
Free expression has run its course here.

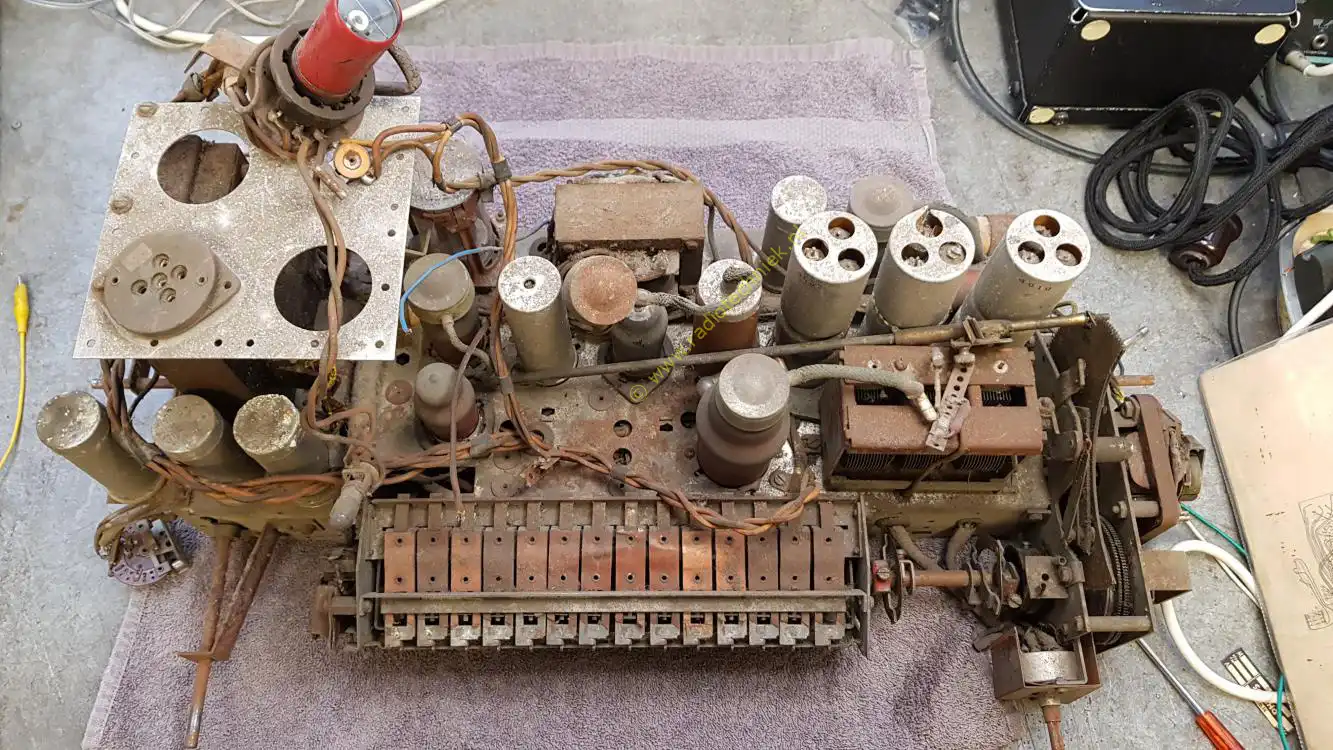

Philips 850A foto 7

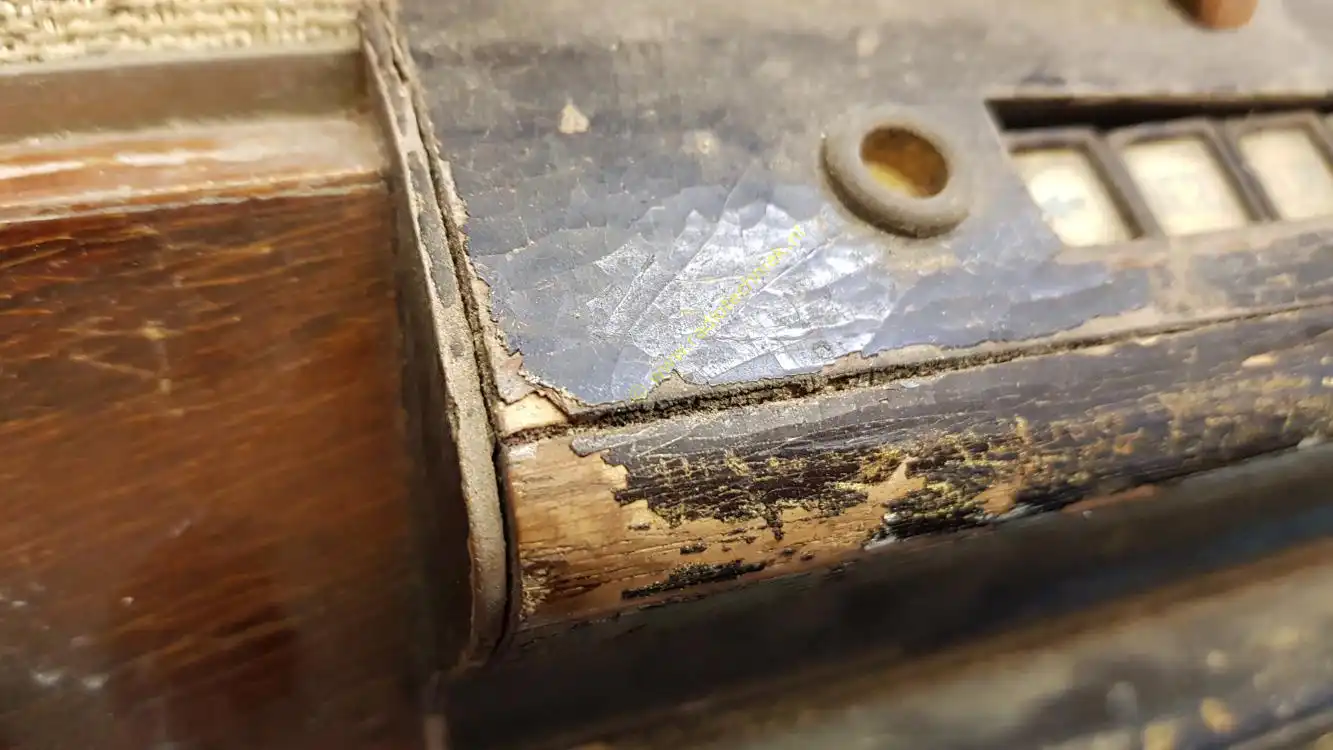

The power supply. Could this radio set play again?
Philips 850A foto 8

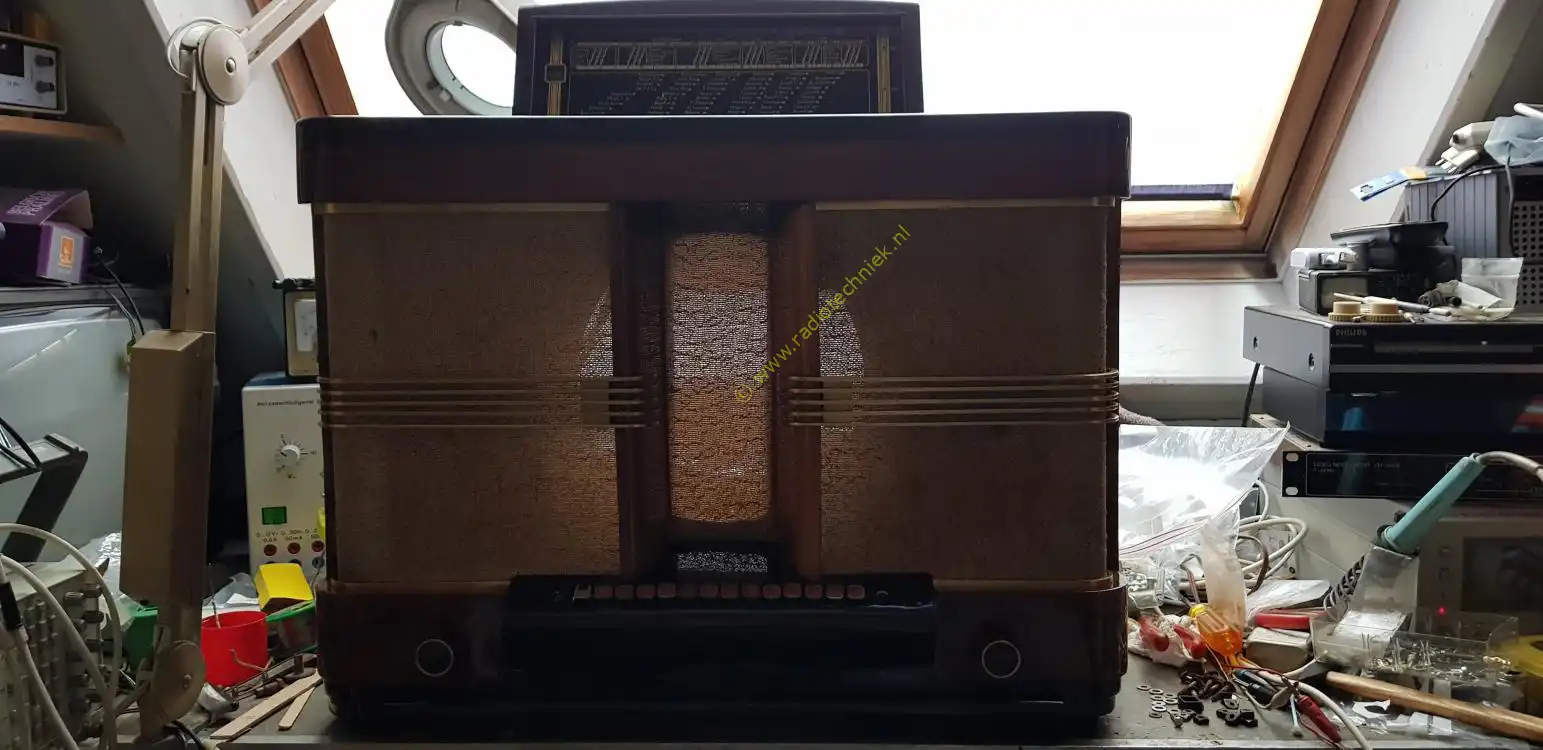

The cabinet looks like a lot, but a terrible spectacle is coming.

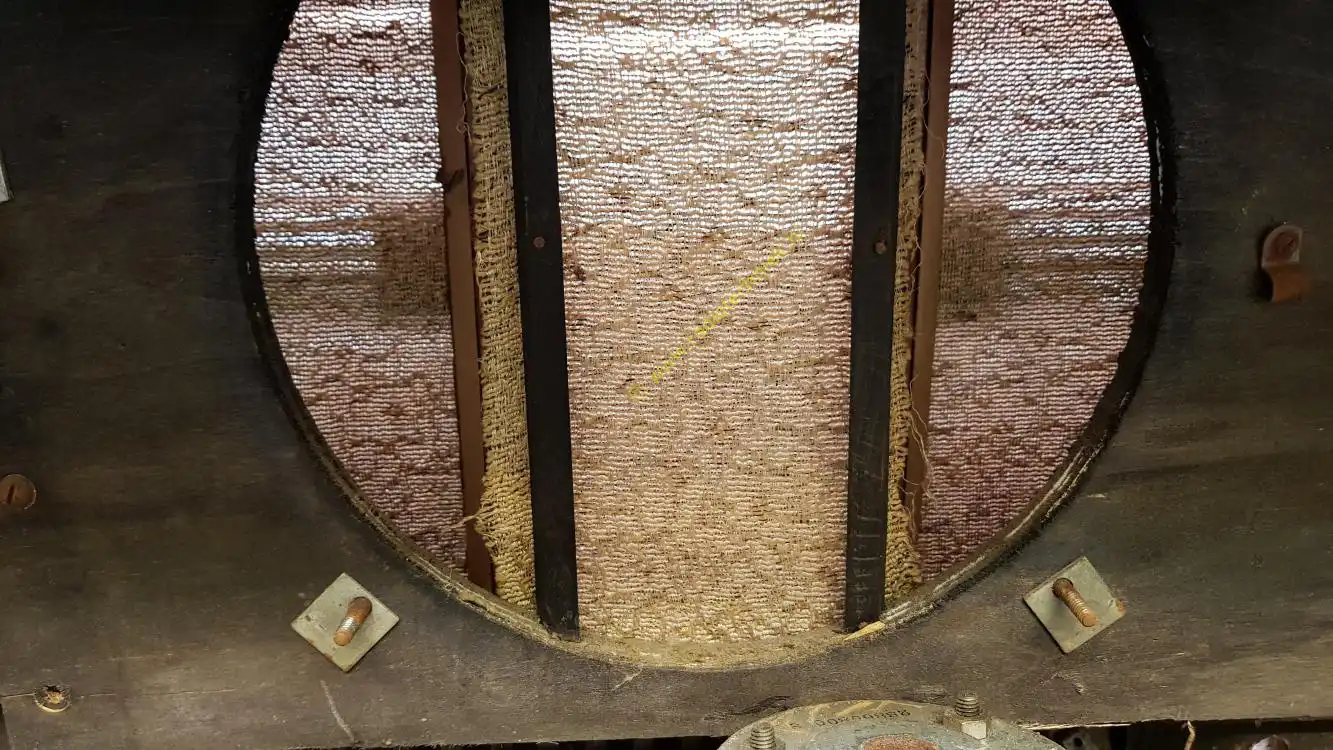

Philips 850A foto 9
The speaker cloth of this radio was original. No one on the auction site had seen that. For me this was the reason to buy this beautiful radio device.
Philips 850A foto 10

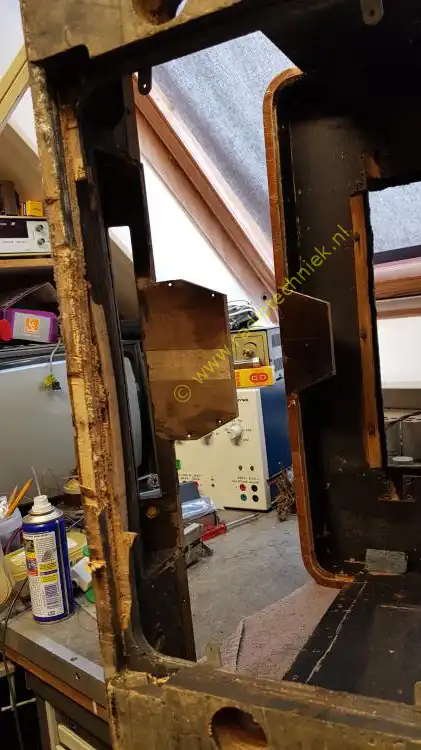

Part of the cabinet under the mechanical memory of the motor tuning was knocked away with an axe.
Philips 850A foto 11
Here you can clearly see how part of the cabinet was knocked away with an axe.
Philips 850A foto 12
The keyboard is completely bulged by the moisture. Inside, the wood was cracked and broken.
Philips 850A foto 13
Another terrible drama. There should be 5 bars on both loudspeaker grilles. the bottom of both sides is missing.
Philips 850A foto 14

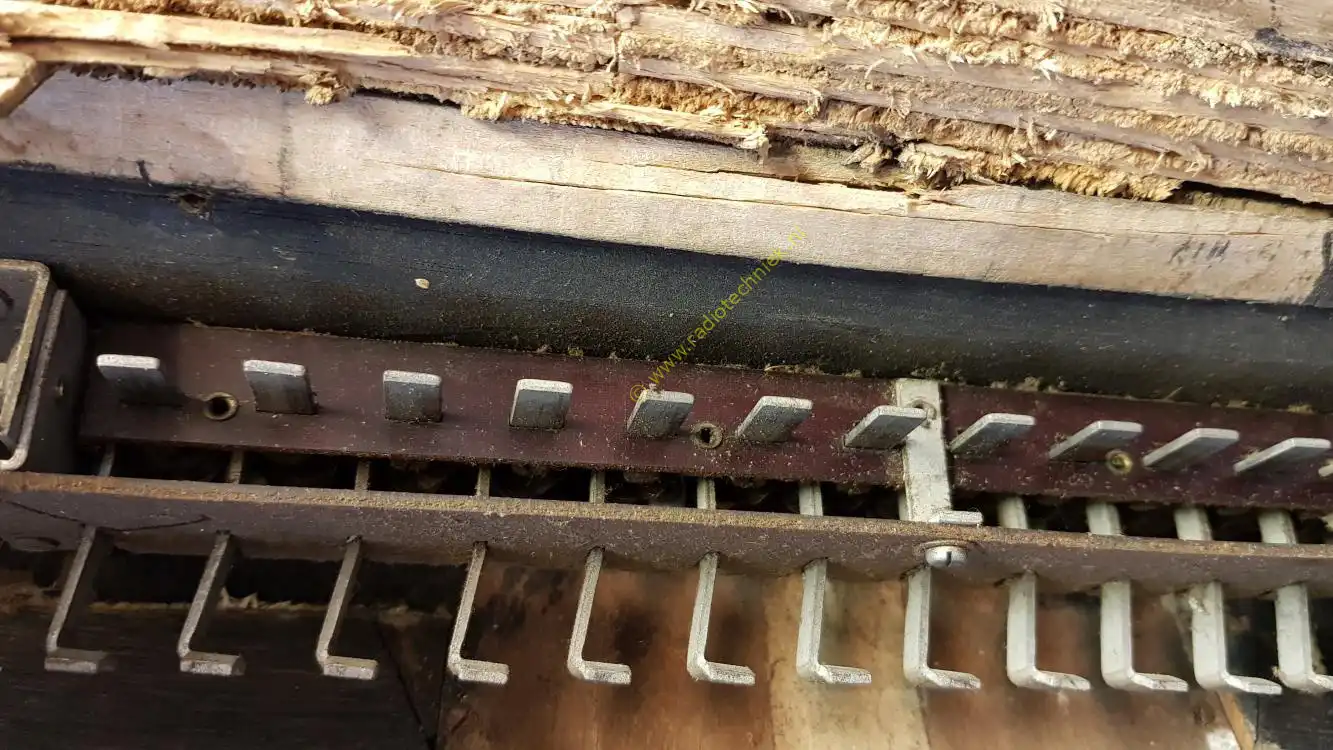

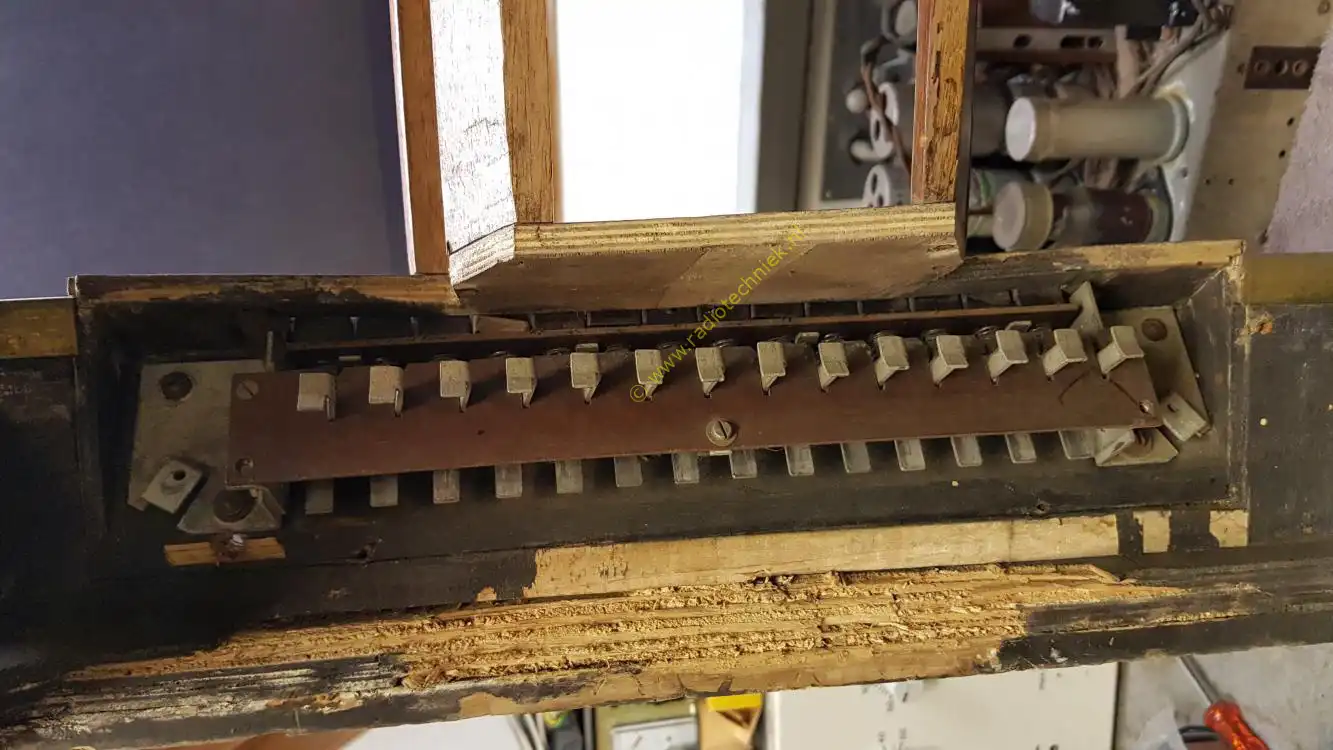

The inside of the keyboard. The keyboard is completely warped.
Philips 850A foto 15
The keyboard clearly shows how the wood has broken loose.
Philips 850A foto 16

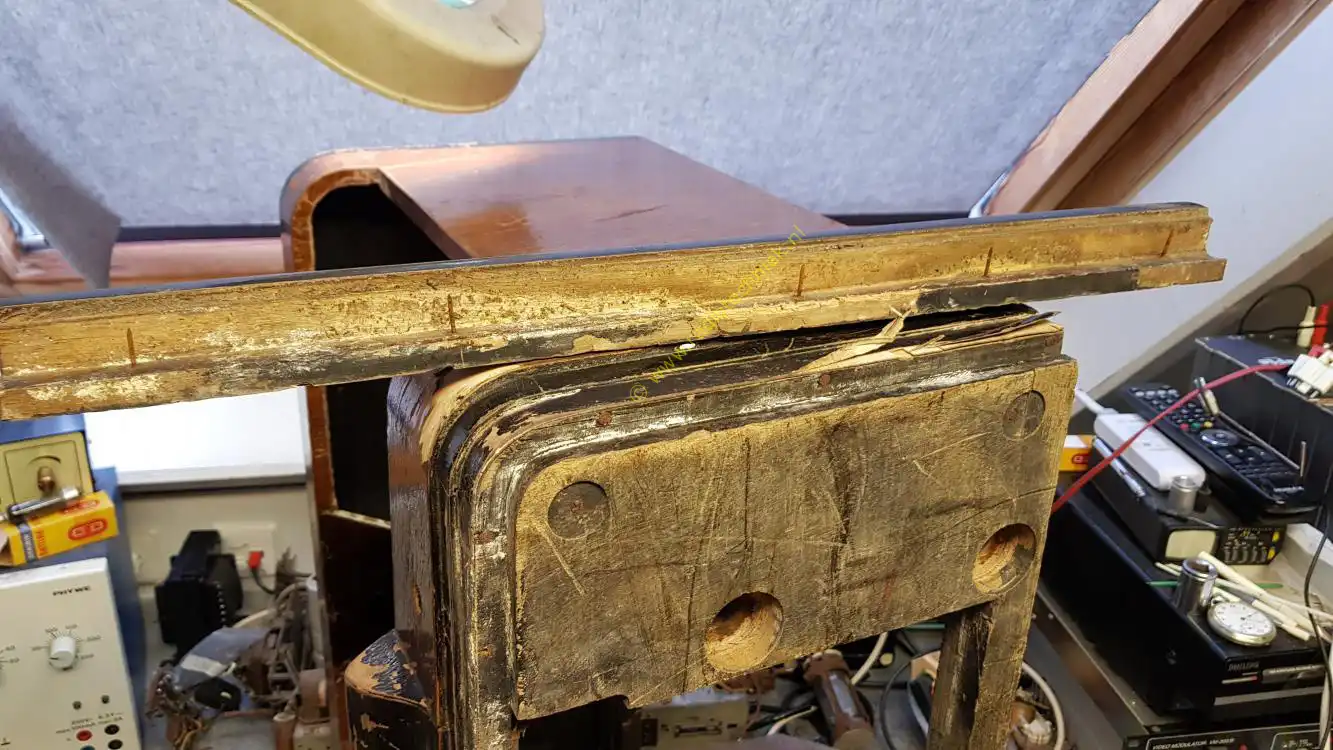

Here you can clearly see how one corner has been knocked out of the cabinet. Replacing the bottom plate is the only option.
Philips 850A foto 17

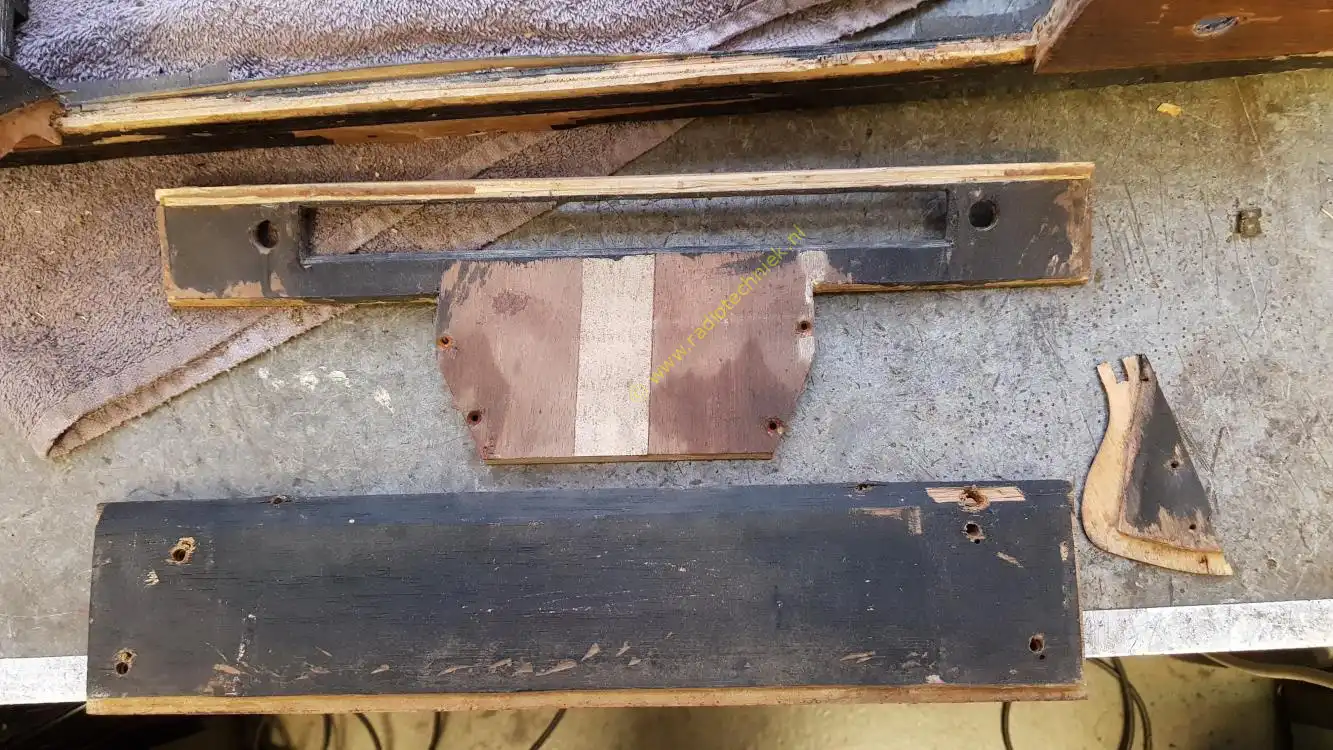

The bottom plate consists of two parts, the lower part is good and usable. The second part is plywood. This part has been worked with the ax but has also been completely under water. Where the layers of the plywood had come loose. And the whole of misery fell apart.
Philips 850A foto 18
Carefully remove the footboard.
Philips 850A foto 19

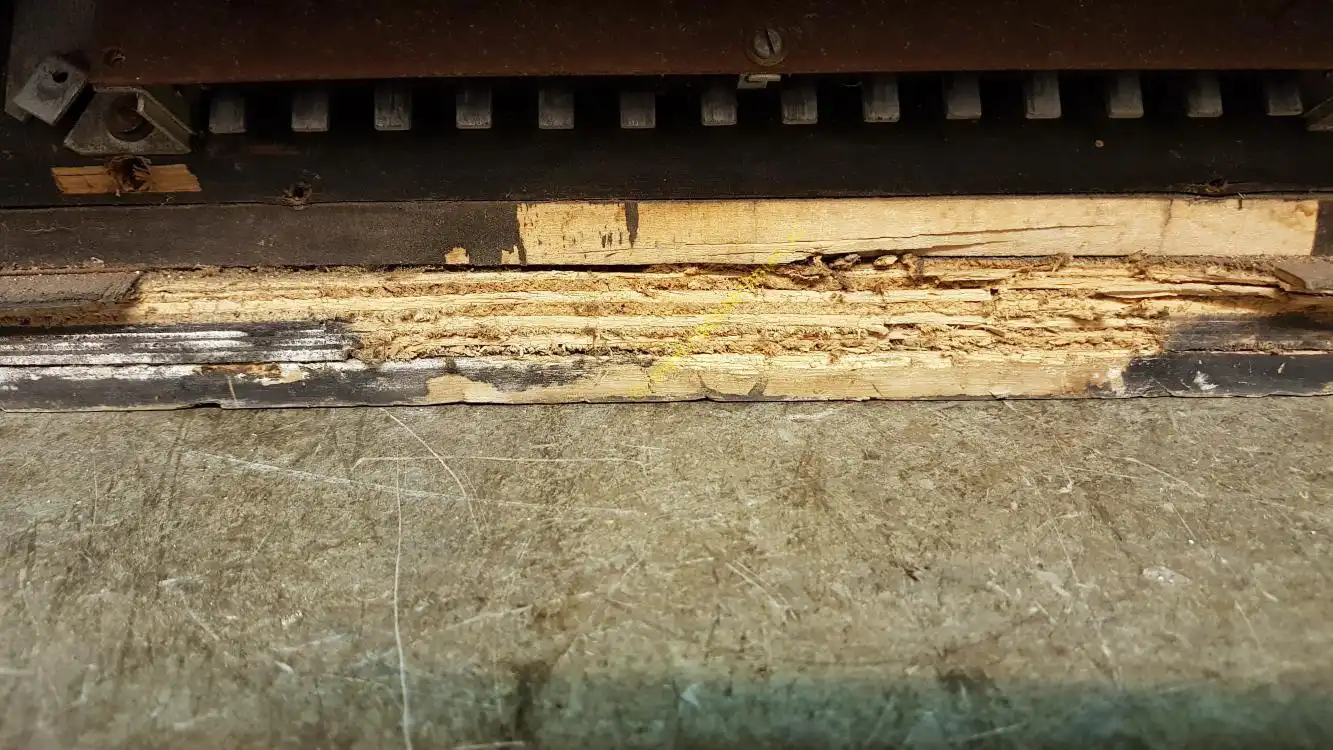

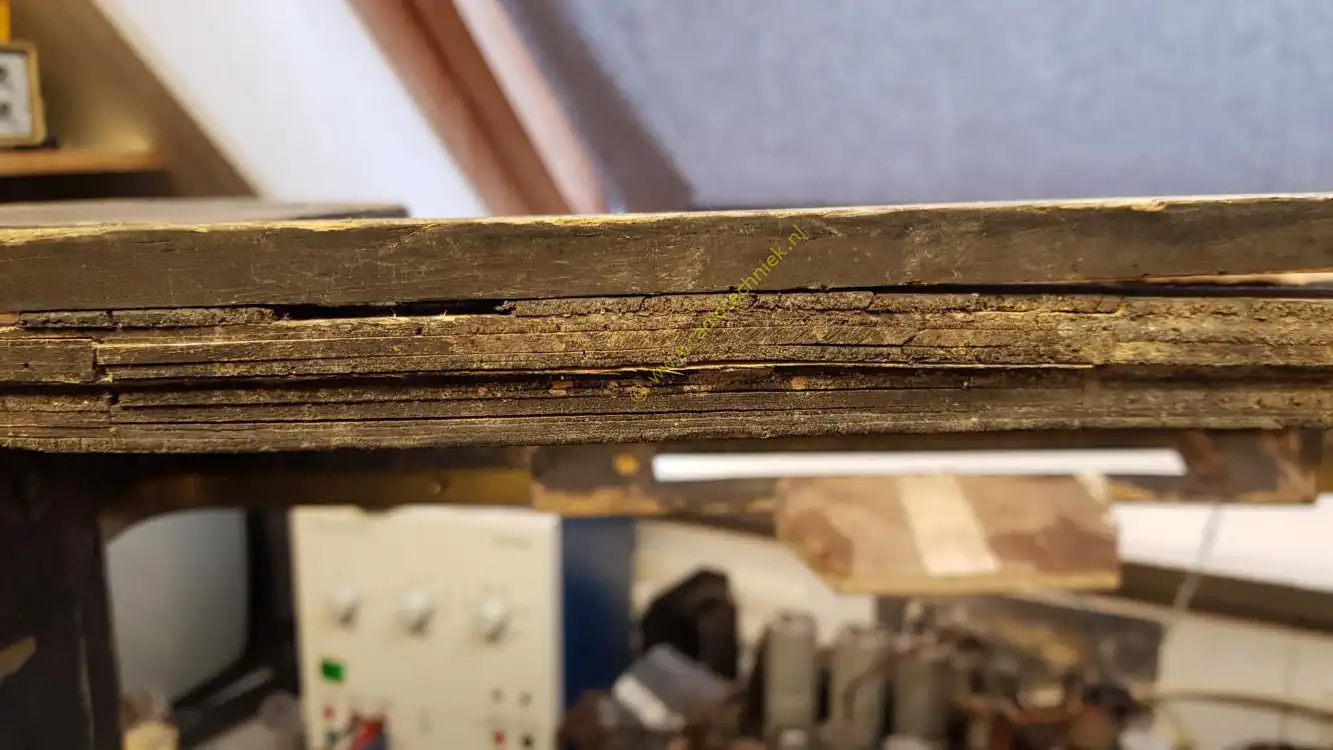

Here the loose layers of the plywood.
Philips 850A foto 20

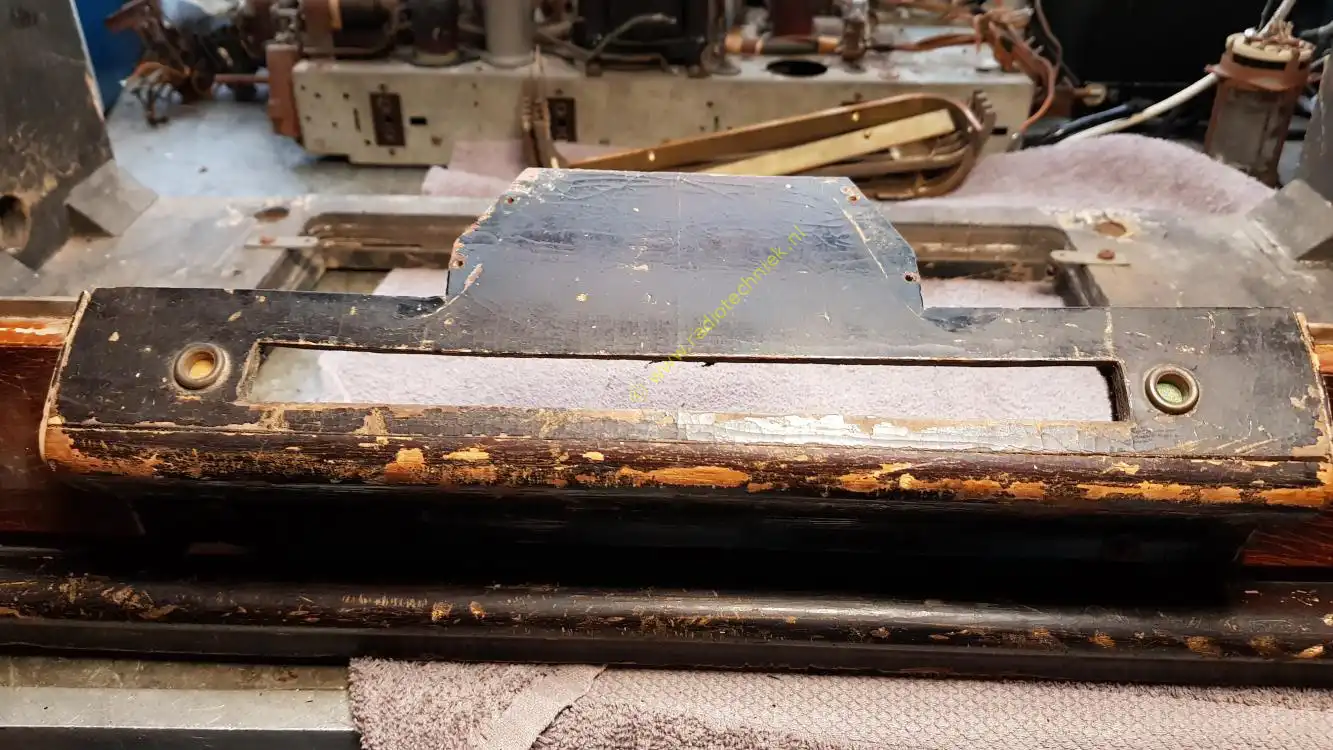

Removed the keyboard.
Philips 850A foto 21
The pieces of the keyboard, the two large parts, were one whole.
Philips 850A foto 22

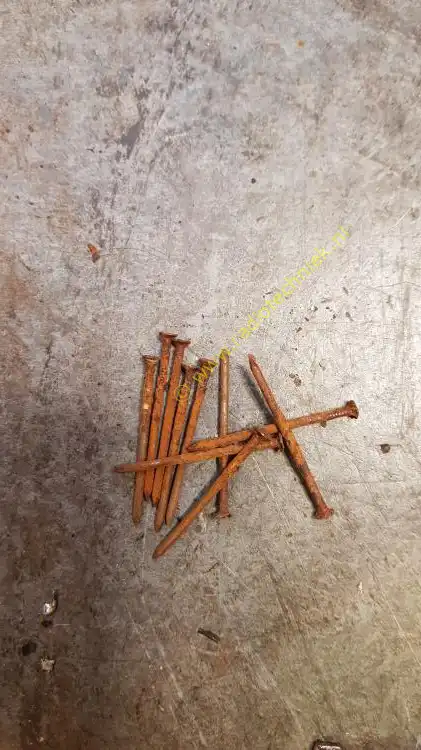

The rusty nails that came out of the radio cabinet. With a lot of effort.

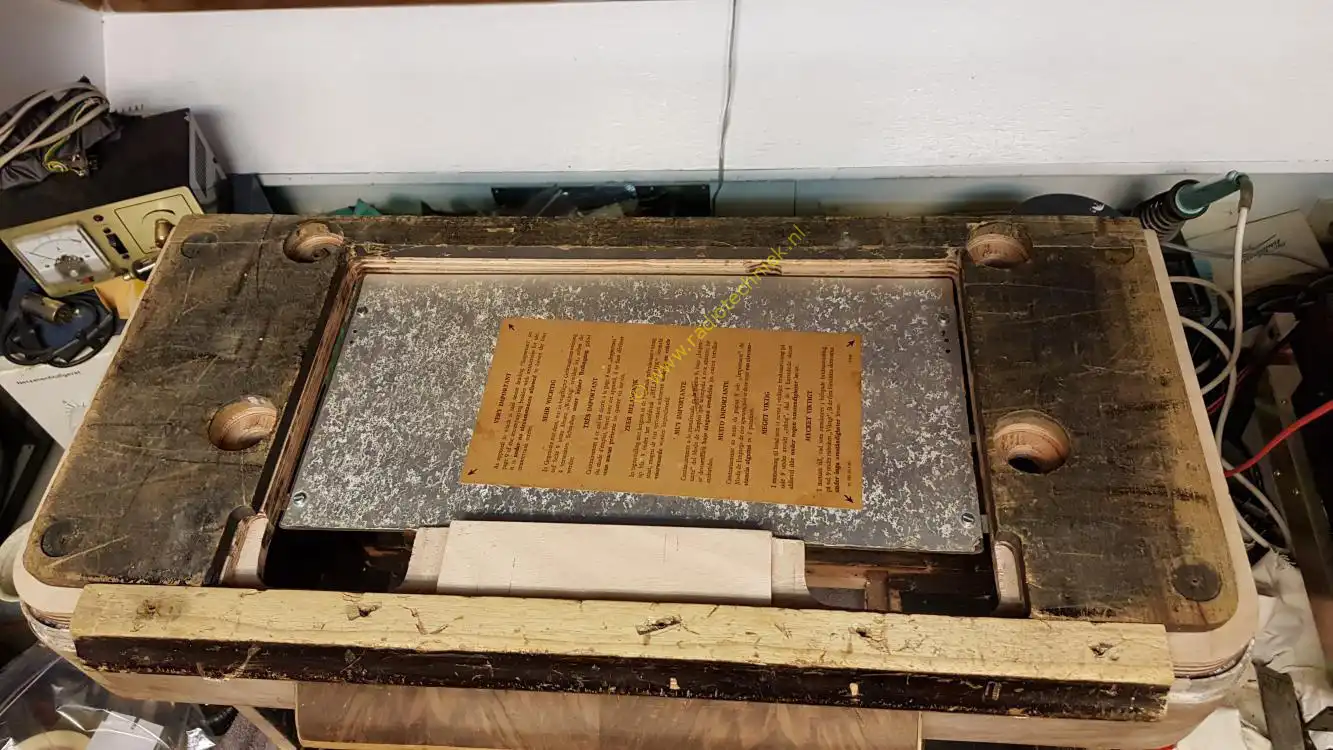

Philips 850A foto 23

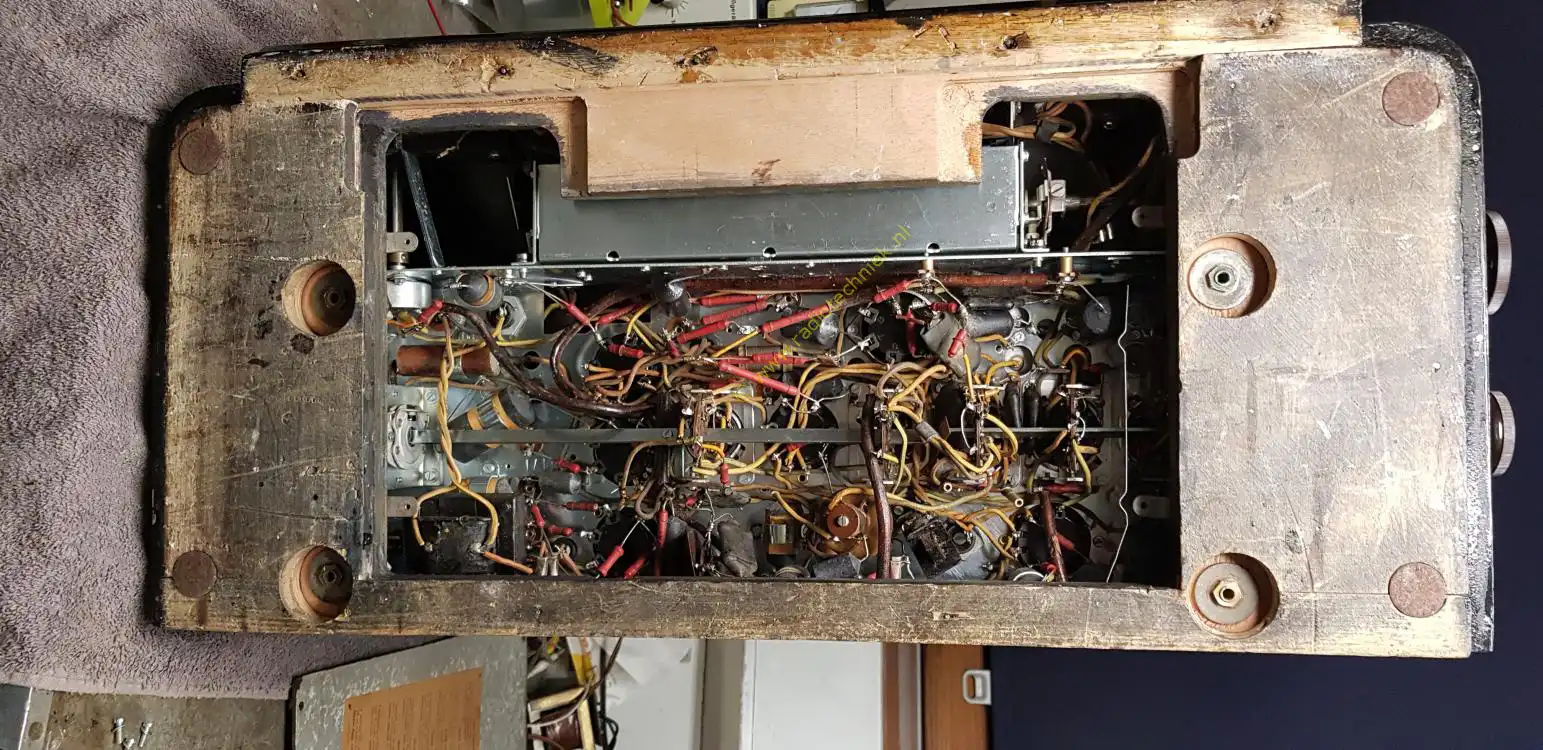

Removed the bottom plate.
Philips 850A foto 24

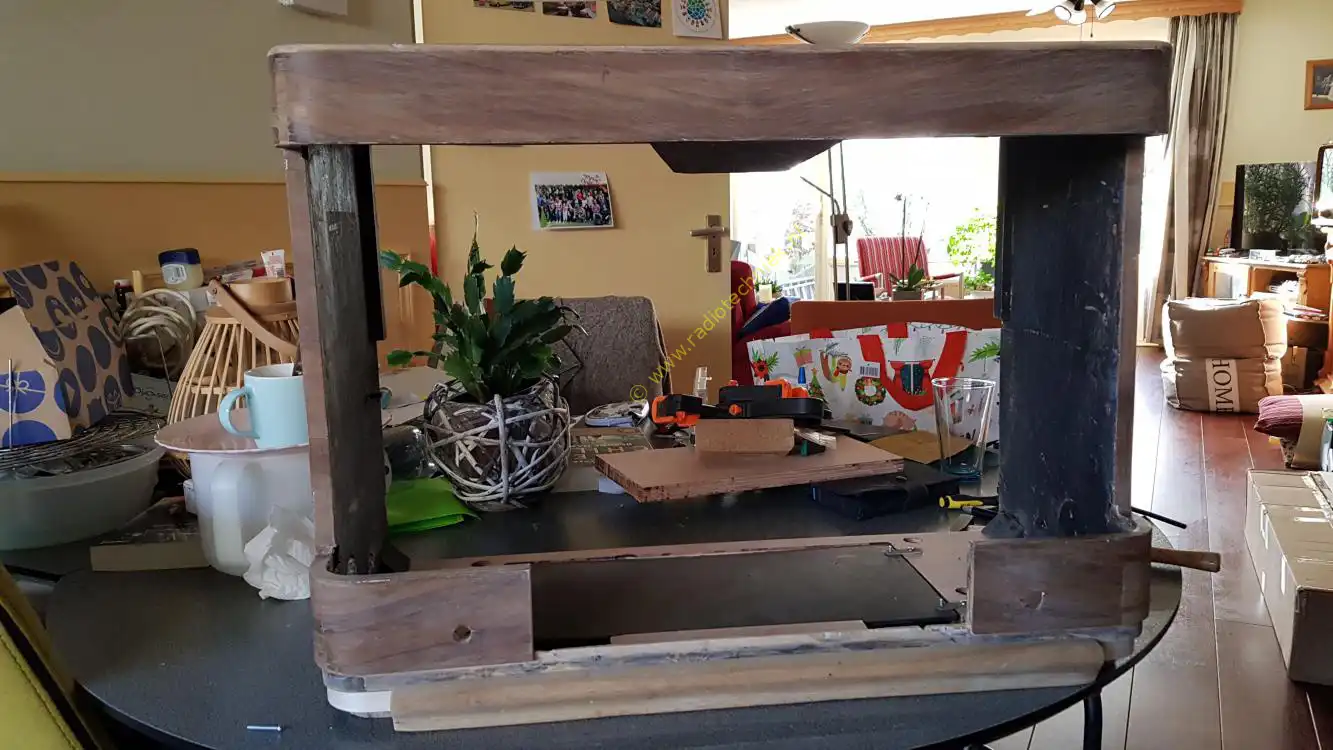

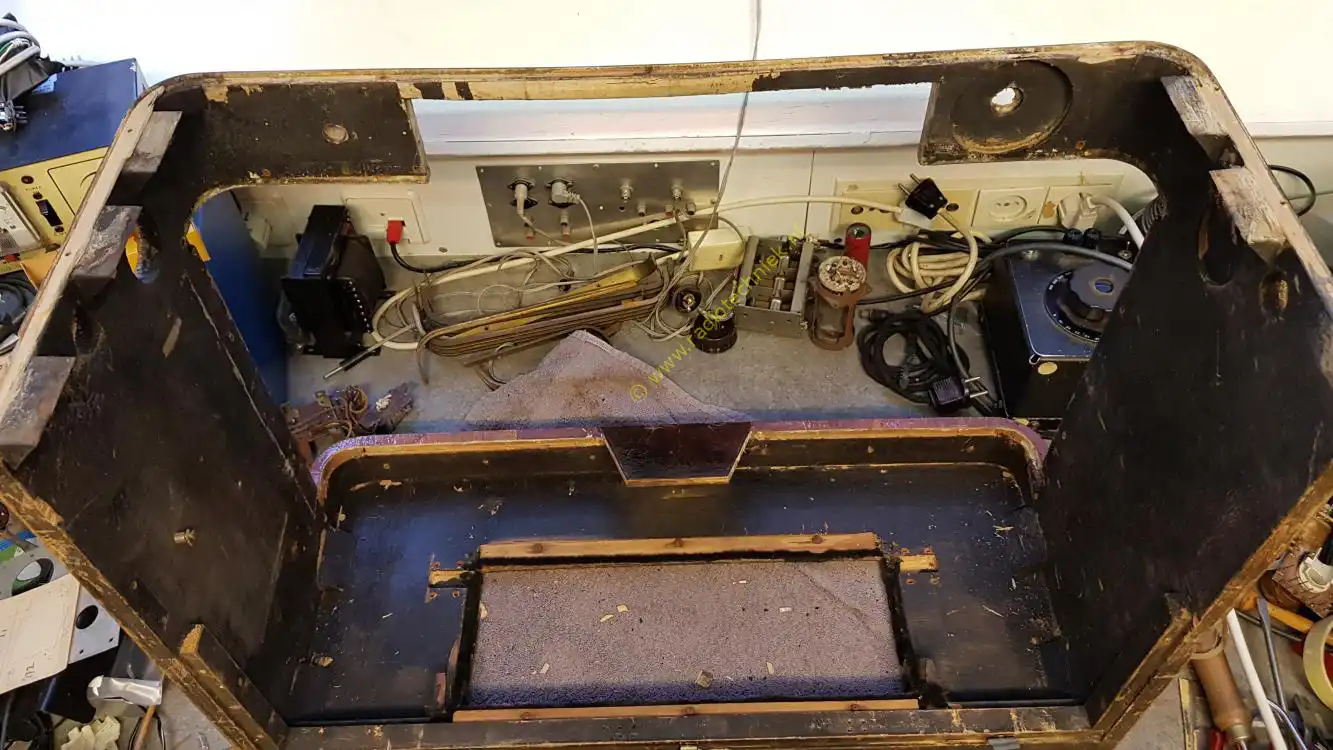

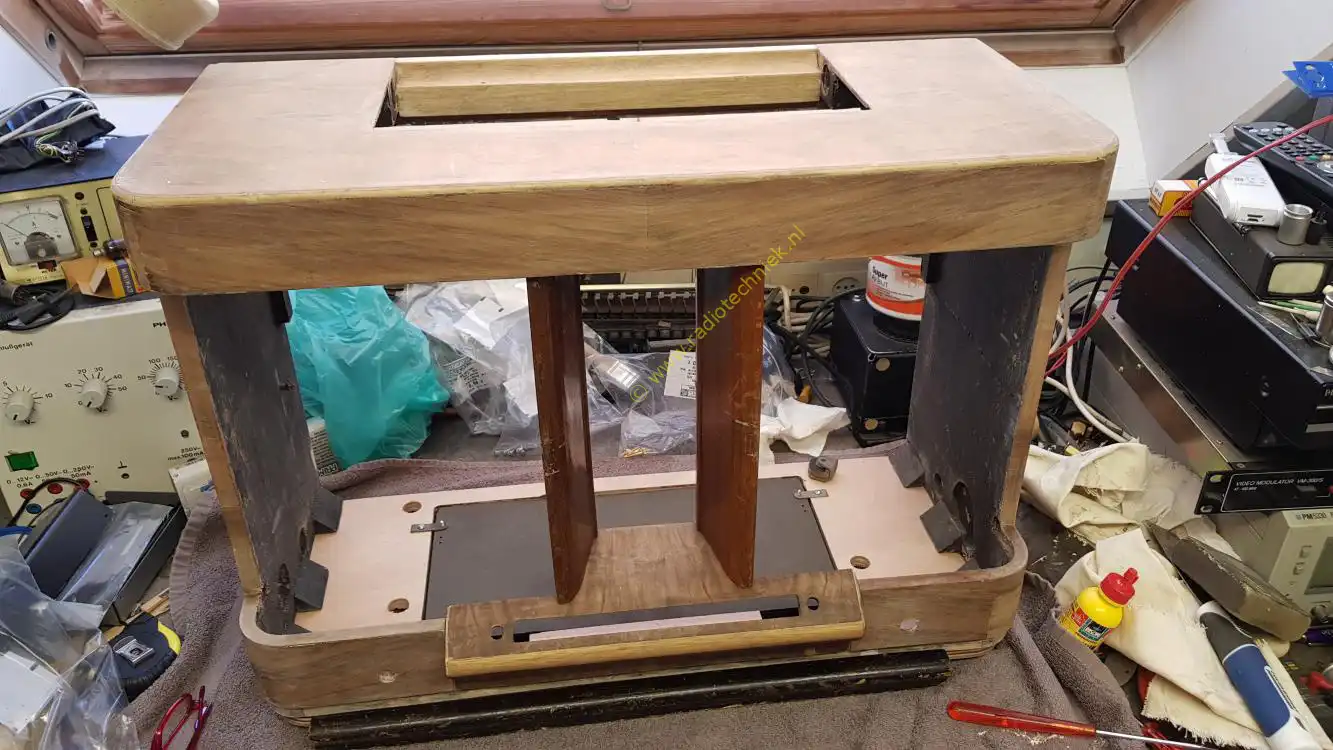

The cabinet bare. Bottom plate removed.

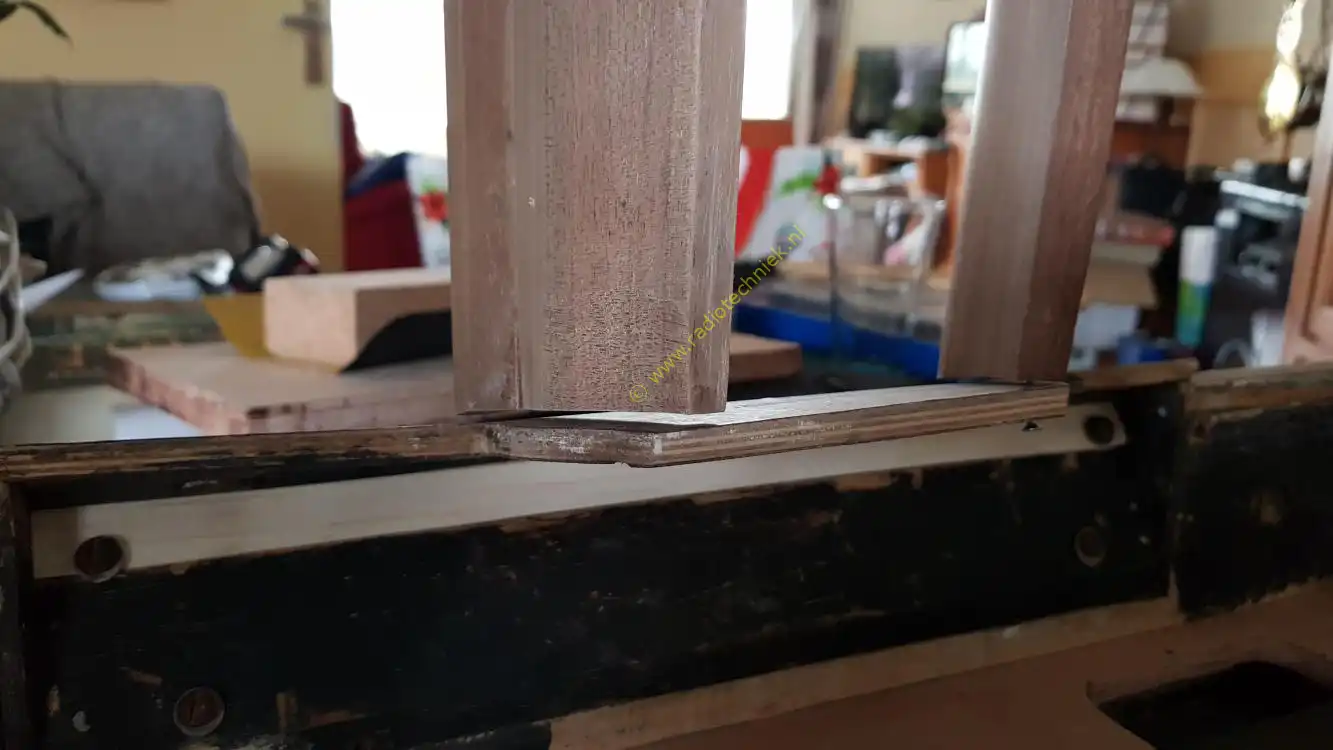

Philips 850A foto 25

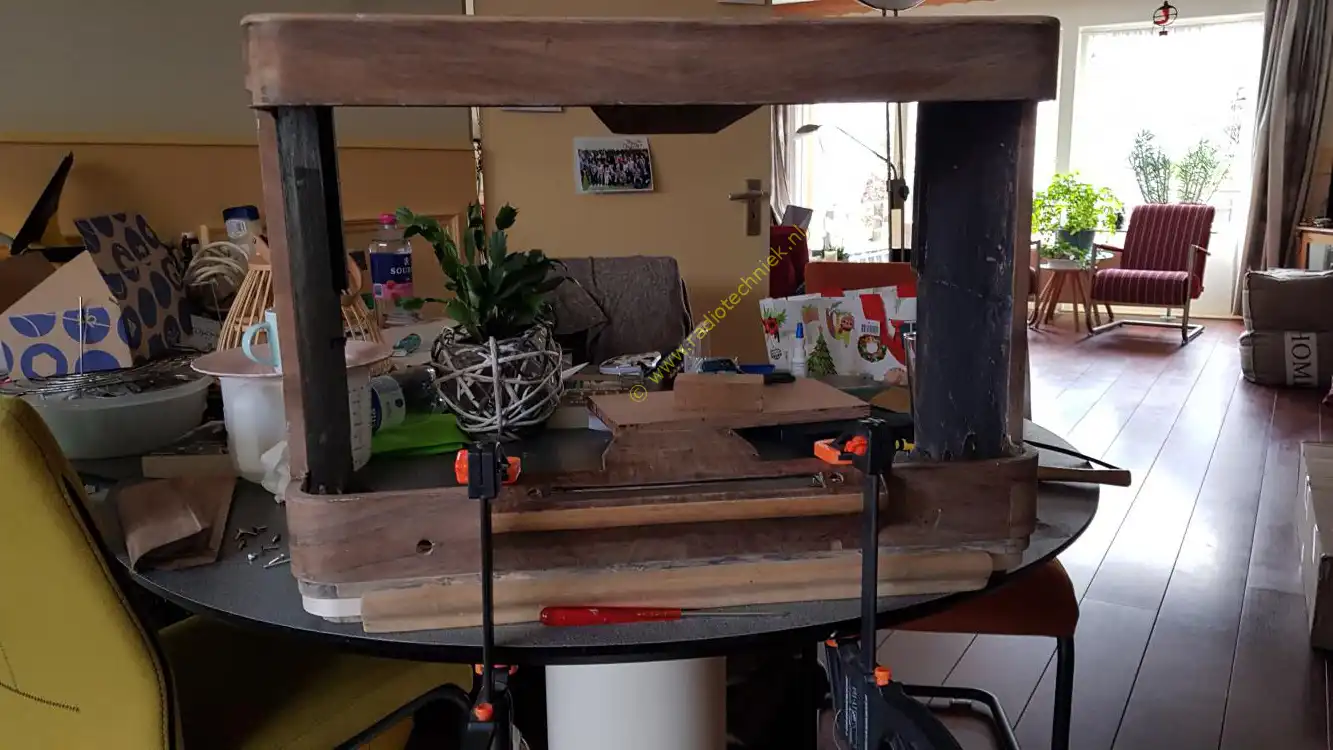

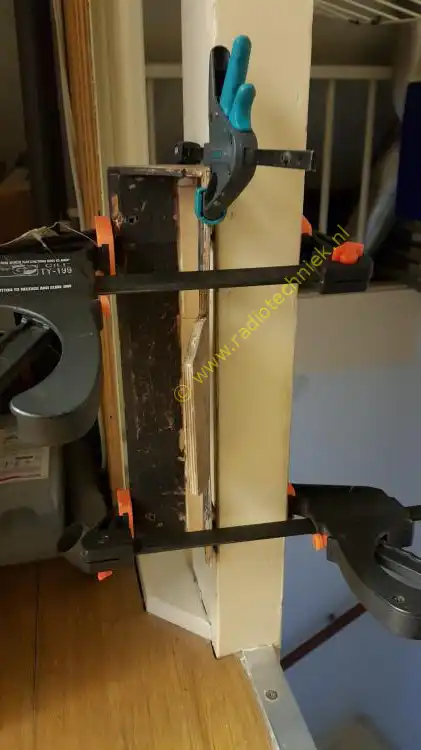

Re-gluing the keyboard.
Philips 850A foto 26

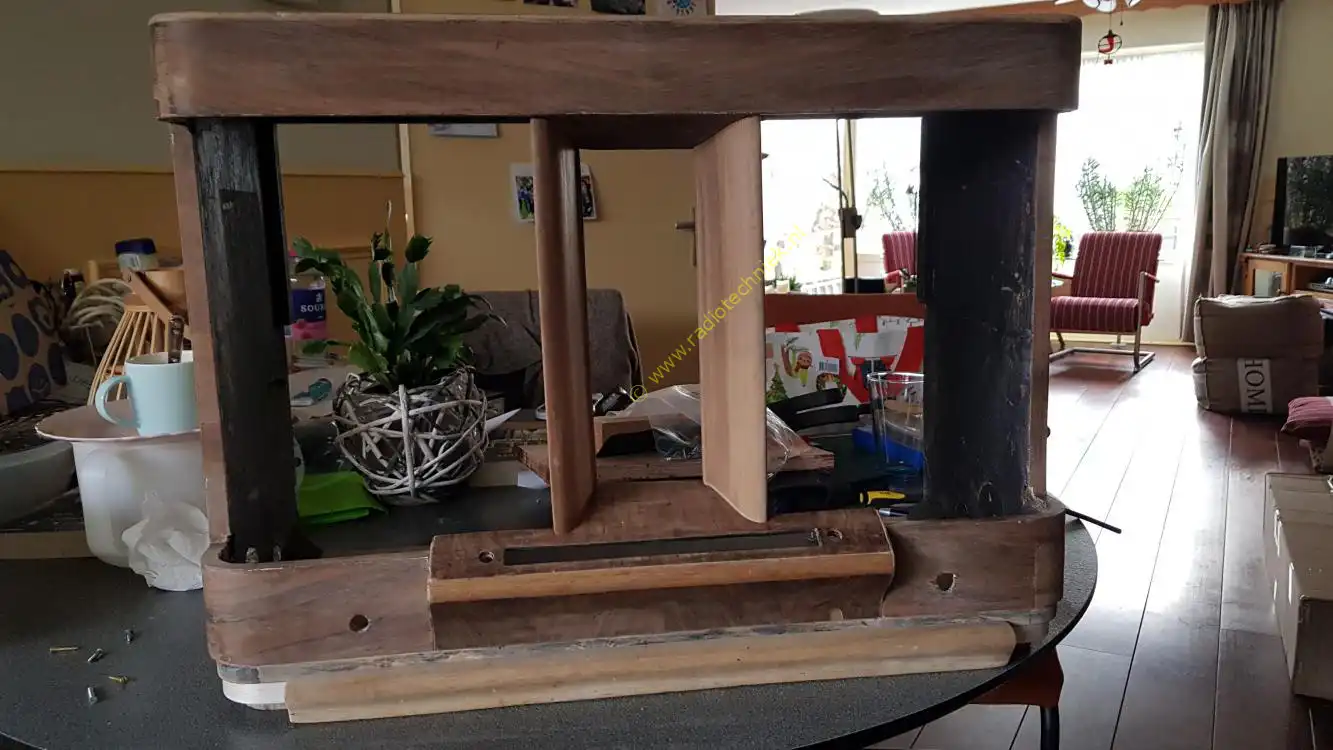

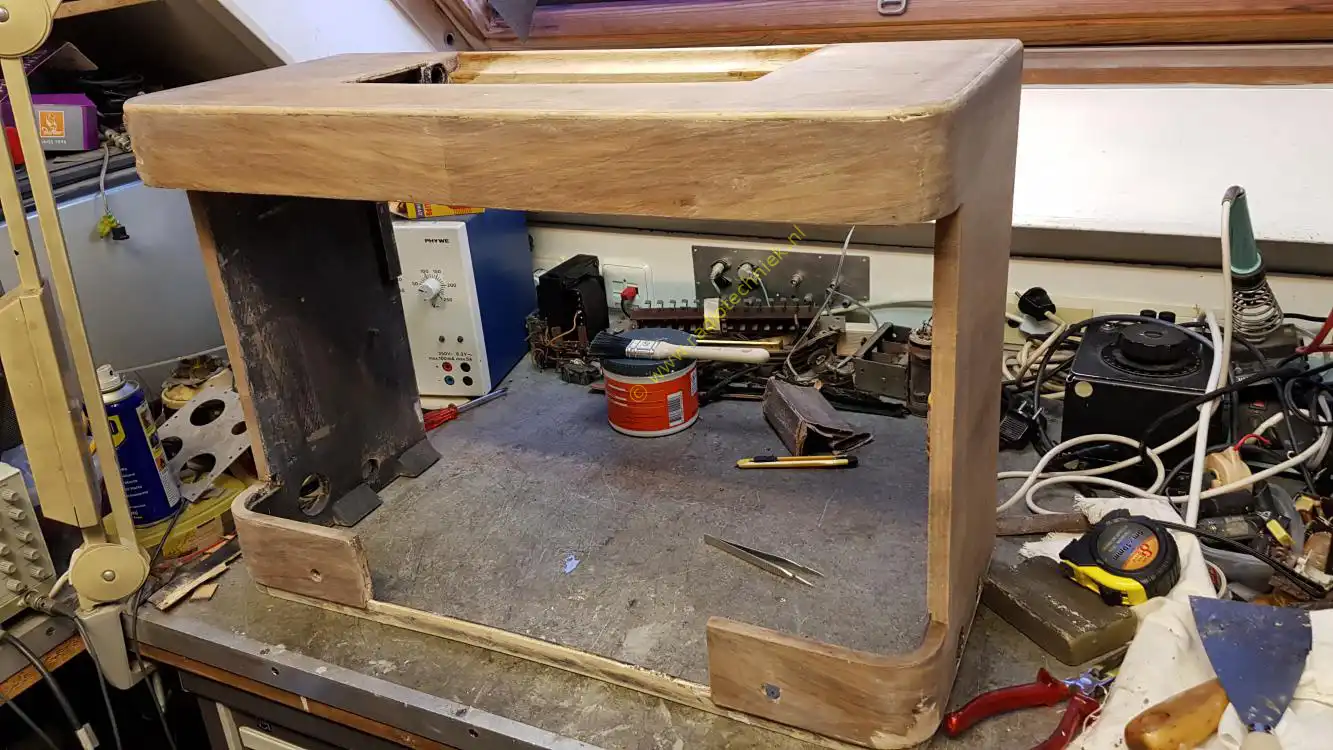

New and repaired parts fit in the cabinet.
Philips 850A foto 27
A view of the bottom of the radio cabinet.

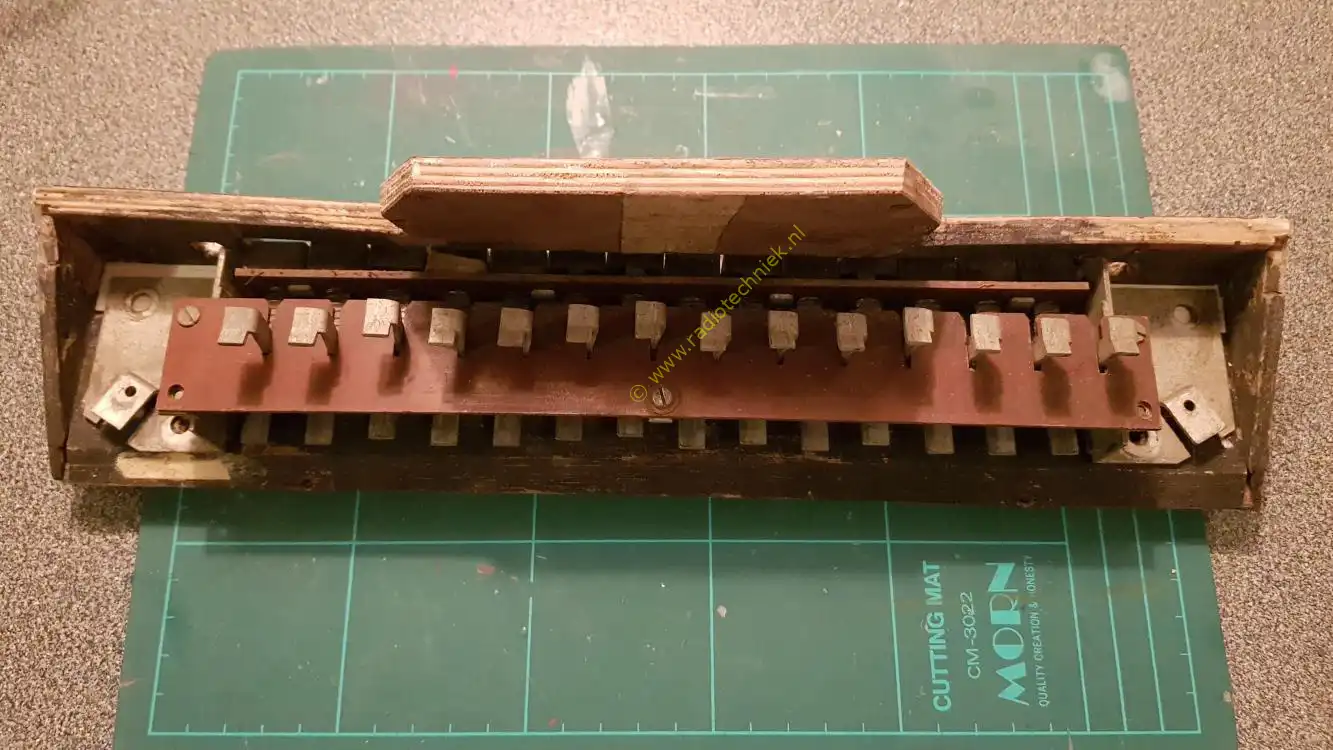

Philips 850A foto 28
Assembling the keyboard and measuring the push buttons.
Philips 850A foto 29
The top view of the keyboard.
Philips 850A foto 30
Glue the bottom into the cabinet.
Philips 850A foto 31
The cabinet with bottom.
Philips 850A foto 32

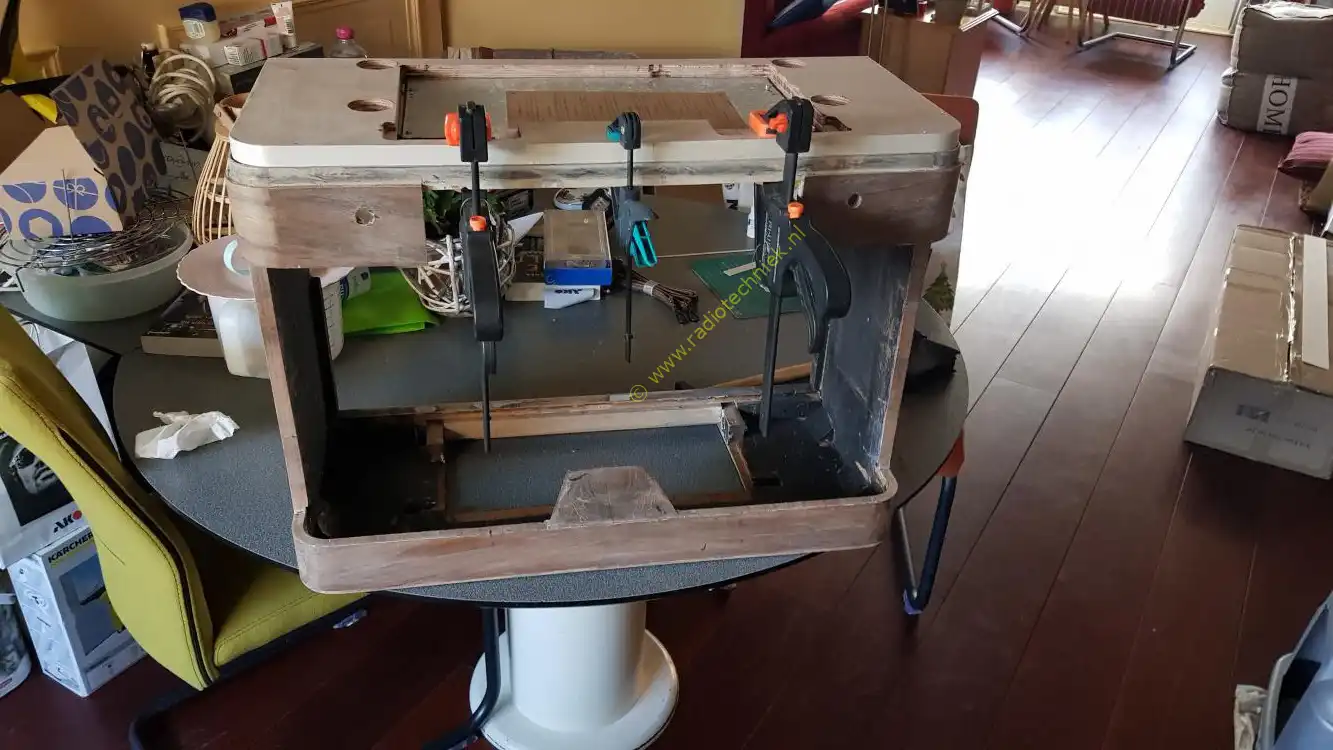

Gluing the keyboard into the cabinet.
Philips 850A foto 33
Here you can see that the keyboard will straighten itself in the cabinet.
Philips 850A foto 34
Cabinet with sound wings and keyboard.
Philips 850A foto 35

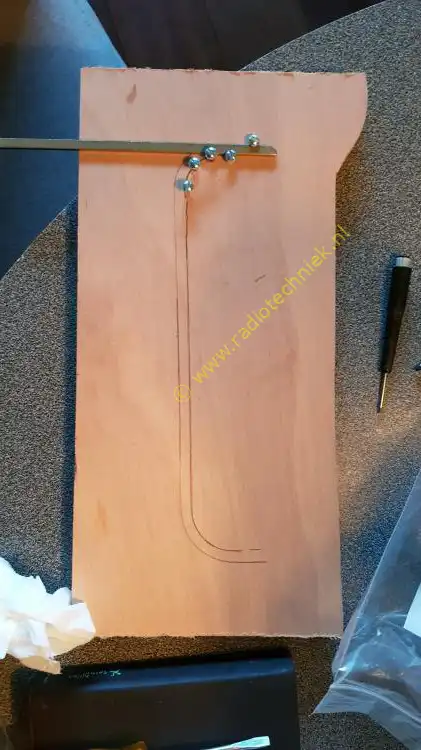

Repairing the speaker grille.
Philips 850A foto 36

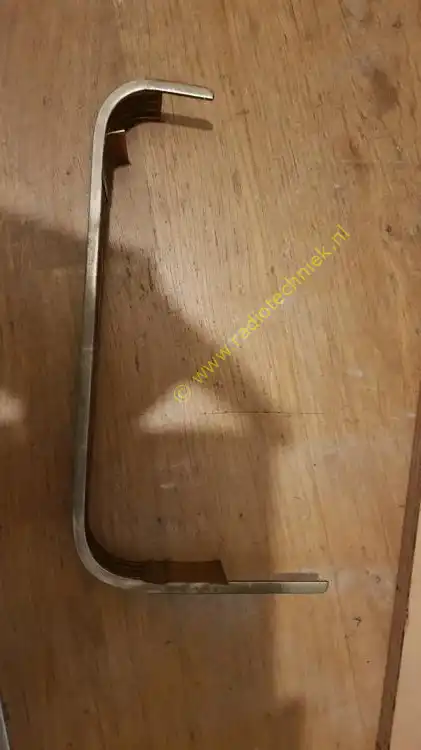

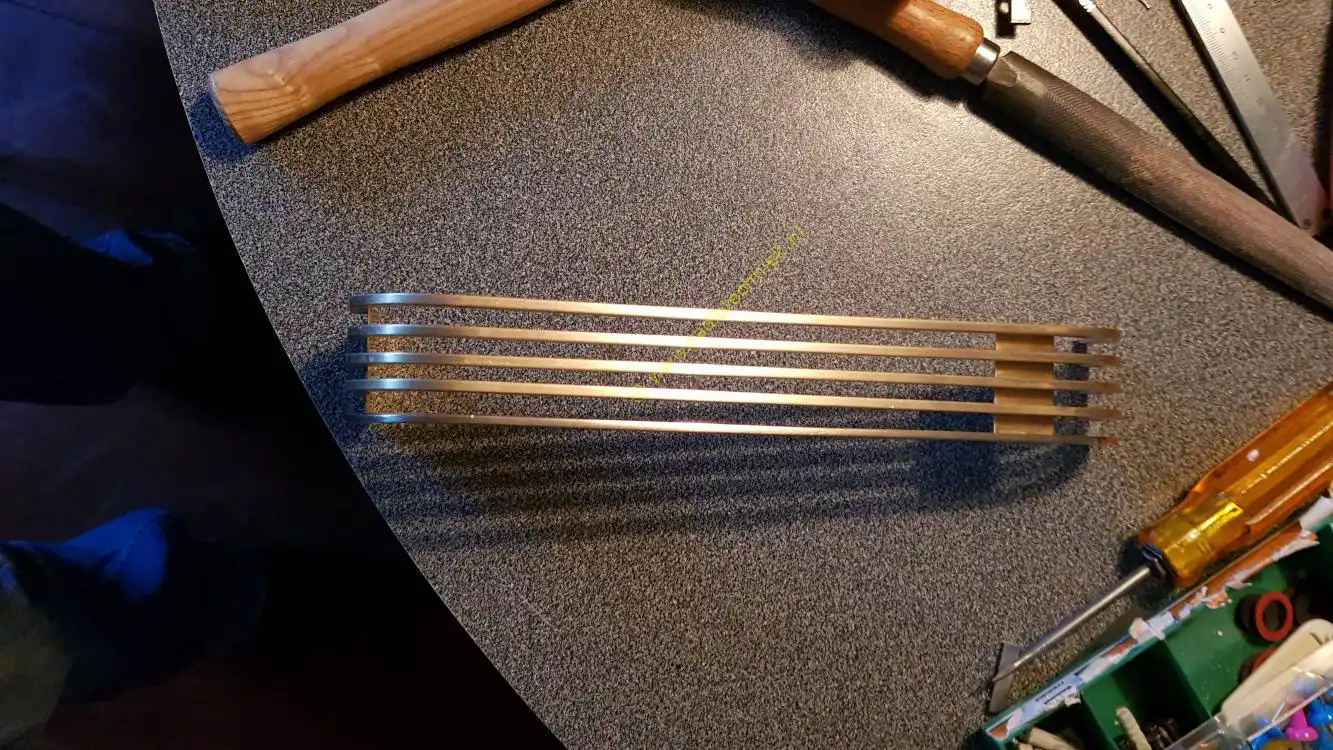

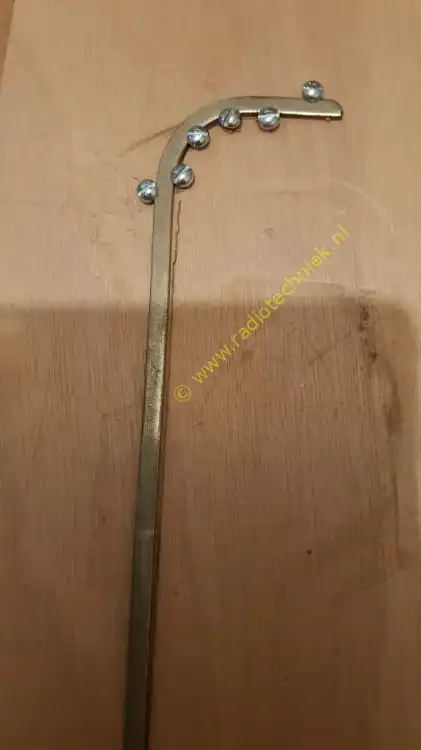

Here bending a brass rod.
Philips 850A foto 37
The speaker grill viewed from above.
Philips 850A foto 38
Here's an idea of the end result.
Philips 850A foto 39
The speaker grille.
Philips 850A foto 40
The inside of the speaker grille finished and riveted.
Philips 850A foto 41

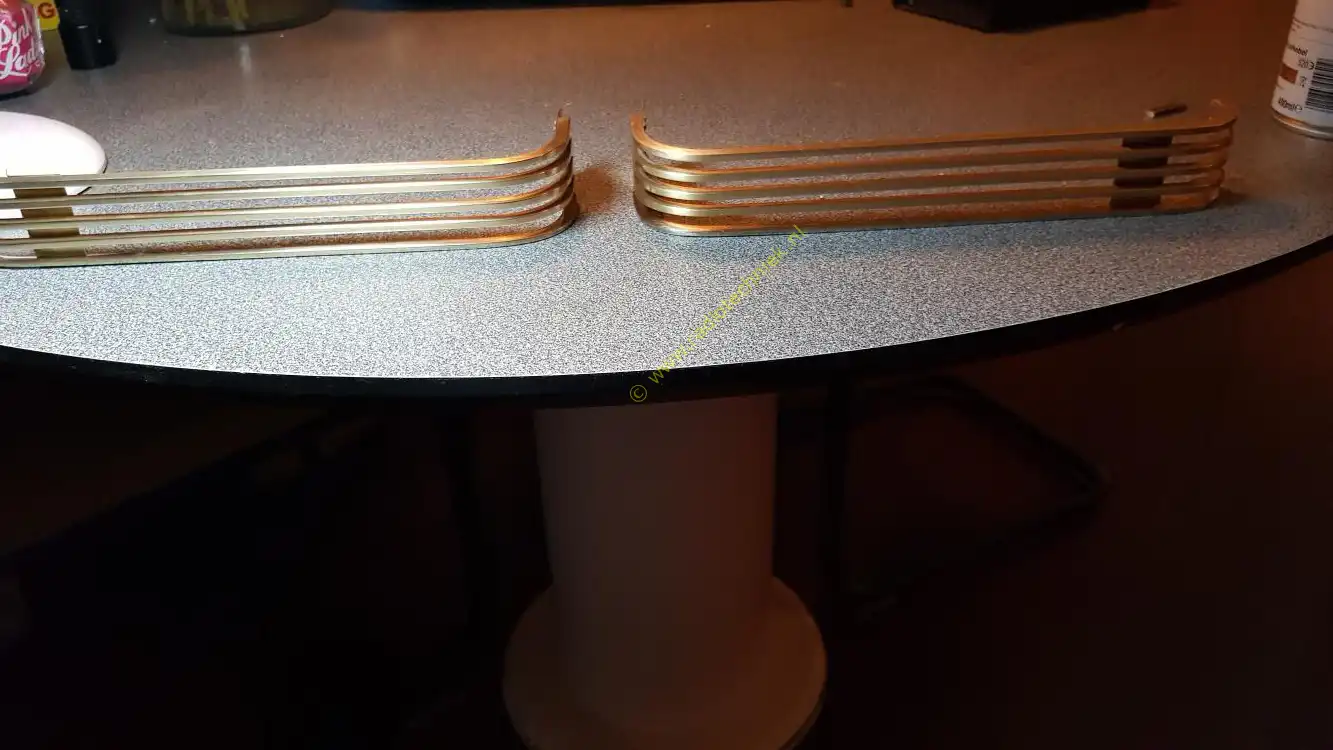

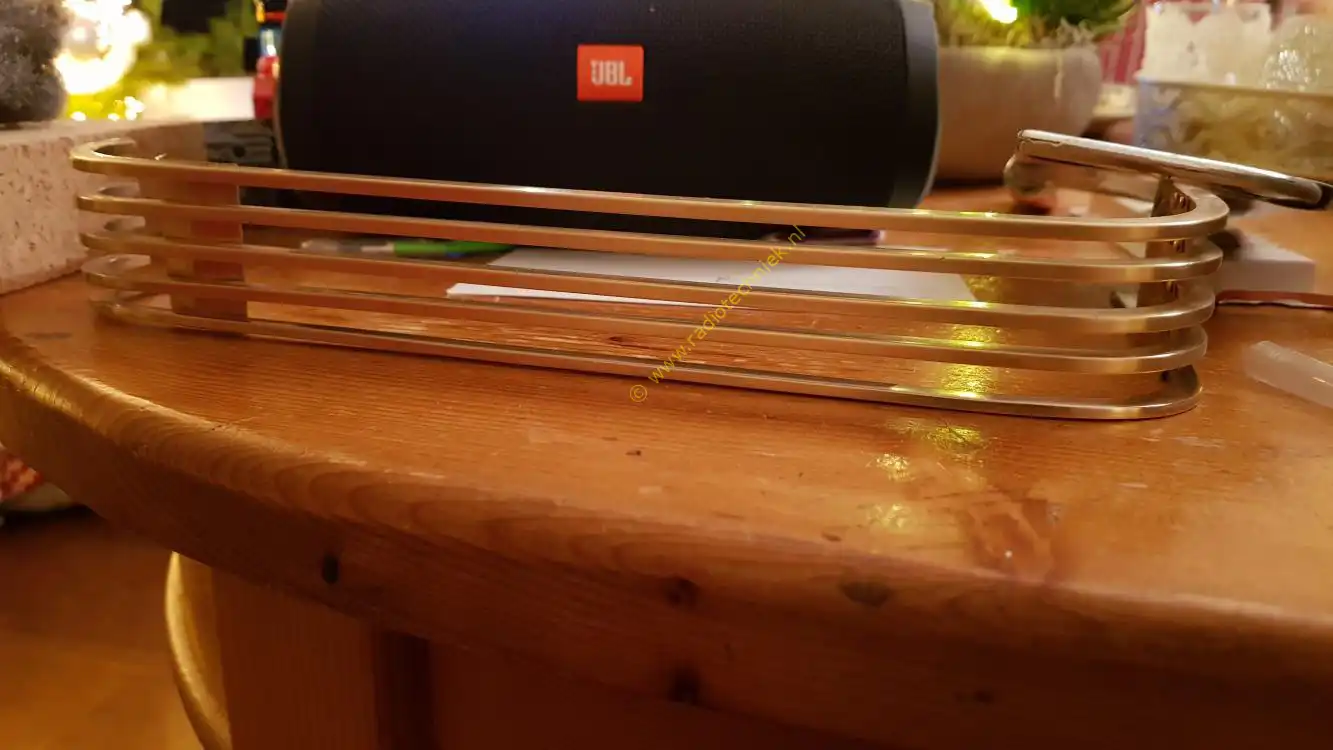

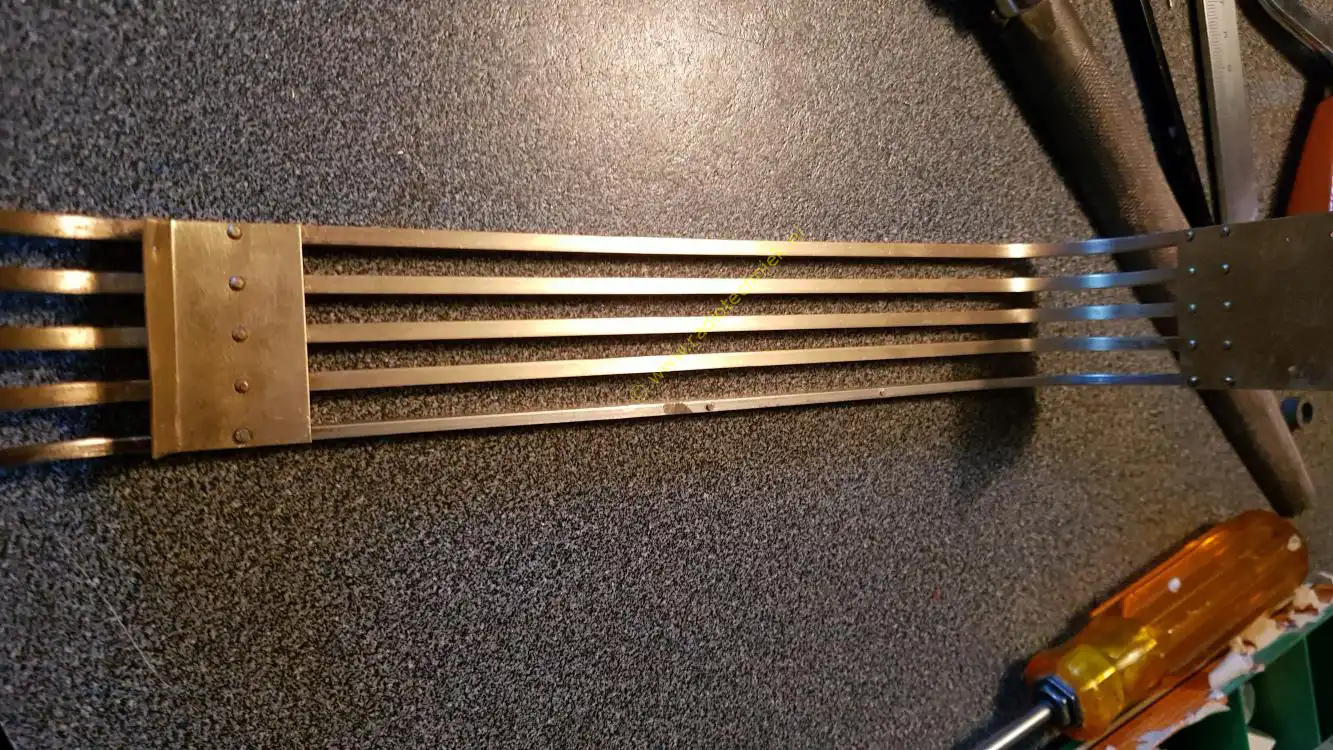

Both speaker grilles repaired.
Philips 850A foto 42

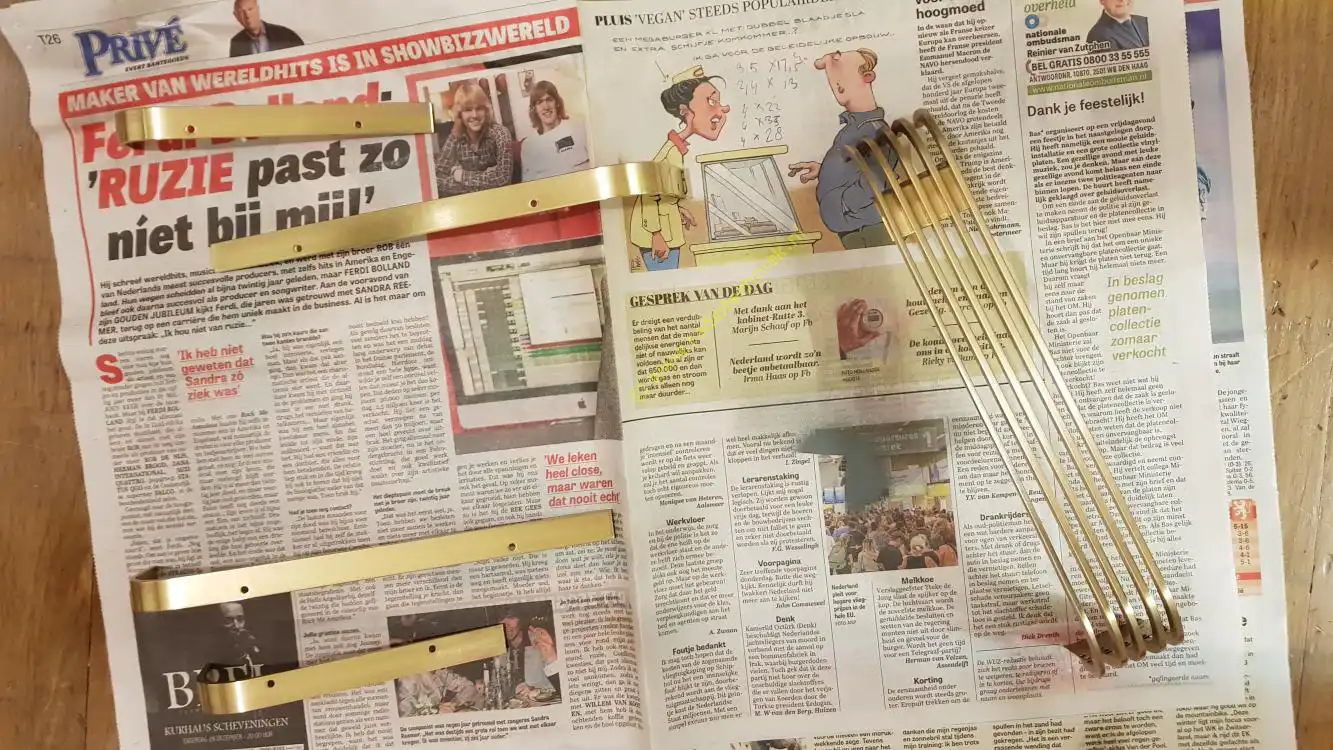

The copper work is ready to go back on the cabinet.
Philips 850A foto 43

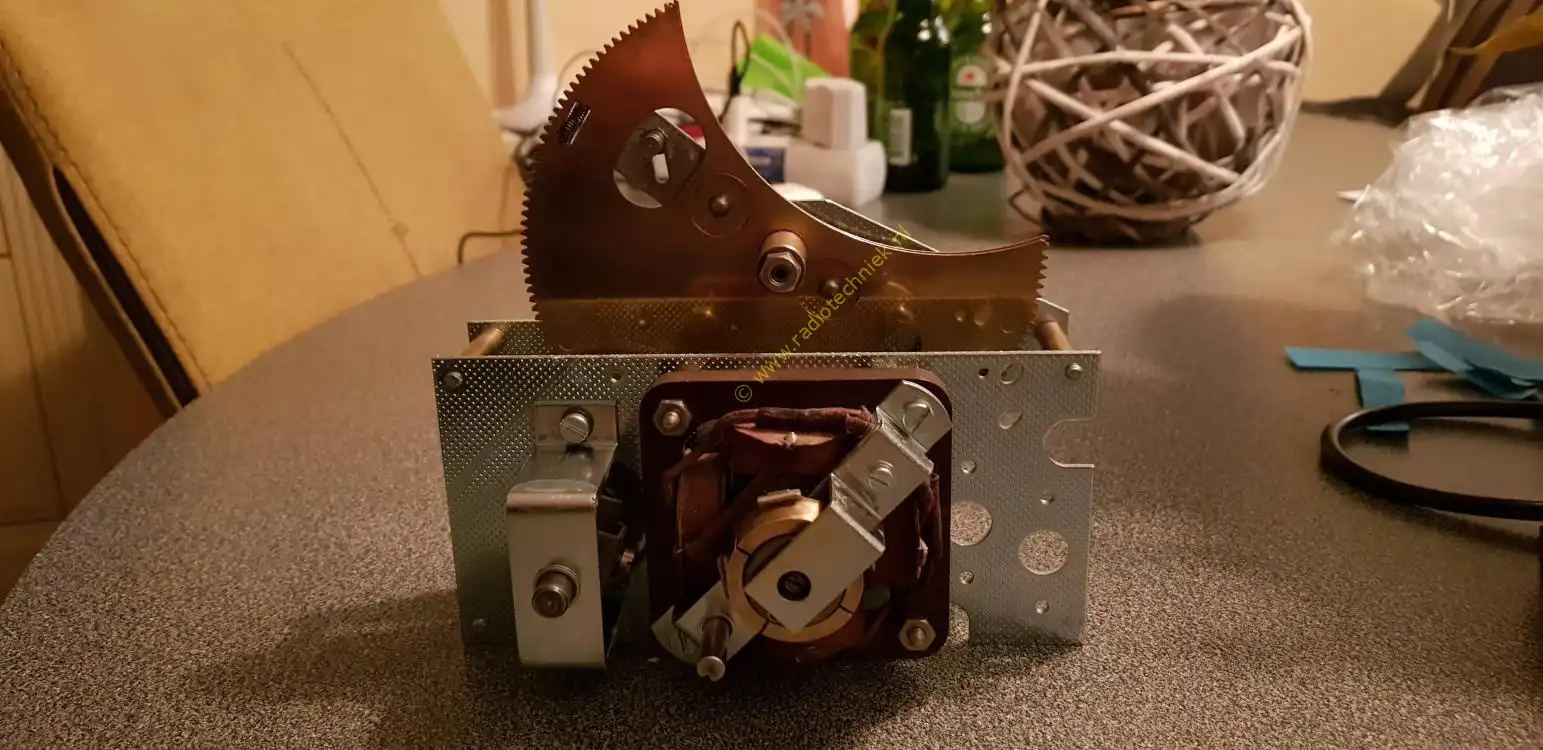

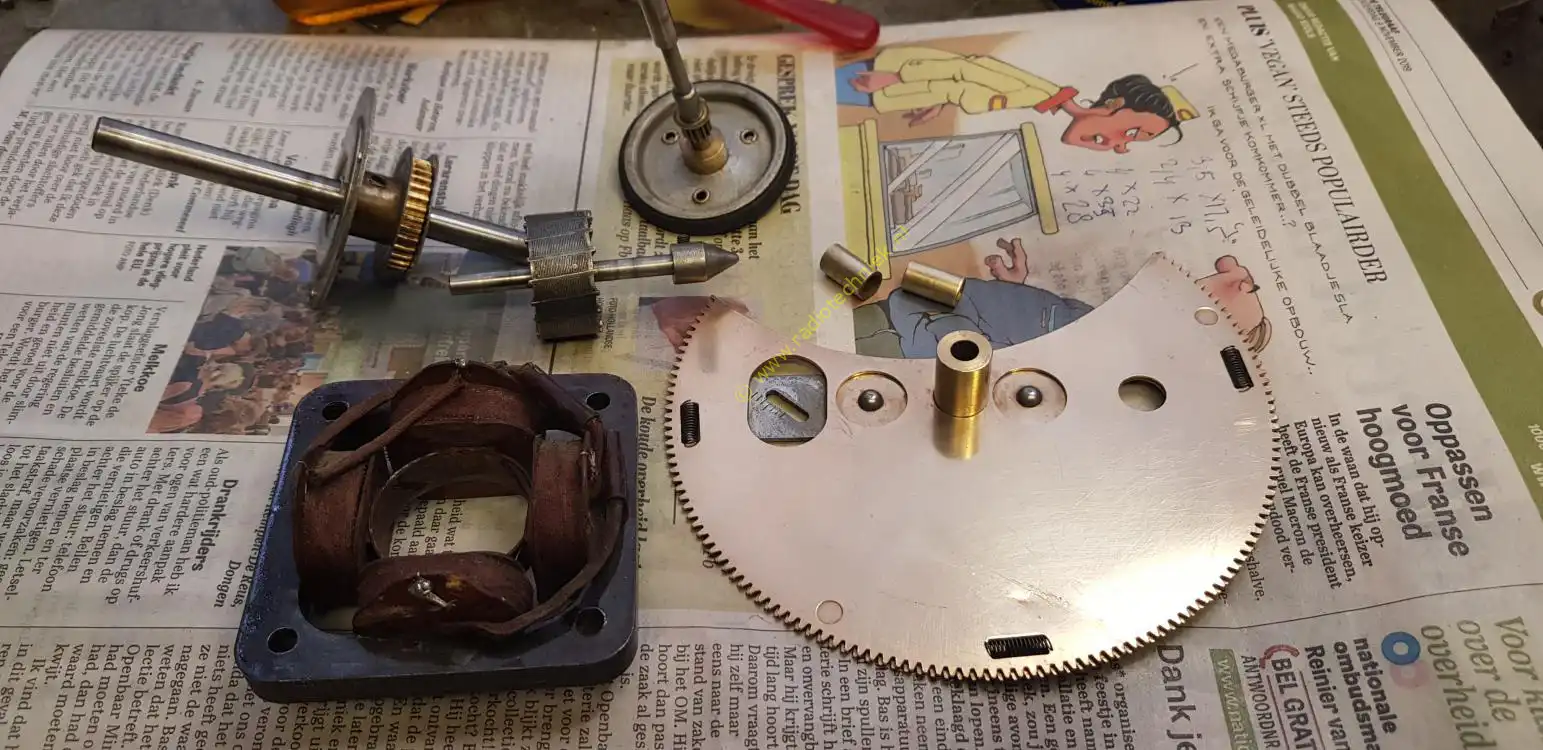

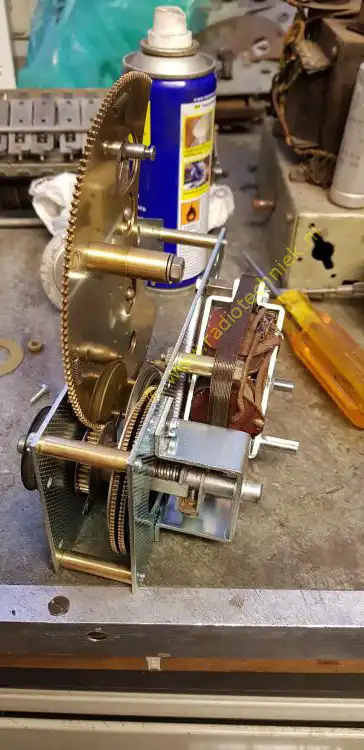

The parts of the engine tuning.
Philips 850A foto 44

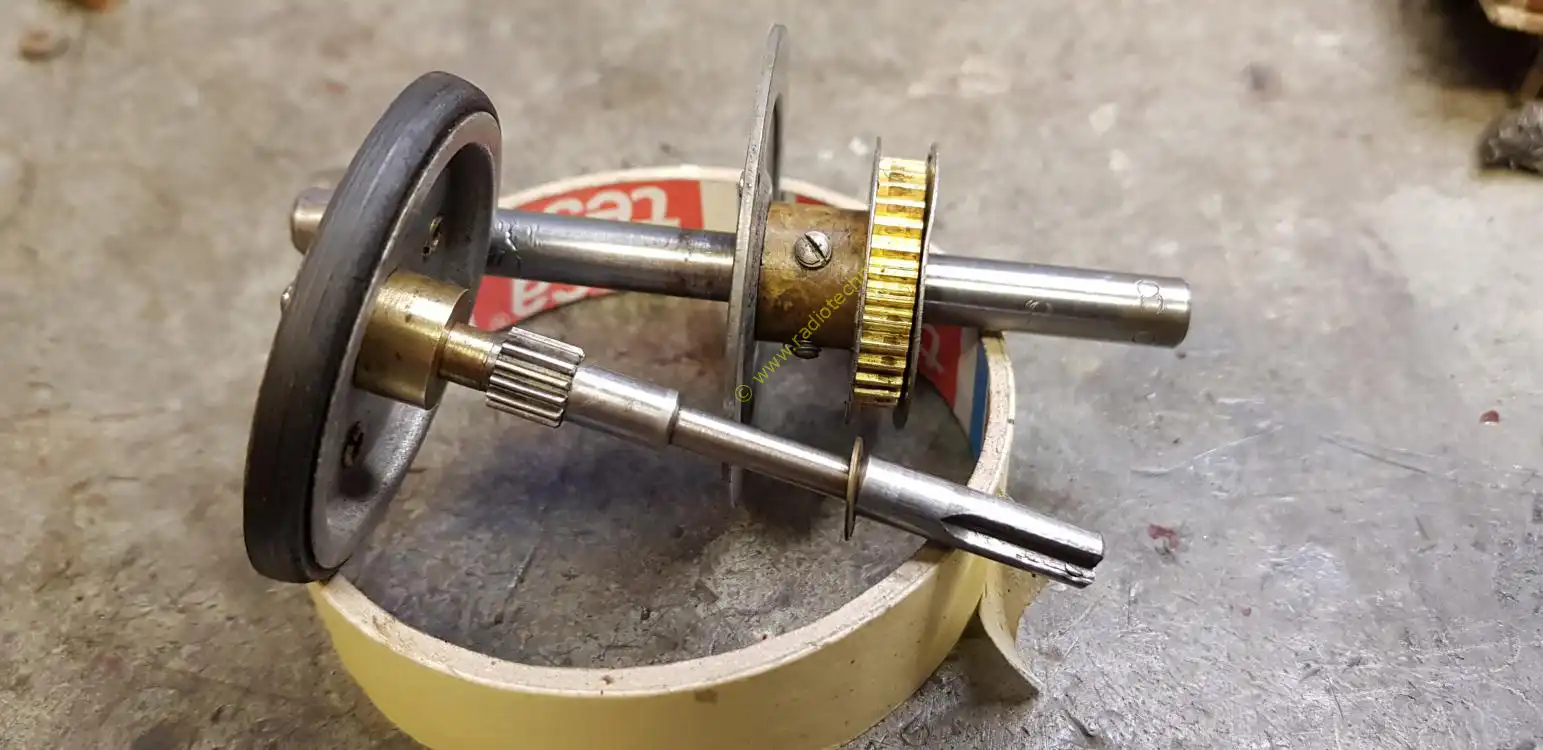

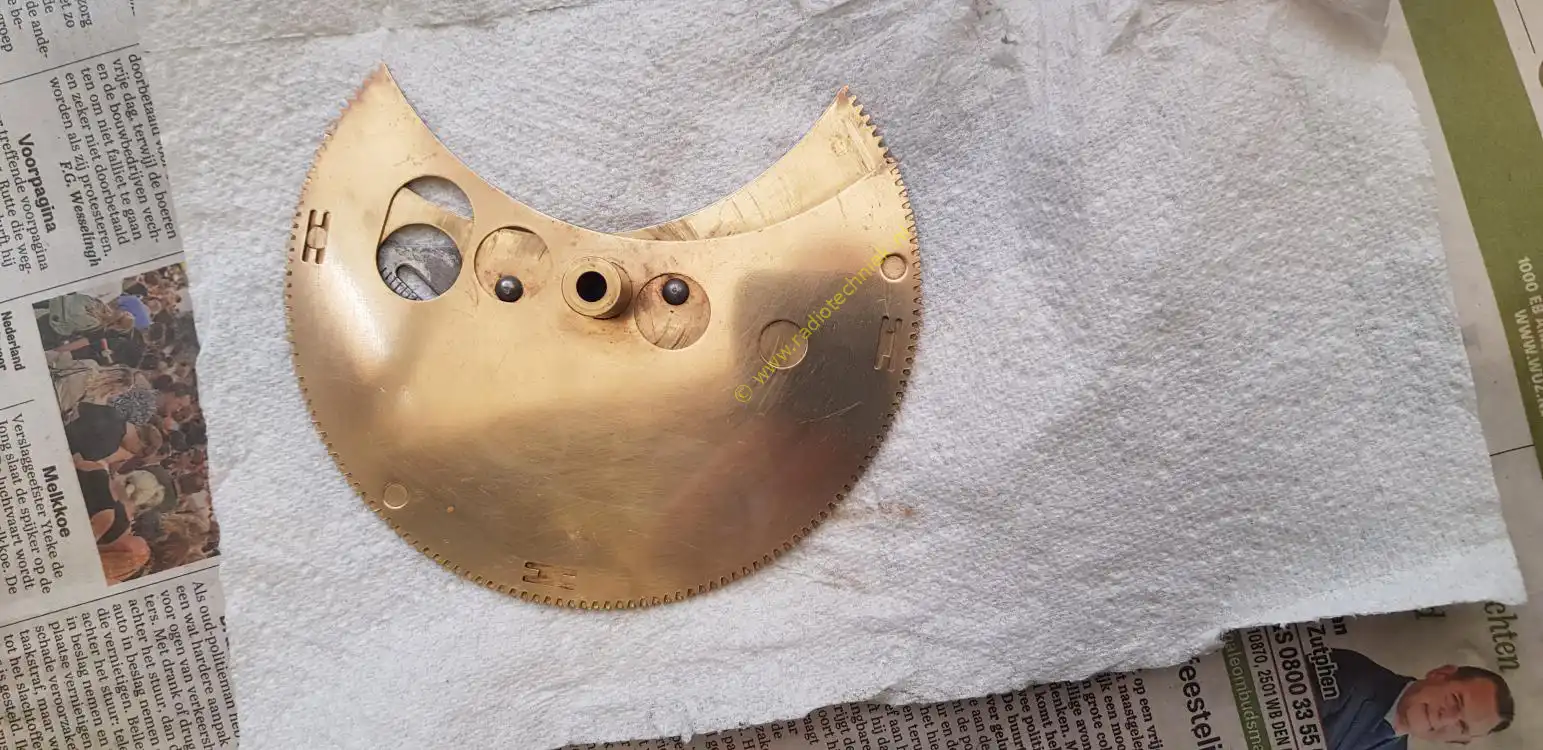

Tuning capacitor wheel.
Philips 850A foto 45
The parts cleaned and ready for assembly.

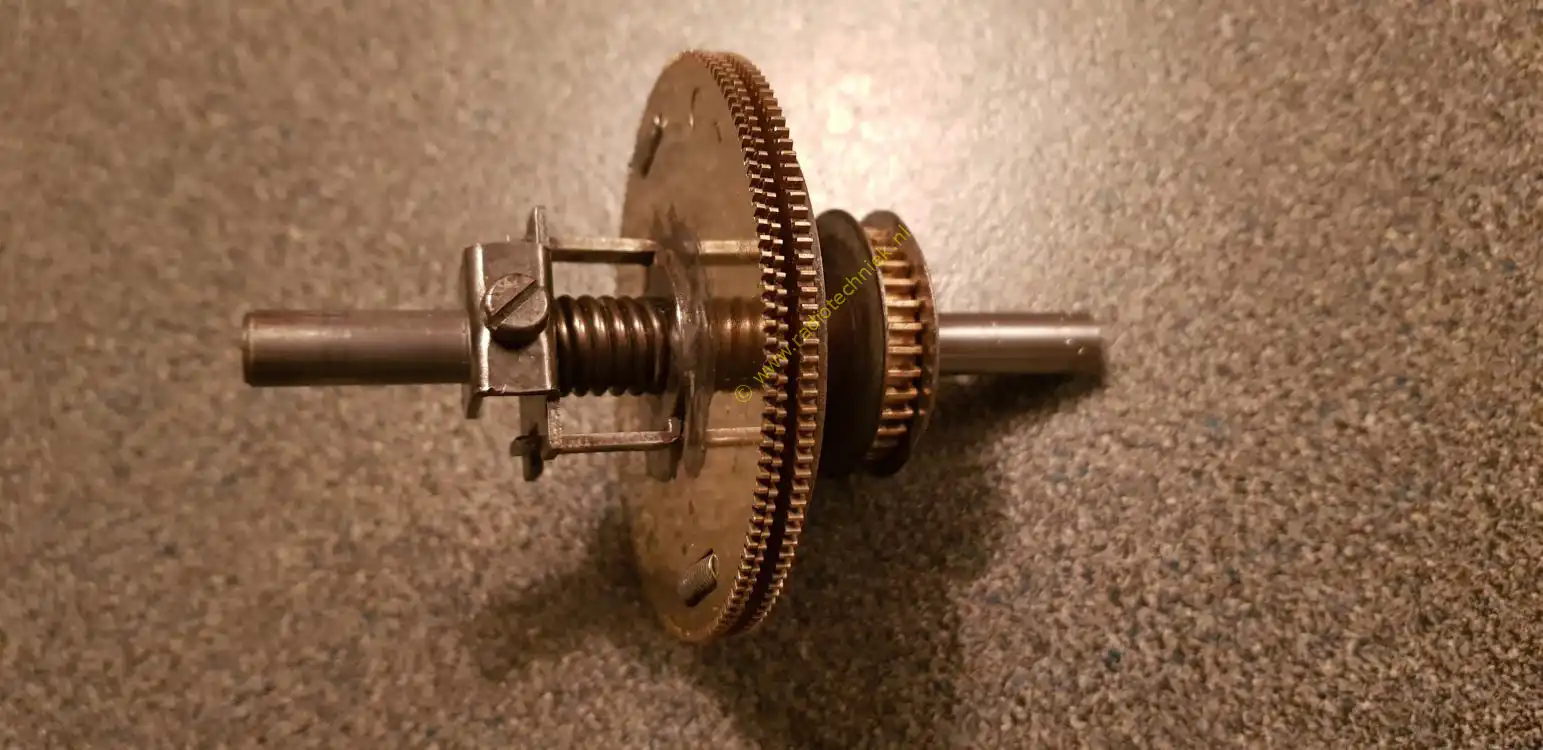

Philips 850A foto 46
The slip clutch is a whole again.
Philips 850A foto 47
Drive of the motor tuning.
Philips 850A foto 48
Fully assembled and completely new.
Philips 850A foto 49

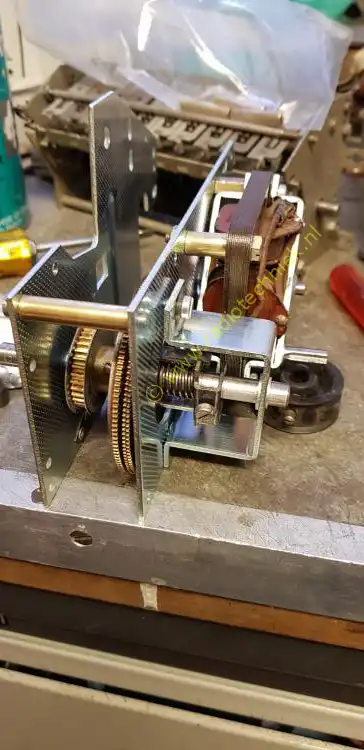

The engine up close. Everything about this piece of mechanics is back together.
Philips 850A foto 50

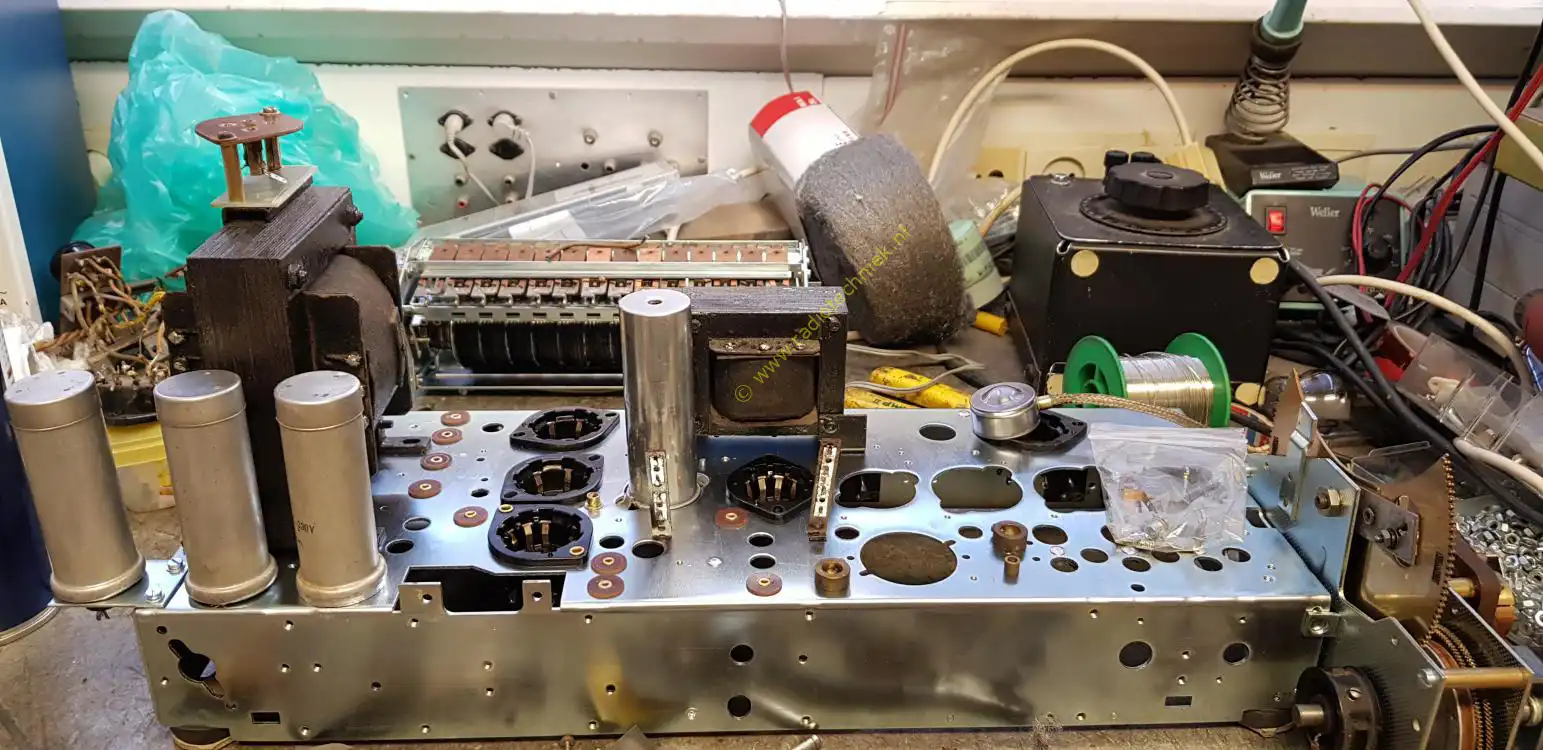

A new chassis from the production line. Also a new push button unit. And a new power transformer. And on the right the new motor drive. Beautiful, isn't that production of the year 1938.
Philips 850A foto 51

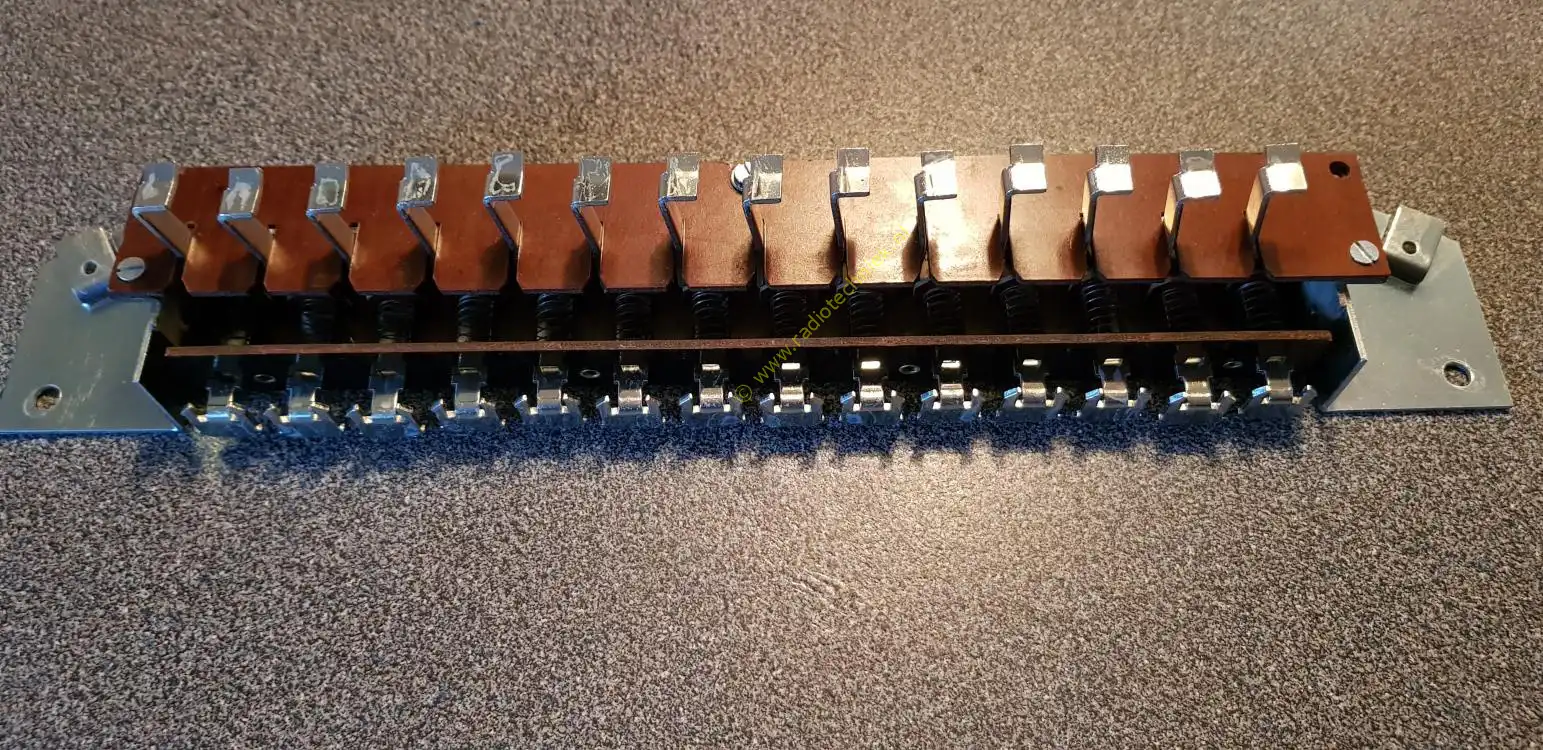

The buttons unit from the keyboard.

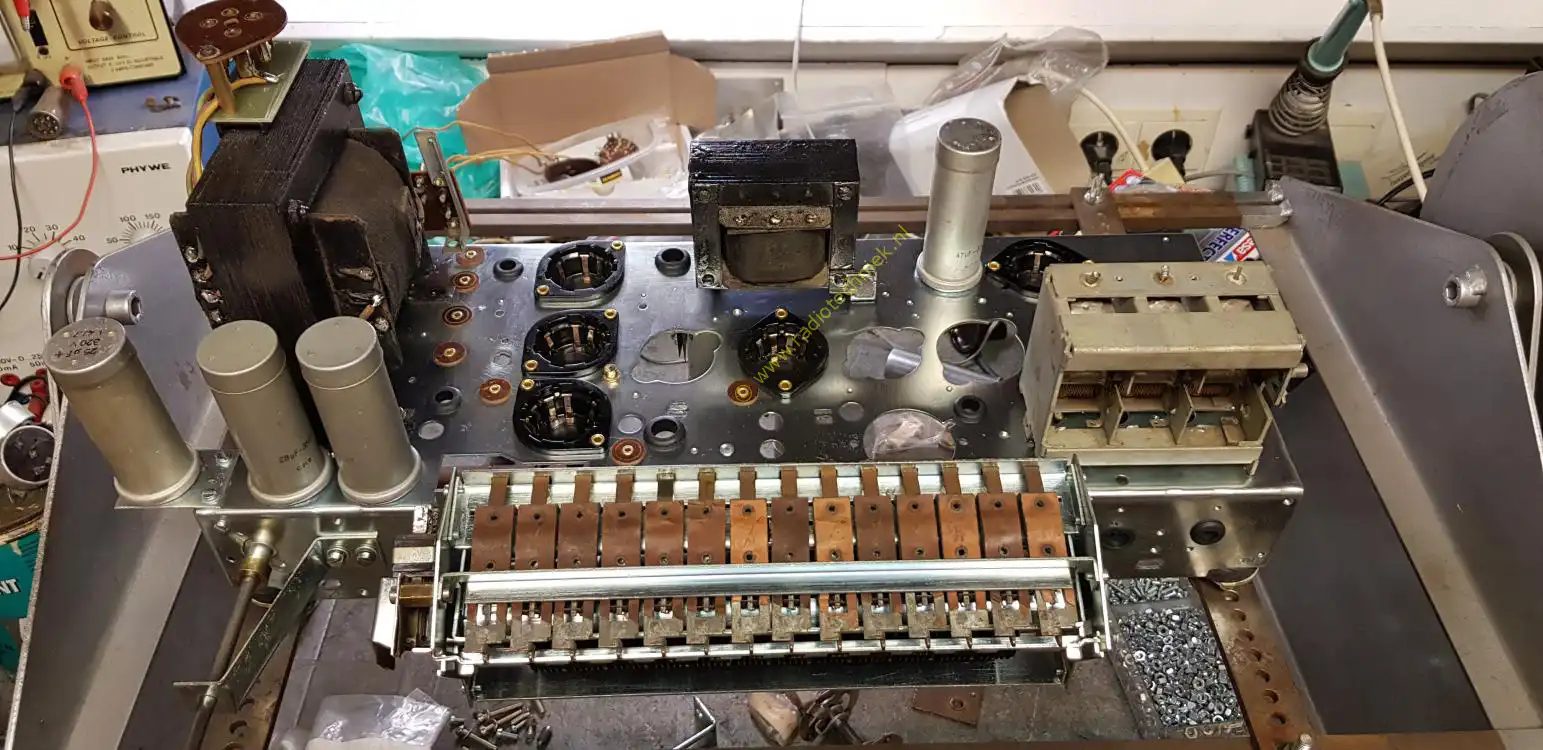

Philips 850A foto 52

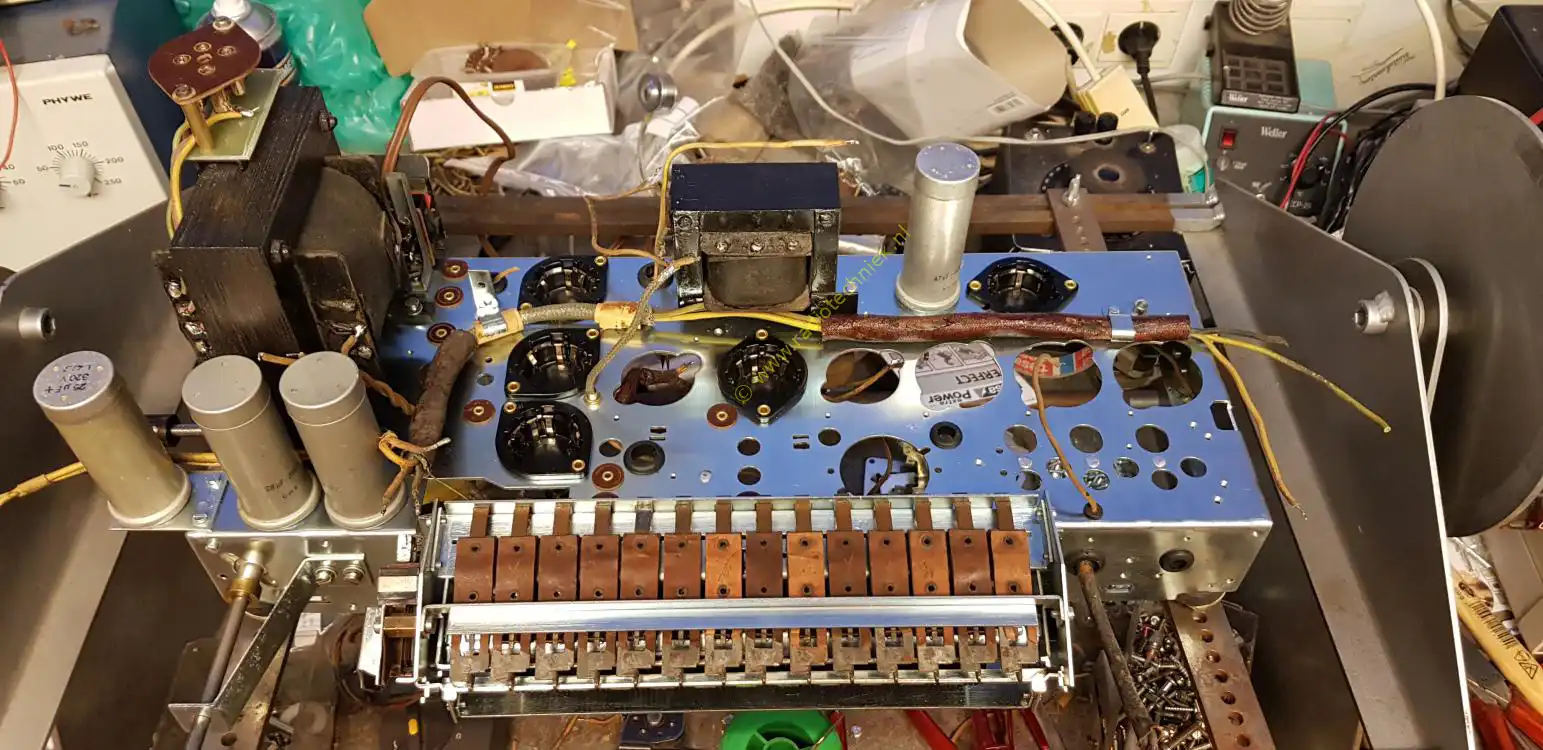

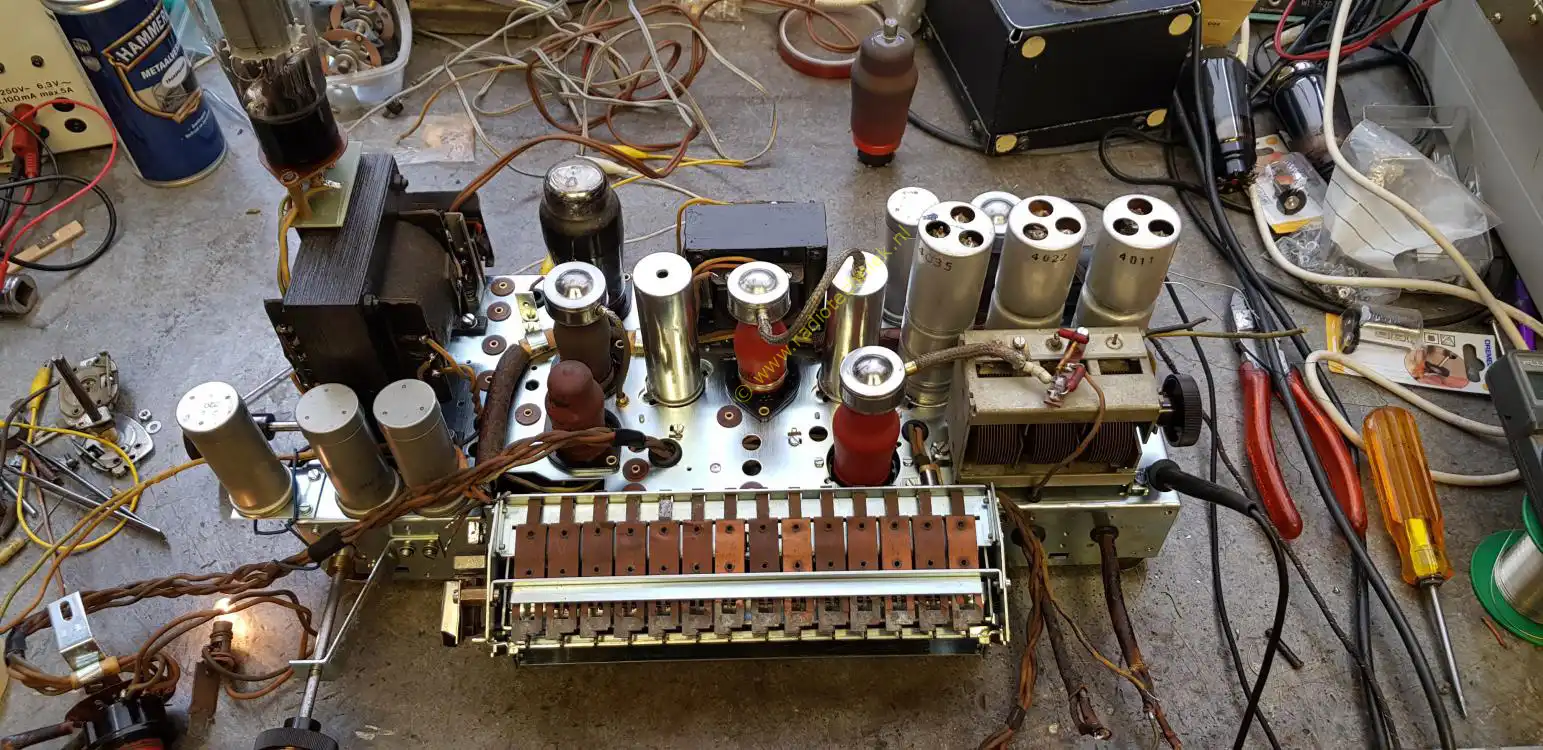

New components placed loosely on the chassis.
Philips 850A foto 53

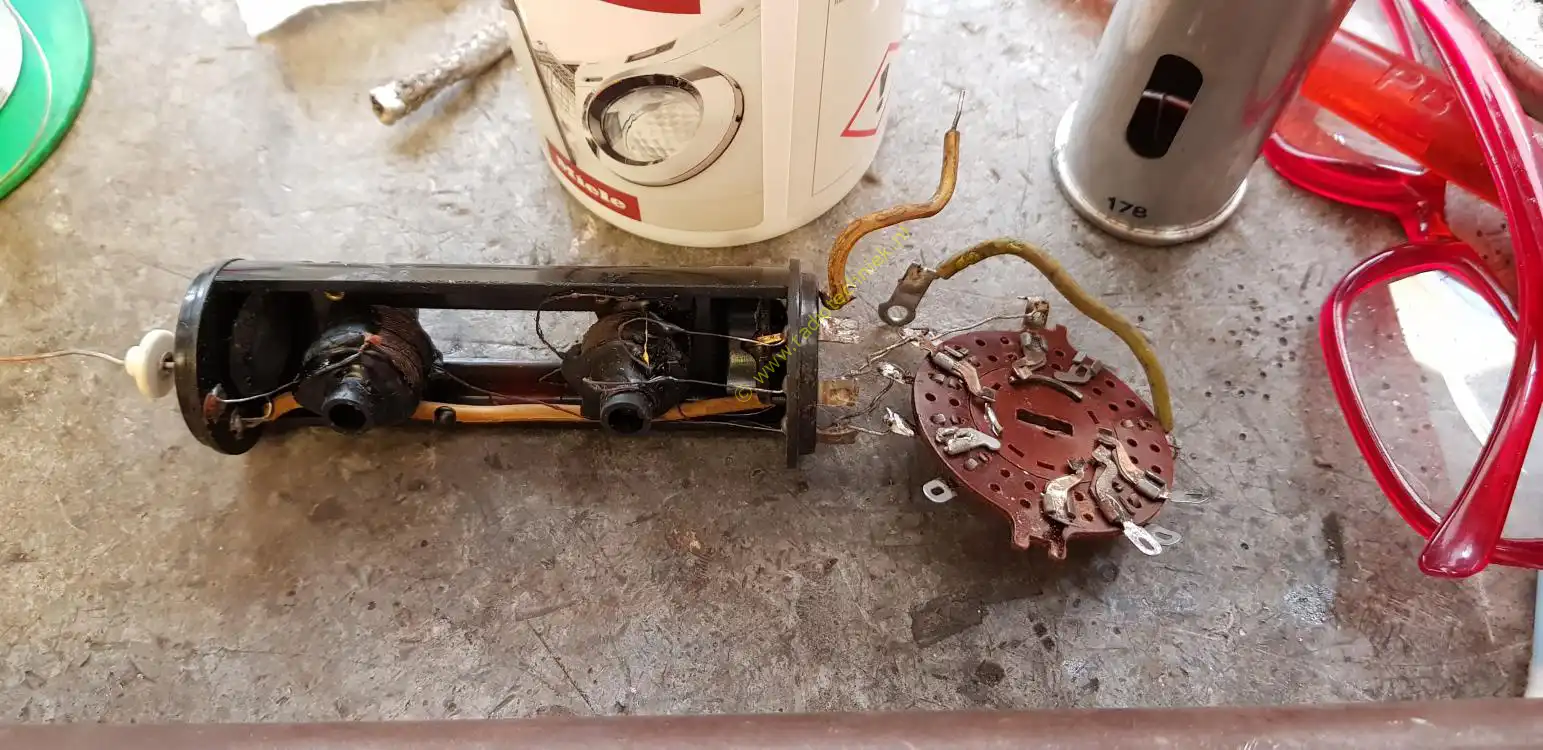

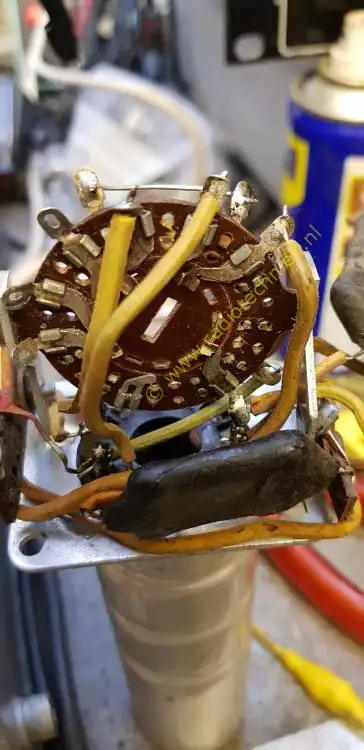

Restoration of intermediate frequency band filters.

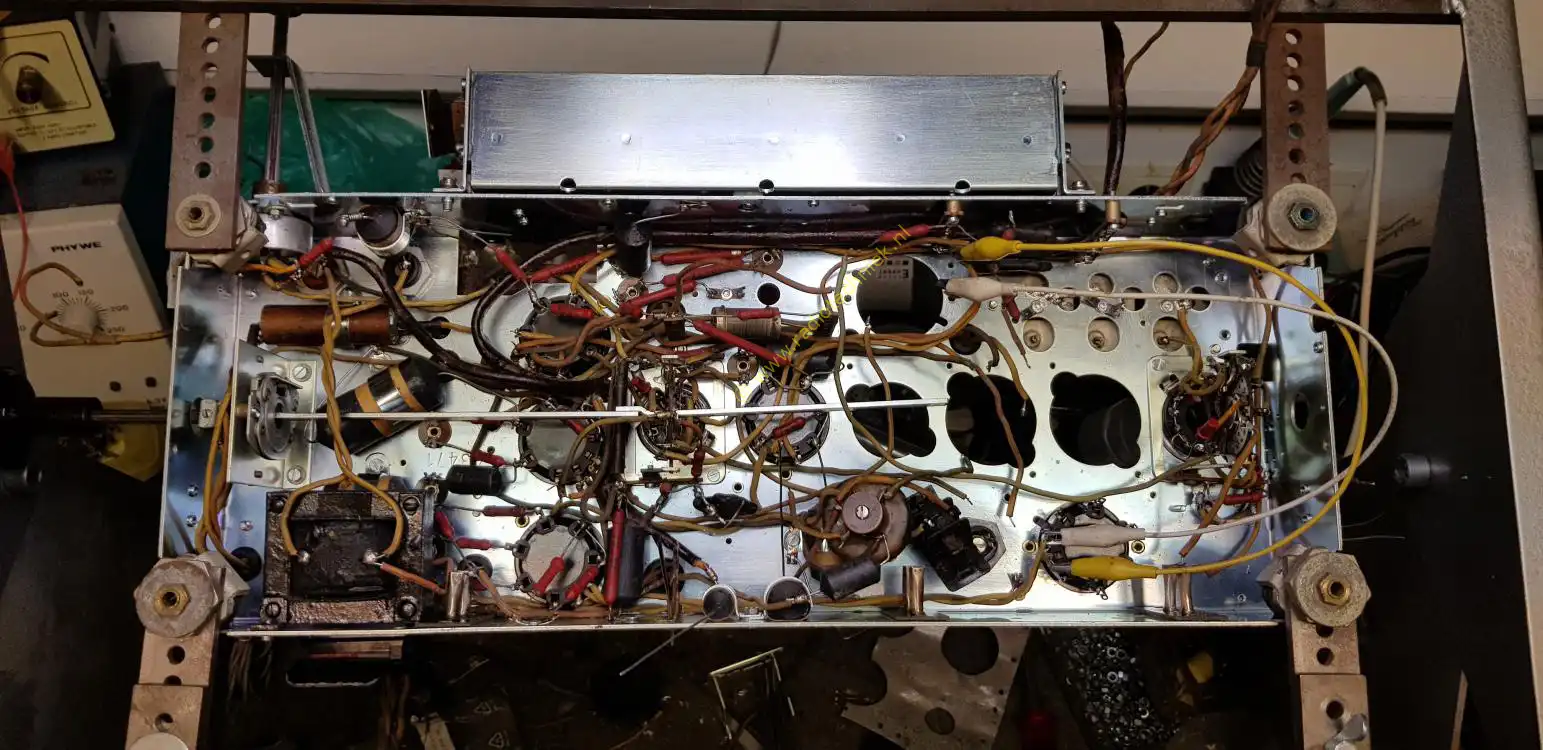

Philips 850A foto 54
The chassis with the new components.
Philips 850A foto 55
Everything that needed to be riveted to the chassis has been done.
Philips 850A foto 56
The construction of the electronics can begin.
Philips 850A foto 57

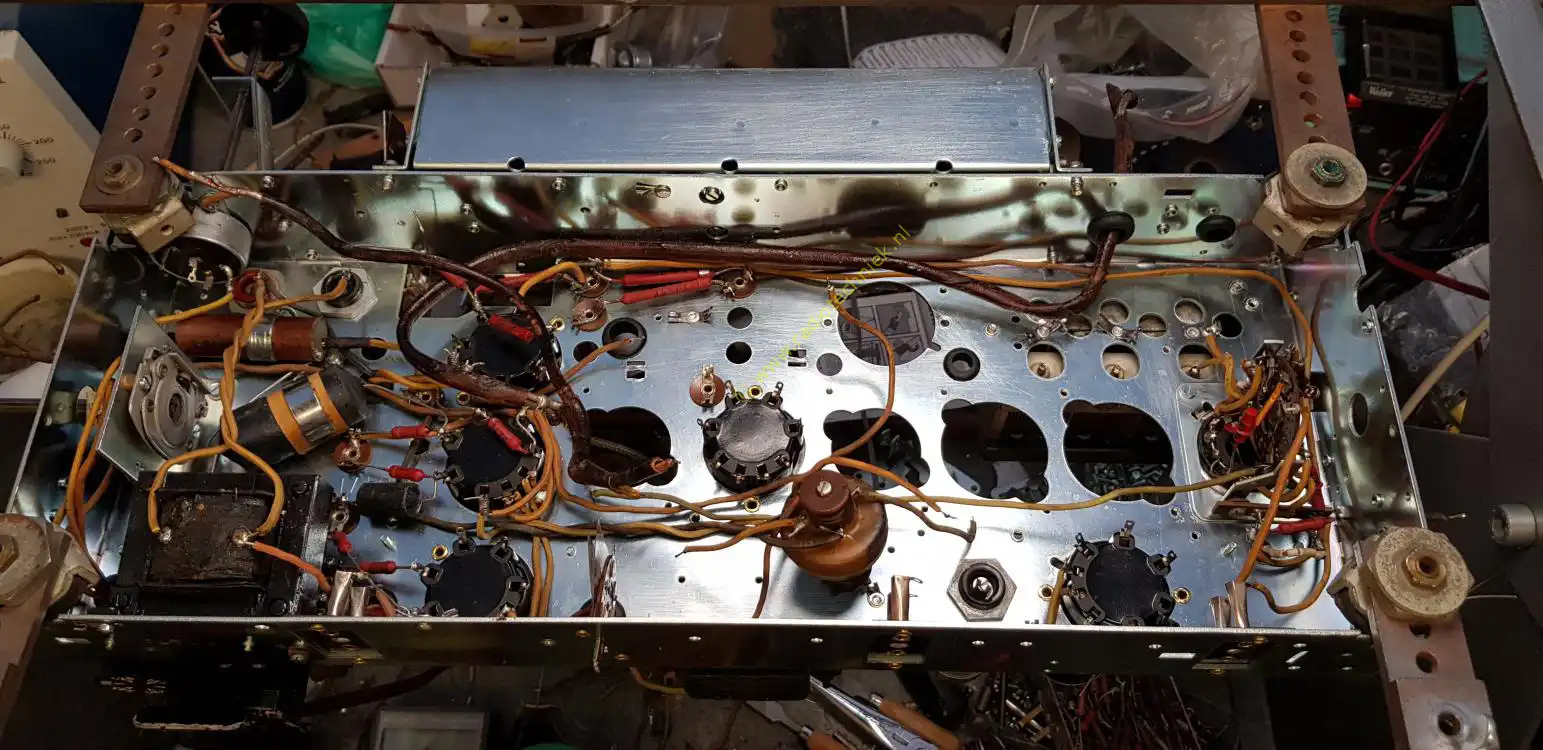

We use original wire for the wiring.
Philips 850A foto 58

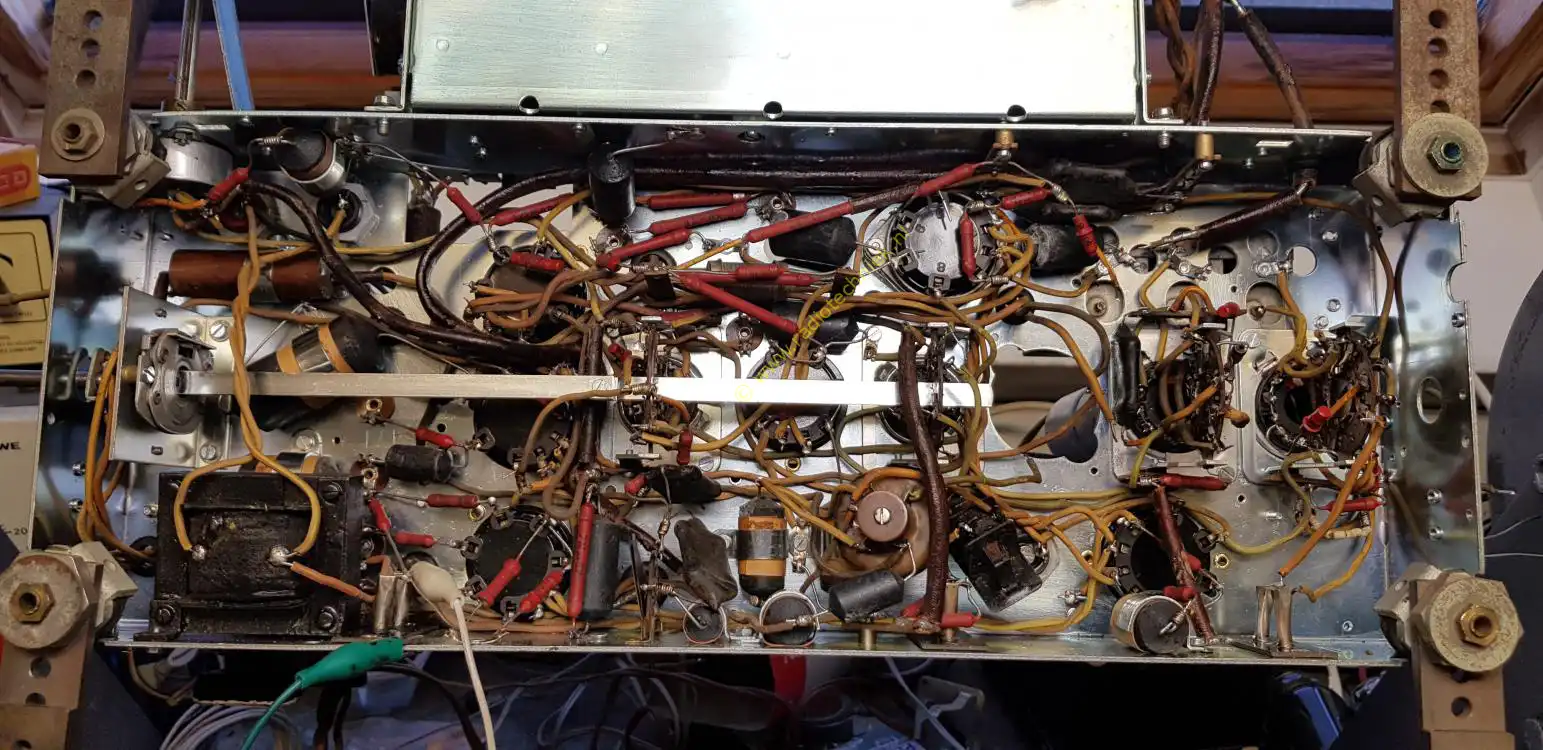

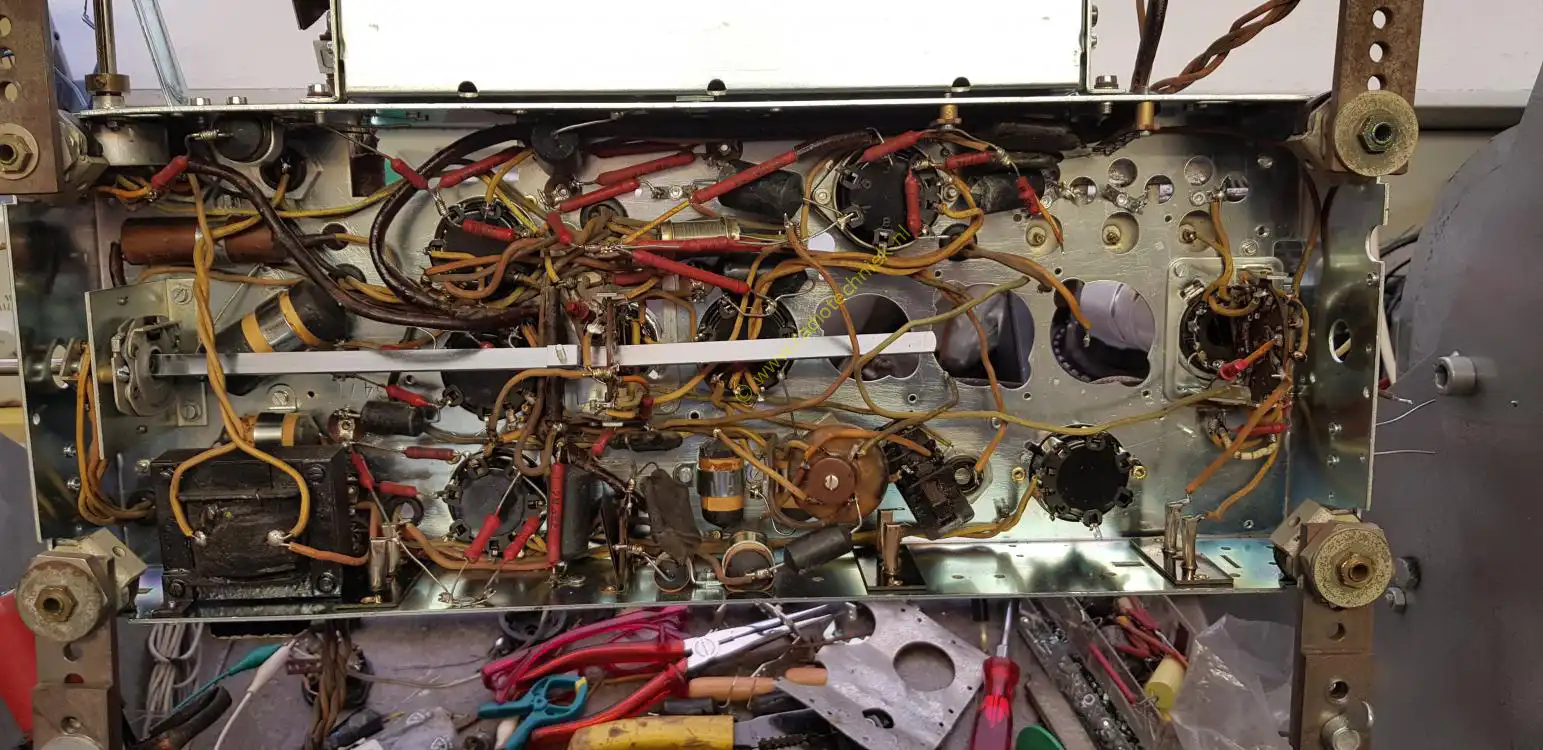

Wiring the chassis.
Philips 850A foto 59

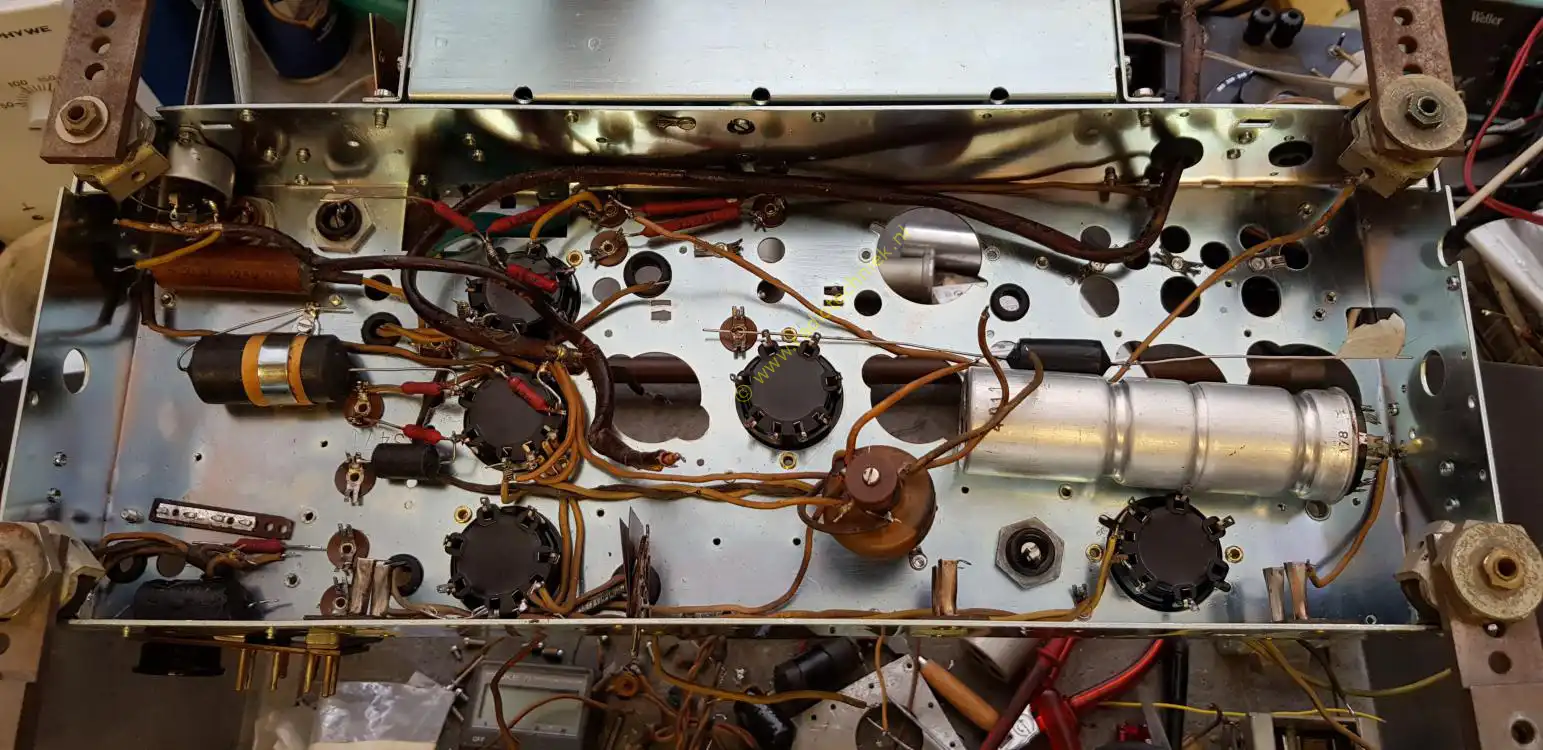

It must also be wired at the top of the chassis.
Philips 850A foto 60
Of course we use new tar capacitors.
Philips 850A foto 61
The wiring is mounted on the chassis again.
Philips 850A foto 62

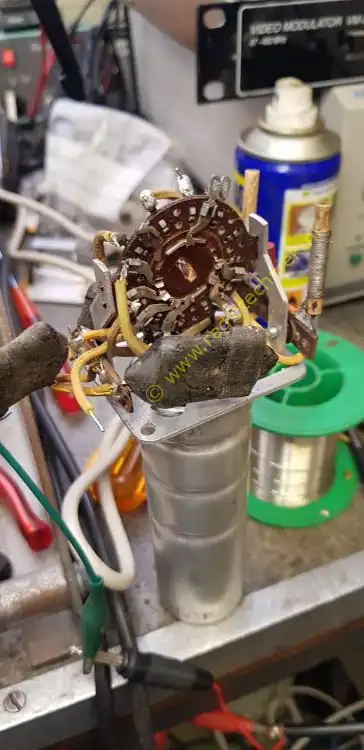

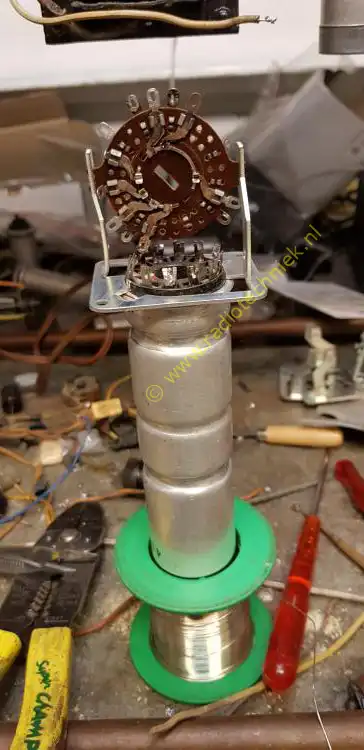

Building the subframe with a high-frequency receiver coil and band switch.
Philips 850A foto 63

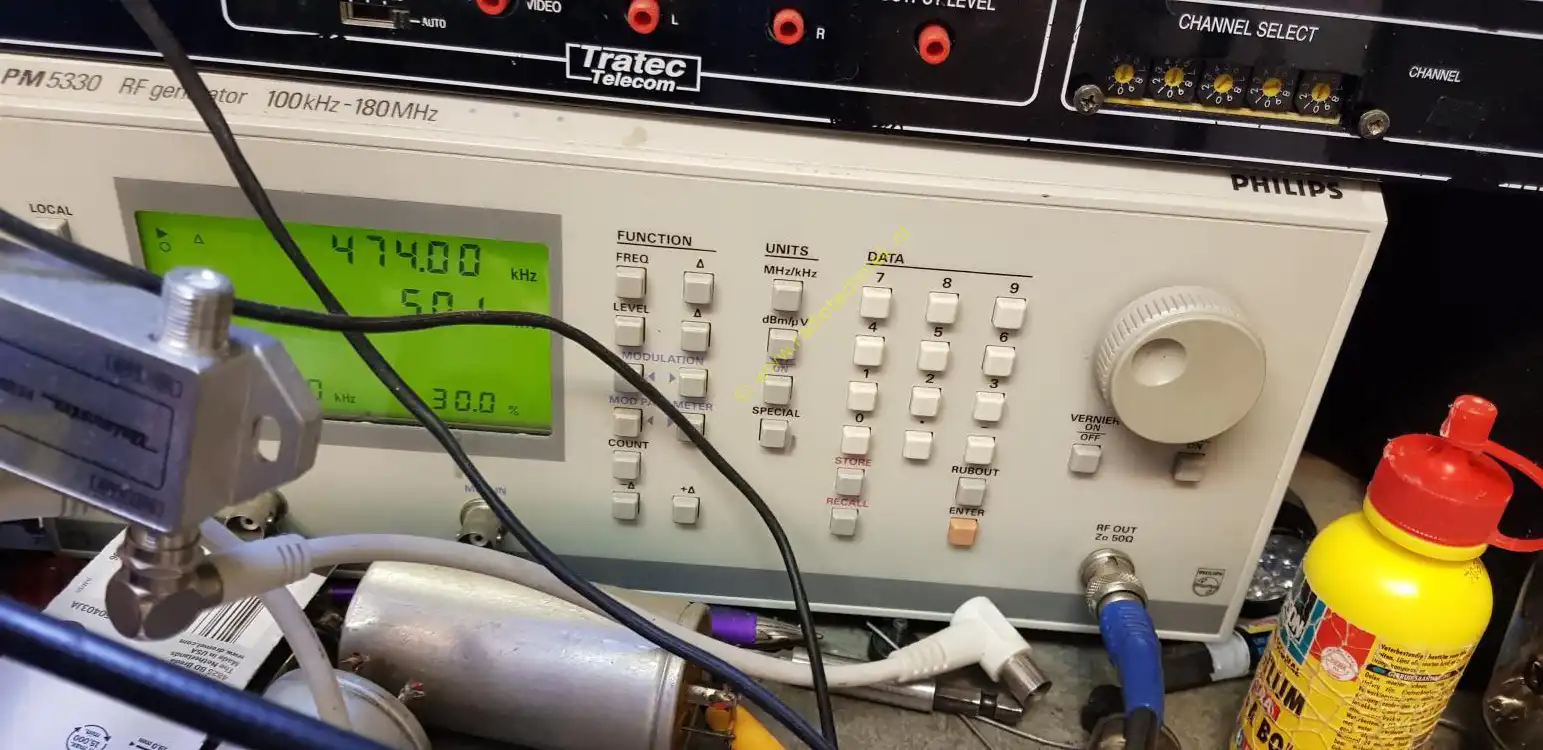

A separate test of a high-frequency circuit.
Philips 850A foto 64
Here is the loose setup.
Philips 850A foto 65
The tuning capacitor and the first high-frequency circuit are fixed on the chassis.
Philips 850A foto 66
The construction of the low-frequency part.
Philips 850A foto 67
The second IF circuit mounted on the chassis.
Philips 850A foto 68
The rebuild continues slowly.
Philips 850A foto 69

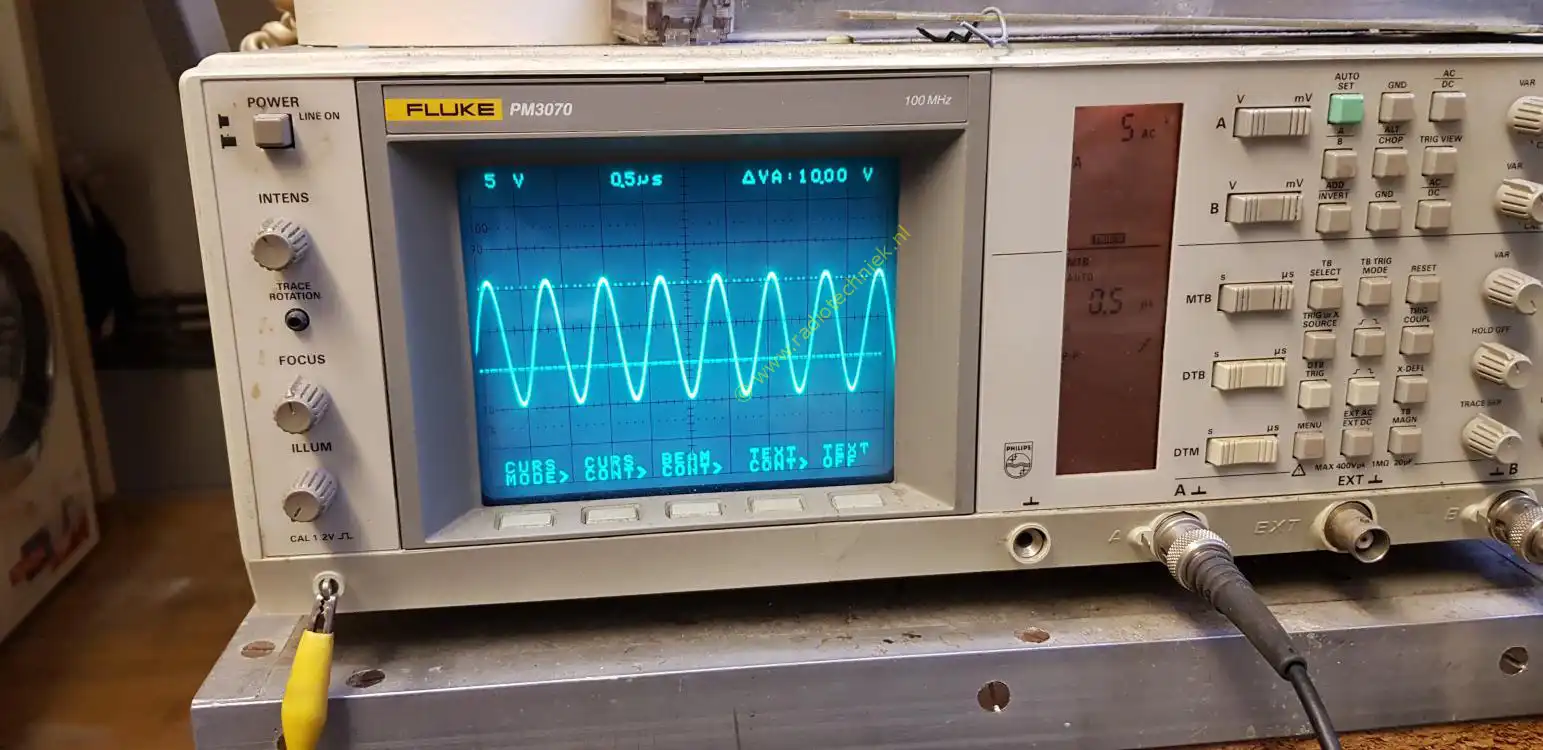

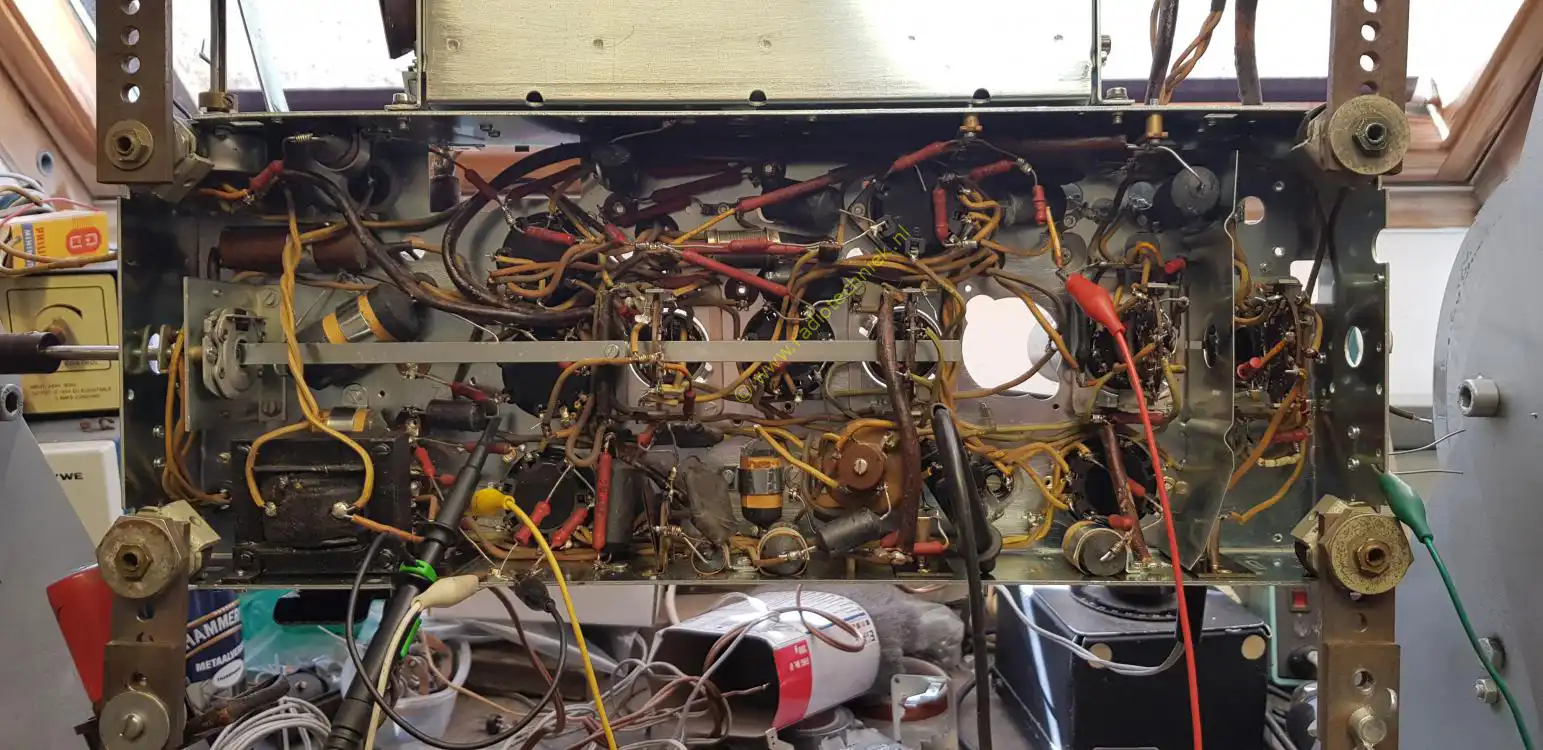

Intermediate frequency circuit detector test.
Philips 850A foto 70

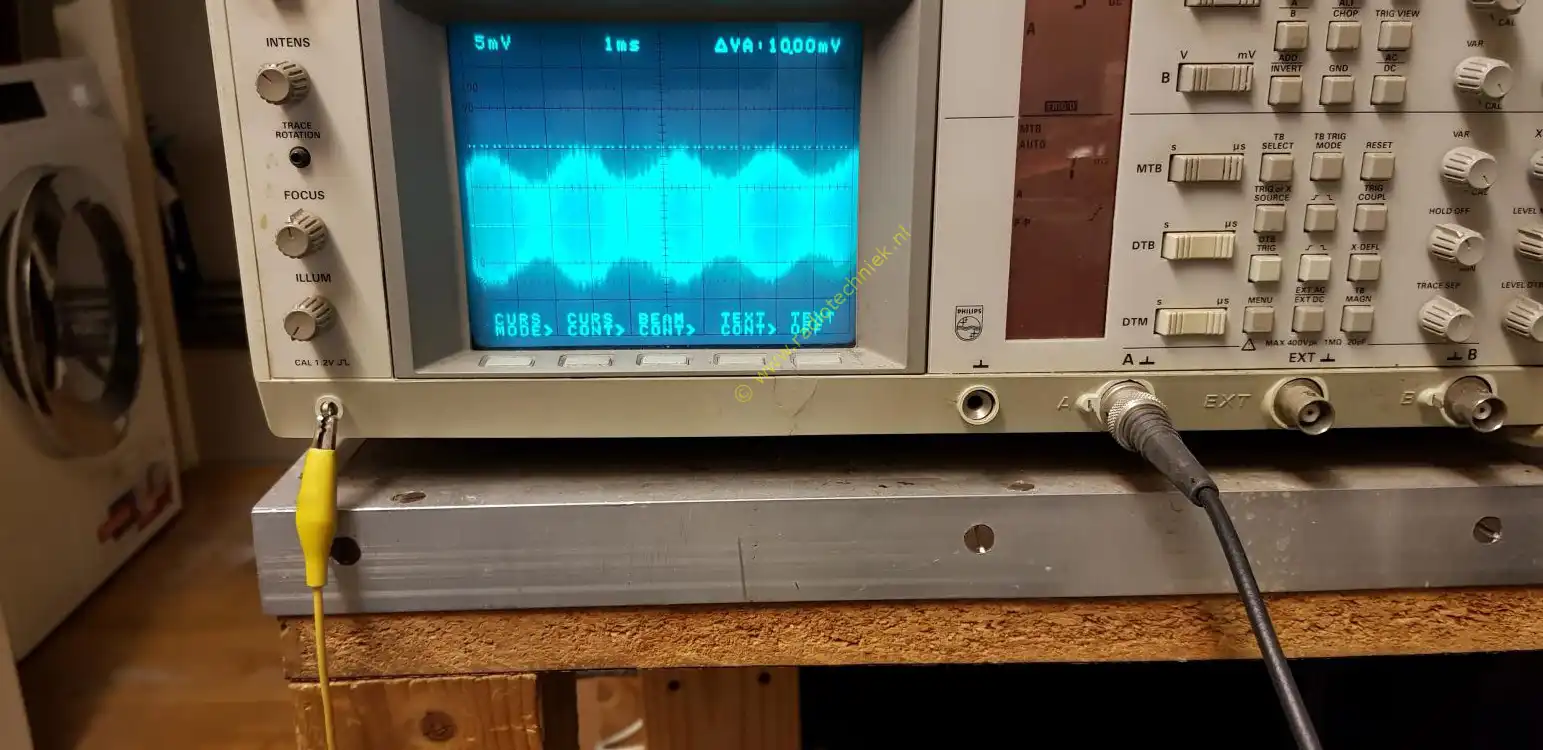

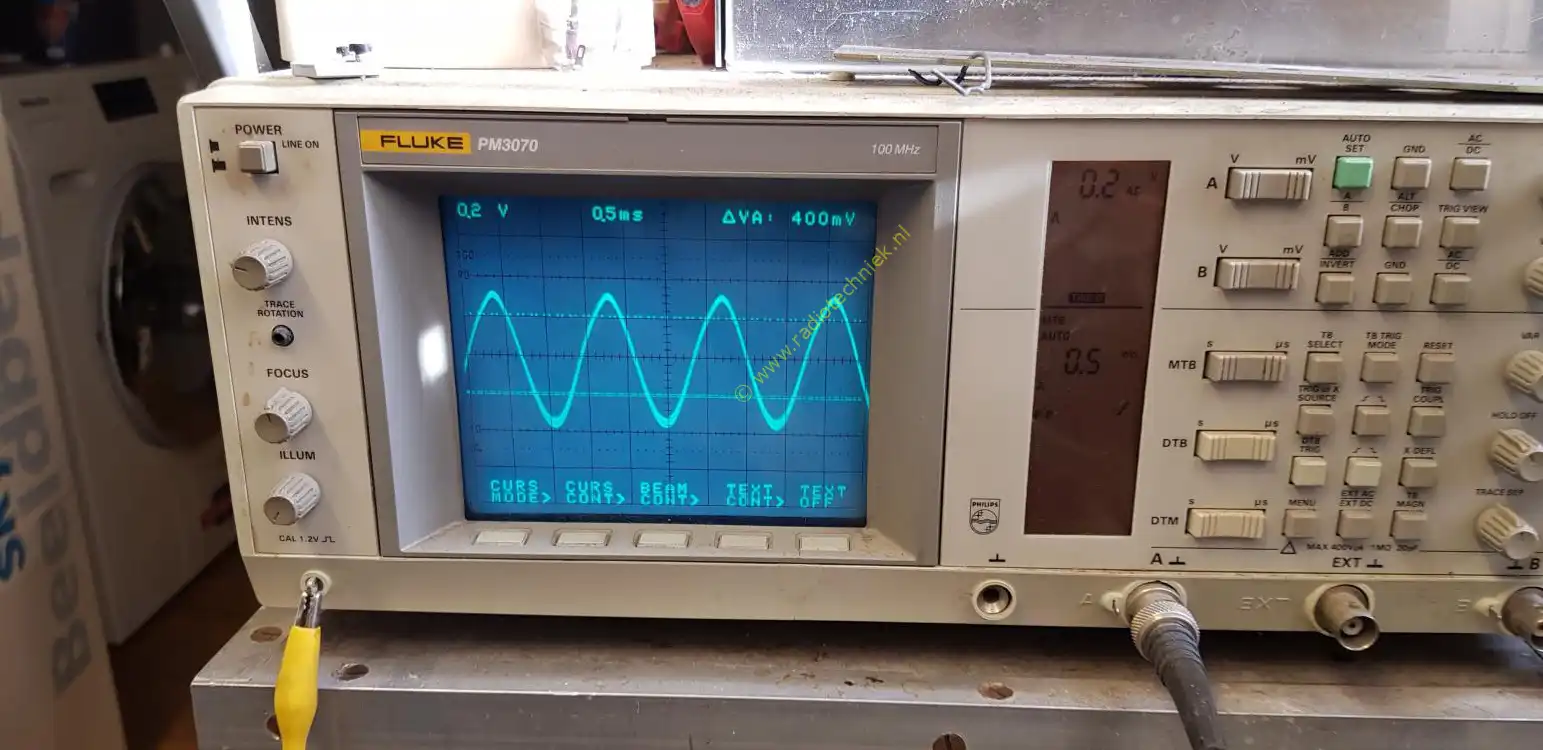

Measured at the output of the detector. Input is first grille IF tube.
Philips 850A foto 71
Installed the first bandwidth switch and mechanical part.
Philips 850A foto 72

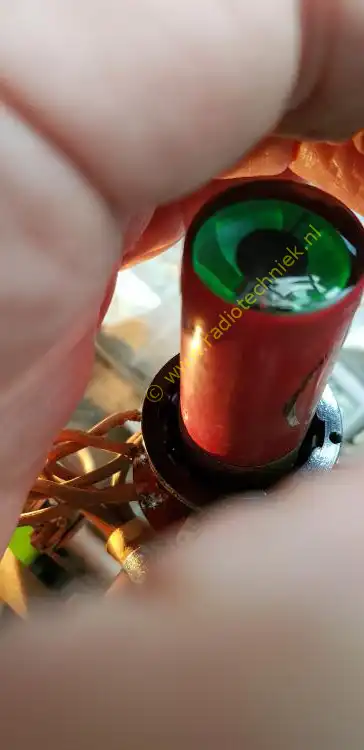

Tuning indicator EM1 installed and tested.
Philips 850A foto 73
Low-frequency part done.
Philips 850A foto 74

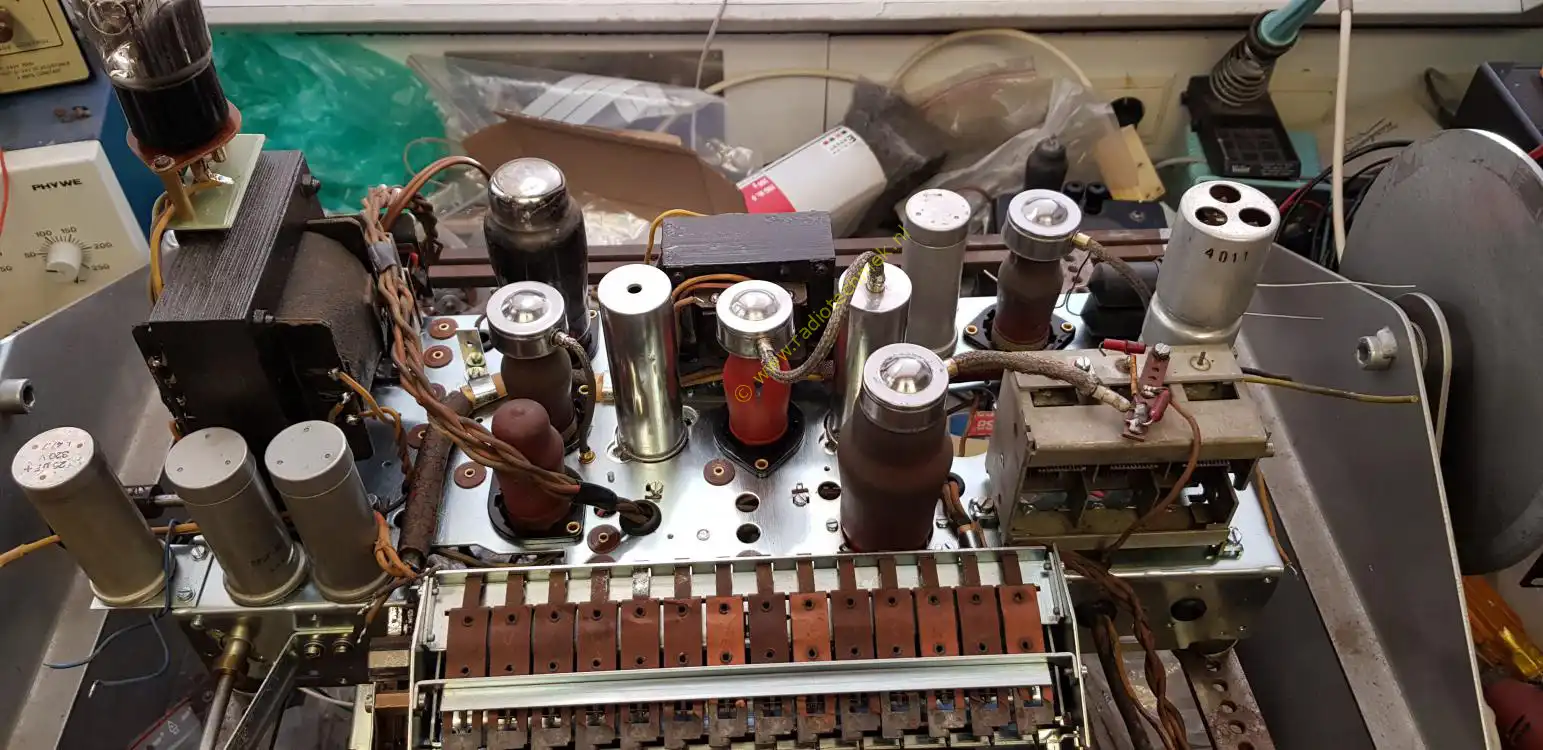

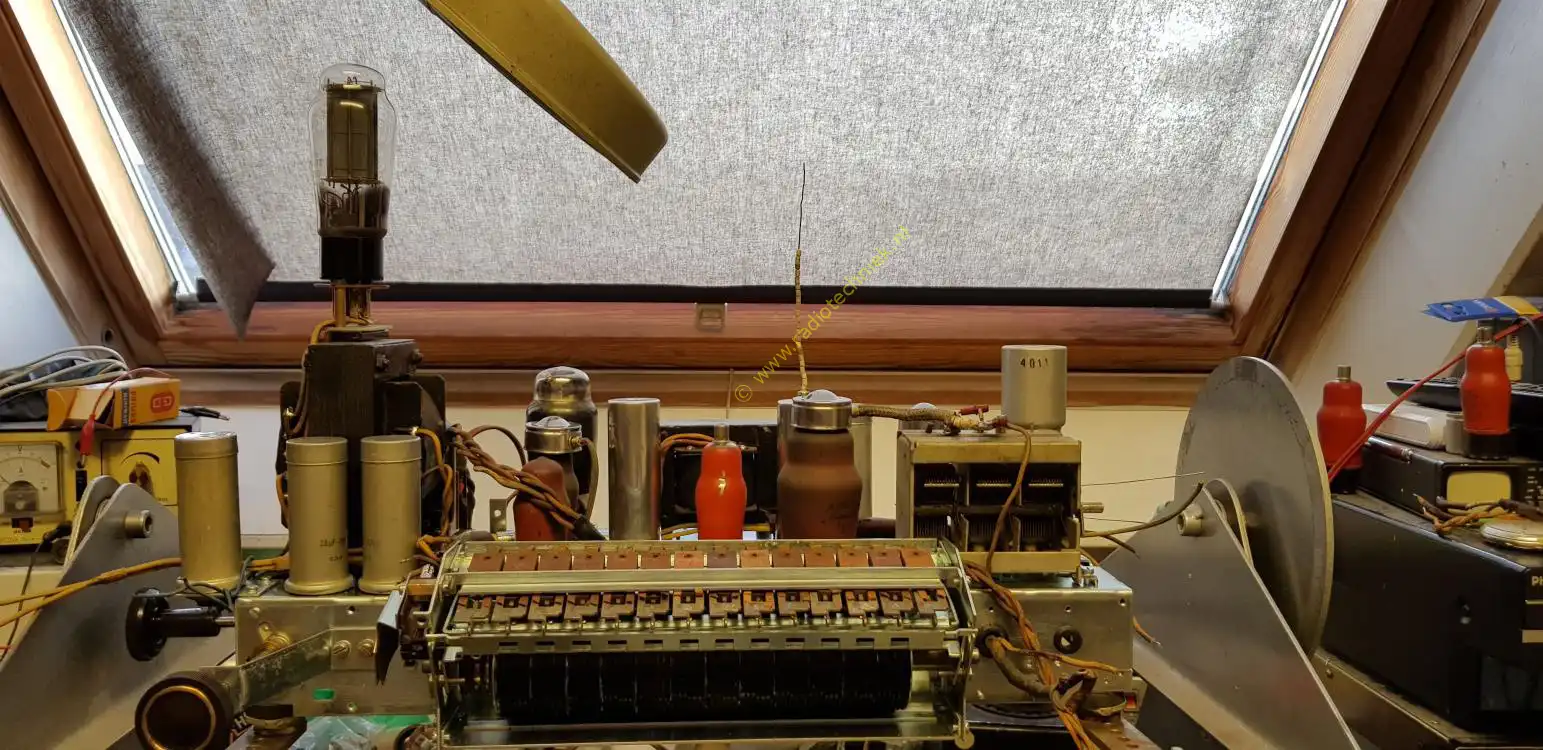

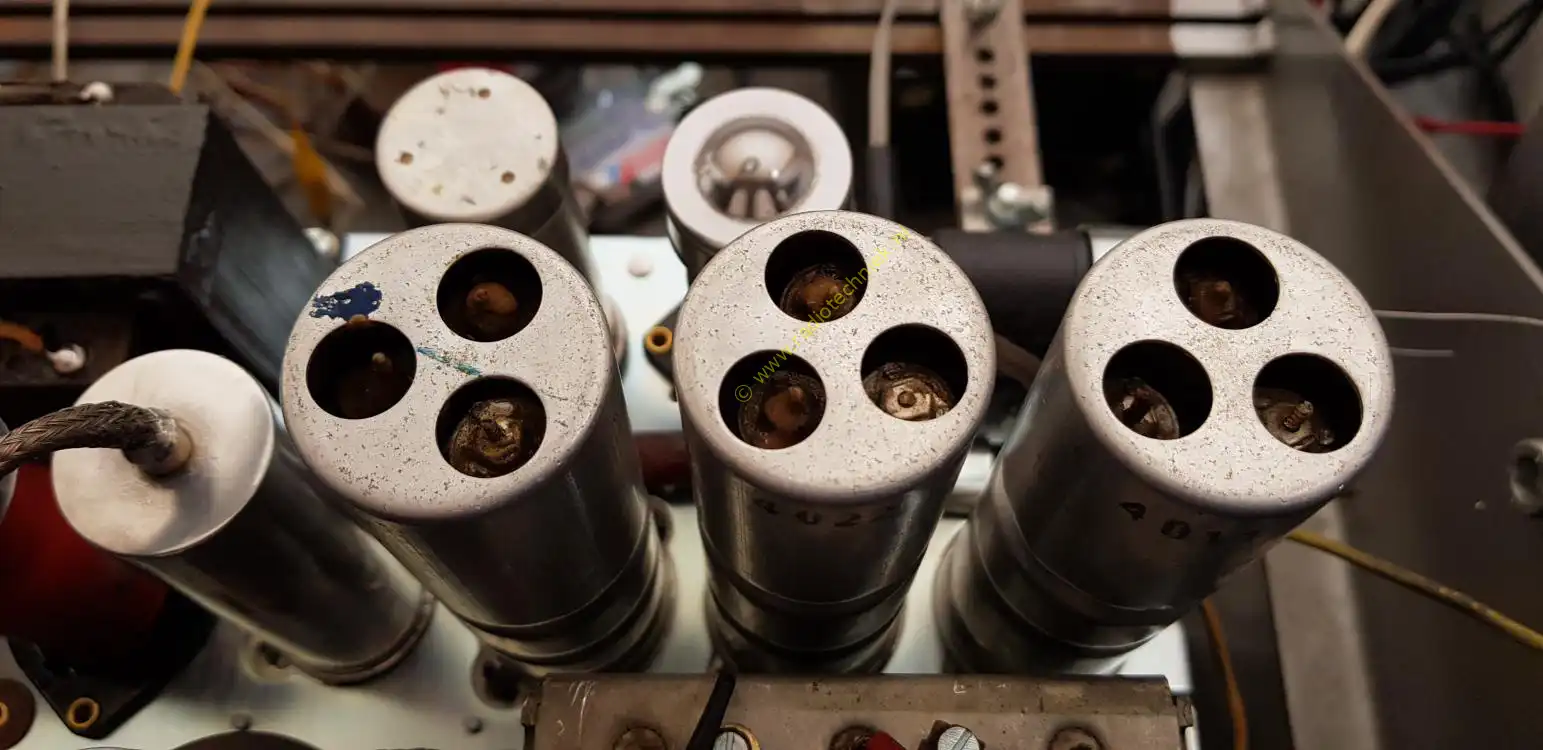

All tubes are on the chassis.
Philips 850A foto 75

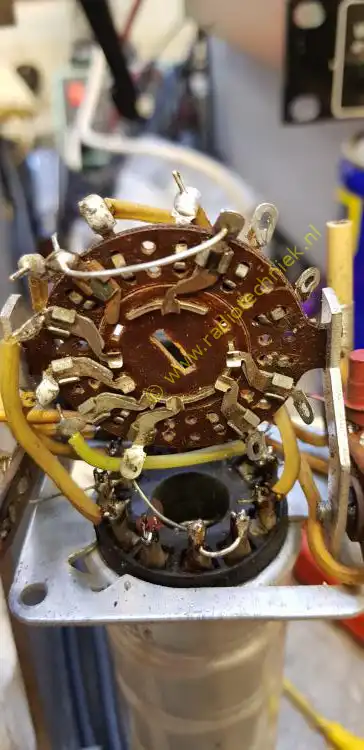

The revision of the first intermediate frequency band filter.
Philips 850A foto 76

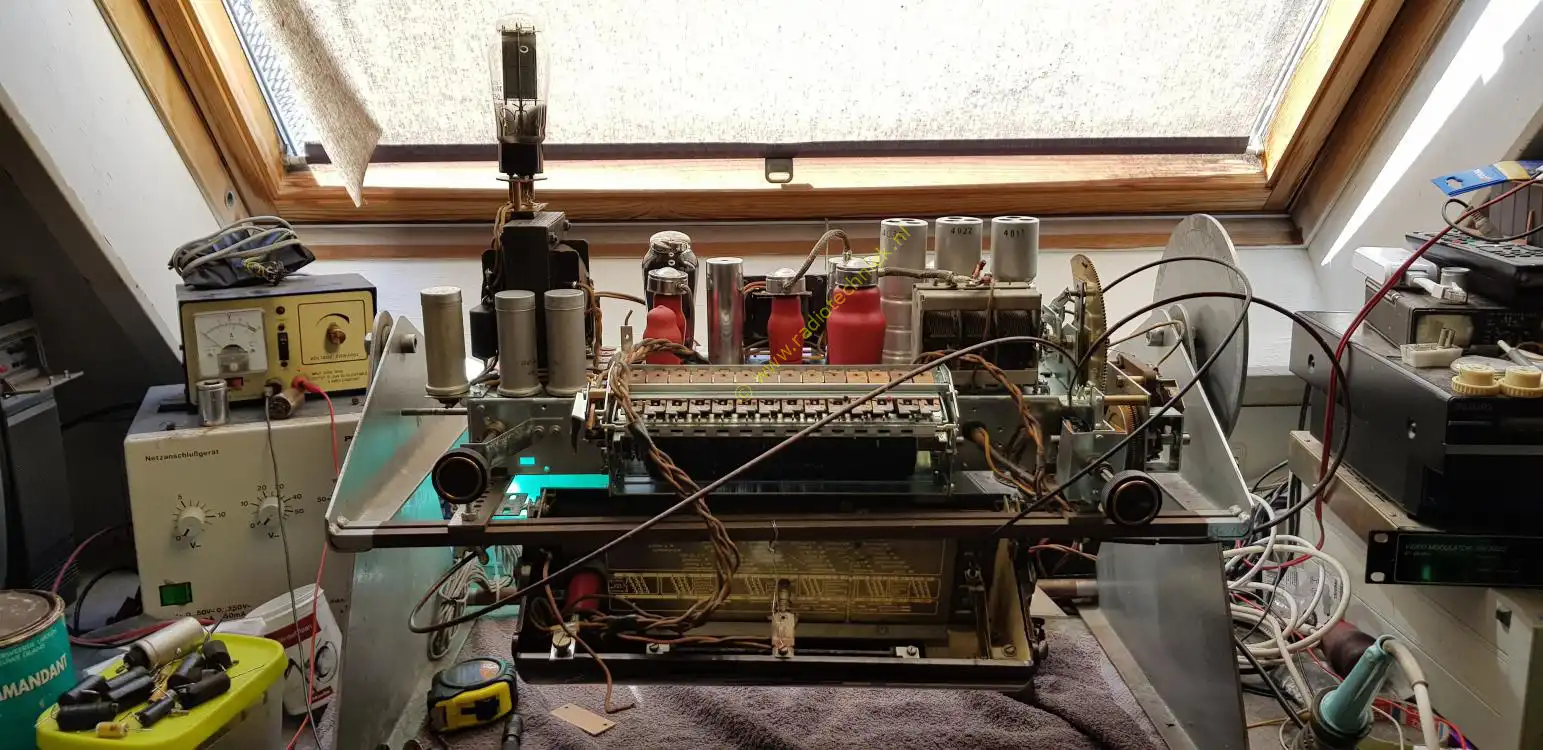

A stray neighborhood frog coming to help me.
Philips 850A foto 77
Look the neighborhood cat strung the beads.
Philips 850A foto 78

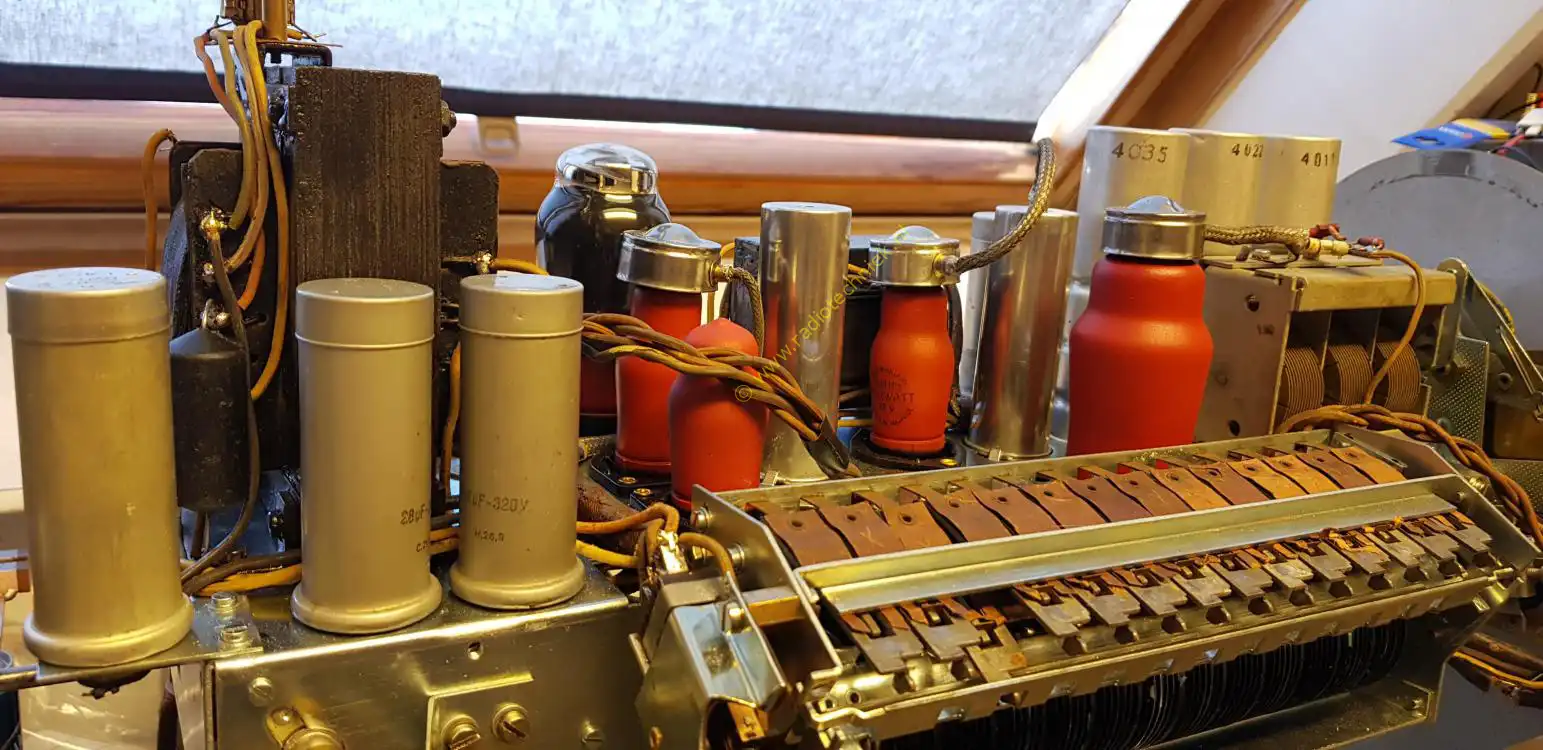

Mid-frequency bandpass filter ready with lampshade.
Philips 850A foto 79
The chassis looks beautiful. Completely late 1930s but new.
Philips 850A foto 80
The construction of the high-frequency part the second high-frequency stage is placed.
Philips 850A foto 81
The shielding shots between the high-frequency stages are also very important.
Philips 850A foto 82
The oscillator section completely overhauled.
Philips 850A foto 83

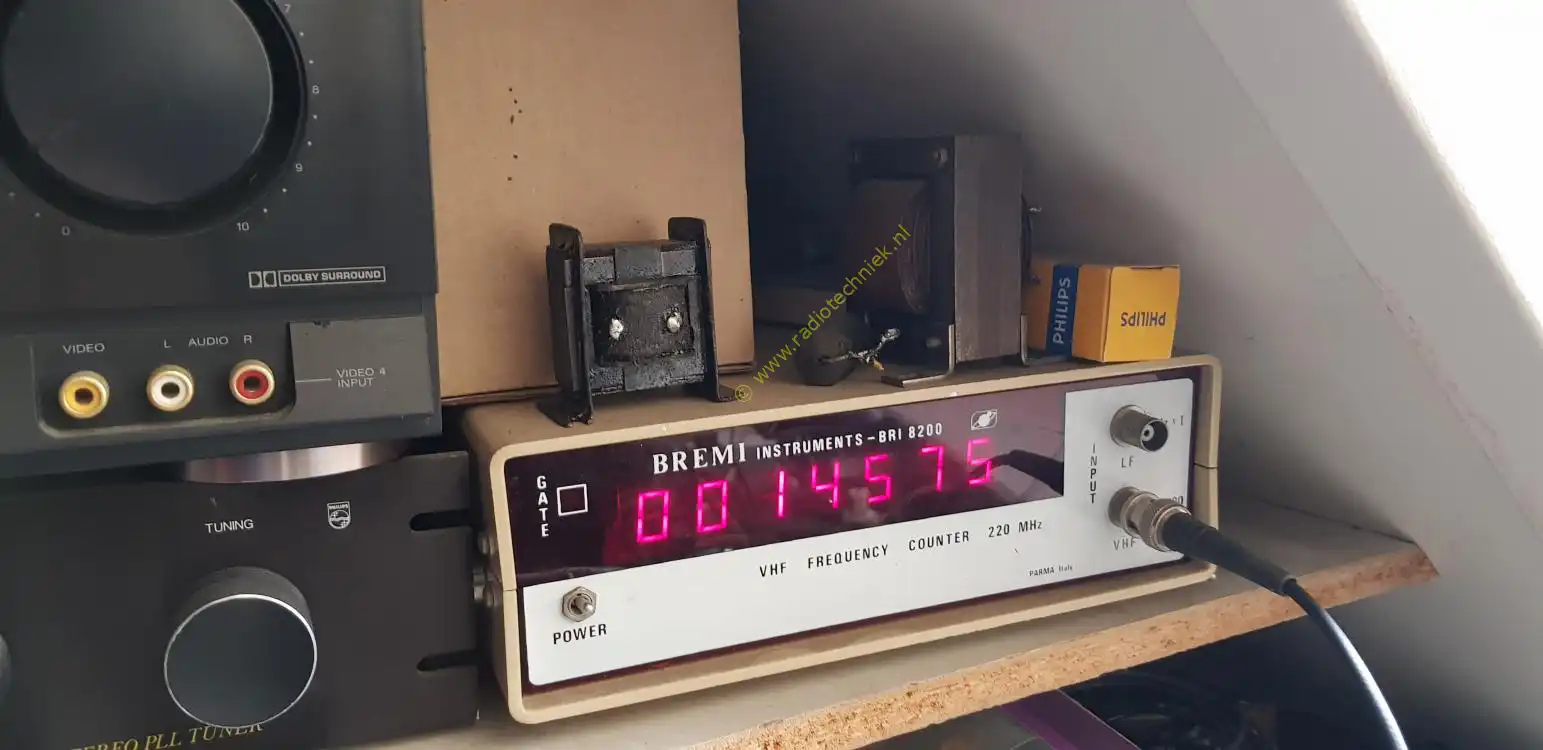

Testen van de ocillator
Philips 850A foto 84

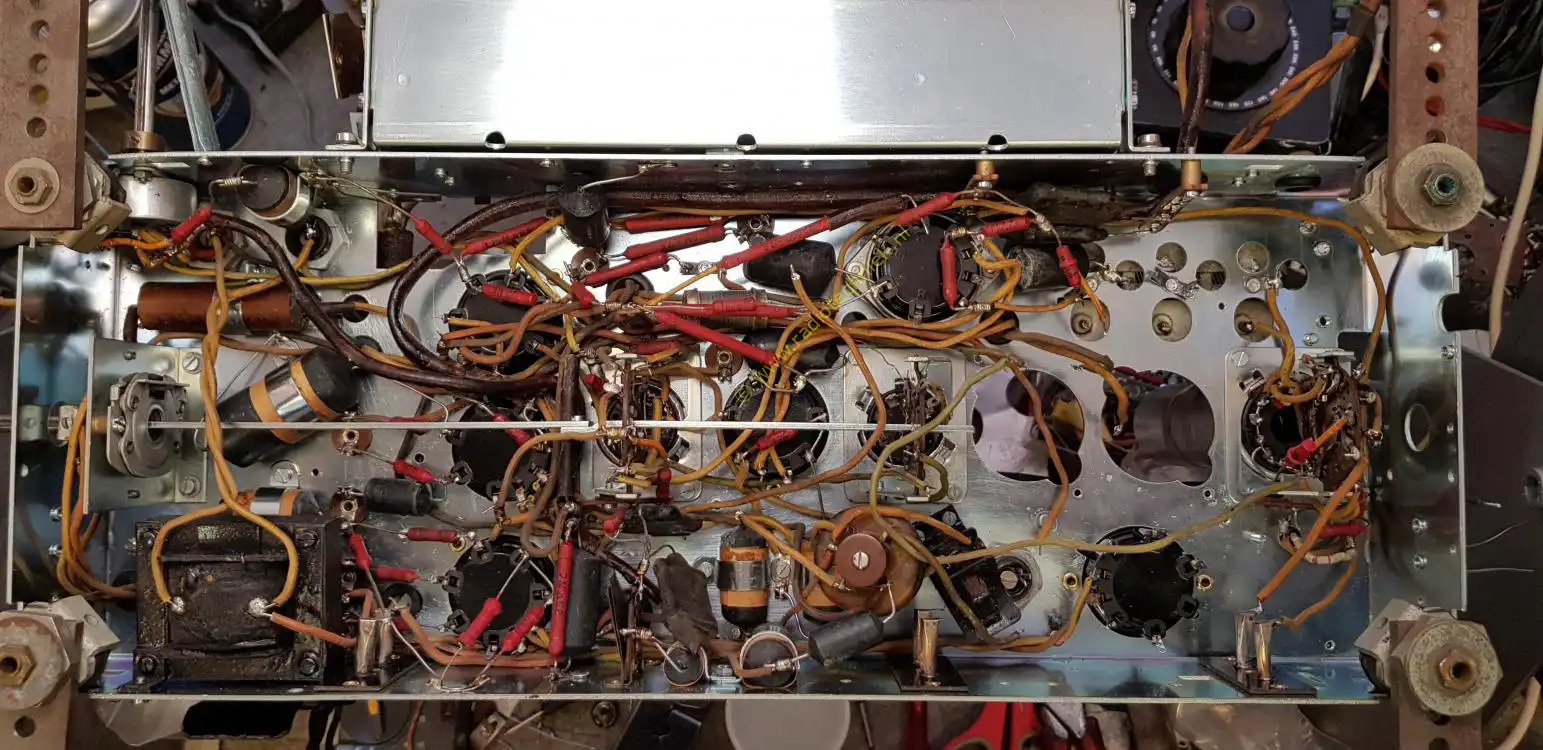

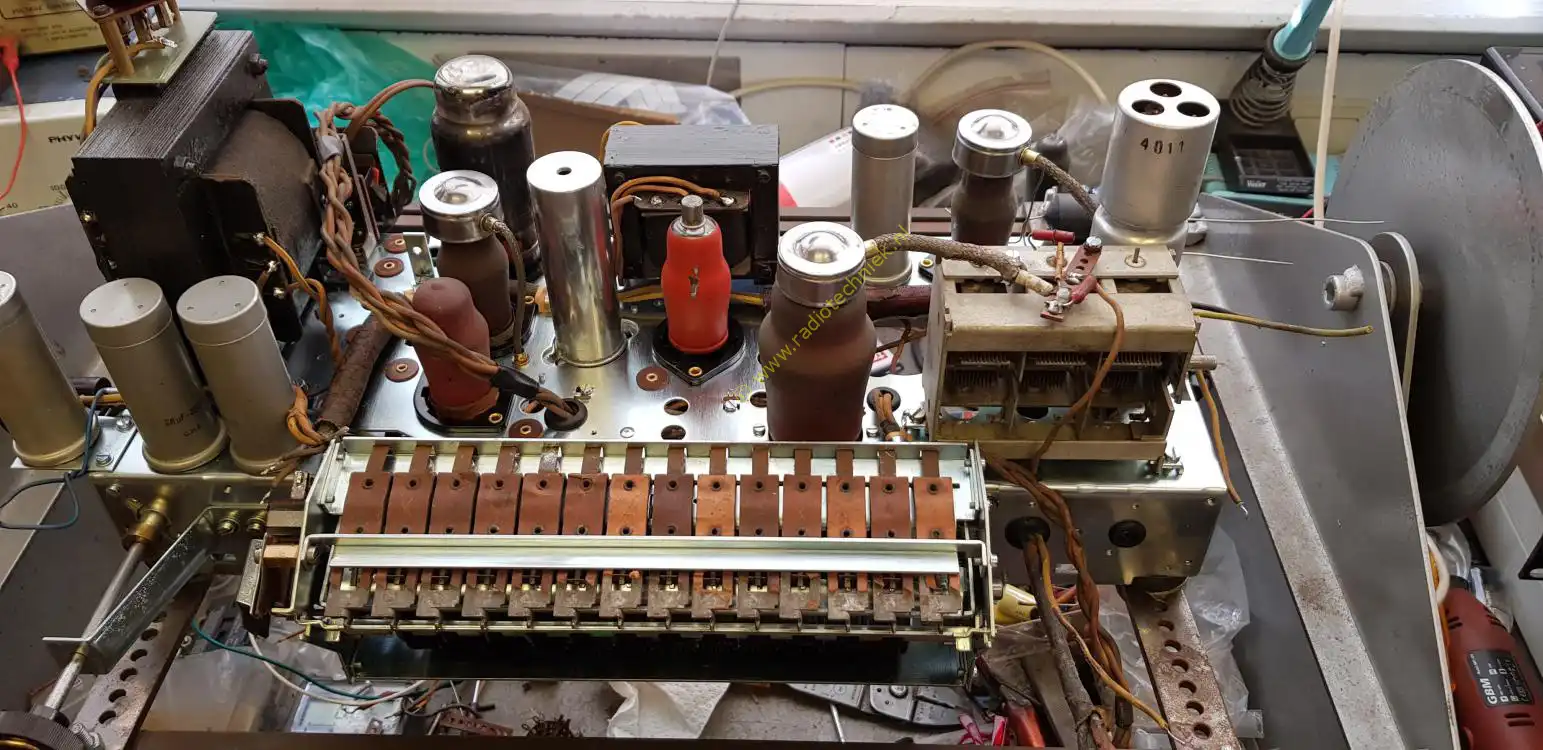

The chassis is already starting to become quite complete.
Philips 850A foto 85
The top also looks like a Philips 850A.
Philips 850A foto 86
Tuning the oscillator.
Philips 850A foto 87
The coil buses together on the left, the two high-frequency stages on the right, the oscillator section.
Philips 850A foto 88

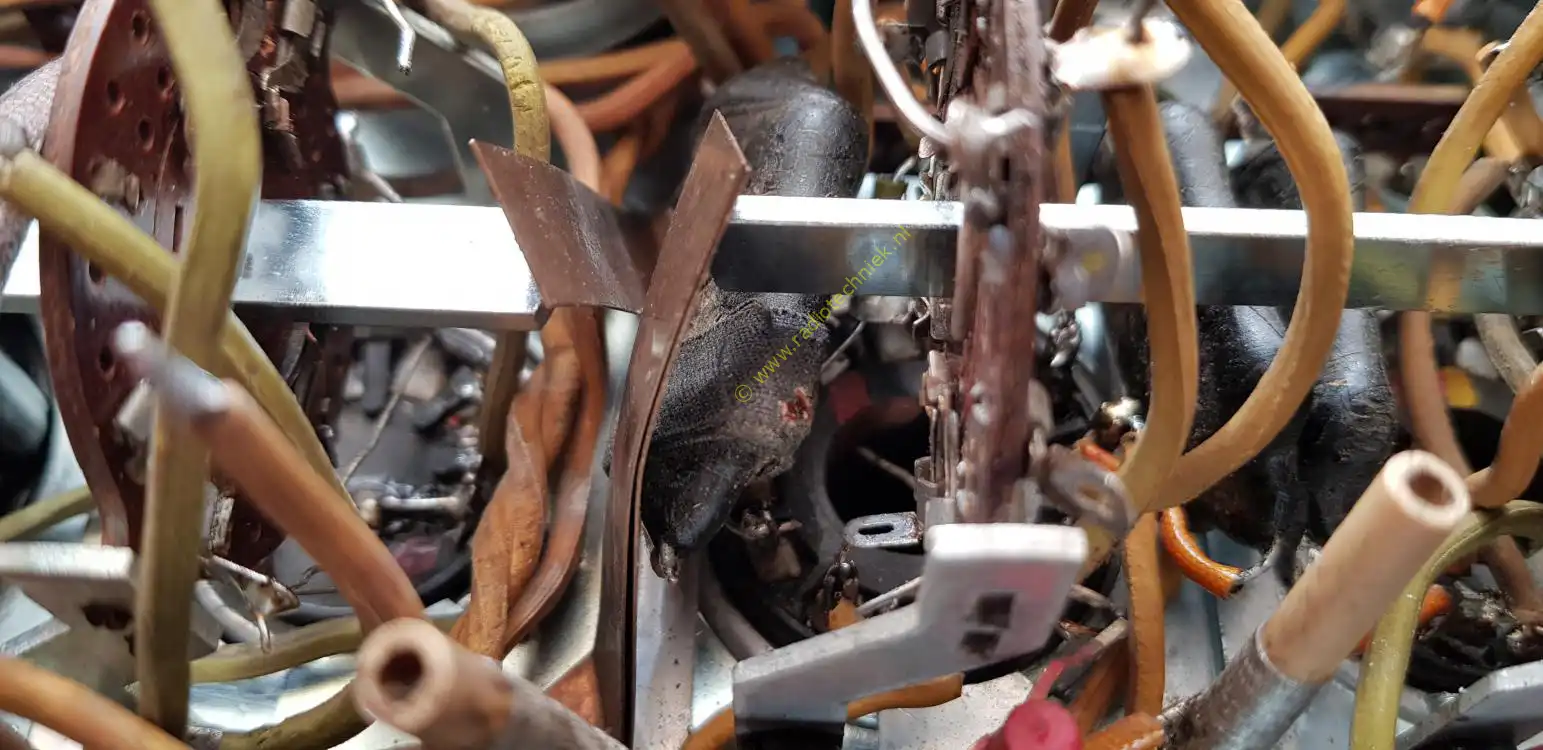

To place the shift rod for the wave range switching, the oscillator coil had to be removed from the chassis.
Philips 850A foto 89
Component placement is just very precise.
Philips 850A foto 90
The chassis had to be removed from the repair stand. Otherwise, the switching rod for the wave range switching could not be placed.
Philips 850A foto 91
The cassis back in the repair stand.
Philips 850A foto 92
Here you can see how tight it fits. The shift rod of the waveband switching just passes the ceramic capacitor.
Philips 850A foto 93

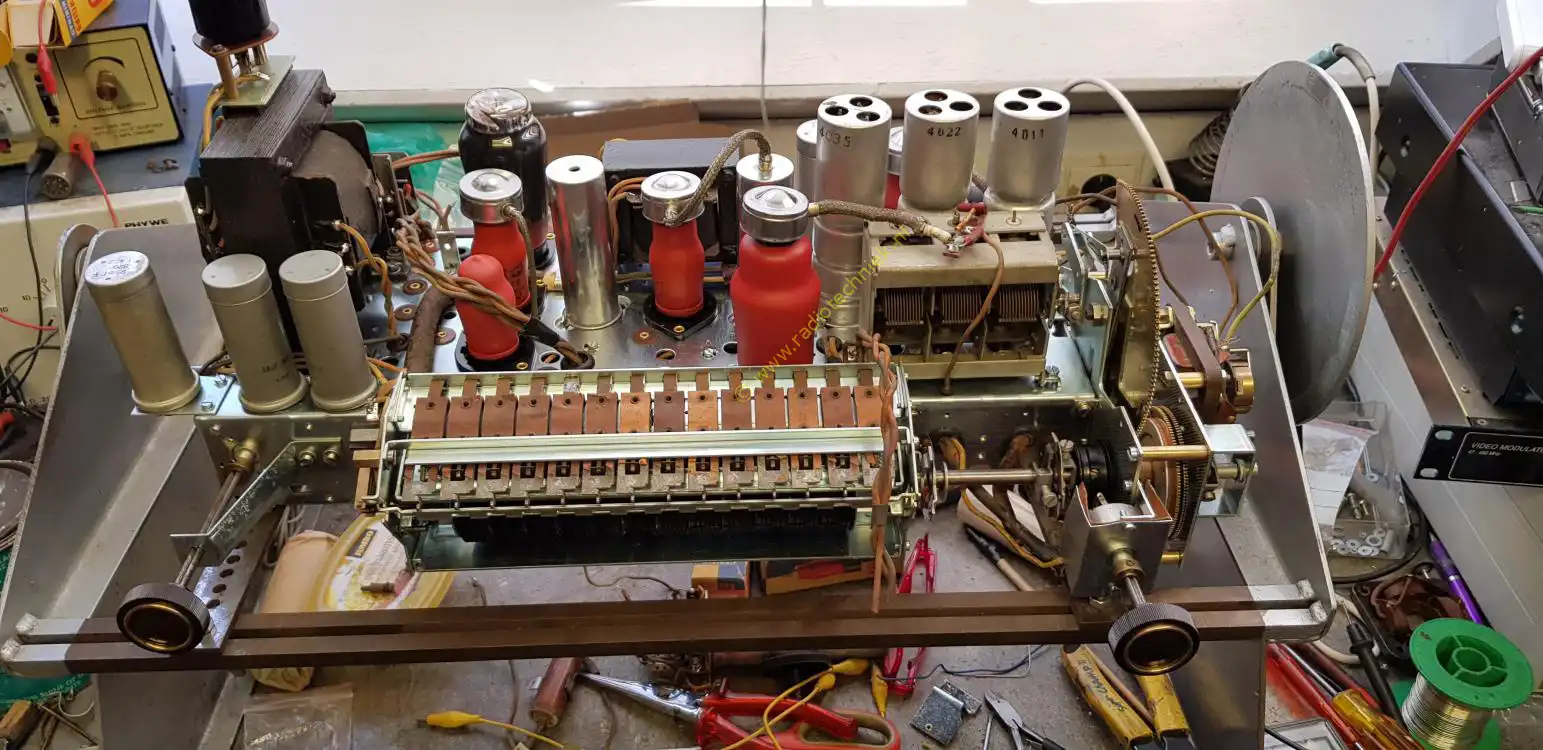

Meanwhile, the drive mechanism of the engine tuning has also been installed. And the chassis is equipped with new tubes. Unfortunately not the EM1 which has been made unaffordable by handy Harry.
Philips 850A foto 94

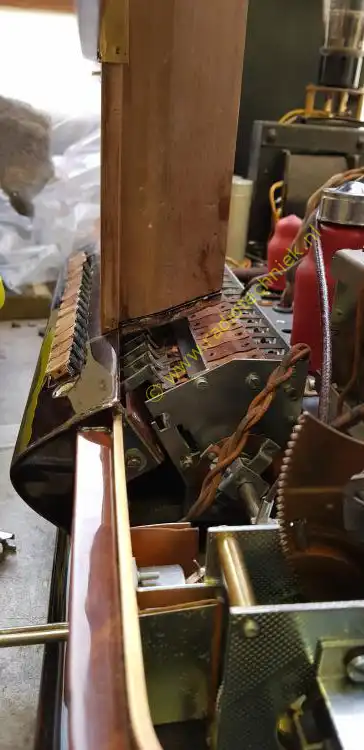

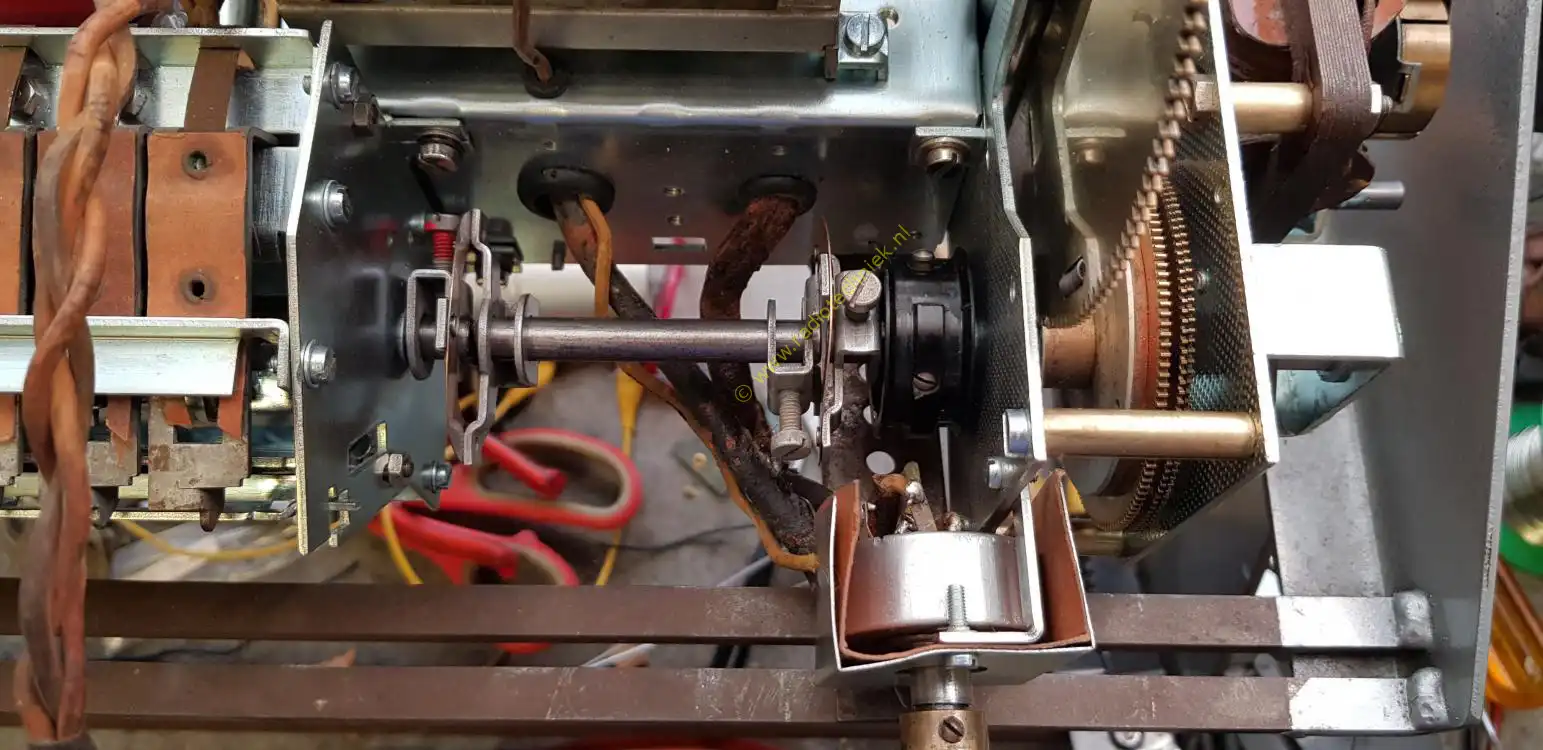

The chassis with a few new buttons. And the coupling between the drive and the mechanical memory of the motor tuning.
Philips 850A foto 95

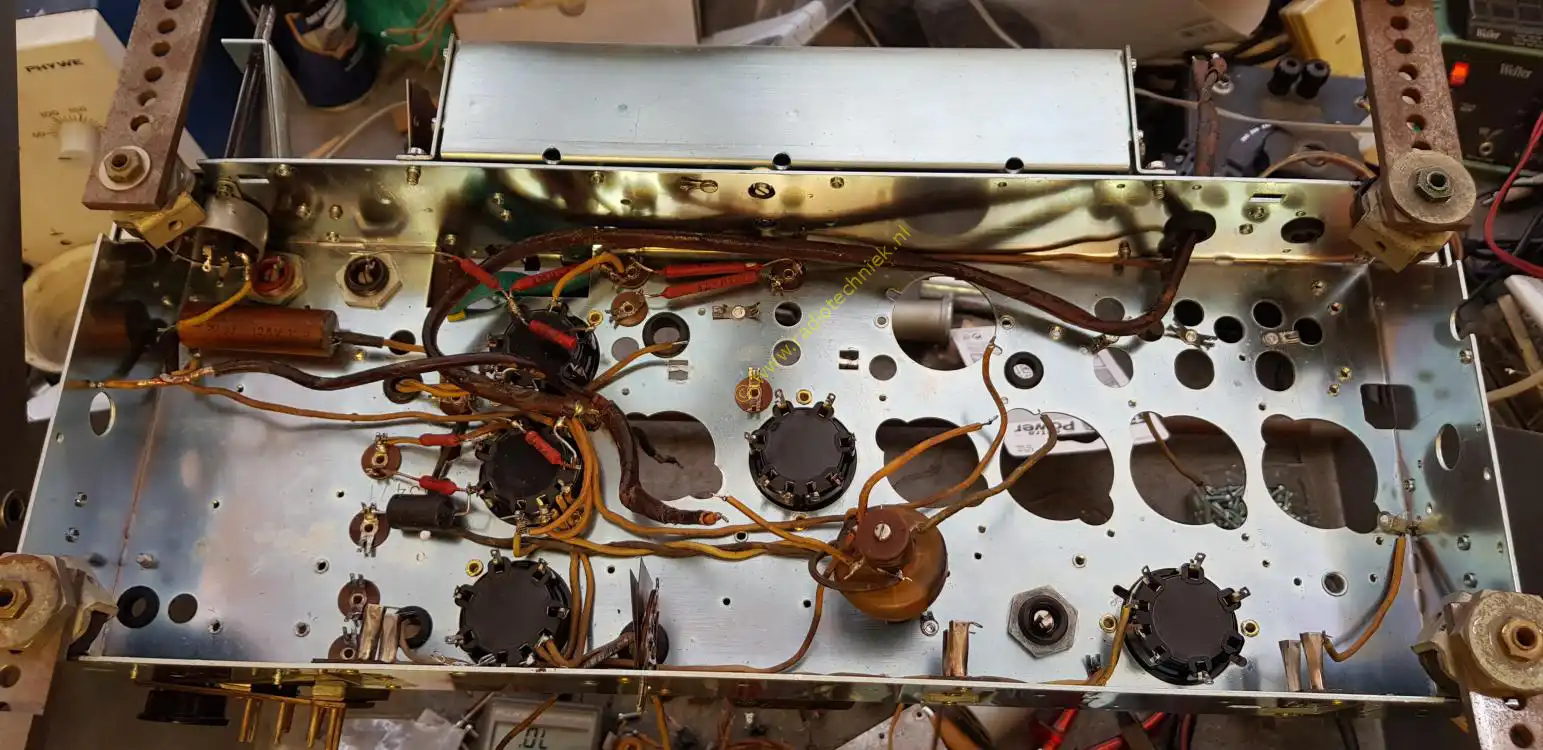

Here's the coupling up close. Nice piece of technology that makes the radio so special.
Philips 850A foto 96

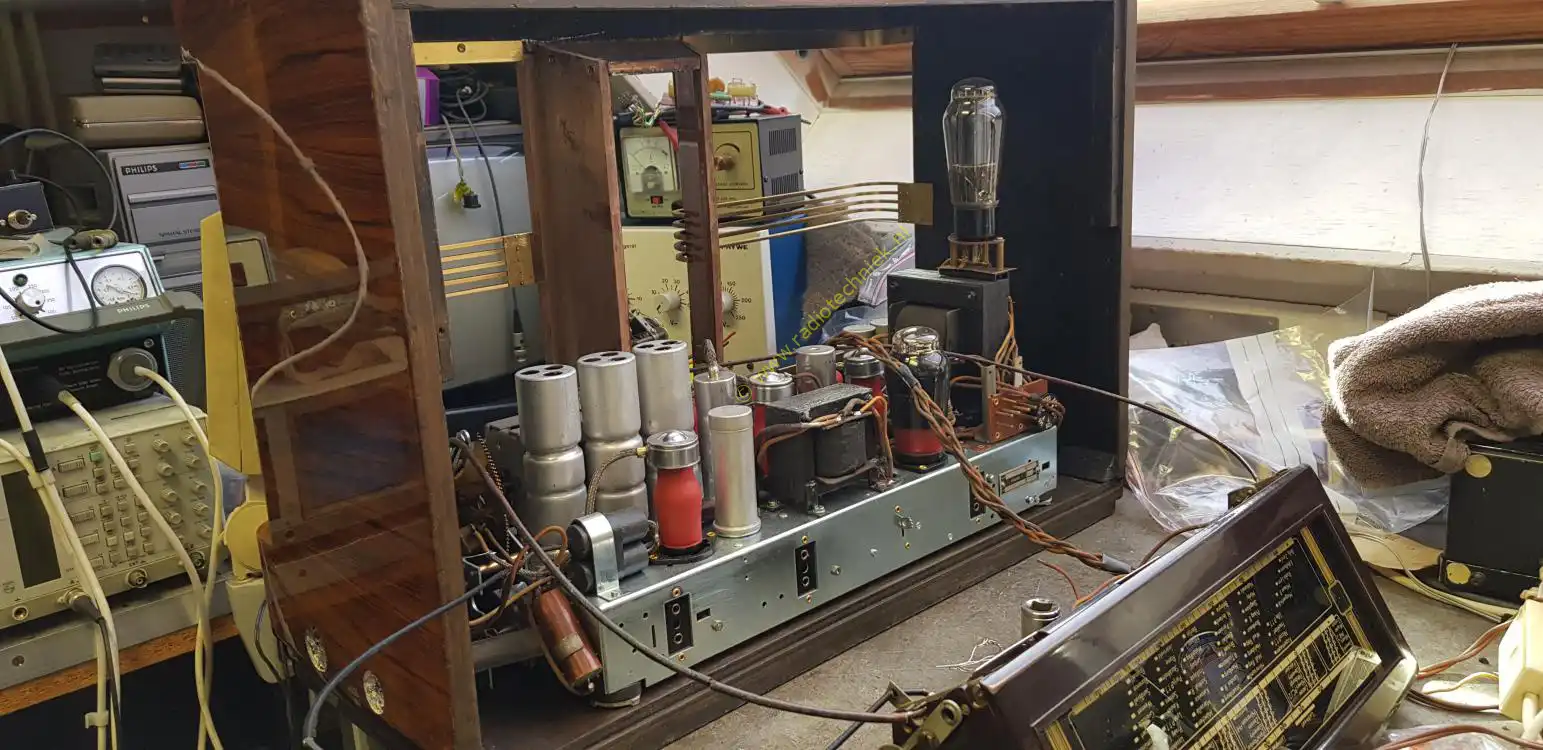

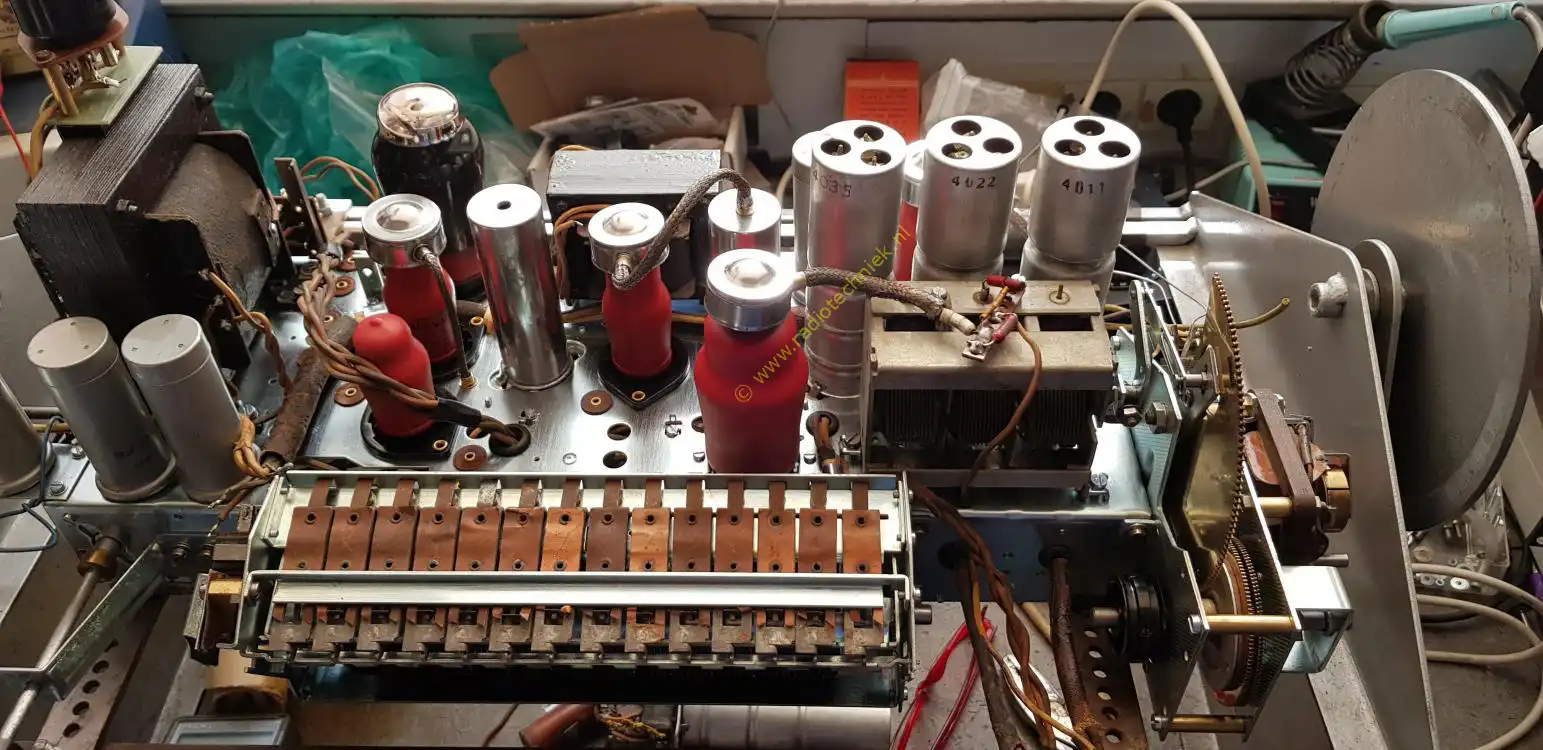

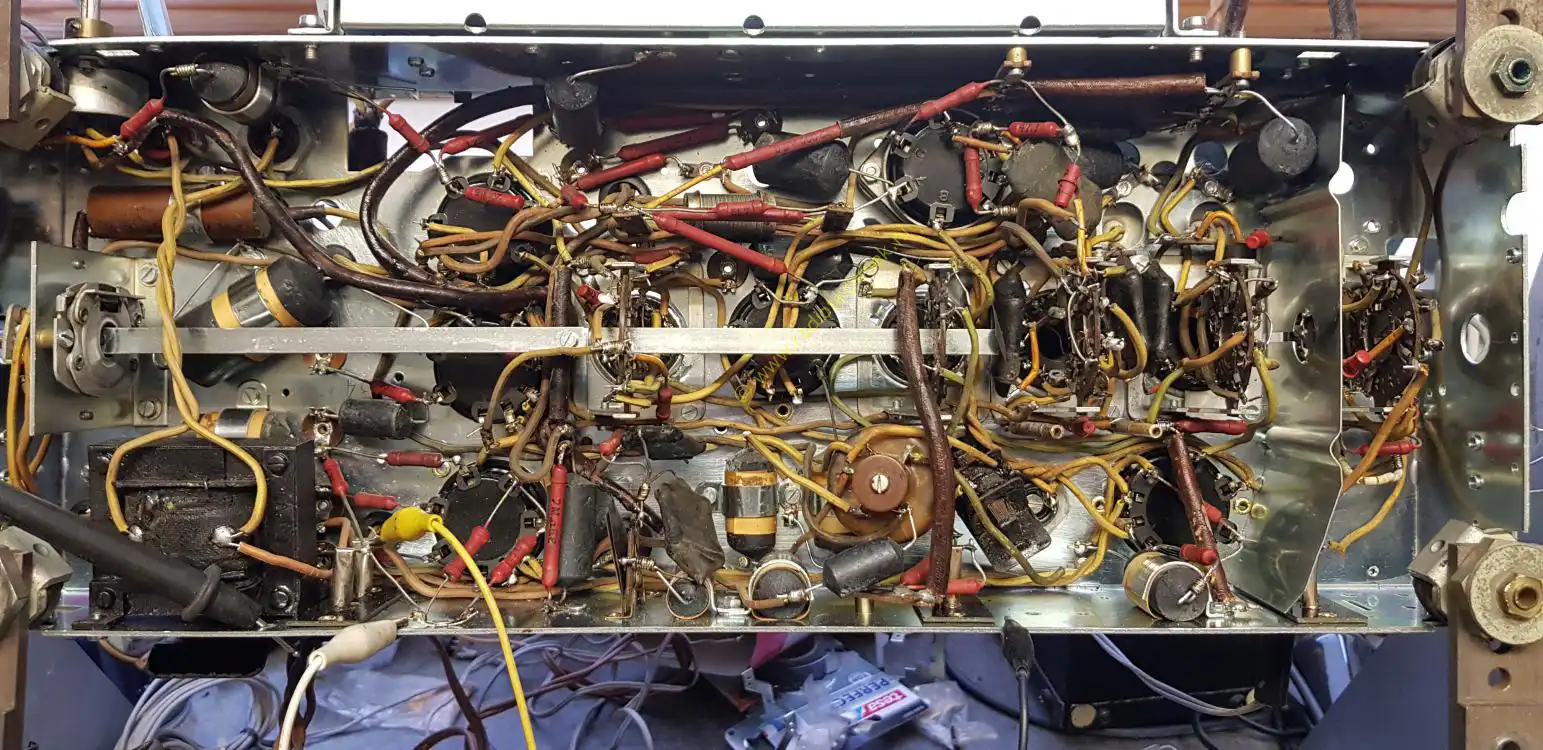

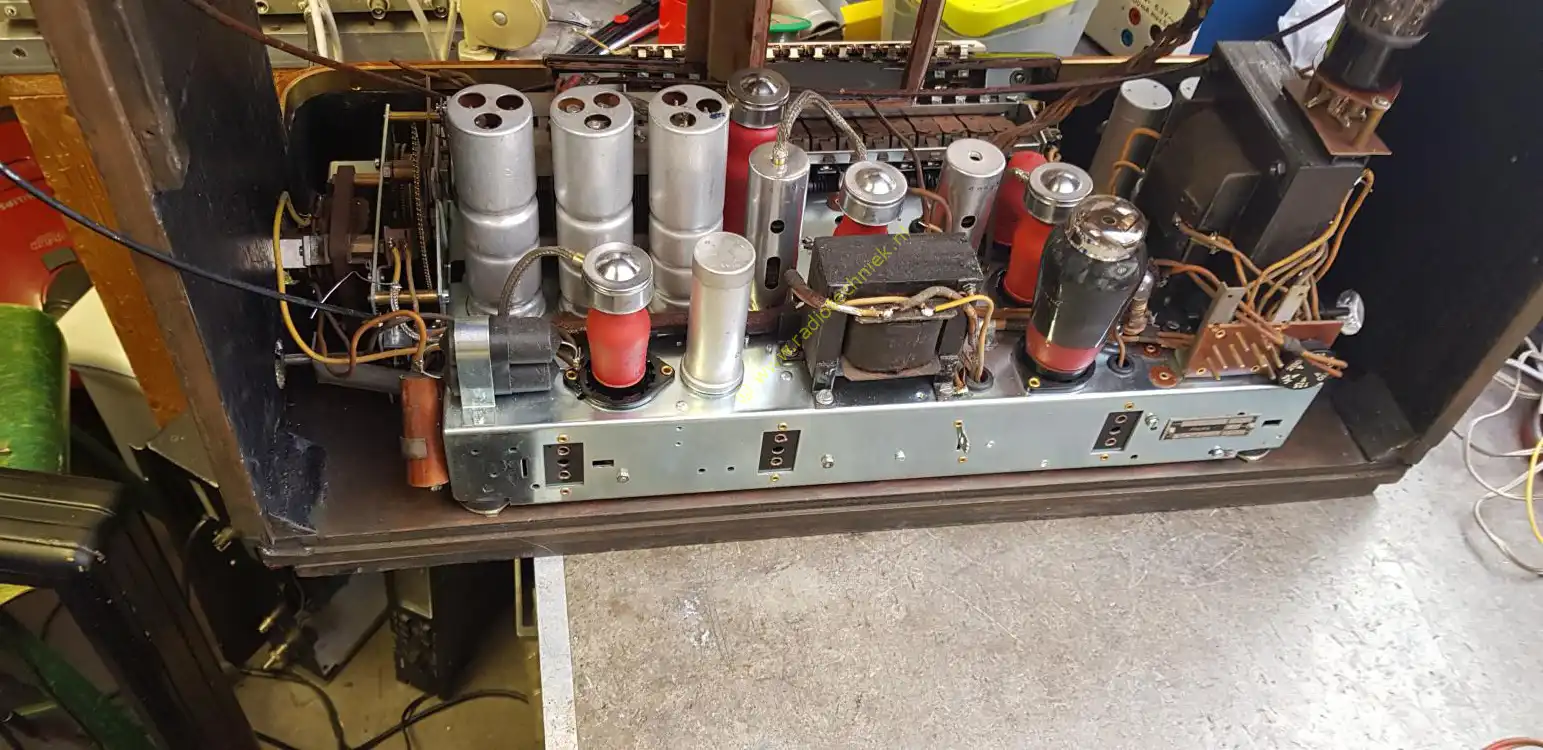

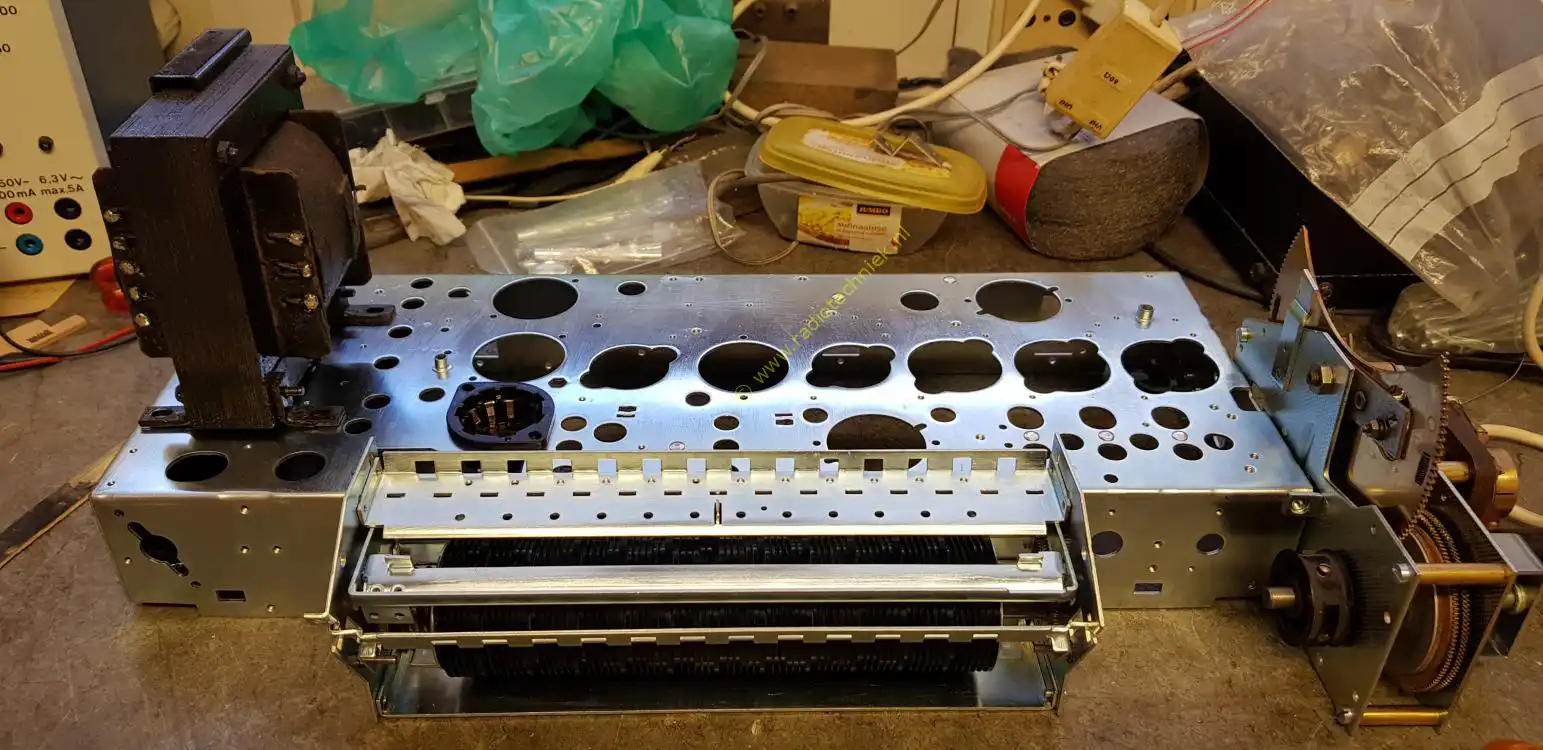

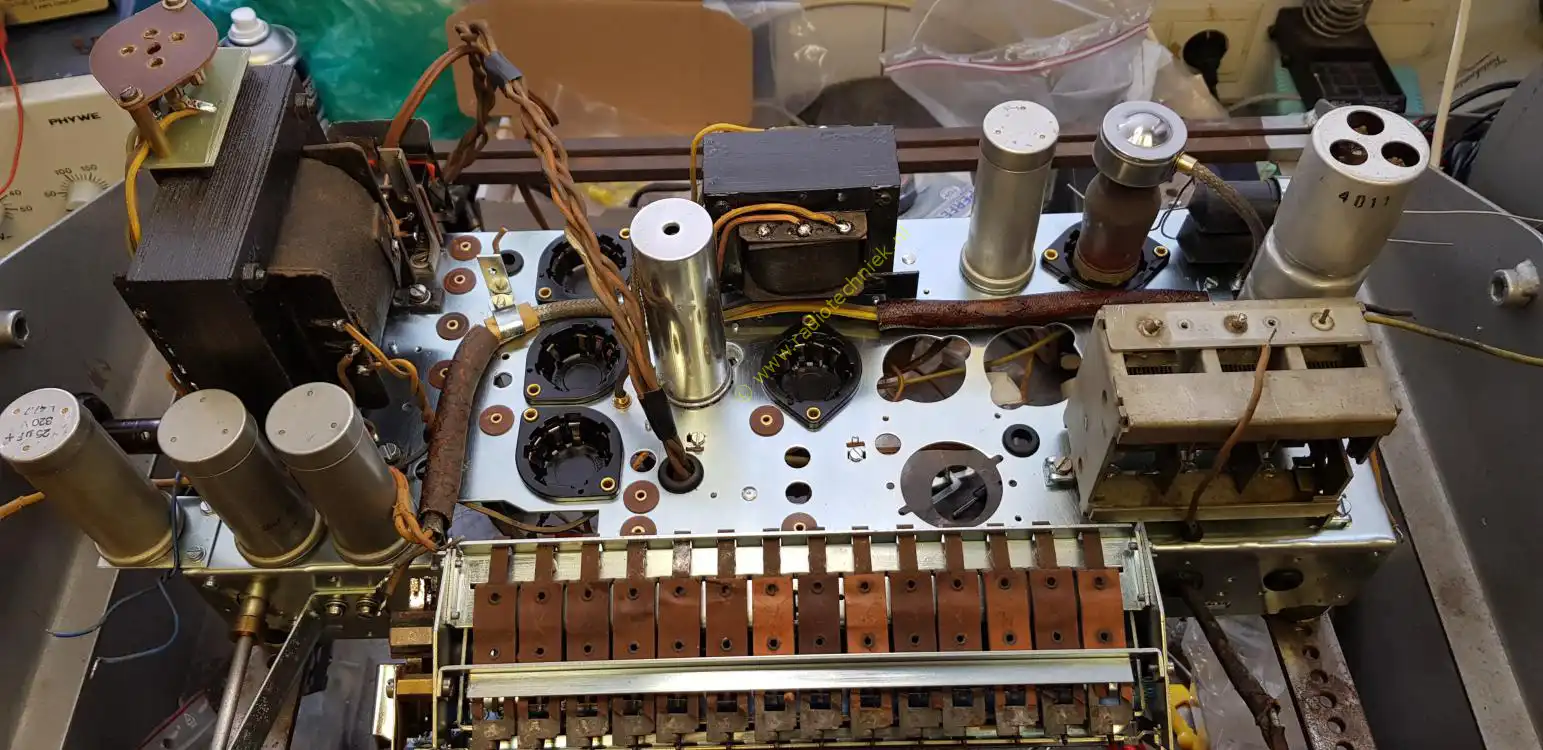

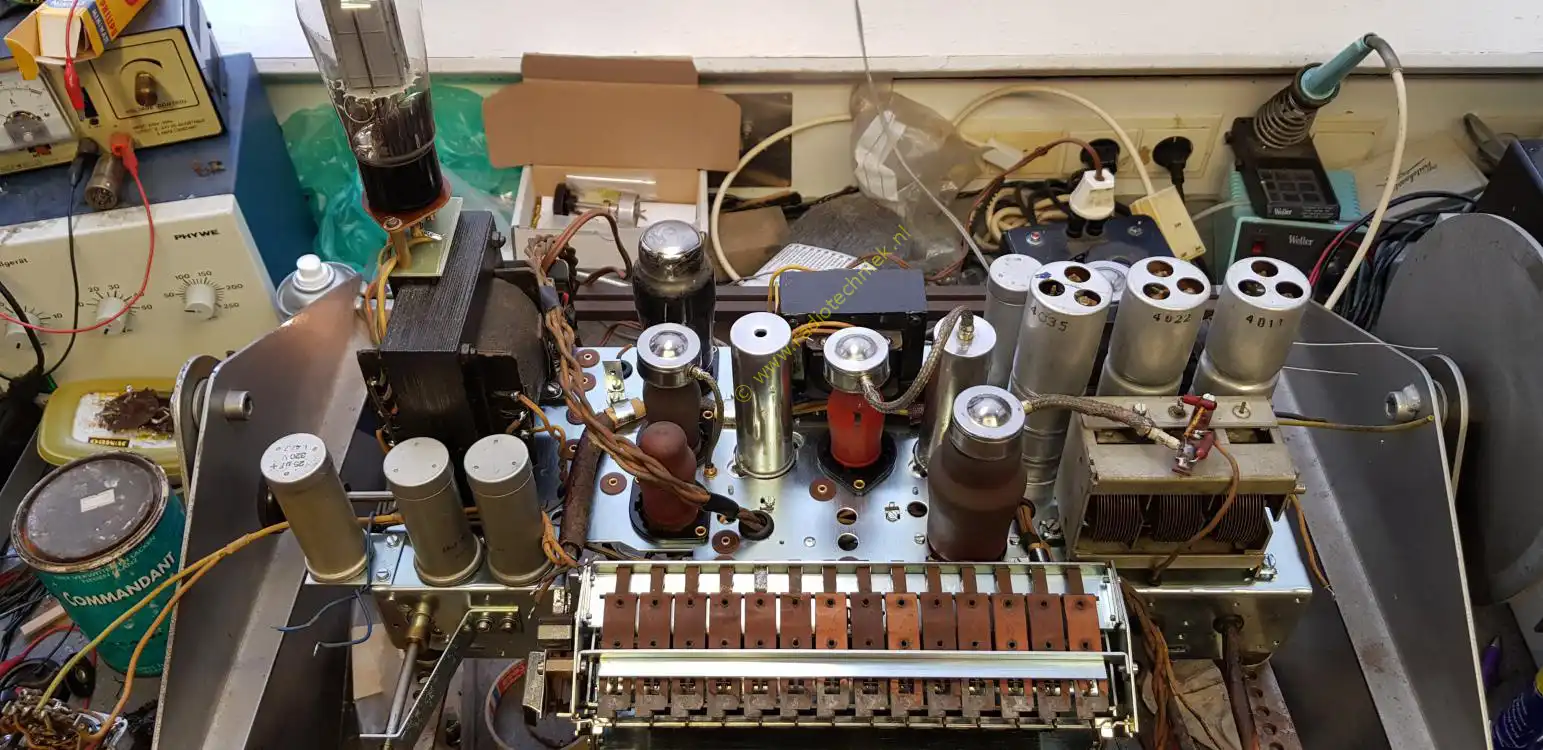

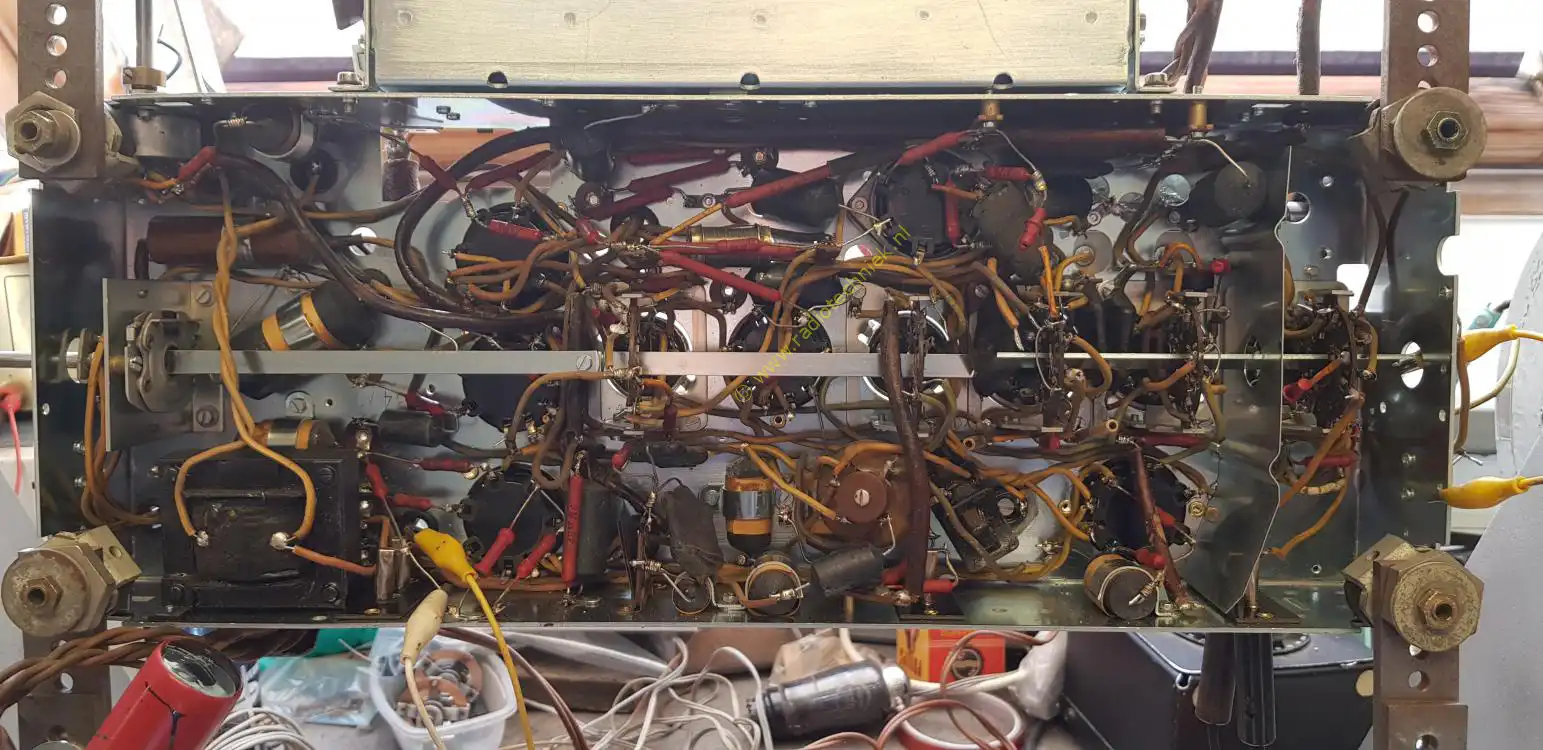

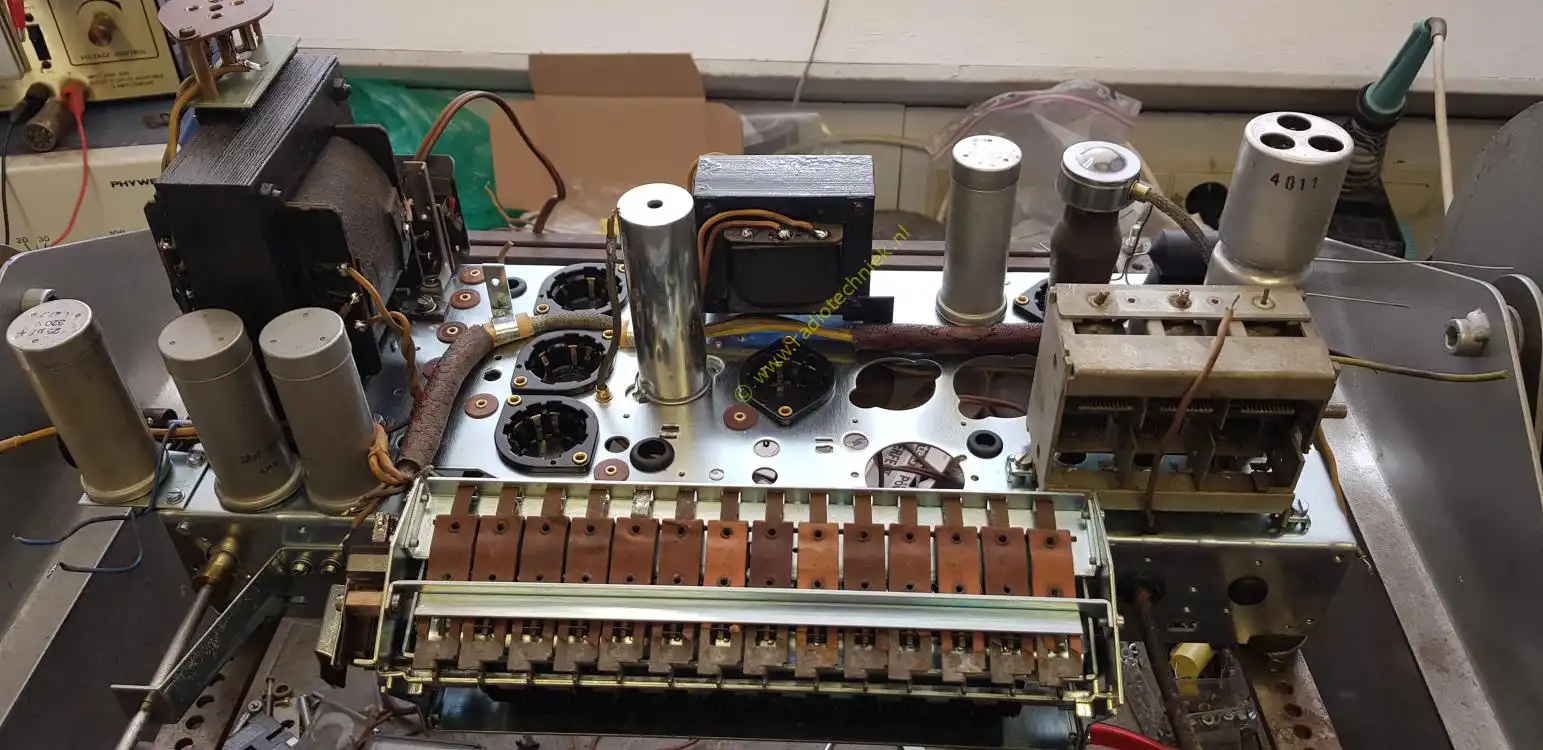

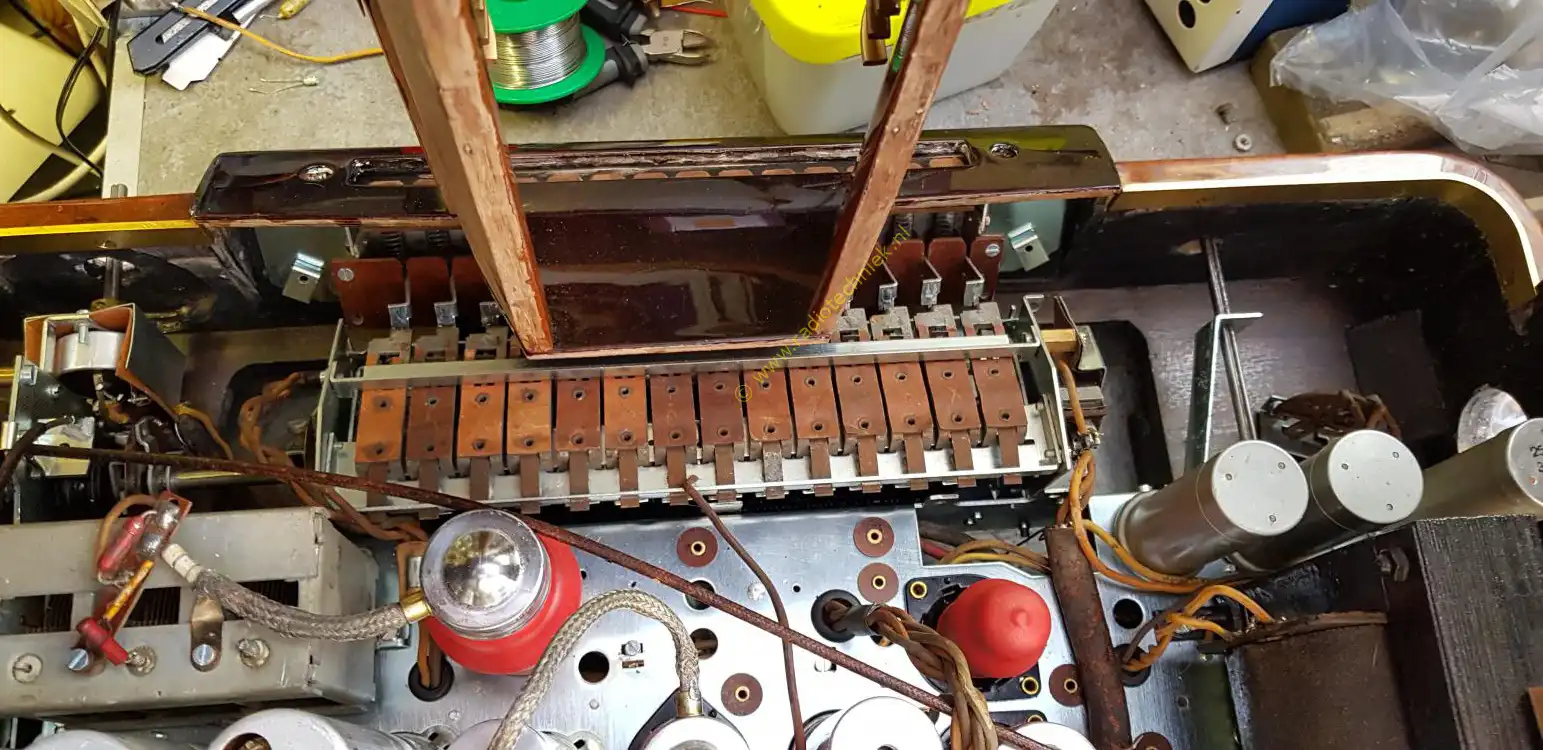

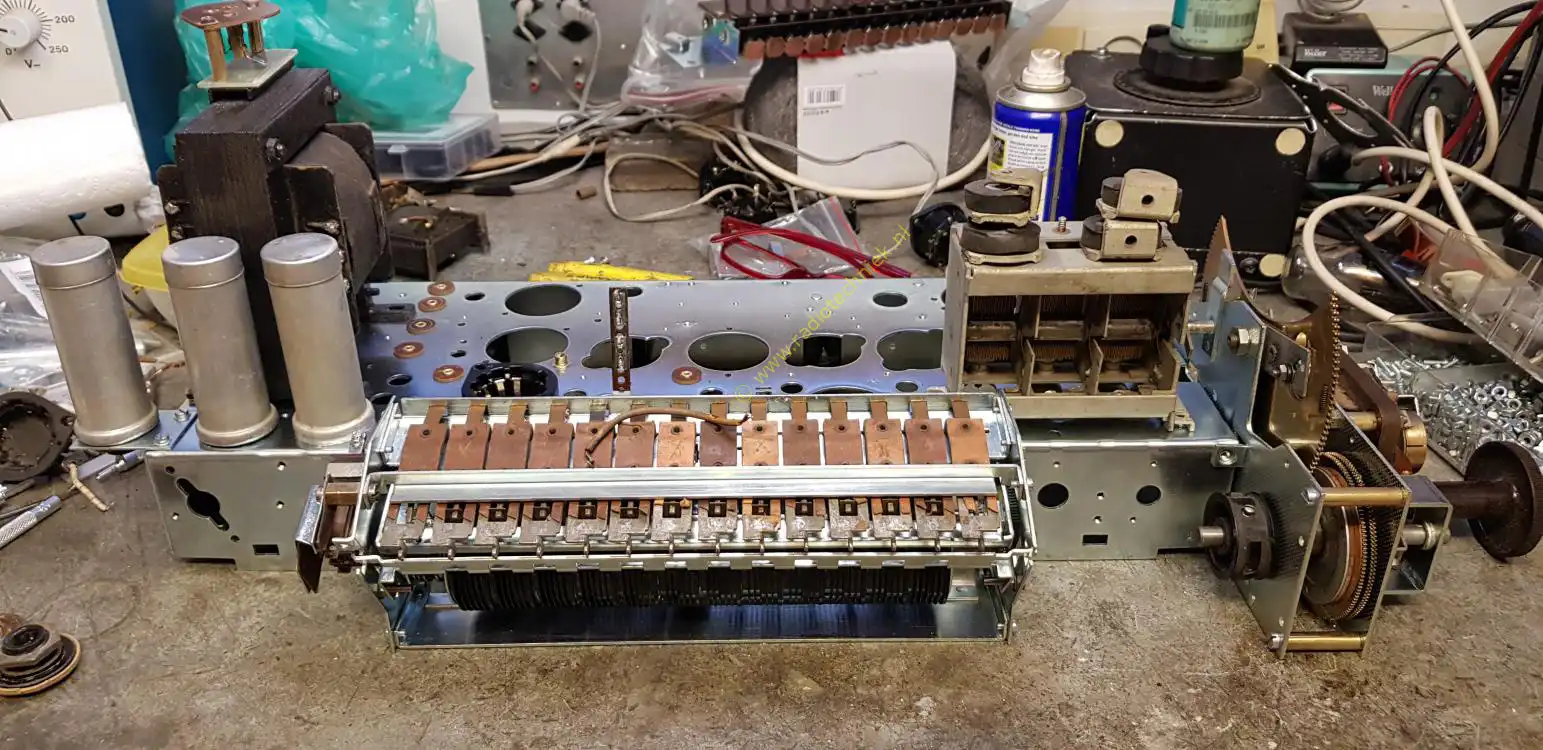

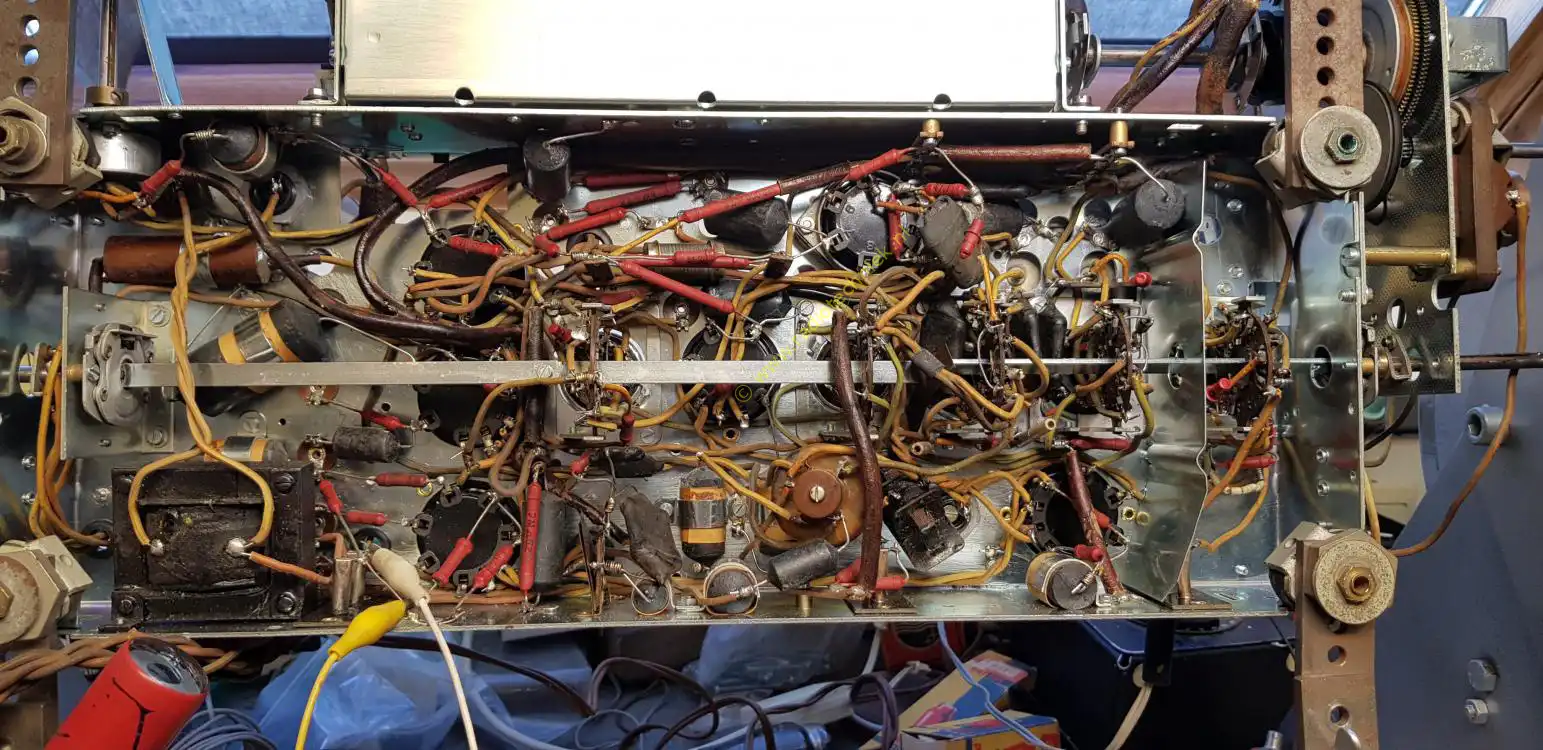

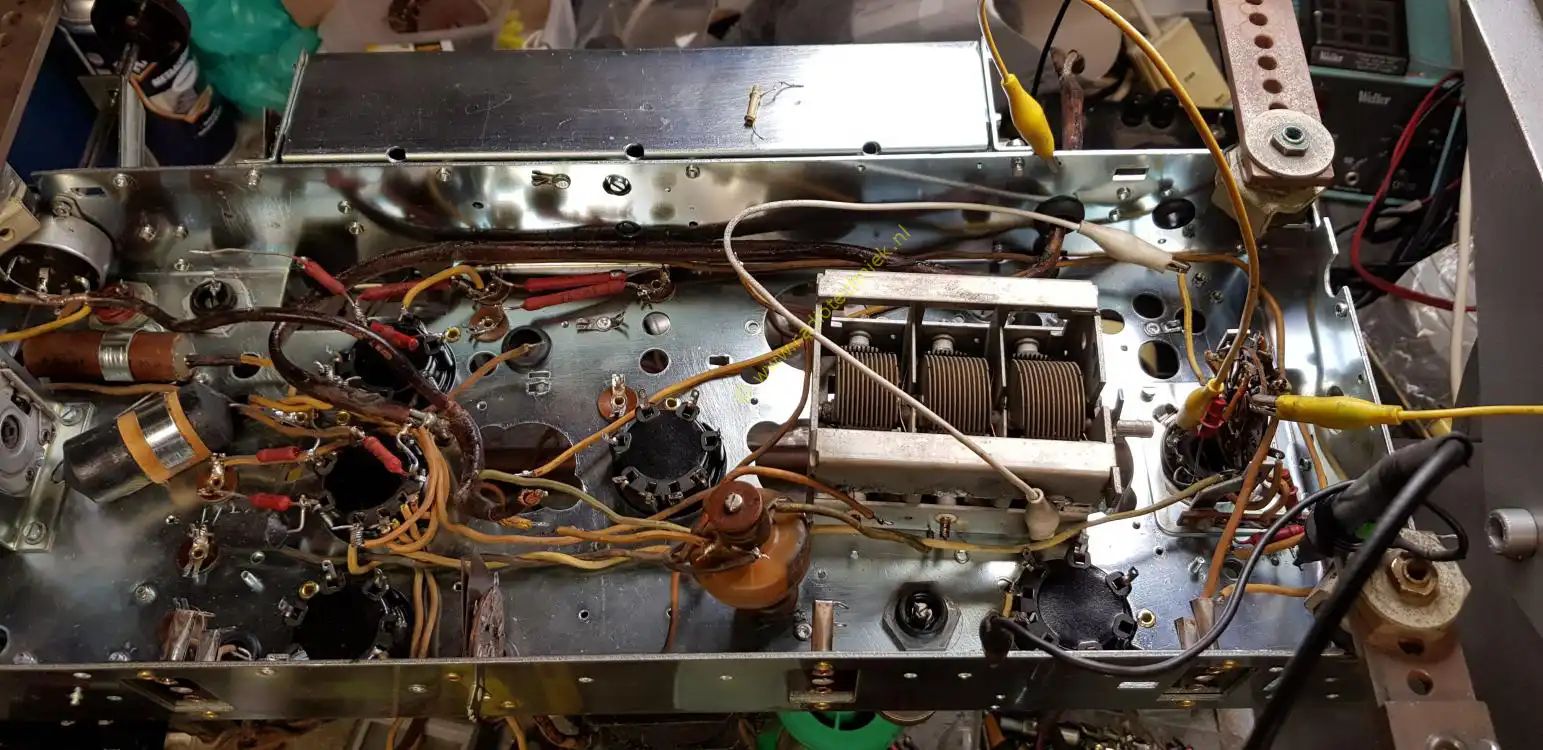

The chassis is now complete. Here's a picture of the component side.
Philips 850A foto 97
This video shows the operation of the engine tuning. Unfortunately, medium wave stations cannot be received well here. At the time of making the movie.
Philips 850A foto 98
Here's a photo of the back. All the details are there like rivets.
Philips 850A foto 99
The front side of the chassis.
Philips 850A foto 100

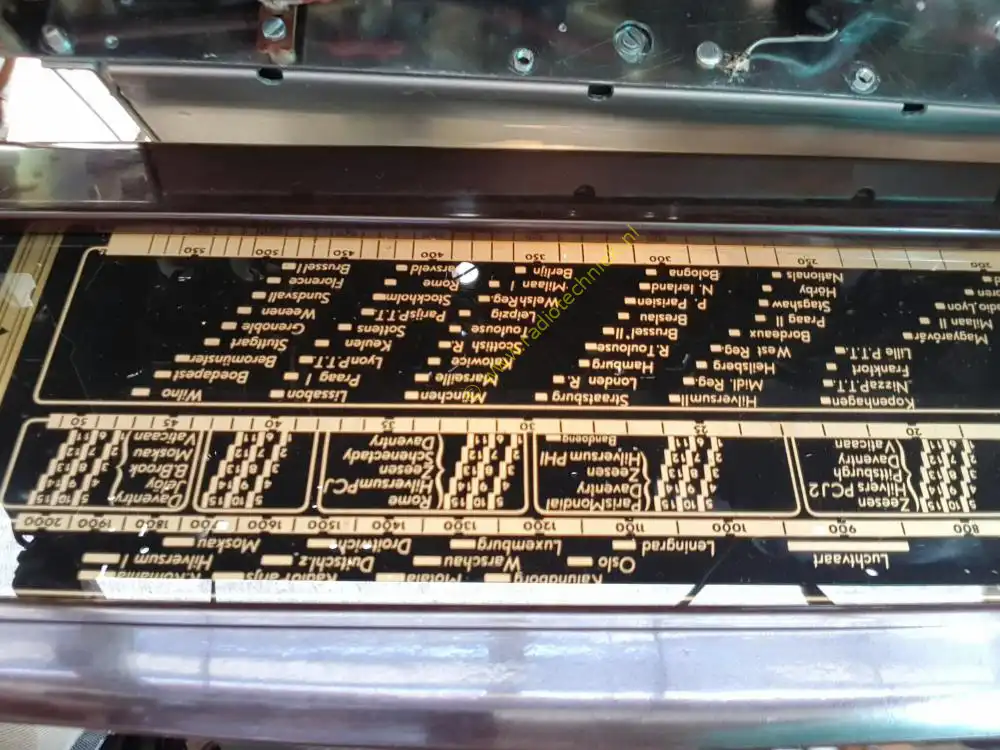

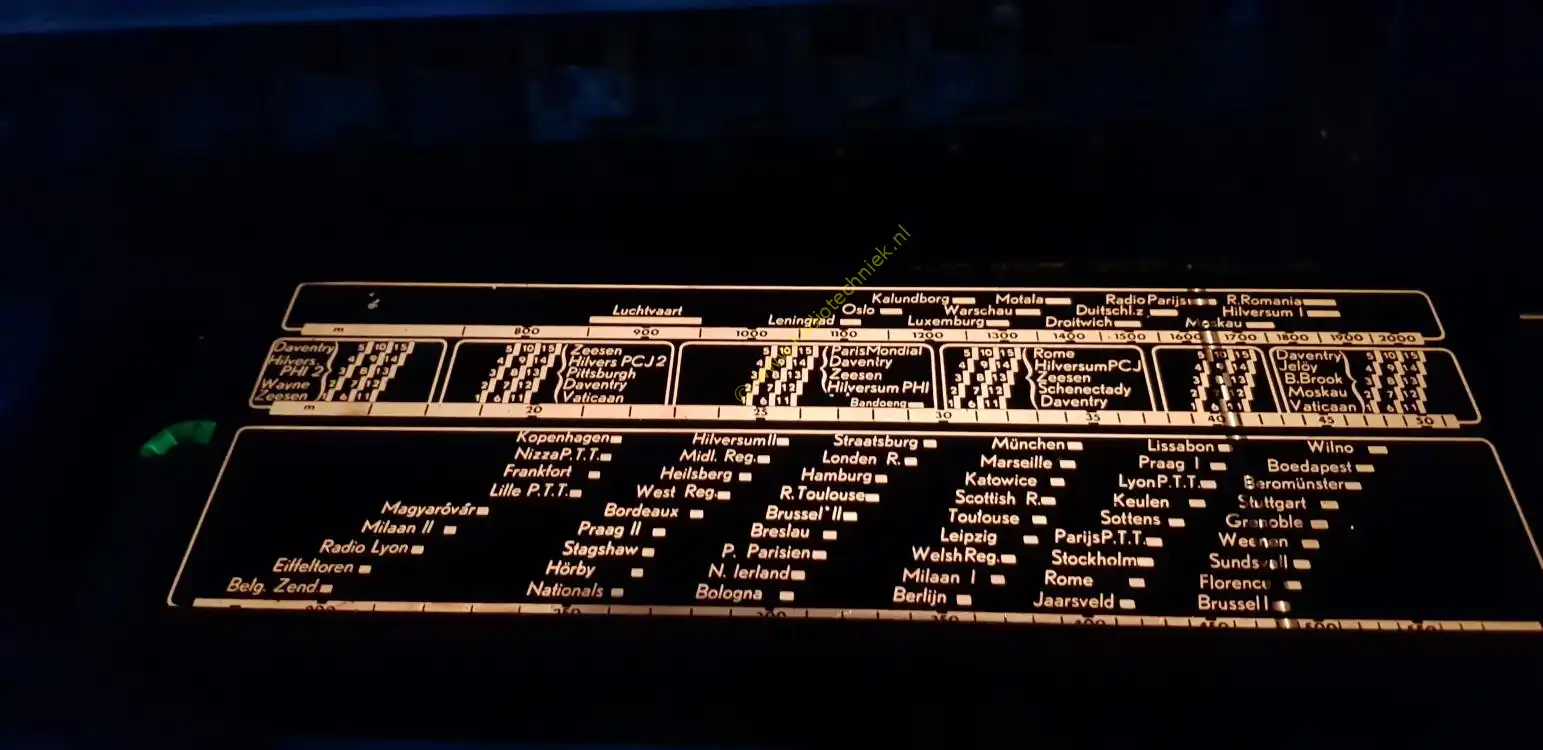

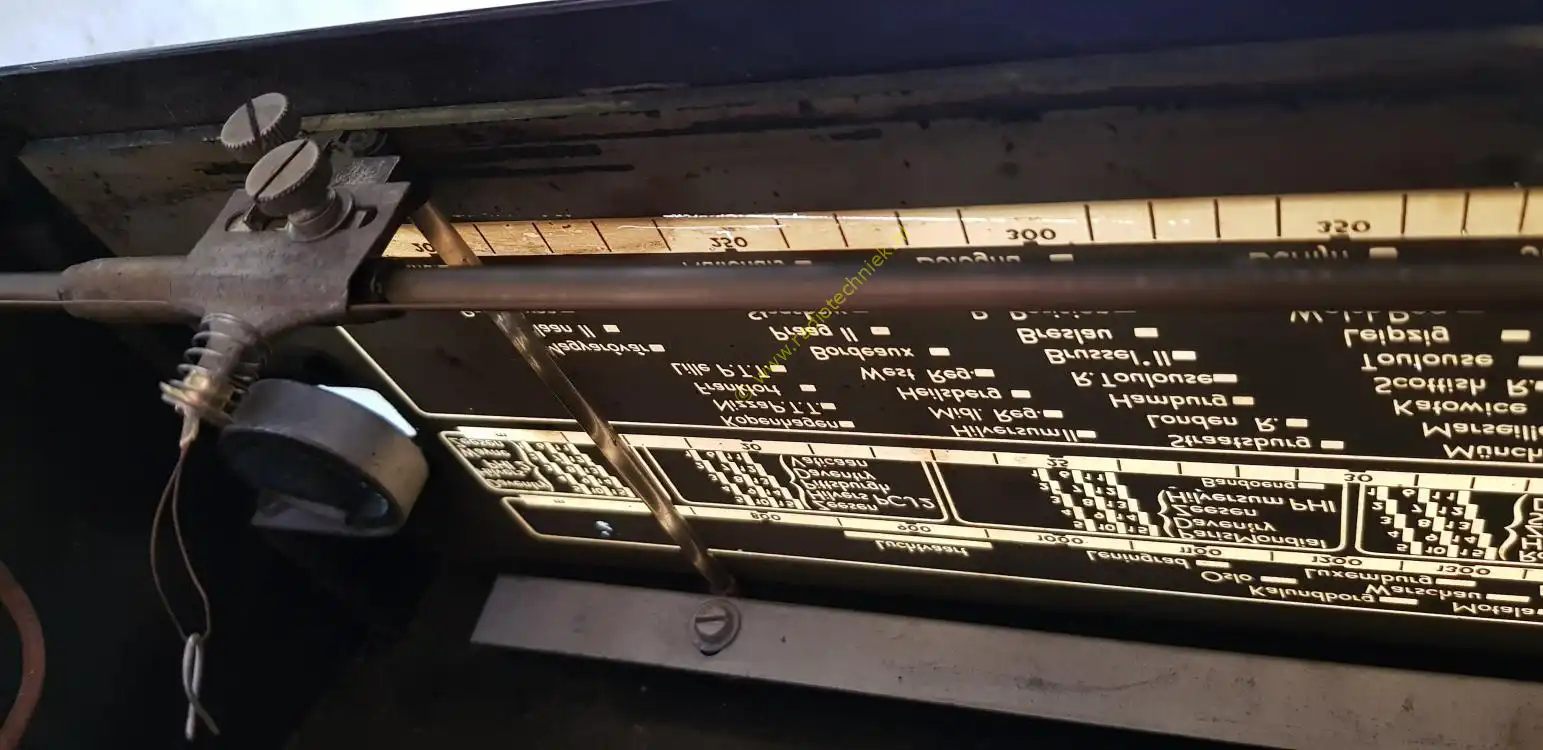

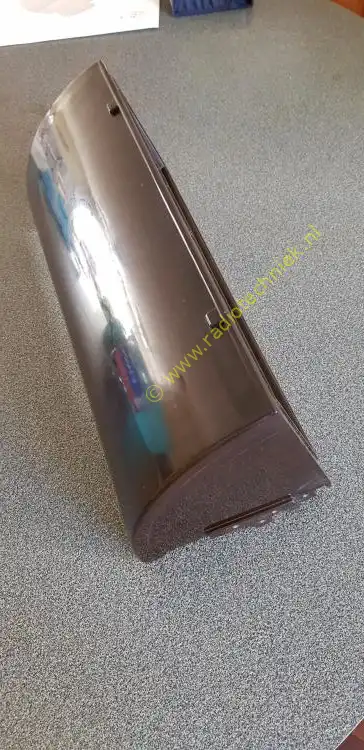

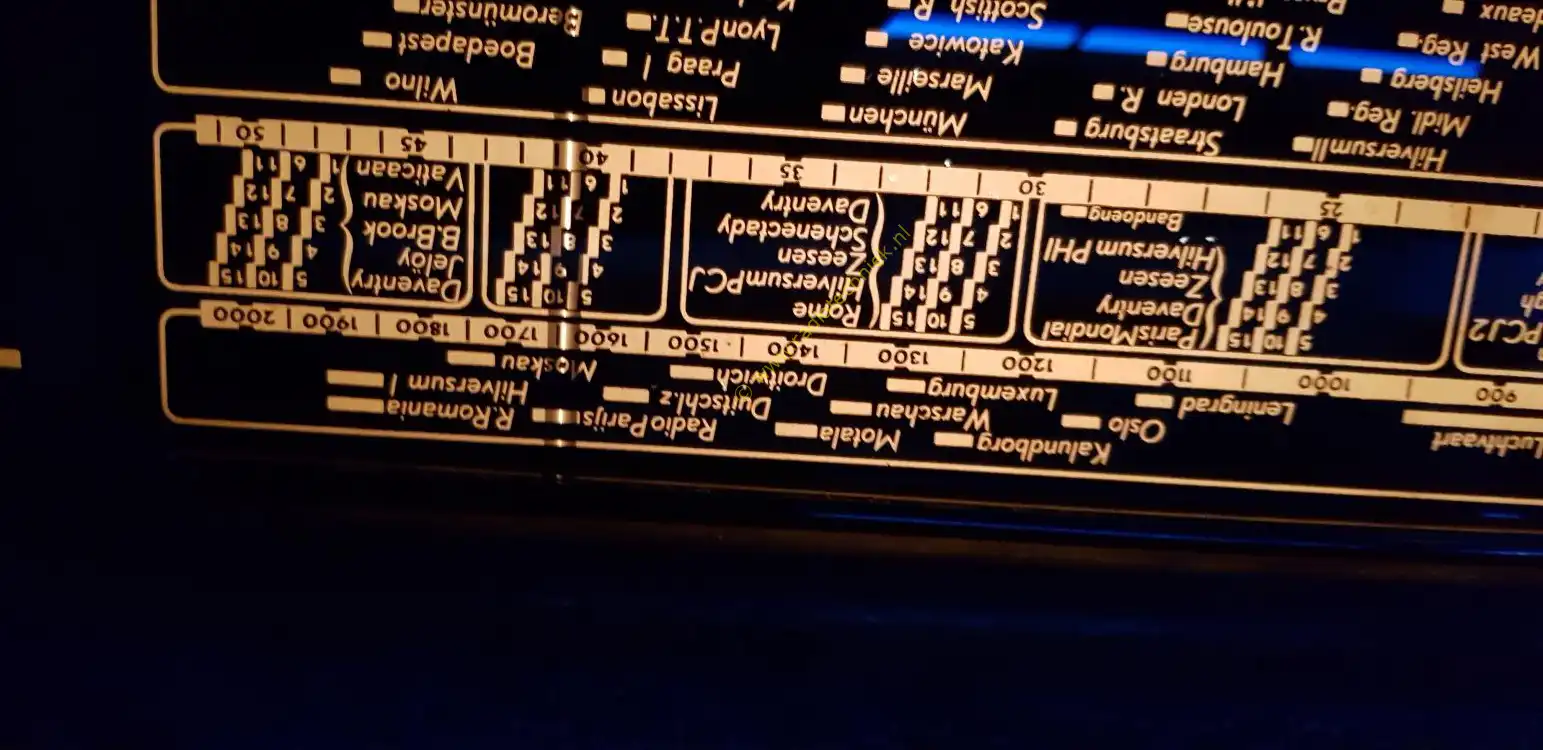

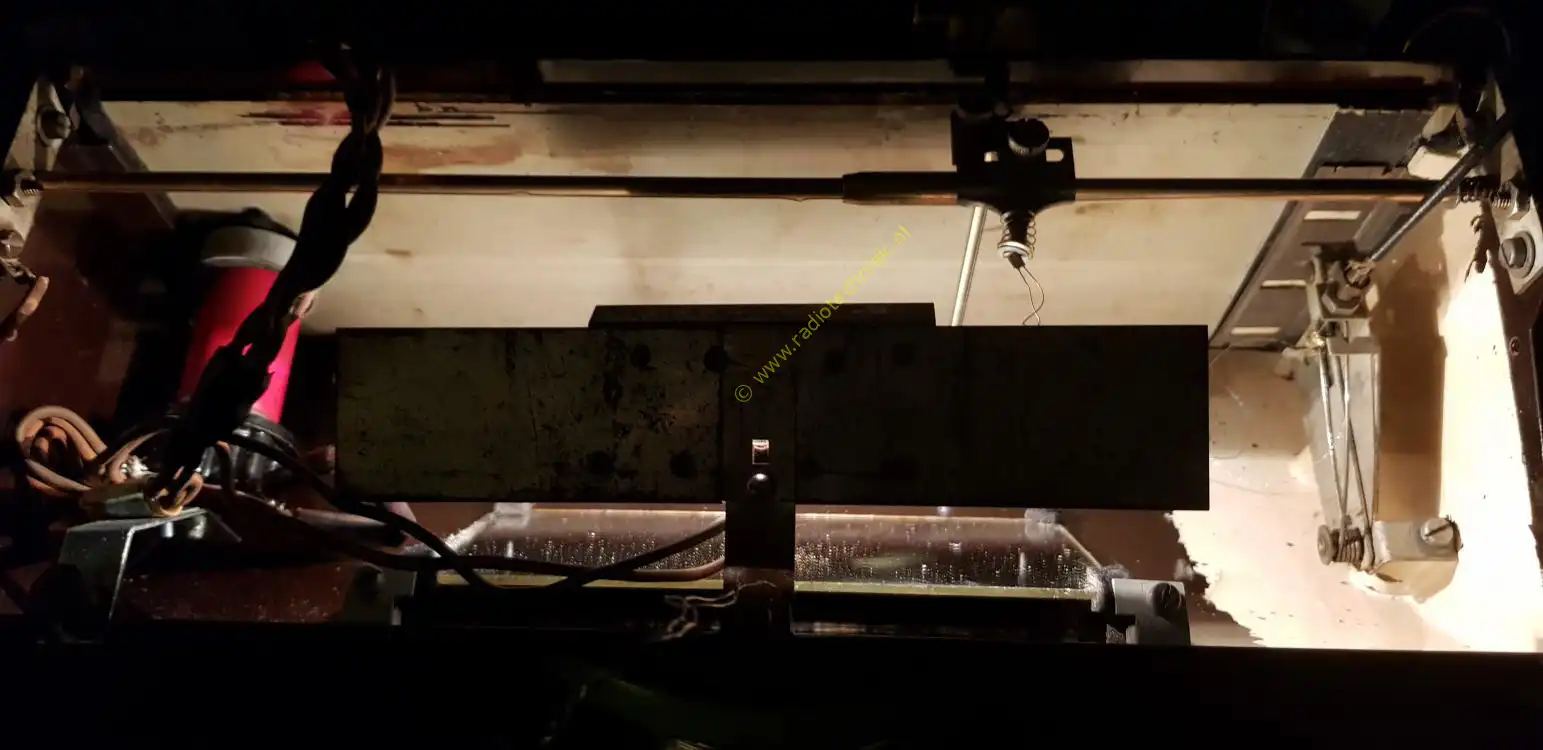

The next problem is the dial hood. The dial pointer is projected as a light image on the dial. This makes the setting of the dial pointer very precise.
Philips 850A foto 101
What do you need for that. A new dail cap, of course.
Philips 850A foto 102
You also need a mirror, mirror on the wall who is the nicely's of us all?
Philips 850A foto 103

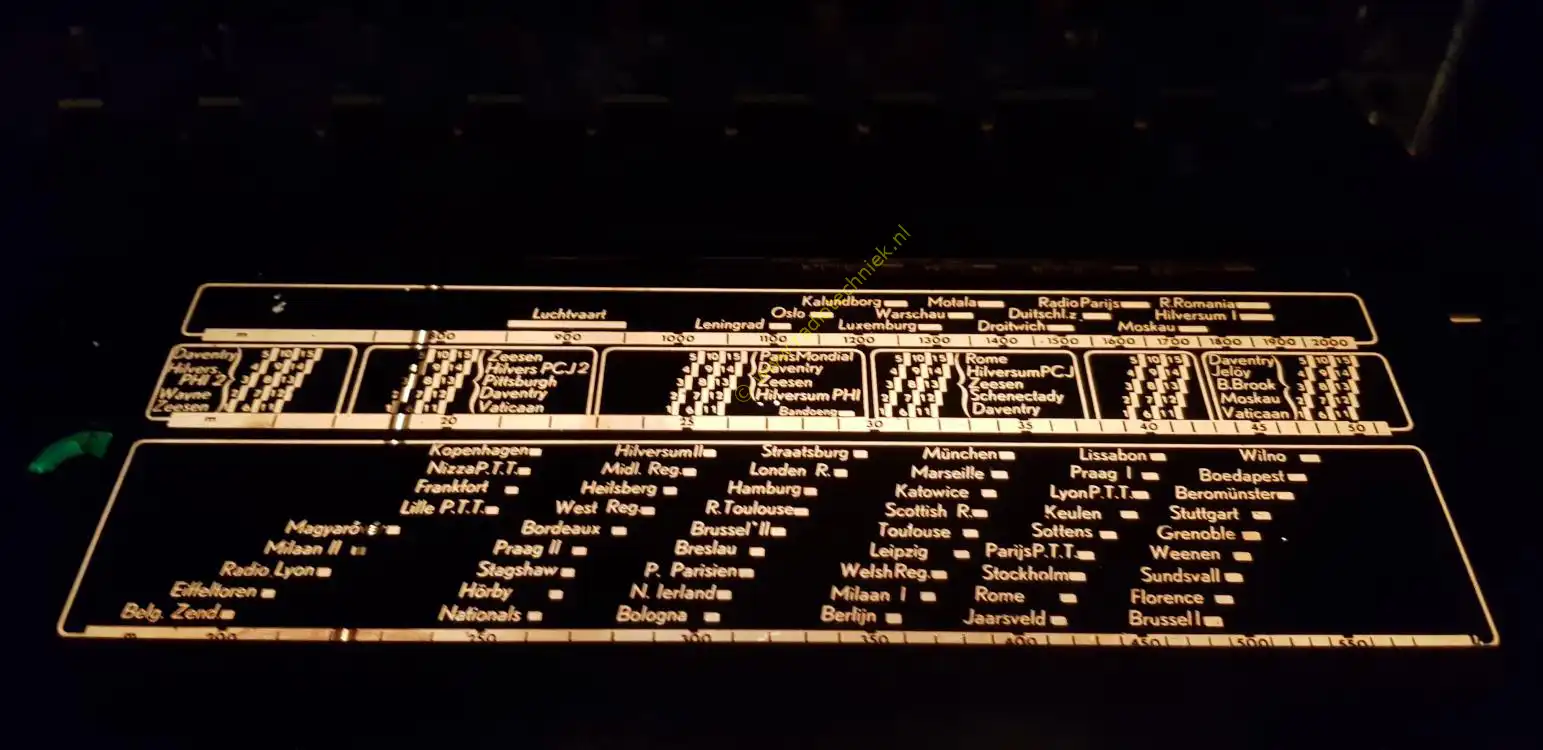

A dail with working lighting.
Philips 850A foto 104
A way to move the dial pointer from left to right and vice versa.
Philips 850A foto 105
And here begins the adjustment of the dial pointer relative to the dial.
Philips 850A foto 106
And this is the light image.
Philips 850A foto 107

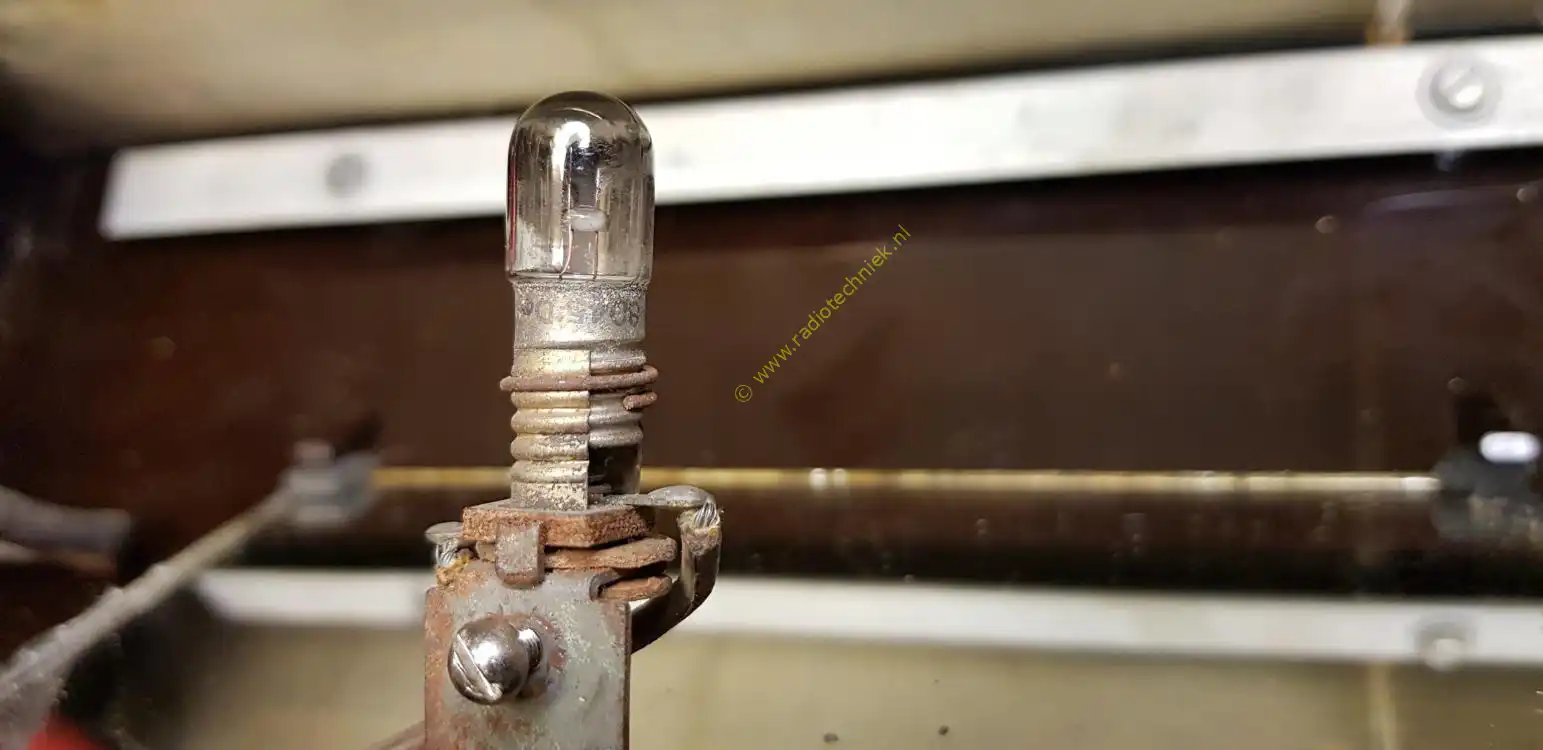

The shape of the lamp is very important here.
Philips 850A foto 108

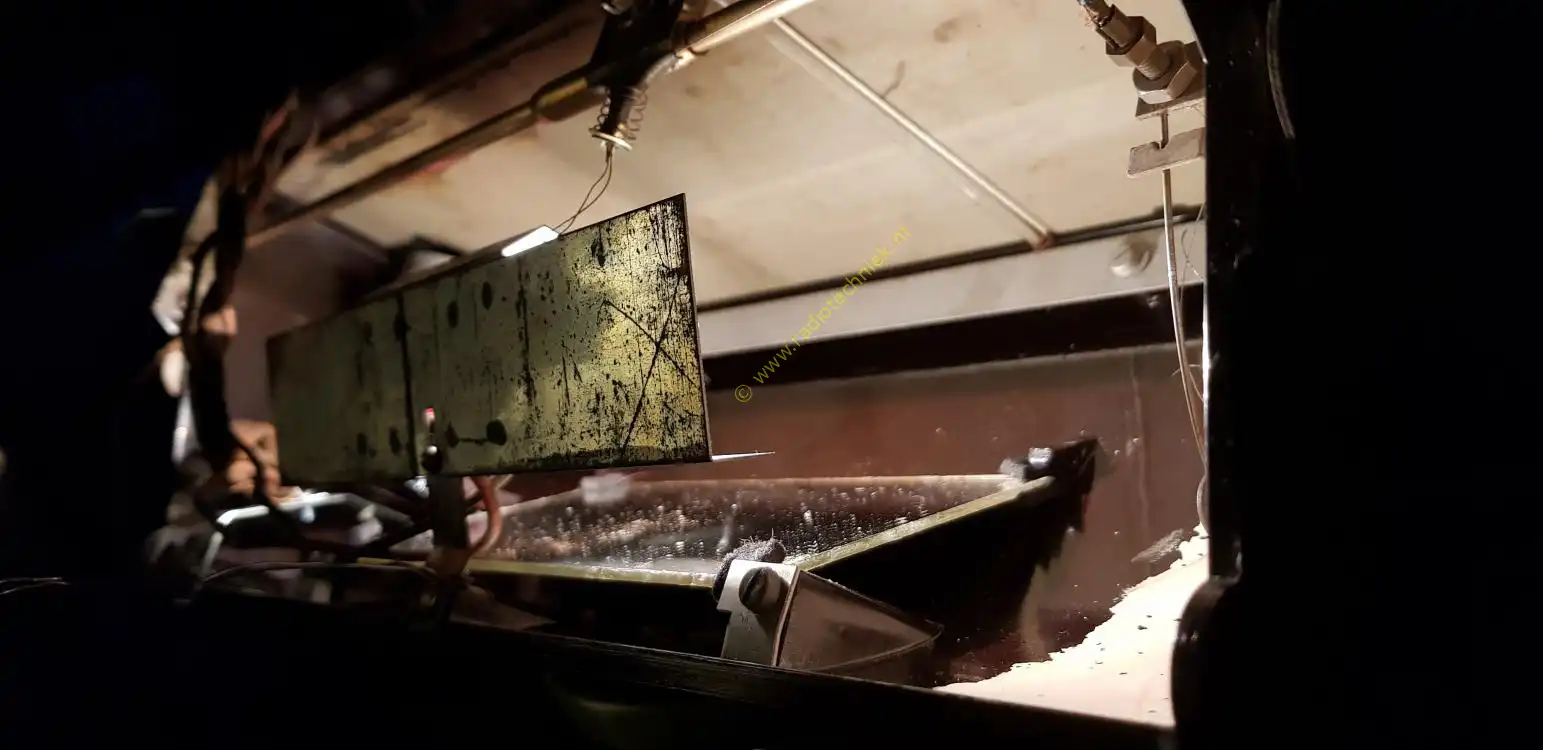

The reflector is also very important, a lot of rust just doesn't work.
Philips 850A foto 109
And a good mirror, mirror on the .....
Philips 850A foto 110
Then you get this light image over the entire dial from left to right and vice versa.
Philips 850A foto 111
Philips 850A foto 112
And then the surprise.....
Philips 850A foto 113

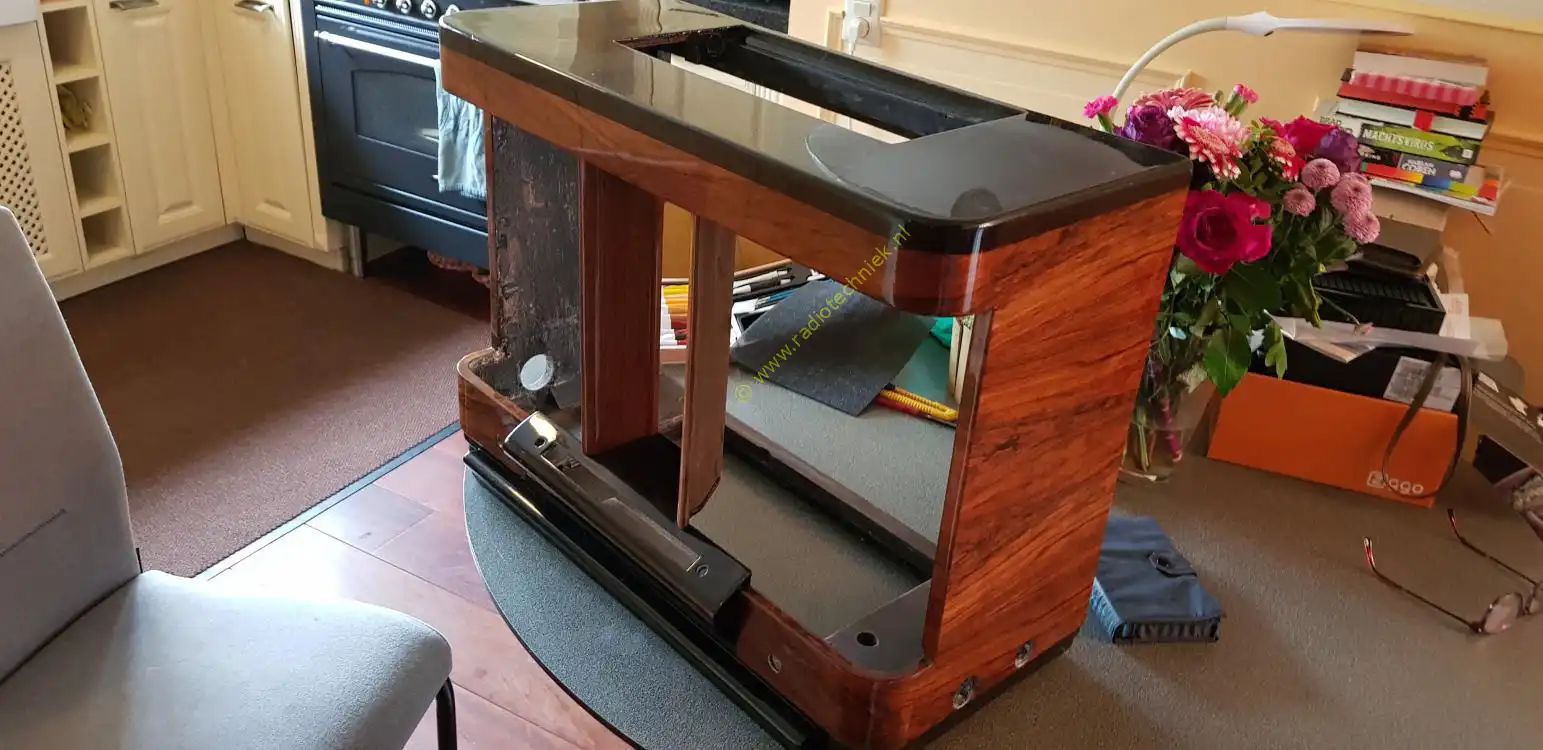

A new cabinet for a Philips 850A.
Philips 850A foto 114

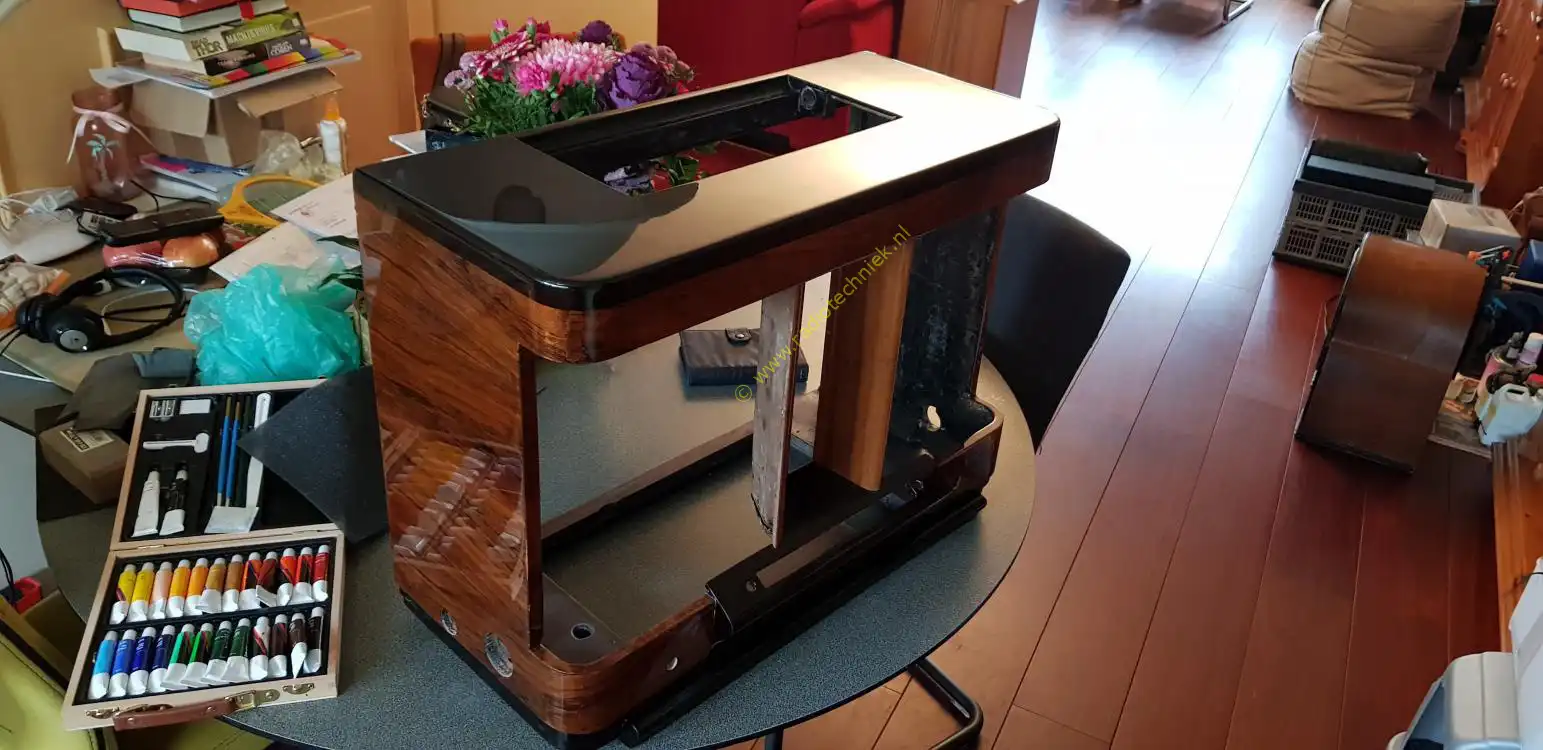

Or is this the same cabinet? That's impossible.
Philips 850A foto 115

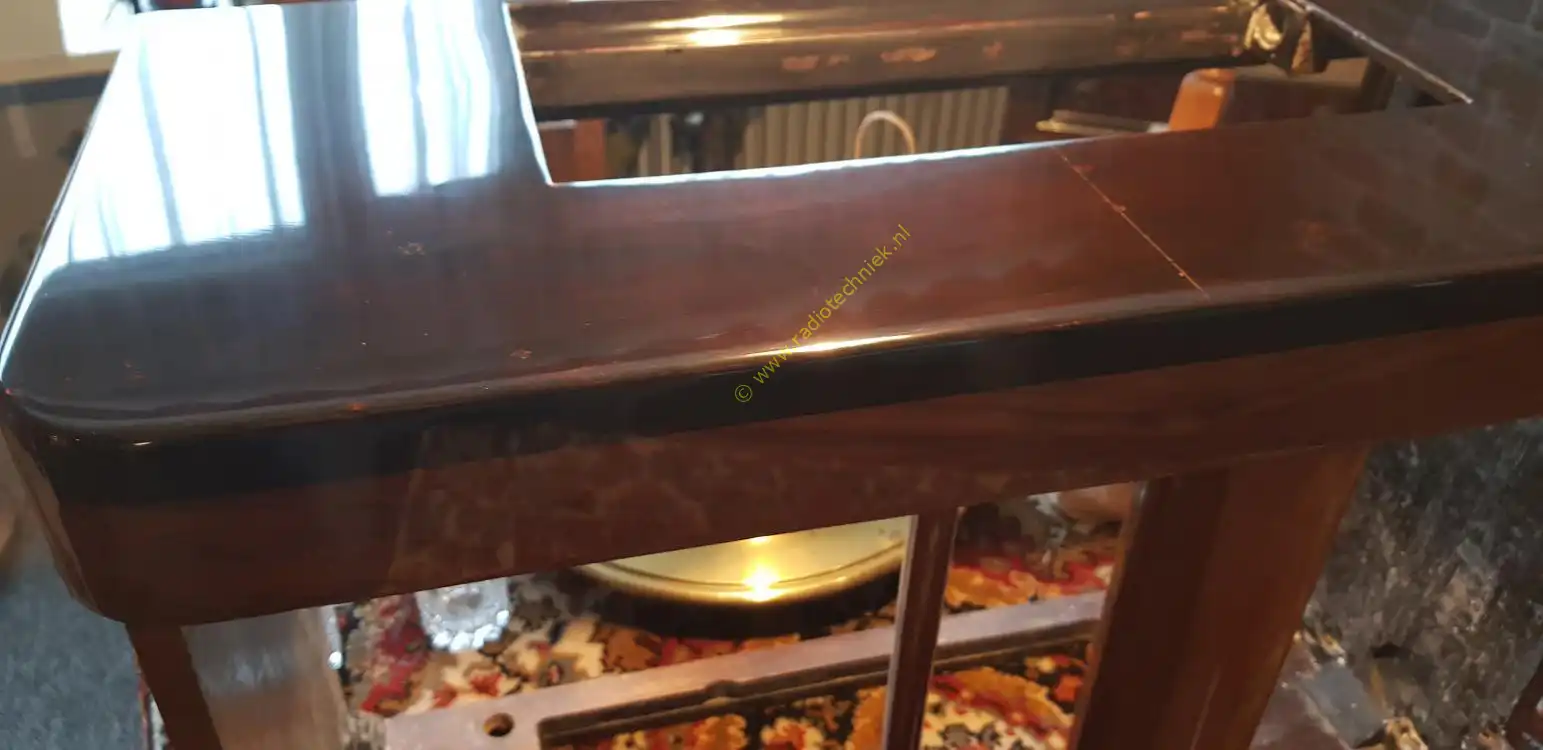

This cabinet is truly beautiful. The shine the deep drawing in the veneer.
Philips 850A foto 116
And yes this is the same cabinet. There are people who can restore this so beautifully. And unfortunately I am not. But whoever did this cabinet is an insane craftsman.

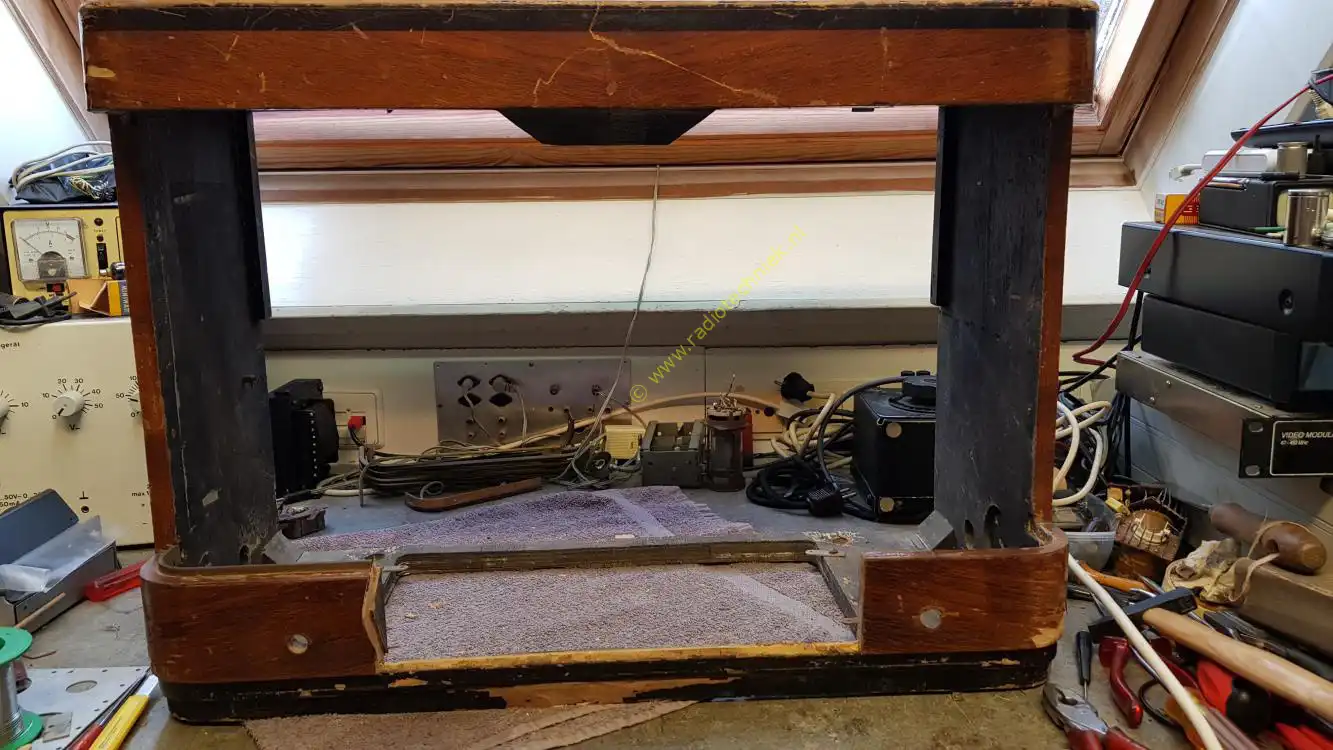

Philips 850A foto 117

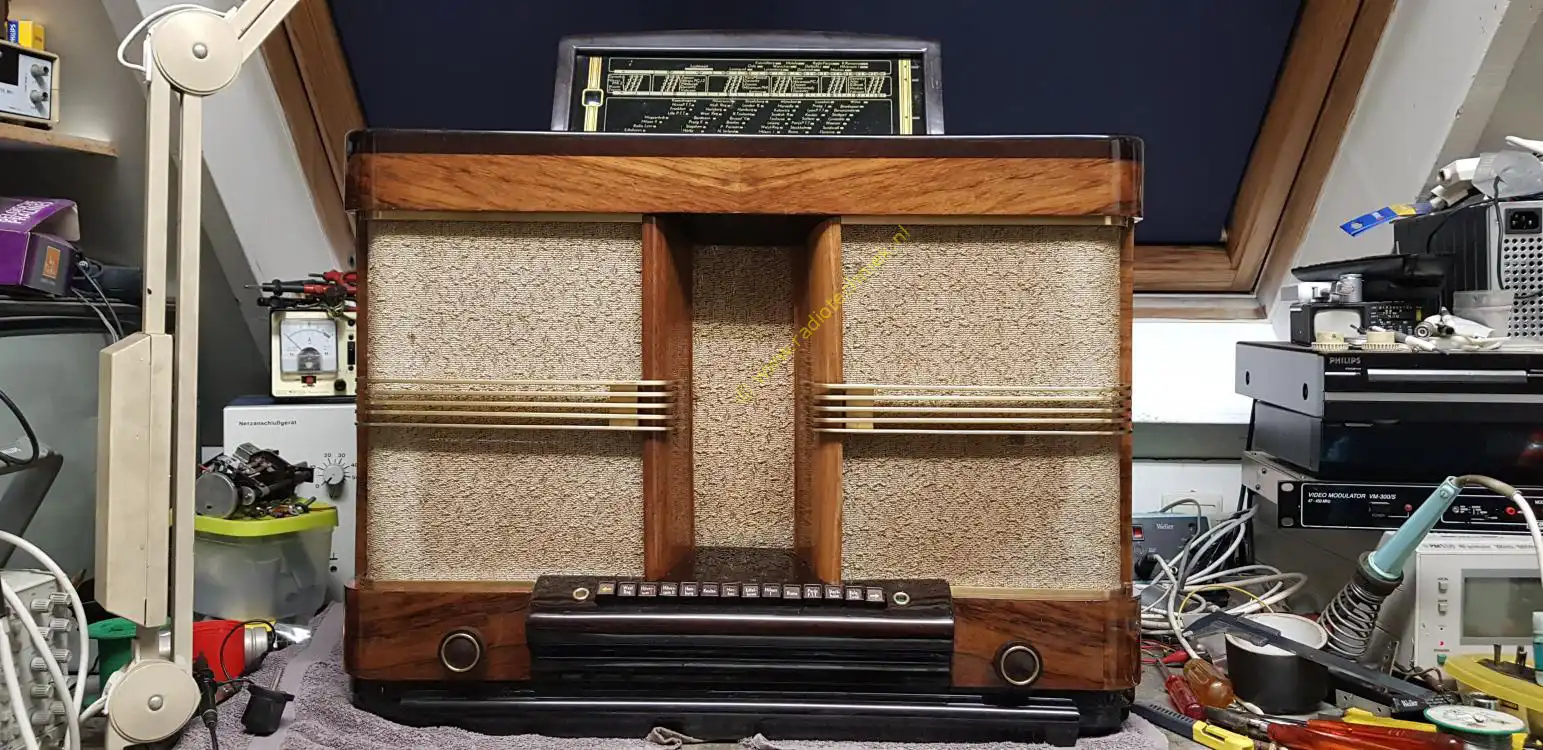

And such a speaker grille looks great on such a cabinet.
Philips 850A foto 118
Because there is a new bottom in the cabinet, the chassis must be measured again in the cabinet.
Philips 850A foto 119
And that is not easy, the press studs must run smoothly and must not get stuck.
Philips 850A foto 120
Placing the chassis took me a lot of time.
Philips 850A foto 121
But finally the chassis is in place and the feet under the chassis have marked the place in the bottom shelf of the cabinet.
Philips 850A foto 122

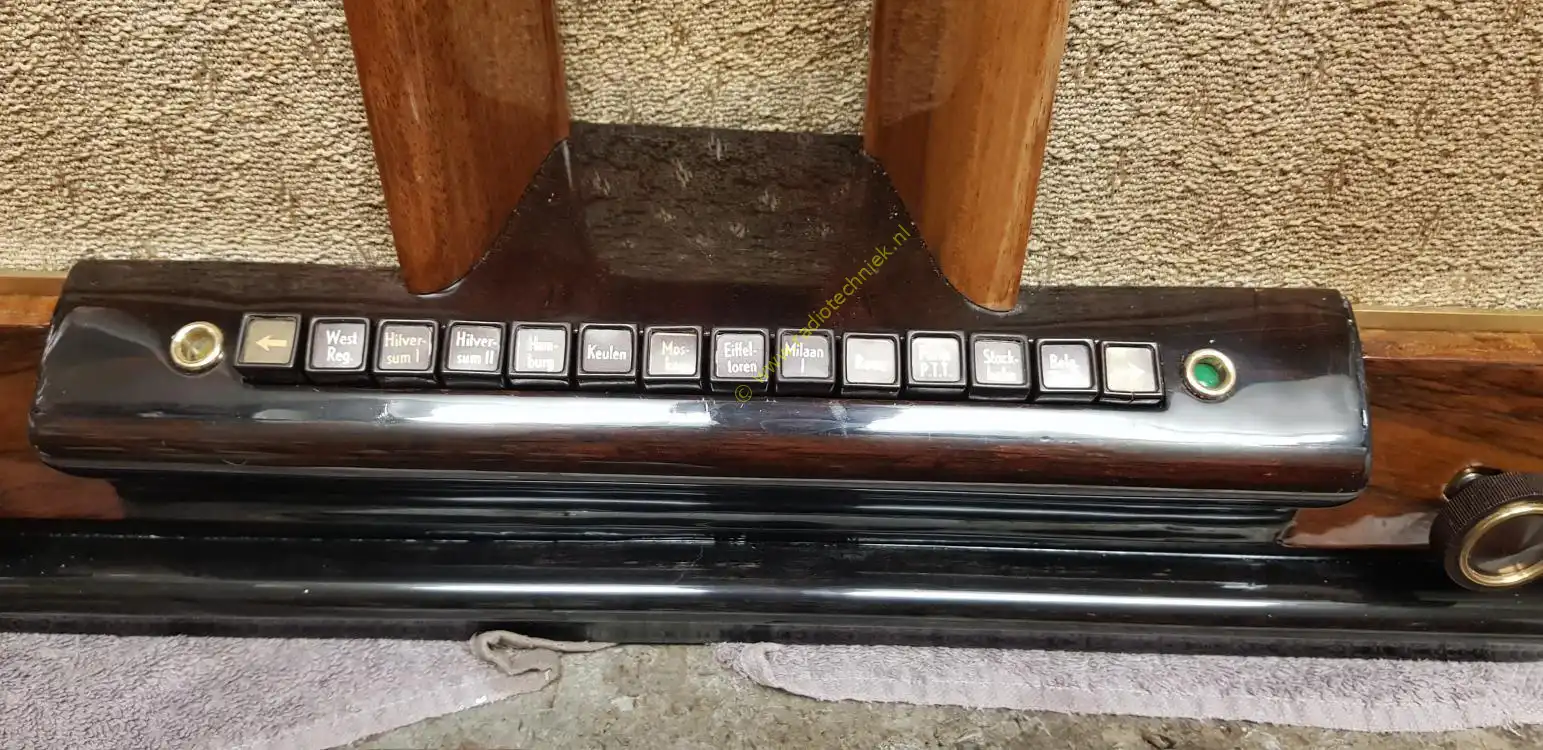

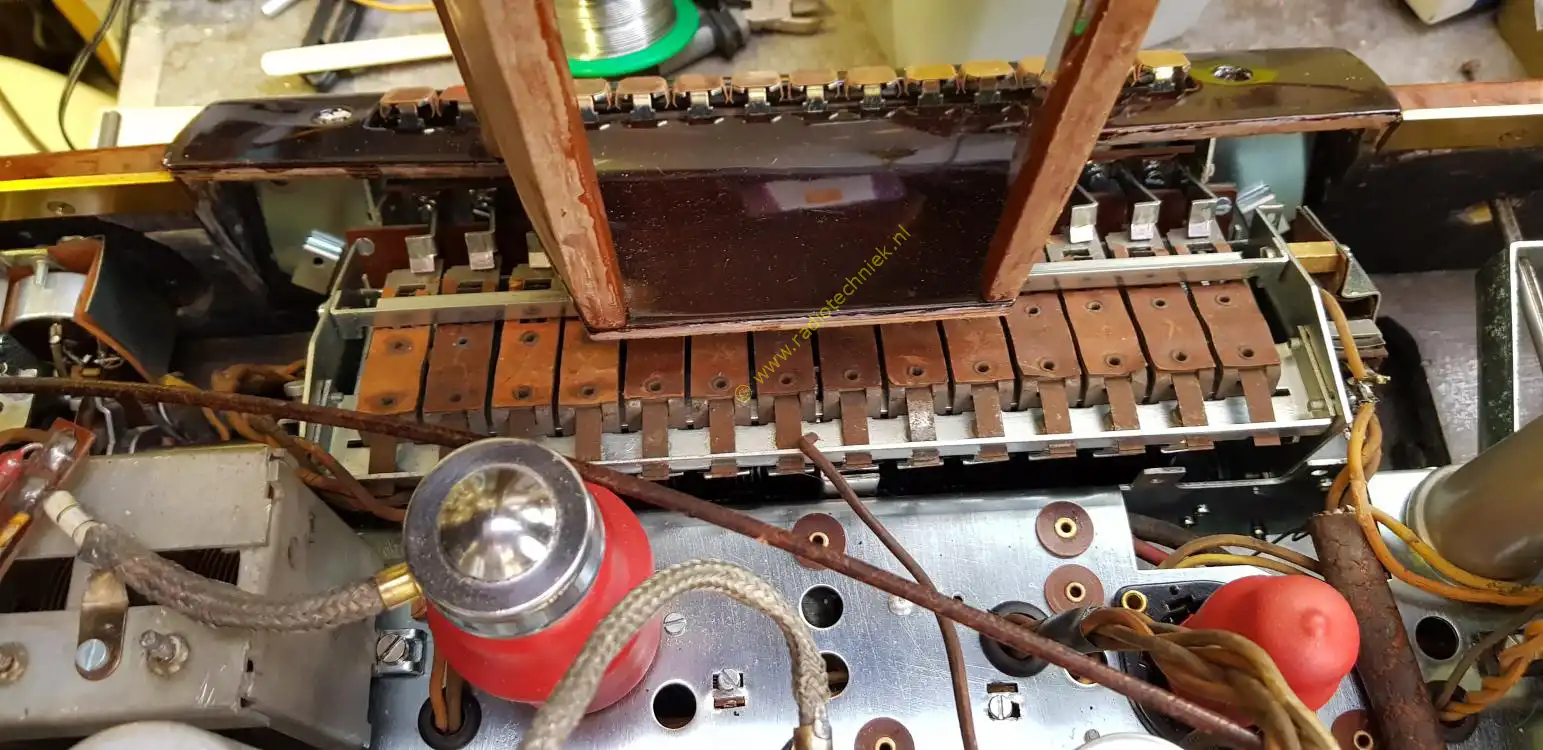

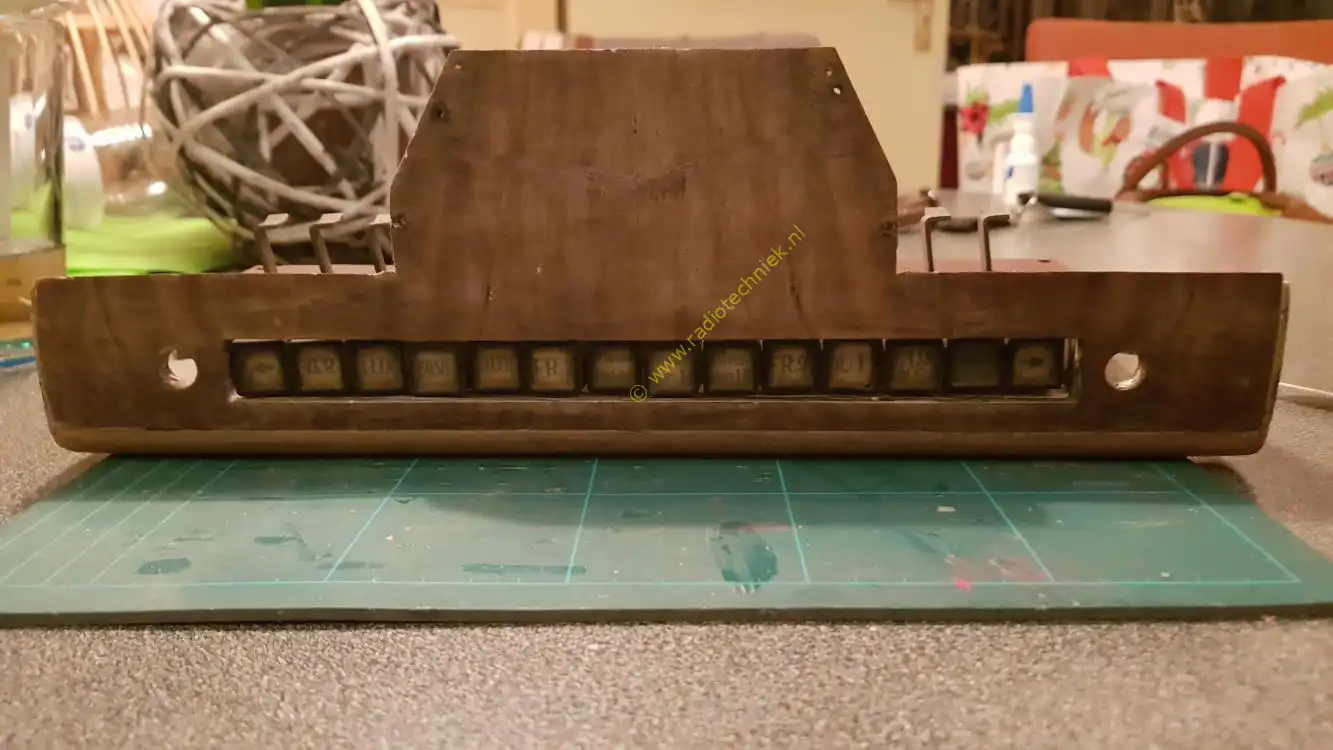

Here is a picture of the keyboard and its position in the cabinet.

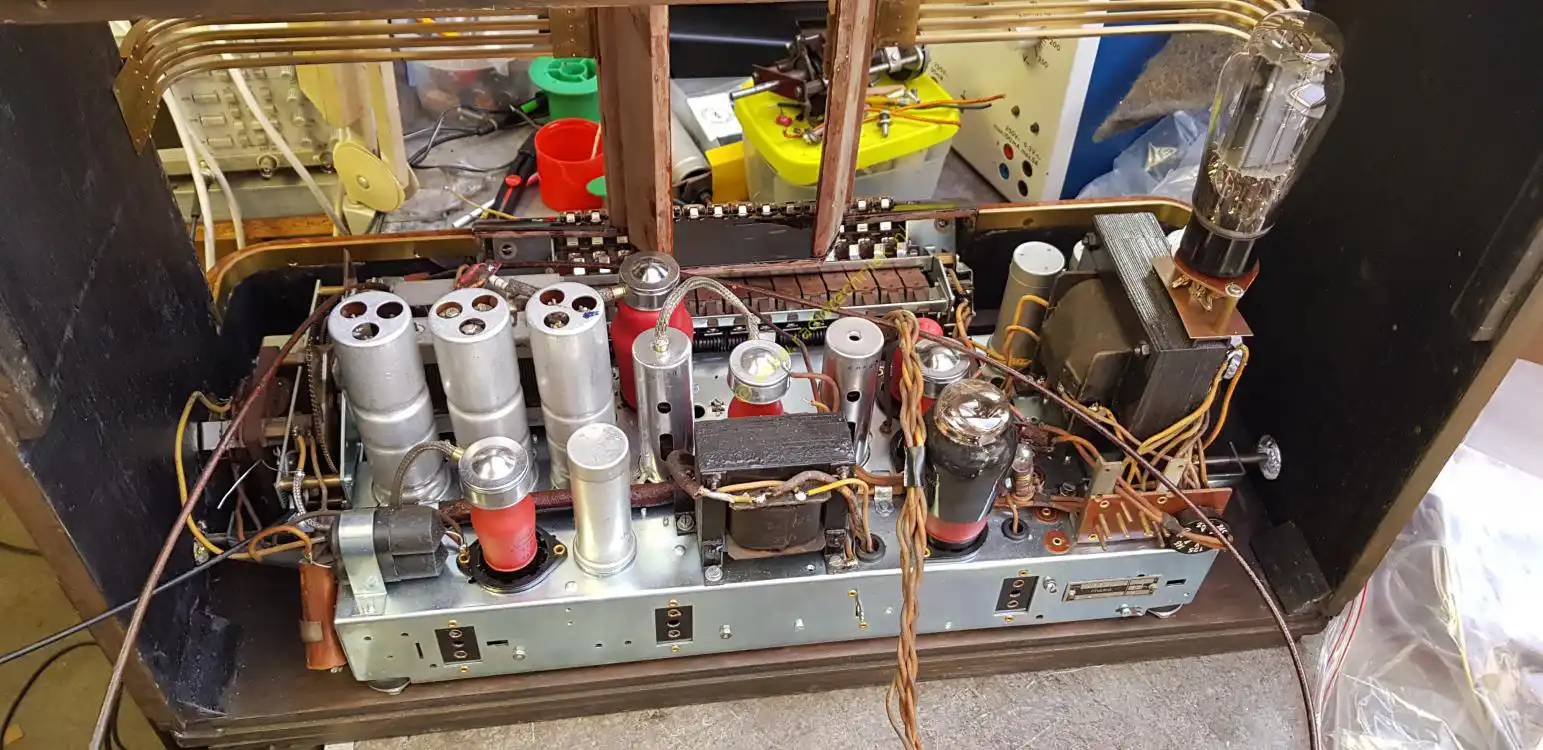

Philips 850A foto 123

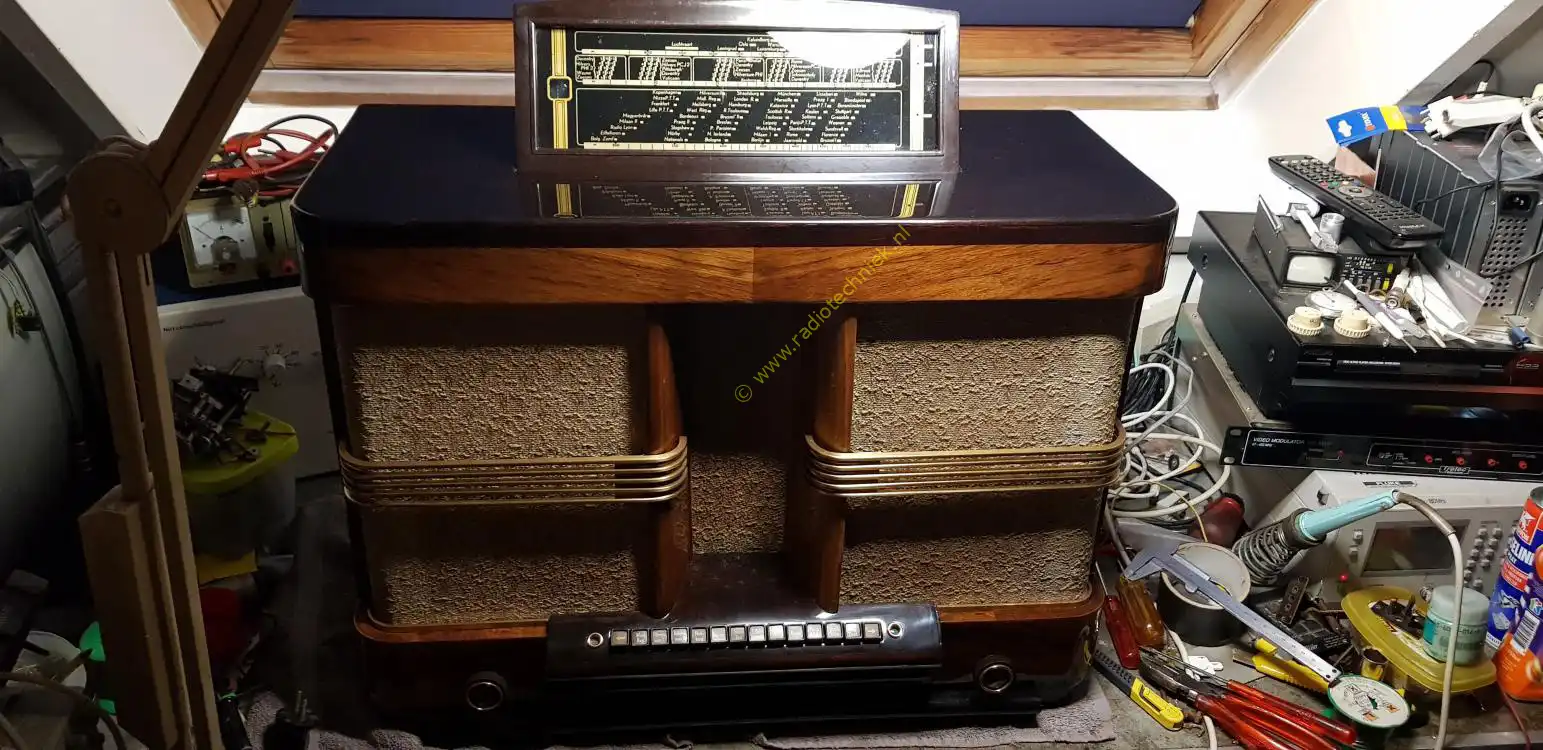

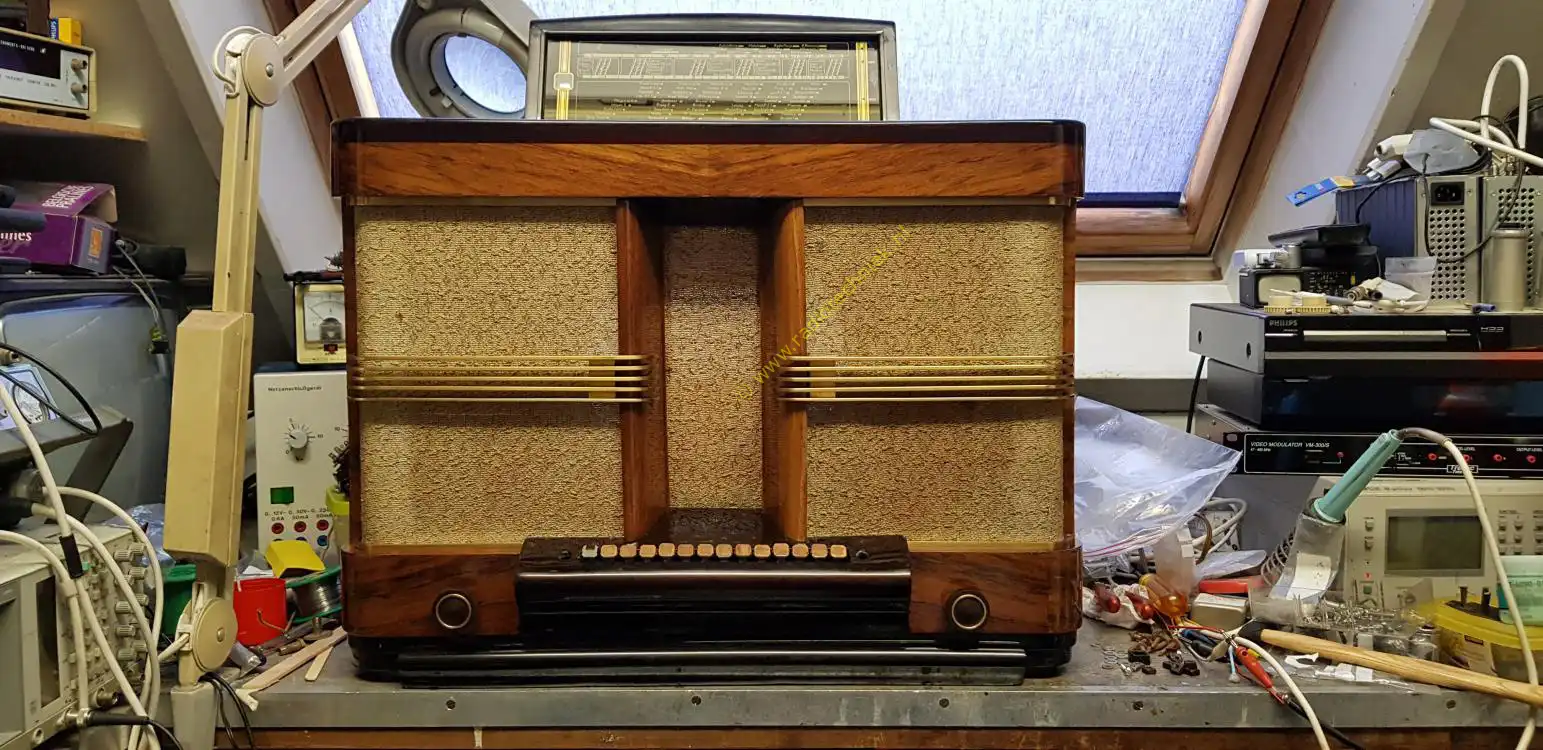

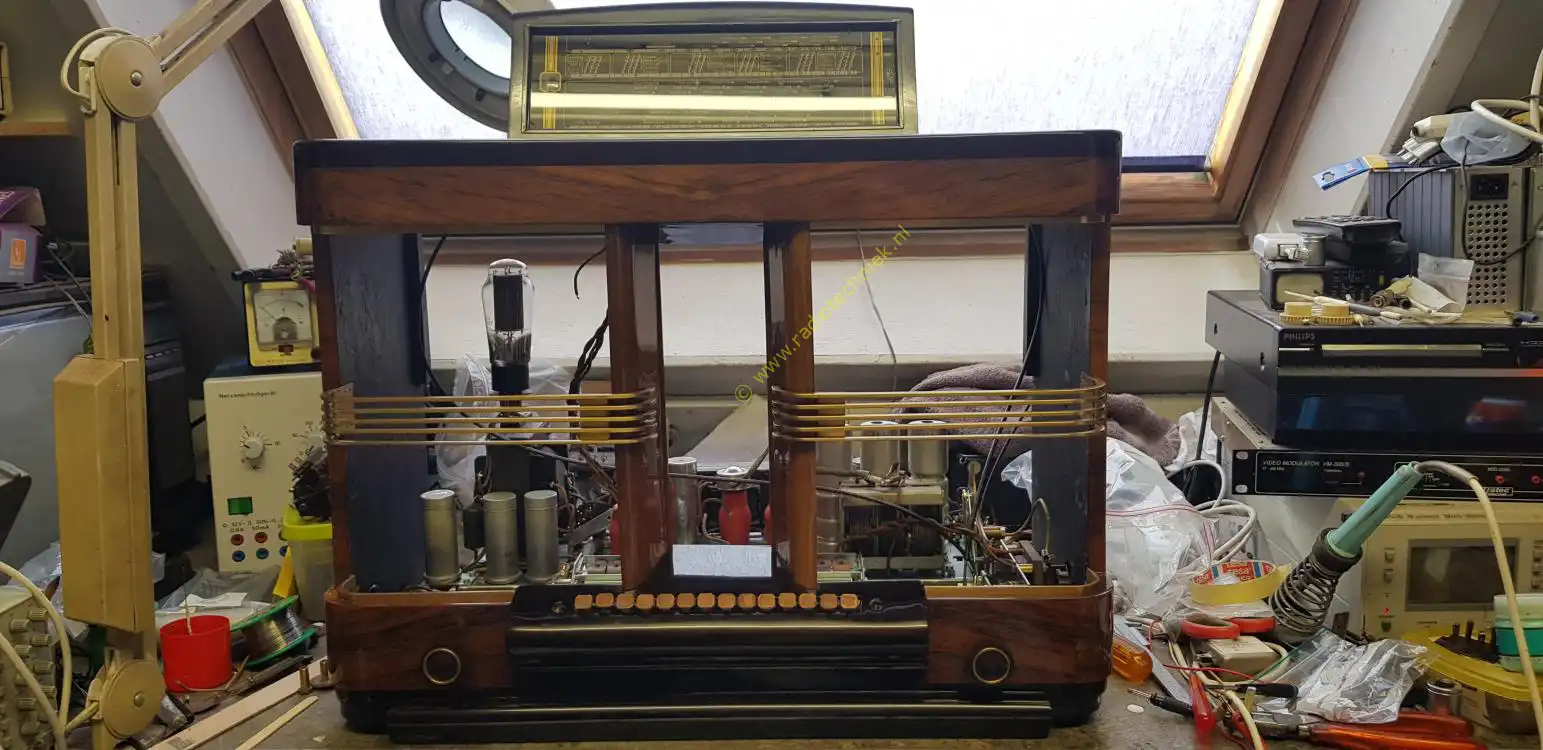

Nice isn't it chassis in a new cabinet.
Philips 850A foto 124
You can somewhat recognize a radio in the front.
Philips 850A foto 125
Placing the cloth. The cloth has not become new but is still original.
Philips 850A foto 126

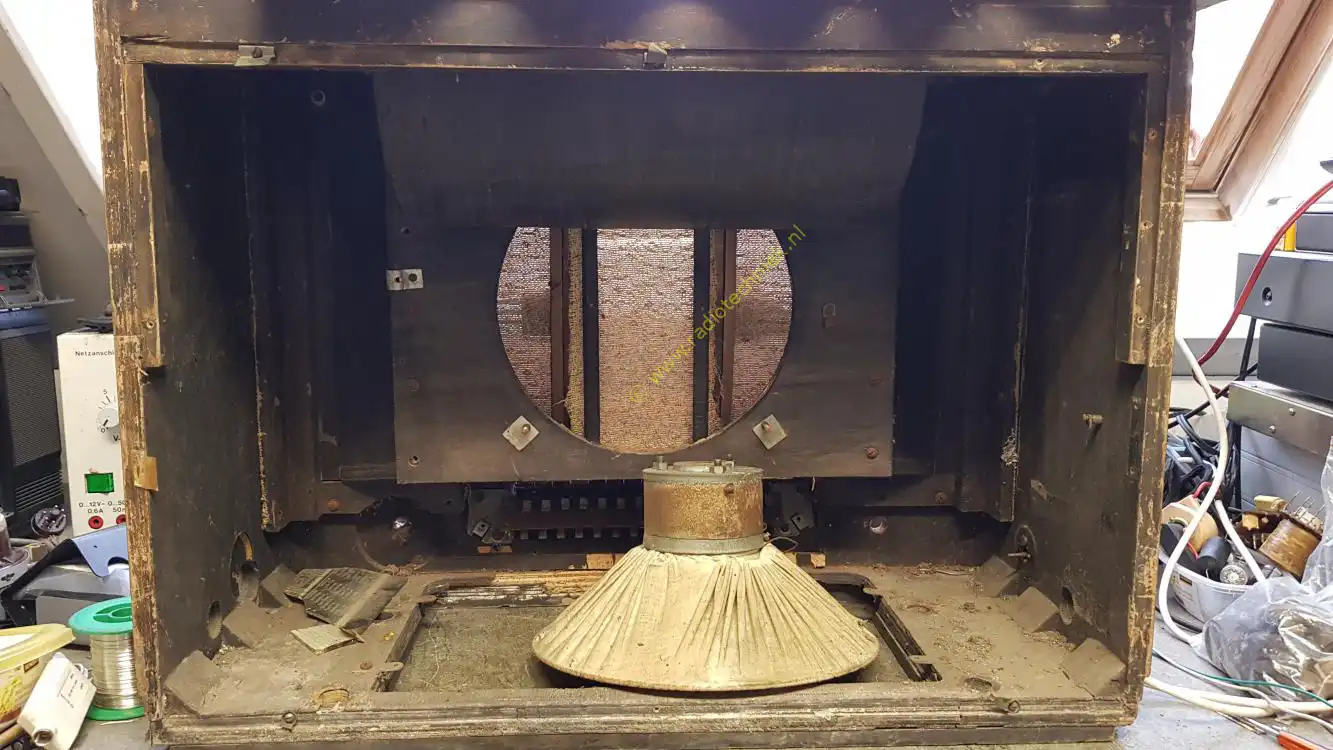

And here you can see how the loudspeaker is mounted in relation to the cabinet and the sound wings.

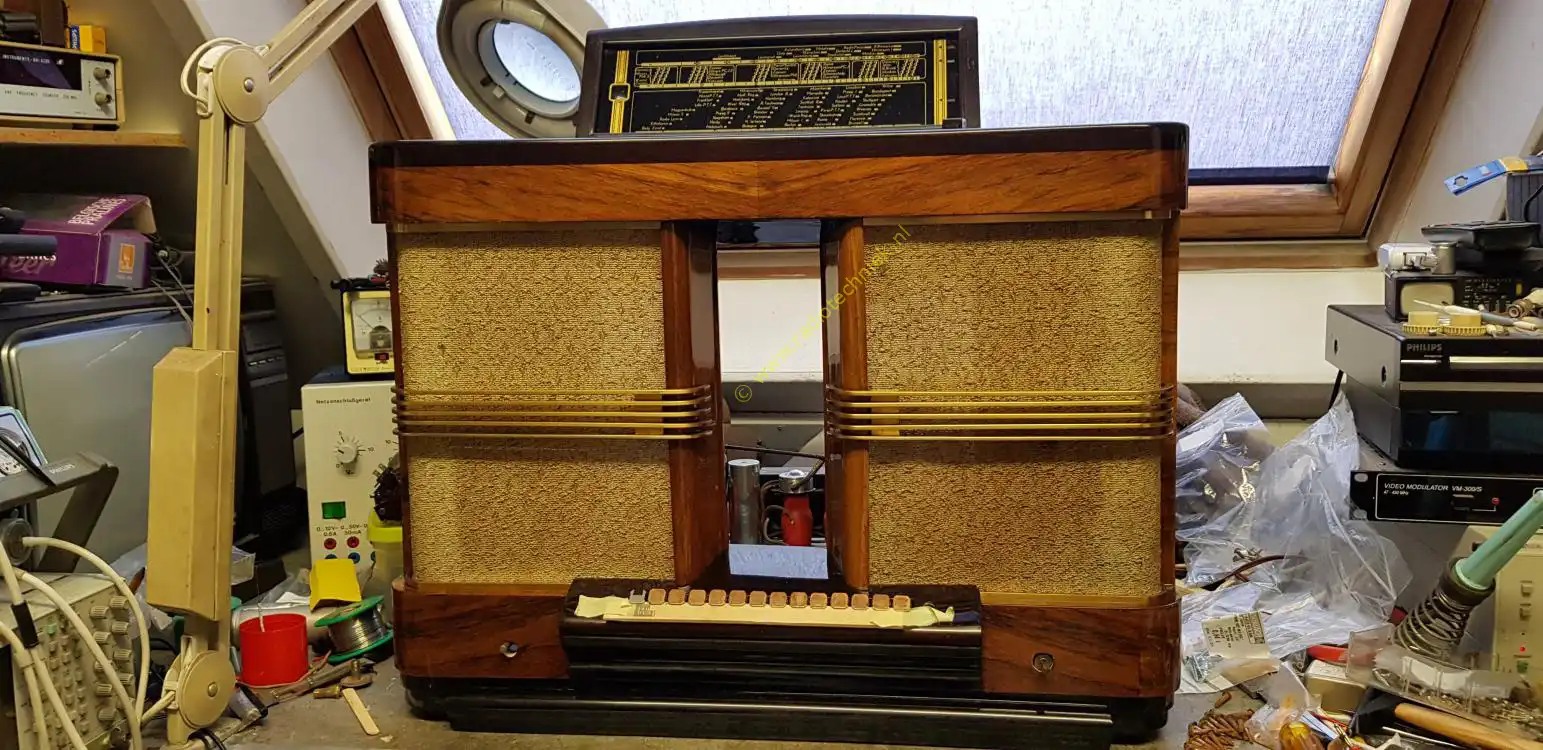

Philips 850A foto 127
Now it has already become a radio. Only the press studs left. And both lampshades.
Philips 850A foto 128

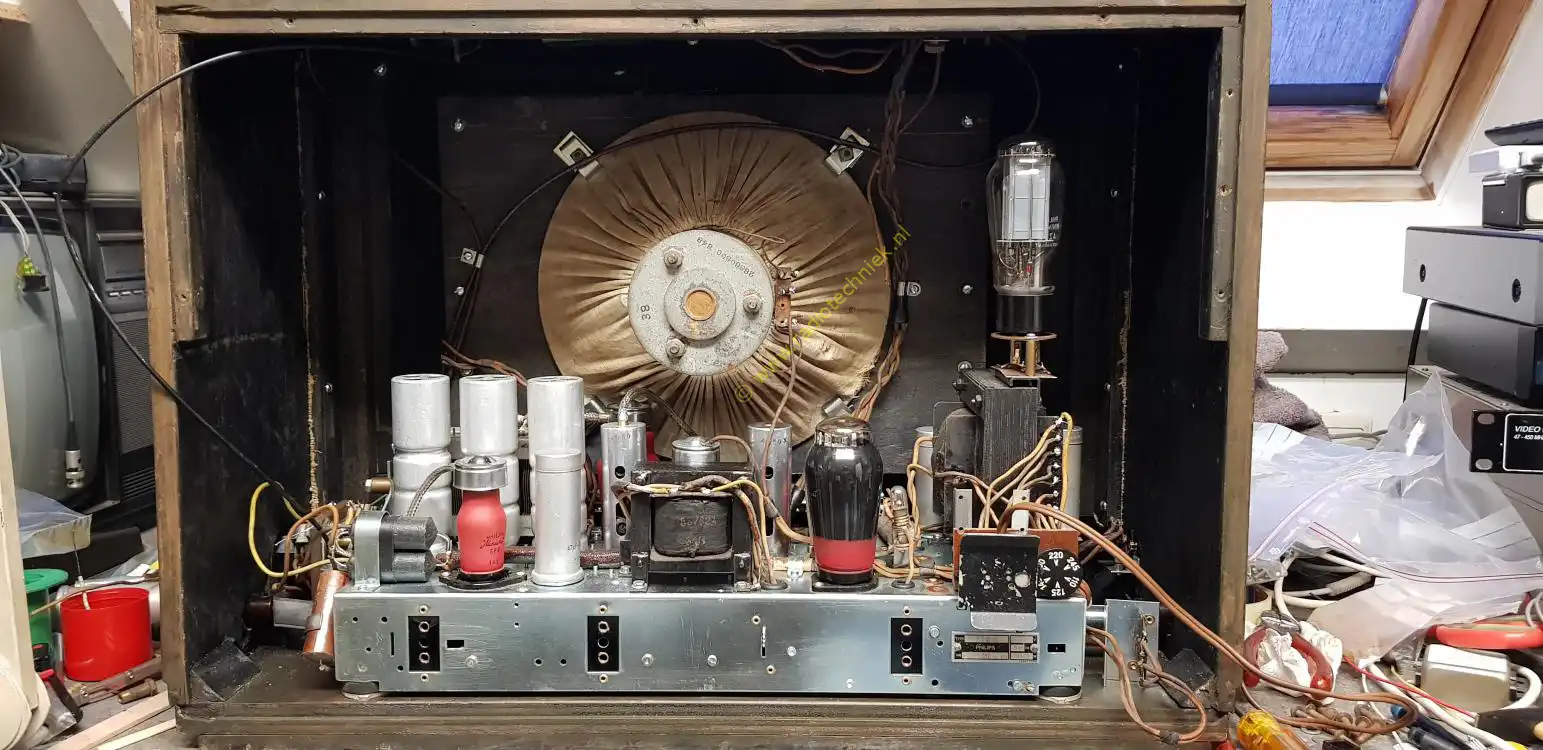

The speaker cloth is back in the cabinet. Time to do the rest.

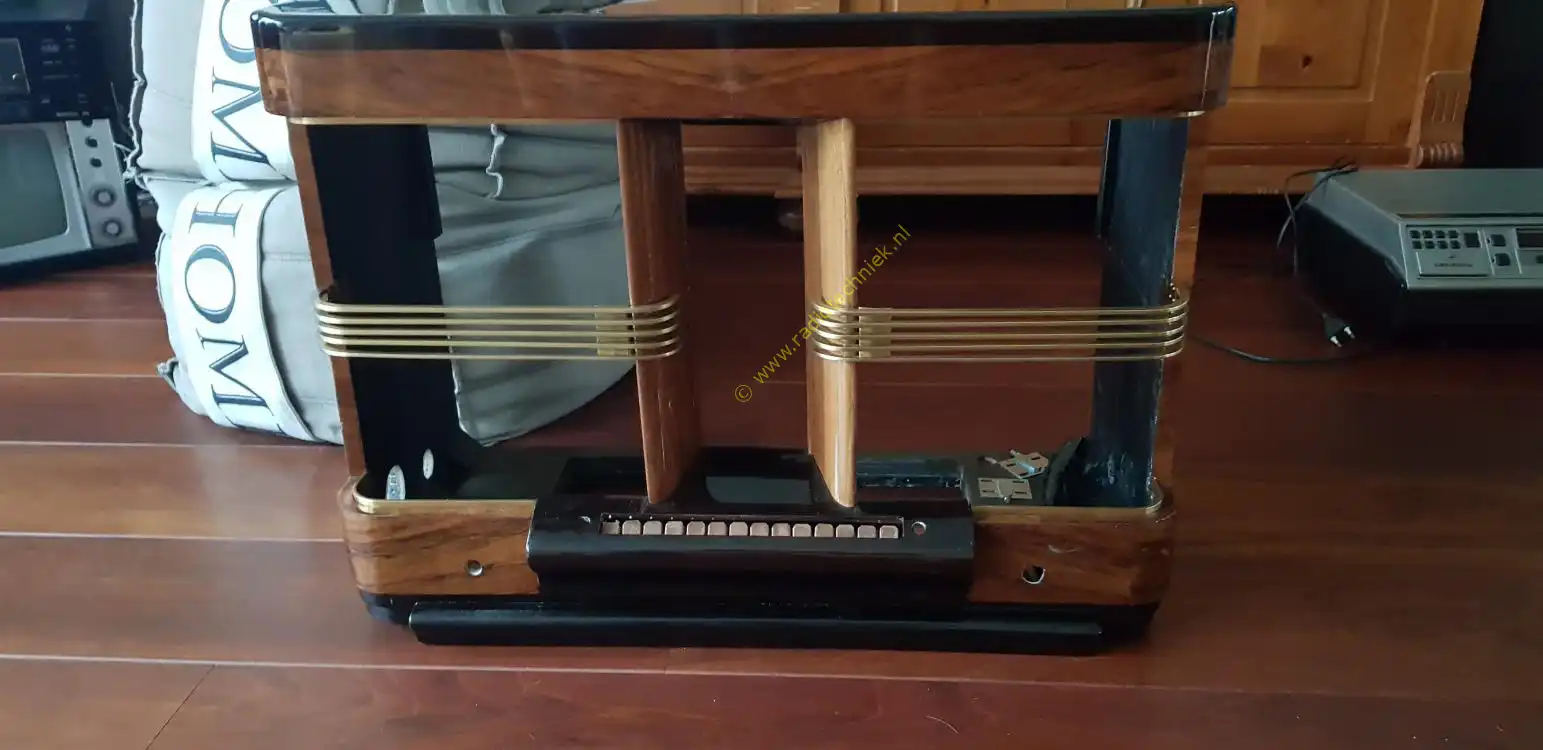

Philips 850A foto 129
The speaker back in it's place.
Philips 850A foto 130
Here you can see the part of the cabinet that was knocked away with an axe.
Philips 850A foto 131
And here's the bottom plate back on. the two small pieces are still missing.

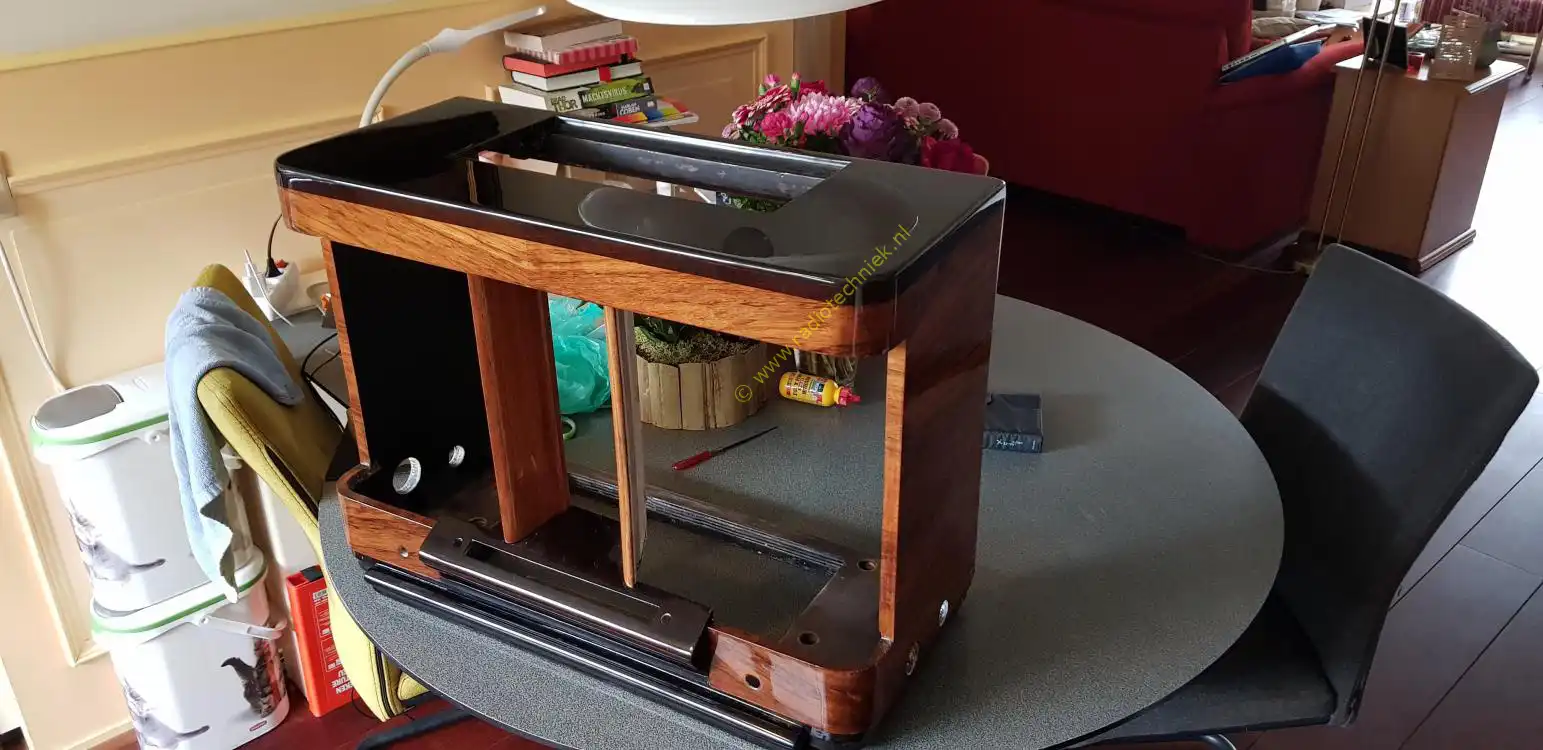

Philips 850A foto 132
And so the smallest details have to be restored.
Philips 850A foto 133
Because you want the keyboard to look like new again.
Philips 850A foto 134

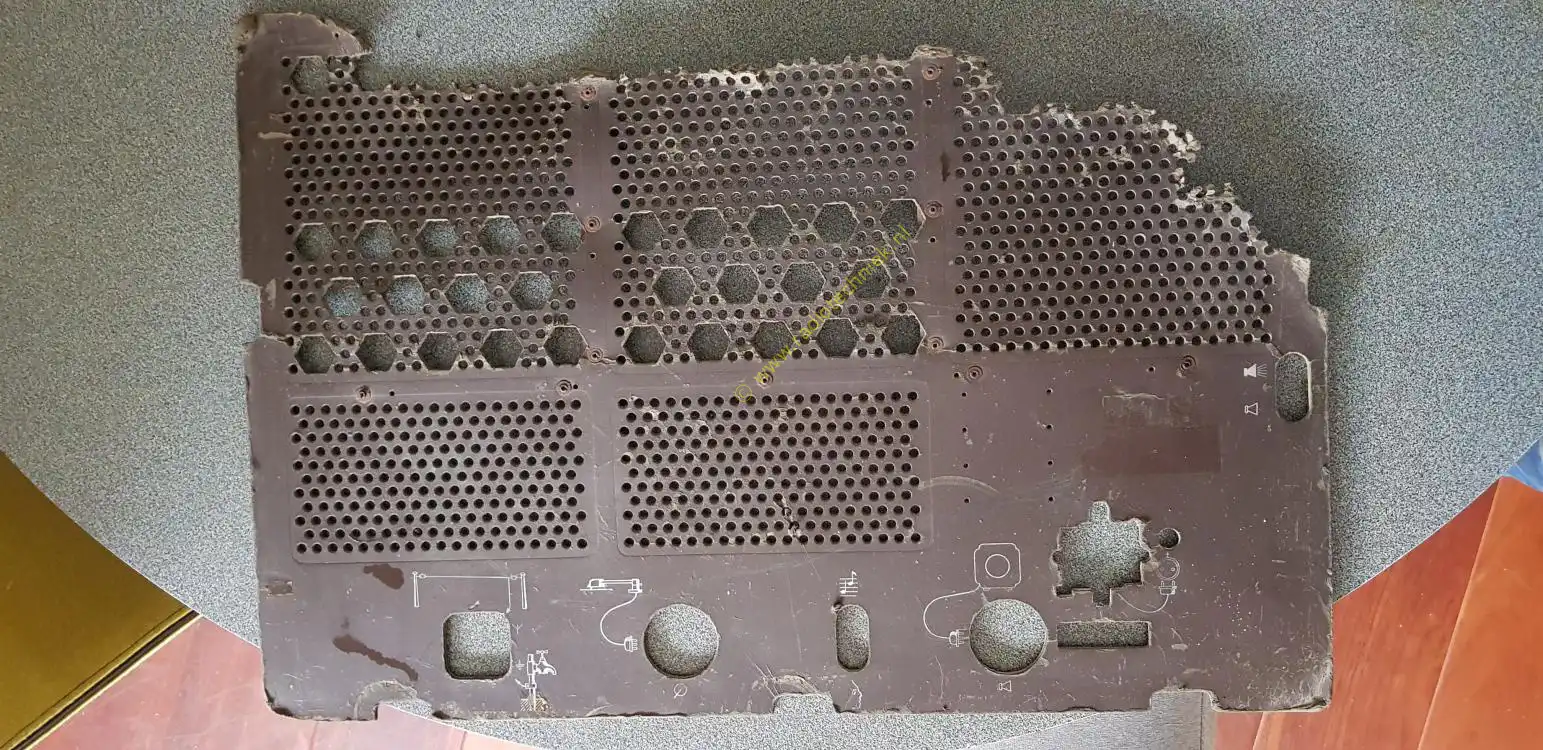

Unfortunately, a piece of the aft bulkhead is missing. But we are still looking for a solution for that.

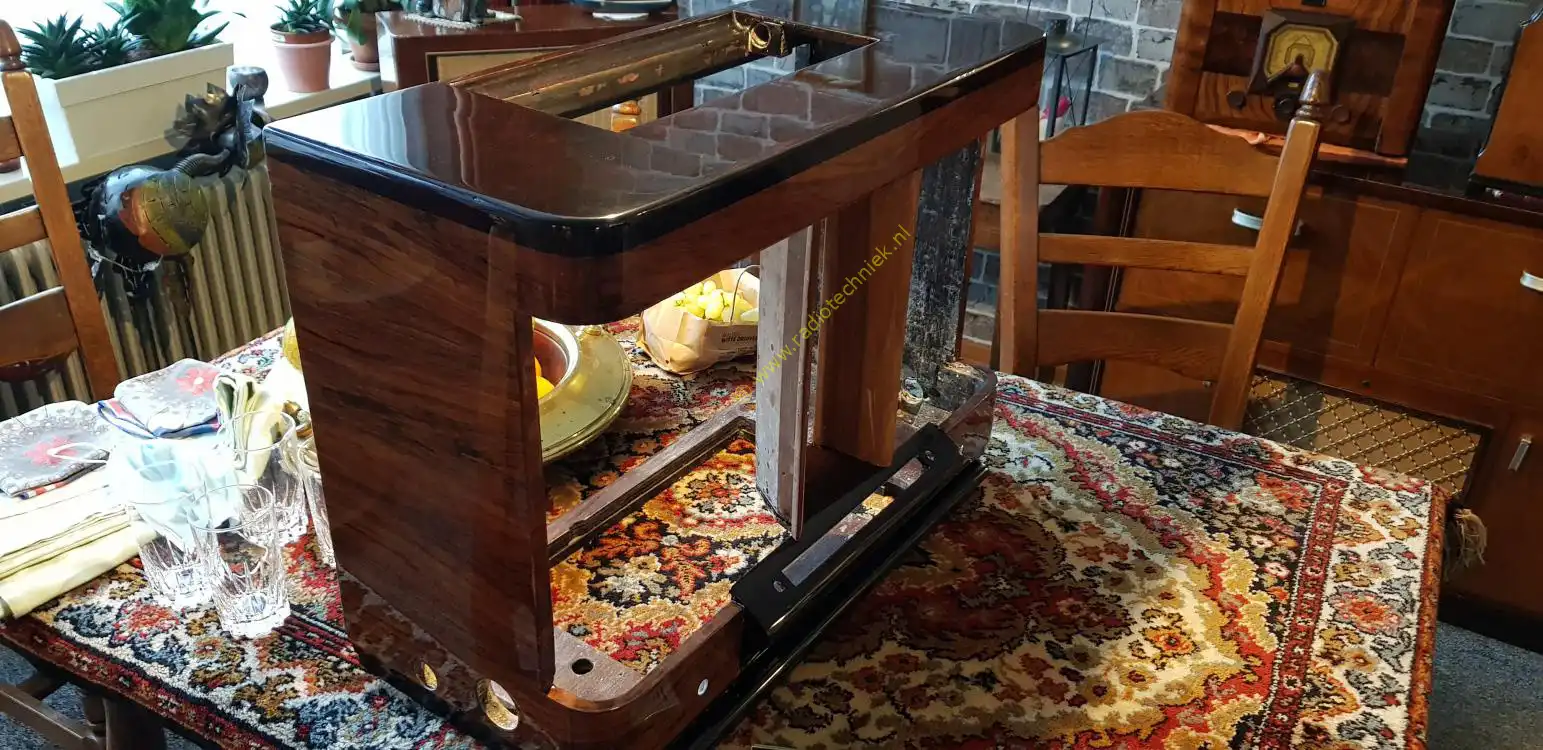

Philips 850A foto 135

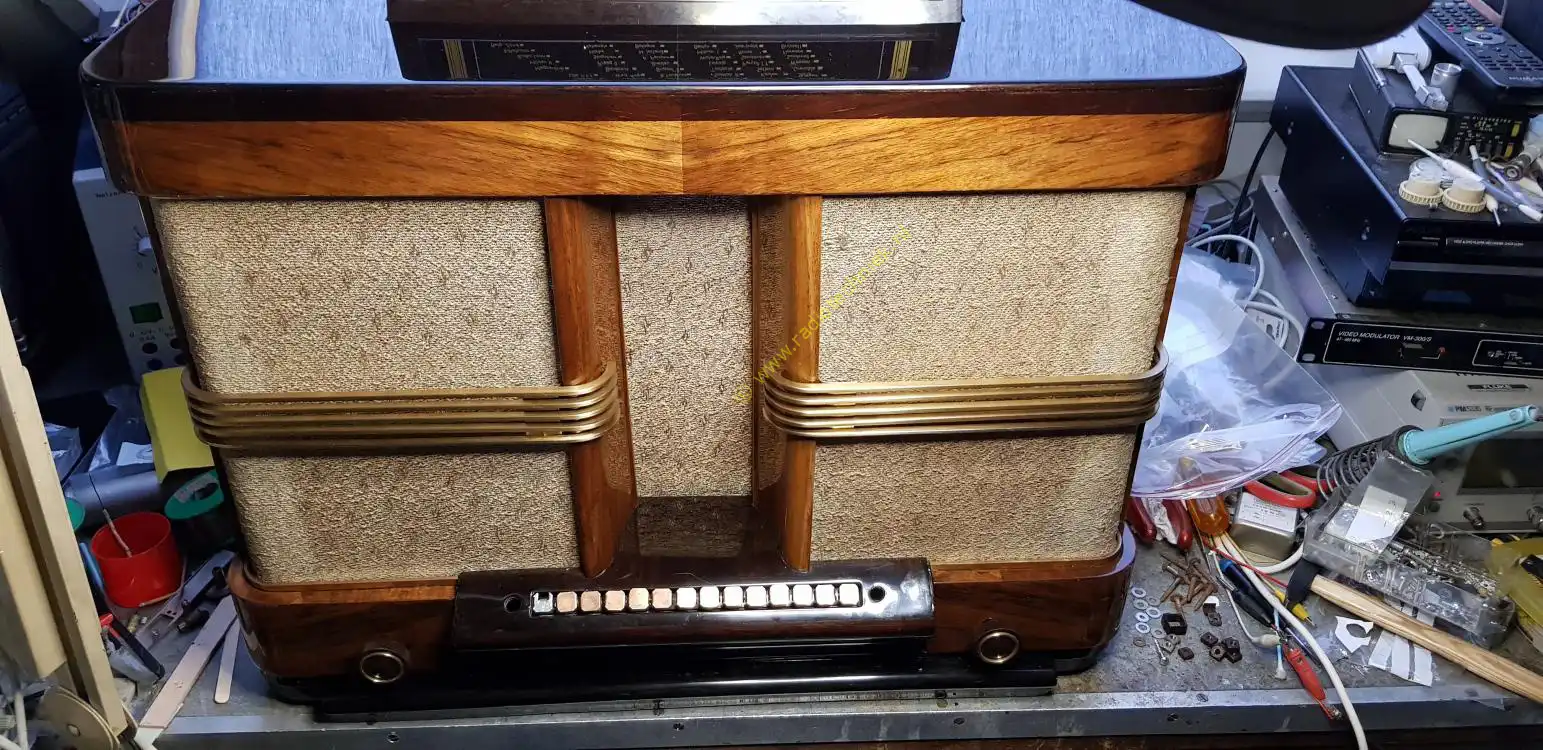

The cabinet is like new again.
Philips 850A foto 136
And with the picture we started with, we also end. Everything can be restored. Often it is a matter of time, money and patience.
Philips 850A foto 137
This video is an encore. How does an 850A play on a local AM station in this case ExtrAM. This radio is new and this was the first cabinet test with its own loudspeaker.
